Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

6 part groups · 2 illustrations

Illustrations

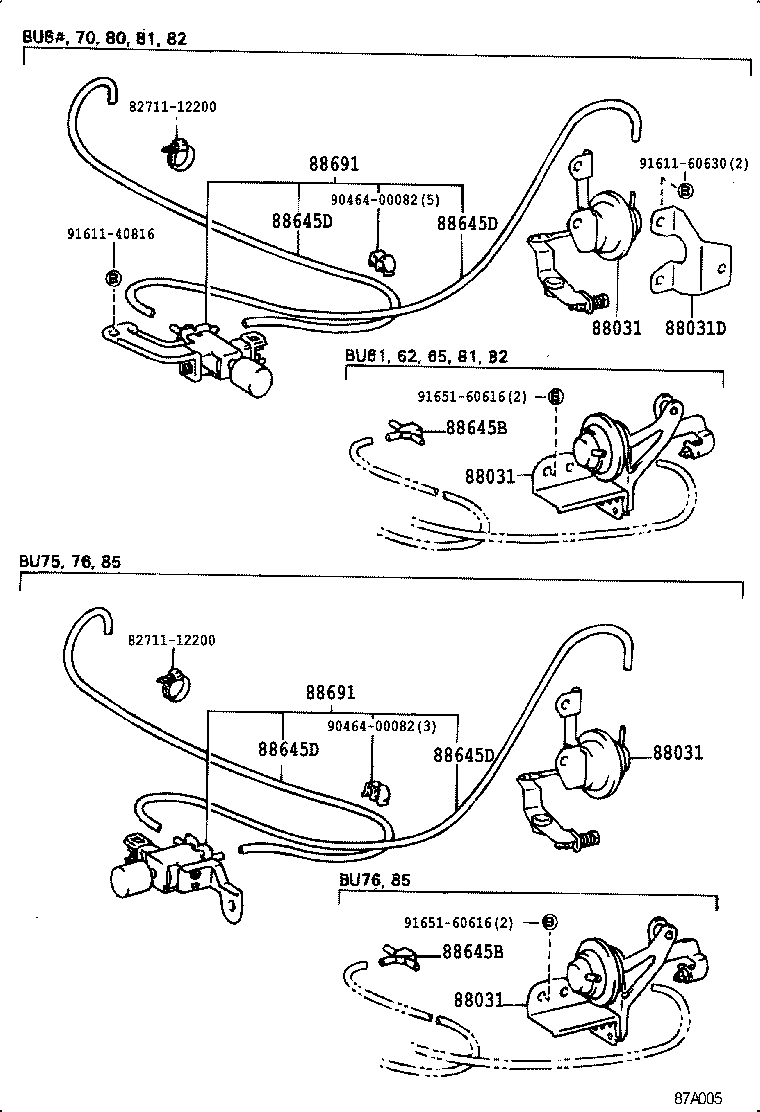

Figure MEE855B MEE855B 1984-09 → — Figure 87A005 87A005 1984-09 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88031D Screw, Throttle Adjusting(FOR IDLE-UP ACTUATOR)
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88645D Hose (FOR IDLE UP DEVICE)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
