Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

19 part groups · 7 illustrations

Illustrations

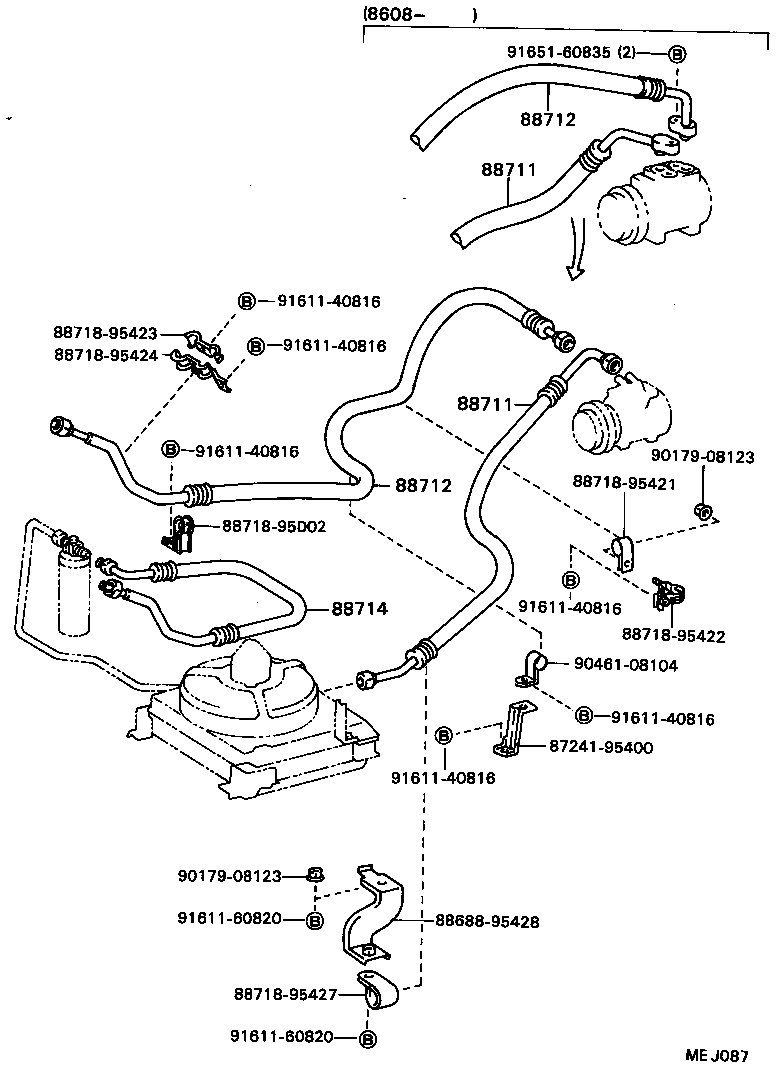

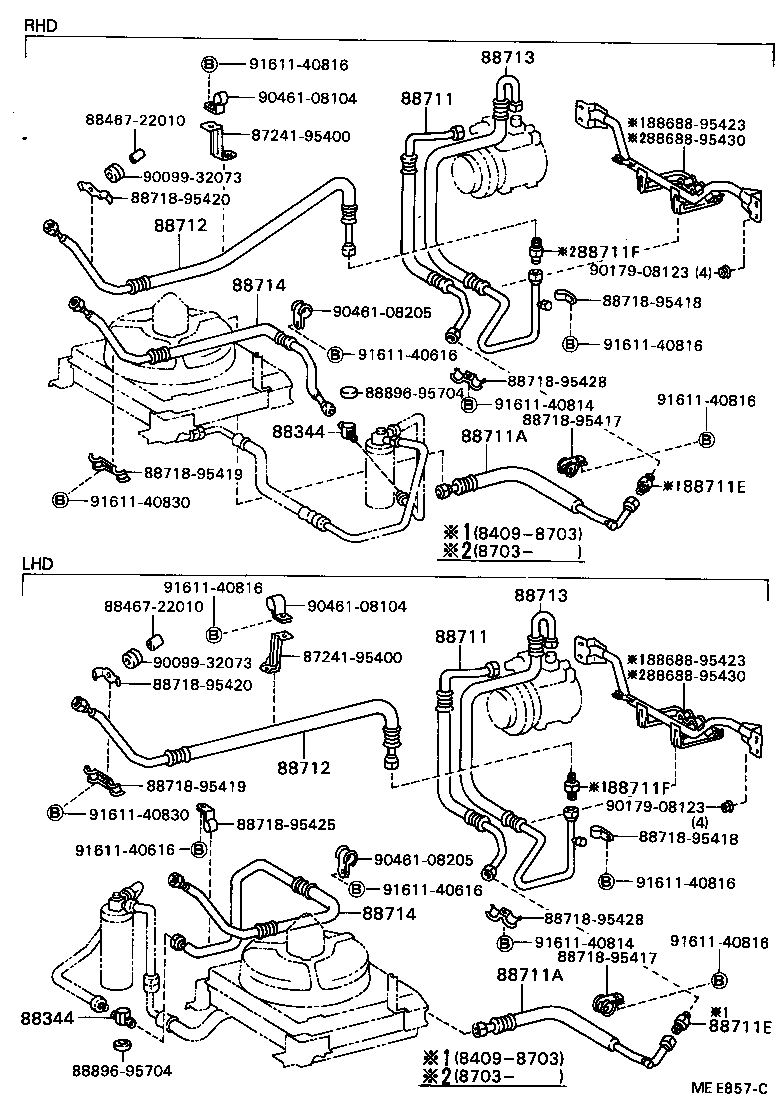

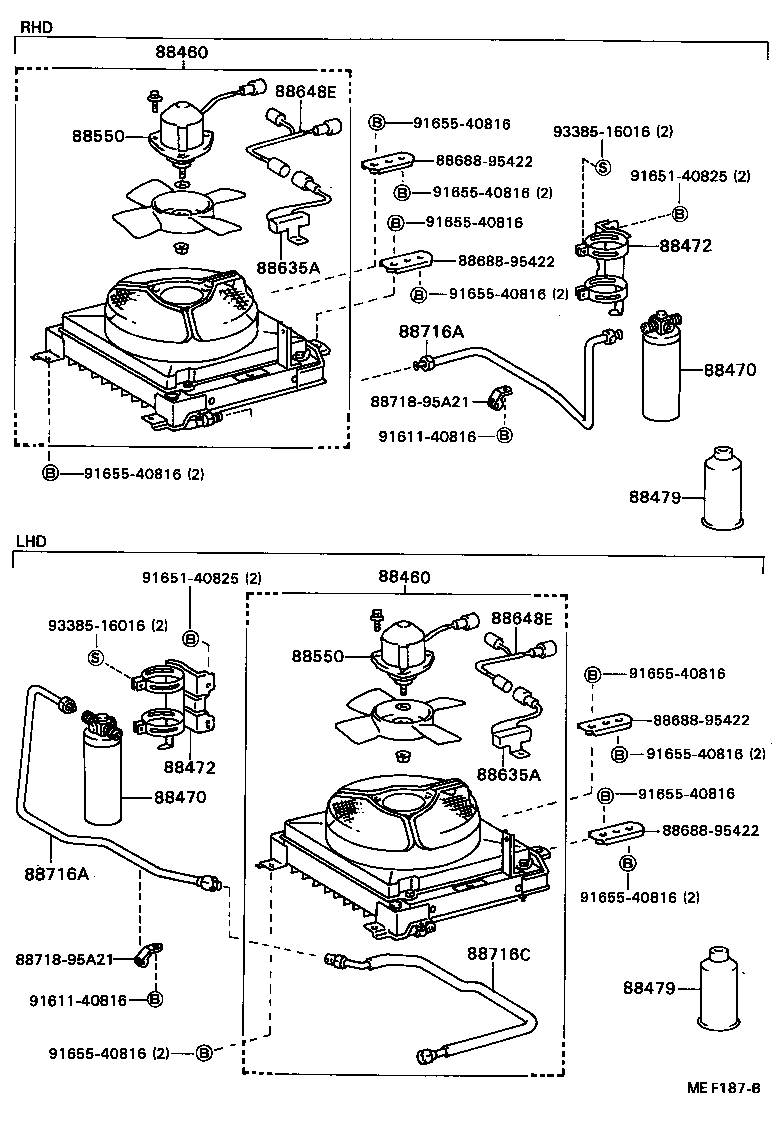

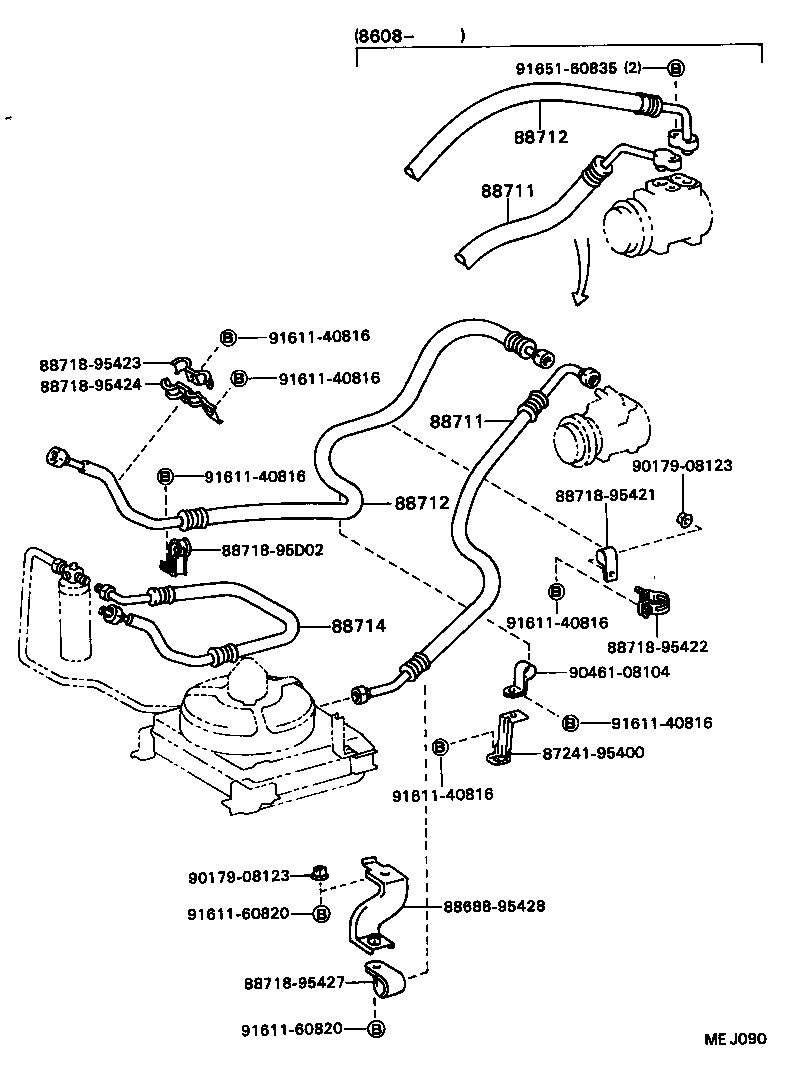

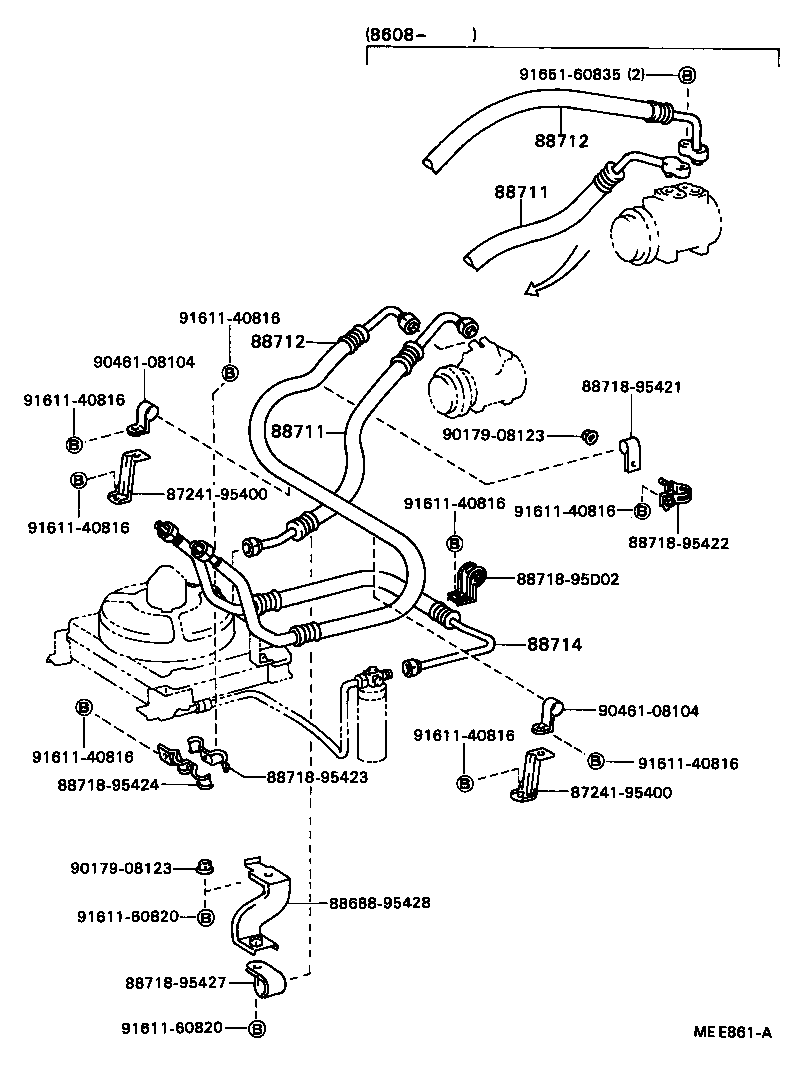

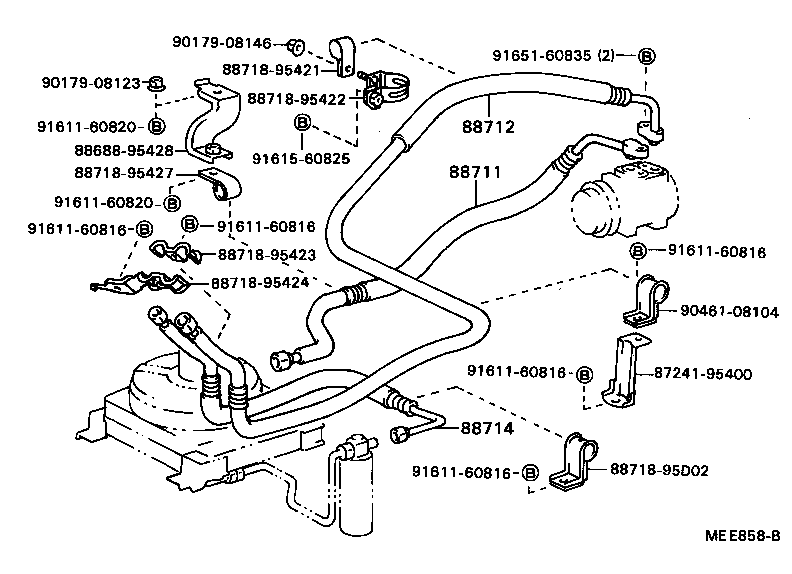

Figure MEF186C MEF186C 1984-09 → — Figure MEF187B MEF187B 1984-09 → — Figure MEE857C MEE857C 1984-09 → — Figure MEE858B MEE858B 1986-08 → — Figure MEJ087 MEJ087 1984-09 → — Figure MEE861A MEE861A 1984-09 → — Figure MEJ090 MEJ090 1984-09 → —

Part groups

PNCDescription
88344 Glass Sub-assy, Sight
88460 Condenser Assy, Cooler
88470 Receiver & Dryer Assy, Cooler
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88635A Resistor, Blower (FOR COOLER CONDENSER MOTOR)
88648E Wiring, Cooler
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88711E Union, NO.1(FOR COOLER HOSE)
88711F Union, NO.2(FOR COOLER HOSE)
88712 Hose, Cooler Refrigerant Suction, NO.1
88713 Hose, Cooler Refrigerant Suction, NO.2
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714A Hose, Cooler Refrigerant Liquid, NO.2
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
