Toyota Dyna

2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

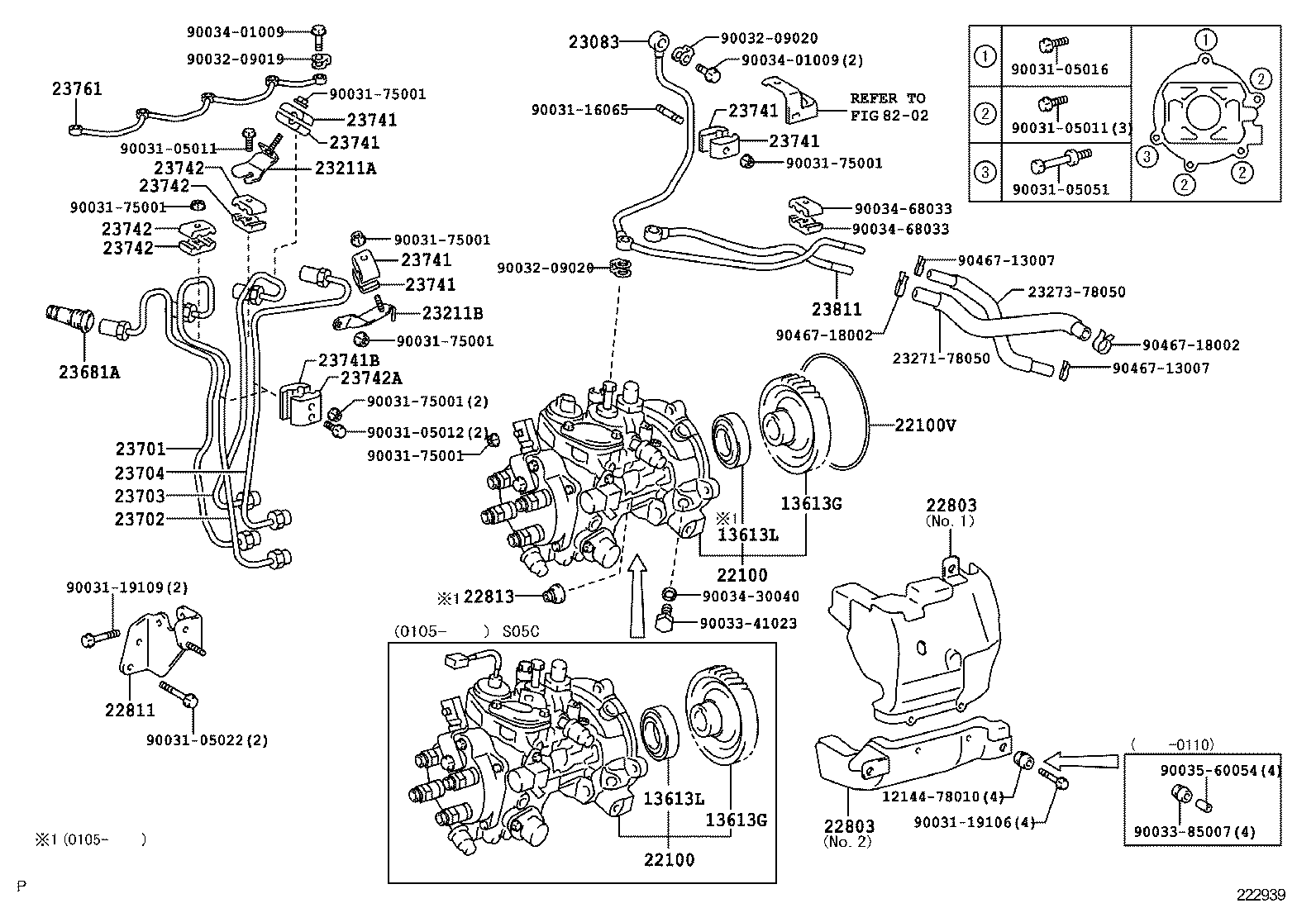

Exploded illustration 222939 8202 — not listed in this catalogue 9003105016 — not listed in this catalogue 9003105011 — not listed in this catalogue 9003105051 — not listed in this catalogue 9046713007 — not listed in this catalogue 2327378050 — not listed in this catalogue 9046718002 — not listed in this catalogue 9046718002 — not listed in this catalogue 9046713007 — not listed in this catalogue 9003468033 — not listed in this catalogue 9003468033 — not listed in this catalogue 2327178050 — not listed in this catalogue 22100V — RING, O(FOR INJECTION PUMP) (1 parts) 9003175001 — not listed in this catalogue 9003209020 — not listed in this catalogue 9003401009 — not listed in this catalogue 23741 — CLAMP, INJECTION PIPE, NO.1 (2 parts) 23741 — CLAMP, INJECTION PIPE, NO.1 (2 parts) 23811 — PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) (2 parts) 23083 — PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 (2 parts) 9003116065 — not listed in this catalogue 23741 — CLAMP, INJECTION PIPE, NO.1 (2 parts) 23741 — CLAMP, INJECTION PIPE, NO.1 (2 parts) 9003401009 — not listed in this catalogue 9003209019 — not listed in this catalogue 9003175001 — not listed in this catalogue 9003175001 — not listed in this catalogue 9003175001 — not listed in this catalogue 9003175001 — not listed in this catalogue 23741 — CLAMP, INJECTION PIPE, NO.1 (2 parts) 23741 — CLAMP, INJECTION PIPE, NO.1 (2 parts) 23211B — BRACKET(FOR INJECTION PIPE NO.4) (1 parts) 23741B — CLAMP, INJECTION PIPE (1 parts) 23742A — CLAMP, INJECTION PIPE, NO.3 (2 parts) 23211A — BRACKET(FOR INJECTION PIPE NO.3) (2 parts) 9003105012 — not listed in this catalogue 23761 — PIPE, NOZZLE LEAKAGE, NO.1 (1 parts) 9003105011 — not listed in this catalogue 23742 — CLAMP, INJECTION PIPE, NO.2 (2 parts) 23742 — CLAMP, INJECTION PIPE, NO.2 (2 parts) 9003175001 — not listed in this catalogue 23742 — CLAMP, INJECTION PIPE, NO.2 (2 parts) 23742 — CLAMP, INJECTION PIPE, NO.2 (2 parts) 23681A — SEAL, NOZZLE HOLDER (1 parts) 23701 — PIPE SUB-ASSY, INJECTION, NO.1 (2 parts) 23702 — PIPE SUB-ASSY, INJECTION, NO.2 (2 parts) 23703 — PIPE SUB-ASSY, INJECTION, NO.3 (2 parts) 23704 — PIPE SUB-ASSY, INJECTION, NO.4 (2 parts) 9003119109 — not listed in this catalogue 22811 — STAY, INJECTION PUMP, NO.1 (3 parts) 9003105022 — not listed in this catalogue 9003175001 — not listed in this catalogue 22813 — PROTECTOR, INJECTION PUMP, NO.1 (1 parts) 22100 — PUMP ASSY, INJECTION OR SUPPLY (6 parts) 22100 — PUMP ASSY, INJECTION OR SUPPLY (6 parts) 13613G — GEAR, INJECTION PUMP DRIVE (1 parts) 13613G — GEAR, INJECTION PUMP DRIVE (1 parts) 9003430040 — not listed in this catalogue 9003341023 — not listed in this catalogue 22803 — COVER SUB-ASSY, FUEL INJECTION PUMP (5 parts) 22803 — COVER SUB-ASSY, FUEL INJECTION PUMP (5 parts) 1214478010 — not listed in this catalogue 9003119106 — not listed in this catalogue 9003560054 — not listed in this catalogue 9003385007 — not listed in this catalogue 13613L — BEARING, BALL(FOR INJECTION PUMP DRIVE GEAR) (1 parts) 13613L — BEARING, BALL(FOR INJECTION PUMP DRIVE GEAR) (1 parts) 9003209020 — not listed in this catalogue
222939 · 33 callouts, 35 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
13613G — Gear, Injection Pump Drive
13613-78030 Gear, Injection Pump Drive
2000-10 → 2002-06 ended
S05# XZU402,411,412 —
13613L — Bearing, Ball(FOR INJECTION PUMP DRIVE GEAR)
90033-60020 Bearing, Ball(FOR INJECTION PUMP DRIVE GEAR)
2001-05 → 2002-06 ended
S05# XZU402,411,412 —
22100 — Pump Assy, Injection OR Supply
22010-78260 Pump Assy, Injection OR Supply
2000-10 → 2002-06 ended
J05C XZU410,420,430 —
22010-78270 note Pump Assy, Injection OR Supply
2000-10 → 2002-06 ended
J05C XZU410,420,430 —
22100-78052 Pump Assy, Injection OR Supply
2000-10 → 2001-05 ended
S05D XZU411 —
22100-78072 Pump Assy, Injection OR Supply
2000-10 → 2001-05 ended
S05C XZU402,412 —
22100-78100 Pump Assy, Injection OR Supply
2001-05 → 2002-06 ended
S05D XZU411 —
22100-78120 Pump Assy, Injection OR Supply
2001-05 → 2002-06 ended
S05C XZU402,412 —
22100V — Ring, O(FOR INJECTION PUMP)
90033-01059 Ring, O(FOR INJECTION PUMP)
2000-10 → 2002-06 ended
S05# XZU402,411,412 —
22803 — Cover Sub-assy, Fuel Injection Pump
22803-78021 note Cover Sub-assy, Fuel Injection Pump
2000-10 → 2000-12 ended
S05# XZU402,411,412 —
22803-78022 note Cover Sub-assy, Fuel Injection Pump
2000-12 → 2002-06 ended
S05# XZU402,411,412 —
22803-78080 note Cover Sub-assy, Fuel Injection Pump
2000-10 → 2000-12 ended
S05# XZU402,411,412 —
22803-78081 note Cover Sub-assy, Fuel Injection Pump
2000-12 → 2001-05 ended
S05# XZU402,411,412 —
22803-78082 note Cover Sub-assy, Fuel Injection Pump
2001-05 → 2002-06 ended
S05# XZU402,411,412 —
22811 — Stay, Injection Pump, NO.1
22801-78010 Stay, Injection Pump, NO.1
2000-10 → 2002-06 ended
S05# XZU402,411,412 —
22811-78020 note Stay, Injection Pump, NO.1
2000-10 → 2001-12 ended
J05C XZU410,420,430 —
22811-78070 note Stay, Injection Pump, NO.1
2001-12 → 2002-06 ended
J05C XZU410,420,430 —
22813 — Protector, Injection Pump, NO.1
22813-78010 Protector, Injection Pump, NO.1
2001-05 → 2002-06 ended
S05# XZU402,411,412 —
23083 — Pipe Sub-assy, Nozzle Leakage, NO.3
23803-78010 Pipe Sub-assy, Nozzle Leakage, NO.3
2000-10 → 2002-06 ended
J05C XZU410,420,430 —
23803-78020 Pipe Sub-assy, Nozzle Leakage, NO.3
2000-10 → 2002-06 ended
S05# XZU402,411,412 —
23211A — Bracket(FOR INJECTION PIPE NO.3)
23211-78020 Bracket(FOR INJECTION PIPE NO.3)
2000-10 → 2002-06 ended
S05# XZU402,411,412 —
23211-78040 Bracket(FOR INJECTION PIPE NO.3)
2000-10 → 2002-06 ended
J05C XZU410,420,430 —
23211B — Bracket(FOR INJECTION PIPE NO.4)
23211-78030 Bracket(FOR INJECTION PIPE NO.4)
2000-10 → 2002-06 ended
J05C,S05# XZU402,41#,420,430 —
23681A — Seal, Nozzle Holder
23681-78010 Seal, Nozzle Holder
2000-10 → 2002-06 ended
J05C,S05# XZU402,41#,420,430 —
23701 — Pipe Sub-assy, Injection, NO.1
23701-78030 Pipe Sub-assy, Injection, NO.1
2000-10 → 2002-06 ended
J05C XZU410,420,430 —
23701-78041 Pipe Sub-assy, Injection, NO.1
2000-10 → 2002-06 ended
S05# XZU402,411,412 —
23702 — Pipe Sub-assy, Injection, NO.2
23702-78030 Pipe Sub-assy, Injection, NO.2
2000-10 → 2002-06 ended
J05C XZU410,420,430 —
23702-78040 Pipe Sub-assy, Injection, NO.2
2000-10 → 2002-06 ended
S05# XZU402,411,412 —
23703 — Pipe Sub-assy, Injection, NO.3
23703-78030 Pipe Sub-assy, Injection, NO.3
2000-10 → 2002-06 ended
J05C XZU410,420,430 —
23703-78040 Pipe Sub-assy, Injection, NO.3
2000-10 → 2002-06 ended
S05# XZU402,411,412 —
23704 — Pipe Sub-assy, Injection, NO.4
23704-78030 Pipe Sub-assy, Injection, NO.4
2000-10 → 2002-06 ended
J05C XZU410,420,430 —
23704-78040 Pipe Sub-assy, Injection, NO.4
2000-10 → 2002-06 ended
S05# XZU402,411,412 —
23741 — Clamp, Injection Pipe, NO.1
90034-68024 Clamp, Injection Pipe, NO.1
2000-10 → 2002-06 ended
J05C XZU410,420,430 —
90034-68024 Clamp, Injection Pipe, NO.1
2000-10 → 2002-06 ended
S05# XZU402,411,412 —
23741B — Clamp, Injection Pipe
23742-78030 Clamp, Injection Pipe
2000-10 → 2002-06 ended
S05# XZU402,411,412 —
23742 — Clamp, Injection Pipe, NO.2
23742-66020 Clamp, Injection Pipe, NO.2
2000-10 → 2002-06 ended
S05# XZU402,411,412 —
23742-66020 Clamp, Injection Pipe, NO.2
2000-10 → 2002-06 ended
J05C XZU410,420,430 —
23742A — Clamp, Injection Pipe, NO.3
23742-78020 Clamp, Injection Pipe, NO.3
2000-10 → 2002-06 ended
S05# XZU402,411,412 —
23742-78040 Clamp, Injection Pipe, NO.3
2000-10 → 2002-06 ended
J05C XZU410,420,430 —
23761 — Pipe, Nozzle Leakage, NO.1
23761-78020 Pipe, Nozzle Leakage, NO.1
2000-10 → 2002-06 ended
J05C,S05# XZU402,41#,420,430 —
23811 — Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23811-78010 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
2000-10 → 2002-06 ended
J05C XZU410,420,430 —
23811-78021 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
2000-10 → 2002-06 ended
S05# XZU402,411,412 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
