Toyota Dyna

2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

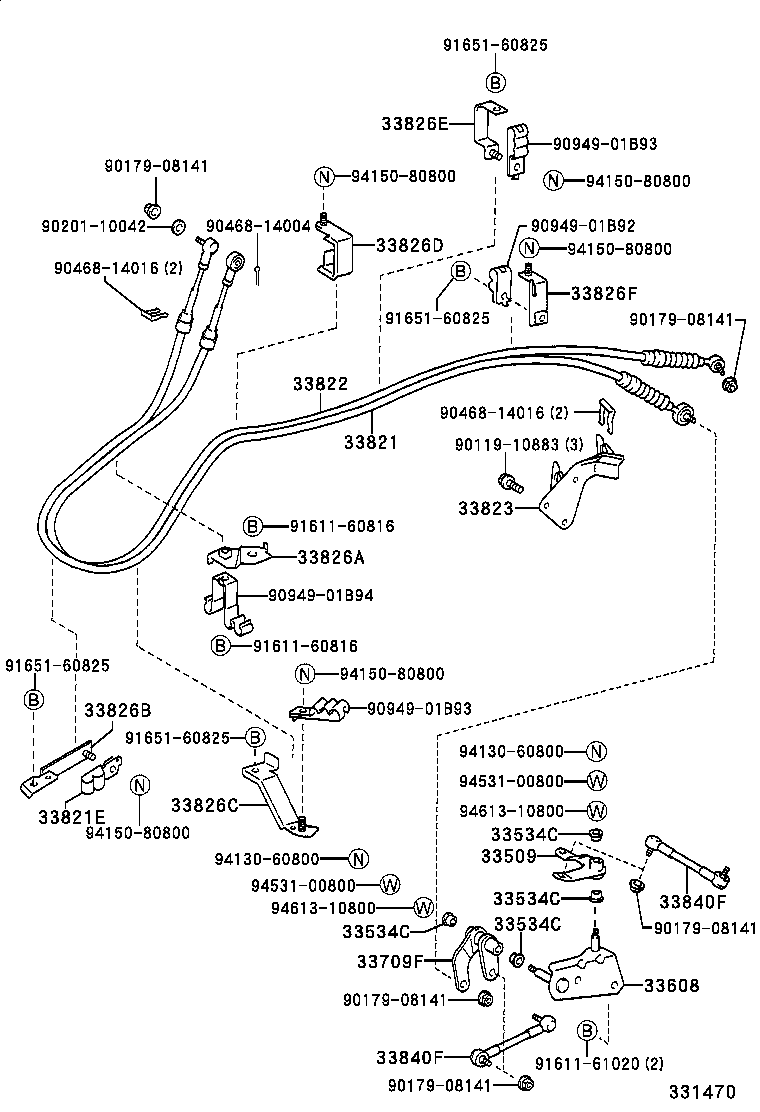

Exploded illustration 331470 9165160825 — not listed in this catalogue 33826E — BRACKET, TRANSMISSION CONTROL CABLE, NO.6 (1 parts) 9094901B93 — not listed in this catalogue 9017908141 — not listed in this catalogue 9415080800 — not listed in this catalogue 9415080800 — not listed in this catalogue 9020110042 — not listed in this catalogue 9046814004 — not listed in this catalogue 9094901B92 — not listed in this catalogue 33826D — BRACKET, TRANSMISSION CONTROL CABLE, NO.5 (1 parts) 9415080800 — not listed in this catalogue 9046814016 — not listed in this catalogue 33826F — BRACKET, TRANSMISSION CONTROL CABLE, NO.7 (1 parts) 9165160825 — not listed in this catalogue 9017908141 — not listed in this catalogue 33822 — CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) (2 parts) 9046814016 — not listed in this catalogue 33821 — CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) (2 parts) 9011910883 — not listed in this catalogue 33823 — BRACKET, TRANSMISSION CONTROL CABLE, NO.1 (2 parts) 9161160816 — not listed in this catalogue 33826A — BRACKET, TRANSMISSION CONTROL CABLE, NO.2 (1 parts) 9094901B94 — not listed in this catalogue 9161160816 — not listed in this catalogue 9165160825 — not listed in this catalogue 9415080800 — not listed in this catalogue 9094901B93 — not listed in this catalogue 33826B — BRACKET, TRANSMISSION CONTROL CABLE, NO.3 (1 parts) 9165160825 — not listed in this catalogue 9413060800 — not listed in this catalogue 9453100800 — not listed in this catalogue 33826C — BRACKET, TRANSMISSION CONTROL CABLE, NO.4 (1 parts) 9461310800 — not listed in this catalogue 33821E — CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) (1 parts) 9415080800 — not listed in this catalogue 33534C — BUSH (FOR SELECTING BELLCRANK NO.1) (1 parts) 33509 — CRANK SUB-ASSY, SELECTING BELL, NO.1 (1 parts) 9413060800 — not listed in this catalogue 9453100800 — not listed in this catalogue 33534C — BUSH (FOR SELECTING BELLCRANK NO.1) (1 parts) 33840F — ROD ASSY, GEAR SHIFTING, NO.3 (1 parts) 9461310800 — not listed in this catalogue 33534C — BUSH (FOR SELECTING BELLCRANK NO.1) (1 parts) 9017908141 — not listed in this catalogue 33534C — BUSH (FOR SELECTING BELLCRANK NO.1) (1 parts) 33709F — SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) (1 parts) 33608 — SUPPORT SUB-ASSY, SELECTING BELLCRANK (1 parts) 9017908141 — not listed in this catalogue 33840F — ROD ASSY, GEAR SHIFTING, NO.3 (1 parts) 9161161020 — not listed in this catalogue 9017908141 — not listed in this catalogue
331470 · 19 callouts, 32 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
33509 — Crank Sub-assy, Selecting Bell, NO.1
33509-37020 Crank Sub-assy, Selecting Bell, NO.1
2000-10 → 2002-06 ended
XZU402,41#,420,430 MTM —
33534C — Bush (FOR SELECTING BELLCRANK NO.1)
90386-13007 Bush (FOR SELECTING BELLCRANK NO.1)
2000-10 → 2002-06 ended
XZU402,41#,420,430 MTM —
33608 — Support Sub-assy, Selecting Bellcrank
33608-37020 Support Sub-assy, Selecting Bellcrank
2000-10 → 2002-06 ended
XZU402,41#,420,430 MTM —
33709F — Shaft Sub-assy, Cross, NO.1 (FOR FLOOR SHIFT)
33709-37030 Shaft Sub-assy, Cross, NO.1 (FOR FLOOR SHIFT)
2000-10 → 2002-06 ended
XZU402,41#,420,430 MTM —
33821 — Cable Transmission Control Shift (FOR FLOOR SHIFT)
33820-3V101 Cable Transmission Control Shift (FOR FLOOR SHIFT)
2000-10 → 2001-09 ended
XZU402,41#,420,430 MTM —
33820-3V102 Cable Transmission Control Shift (FOR FLOOR SHIFT)
2001-09 → 2002-06 ended
XZU402,41#,420,430 MTM —
33821E — Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE)
87124-37090 Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE)
2000-10 → 2002-06 ended
XZU402,41#,420,430 —
33822 — Cable Transmission Control Select (FOR FLOOR SHIFT)
33820-3V111 Cable Transmission Control Select (FOR FLOOR SHIFT)
2000-10 → 2002-04 ended
XZU402,41#,420,430 MTM —
33820-3V112 Cable Transmission Control Select (FOR FLOOR SHIFT)
2002-04 → 2002-06 ended
XZU402,41#,420,430 MTM —
33823 — Bracket, Transmission Control Cable, NO.1
33823-37360 Bracket, Transmission Control Cable, NO.1
2000-10 → 2002-06 ended
XZU402,41#,420,430 MTM —
33823-37410 Bracket, Transmission Control Cable, NO.1
2000-10 → 2002-06 ended
XZU411 ATM —
33826A — Bracket, Transmission Control Cable, NO.2
33826-37180 Bracket, Transmission Control Cable, NO.2
2000-10 → 2002-06 ended
XZU402,41#,420,430 —
33826B — Bracket, Transmission Control Cable, NO.3
33826-37321 Bracket, Transmission Control Cable, NO.3
2000-10 → 2002-06 ended
XZU402,41#,420,430 —
33826C — Bracket, Transmission Control Cable, NO.4
33826-37330 Bracket, Transmission Control Cable, NO.4
2000-10 → 2002-06 ended
XZU402,41#,420,430 —
33826D — Bracket, Transmission Control Cable, NO.5
33826-37340 Bracket, Transmission Control Cable, NO.5
2000-10 → 2002-06 ended
XZU402,41#,420,430 —
33826E — Bracket, Transmission Control Cable, NO.6
33826-37540 Bracket, Transmission Control Cable, NO.6
2000-10 → 2002-06 ended
XZU402,41#,420,430 —
33826F — Bracket, Transmission Control Cable, NO.7
33826-37550 Bracket, Transmission Control Cable, NO.7
2000-10 → 2002-06 ended
XZU402,41#,420,430 —
33840F — Rod Assy, Gear Shifting, NO.3
33840-37050 Rod Assy, Gear Shifting, NO.3
2000-10 → 2002-06 ended
XZU402,41#,420,430 MTM —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
