Toyota Dyna

2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

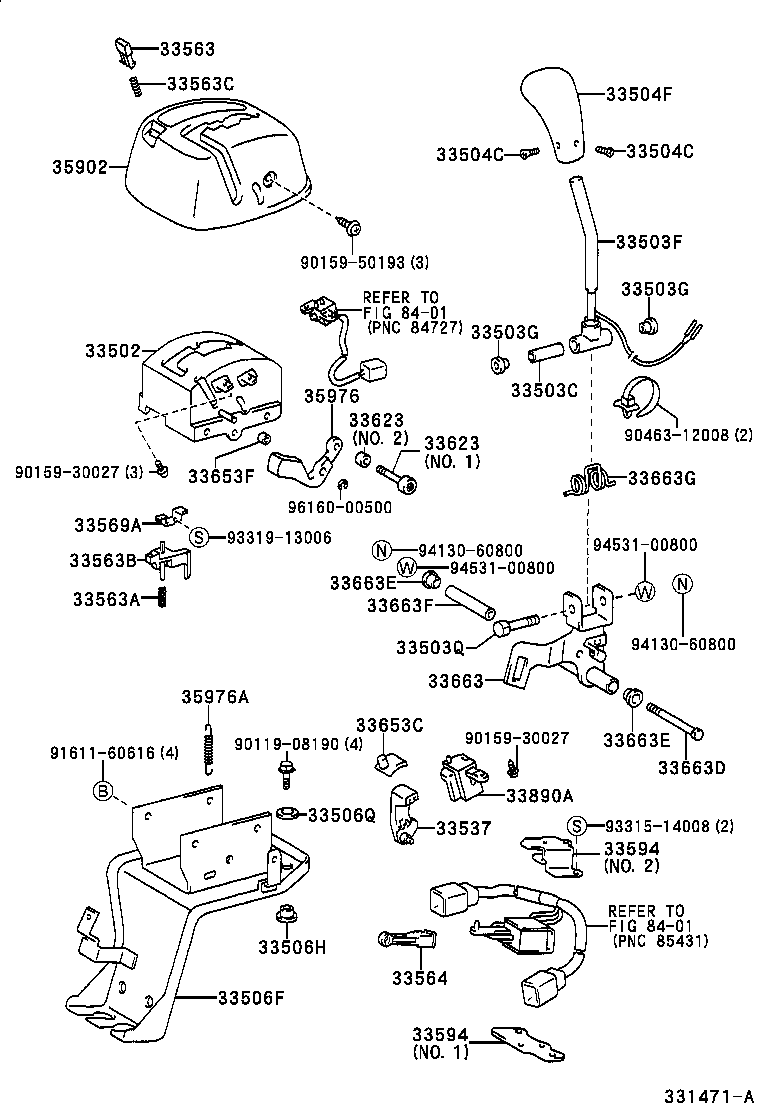

Exploded illustration 331471A 33563 — BUTTON, SHIFT LOCK RELEASE (1 parts) 33563C — SPRING (FOR SHIFT LOCK RELEASE BUTTON JOINT) (1 parts) 33504F — KNOB SUB-ASSY, SHIFT LEVER (4 parts) 33504C — SCREW (FOR SHIFT LEVER KNOB SETTING) (1 parts) 33504C — SCREW (FOR SHIFT LEVER KNOB SETTING) (1 parts) 35902 — COVER SUB-ASSY, POSITION INDICATOR HOUSING (2 parts) 33503F — LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) (5 parts) 9015950193 — not listed in this catalogue 33503G — BUSH(FOR SHIFT LEVER) (1 parts) 8401 — not listed in this catalogue 33503G — BUSH(FOR SHIFT LEVER) (1 parts) 33502 — PLATE SUB-ASSY, SHIFT LEVER (1 parts) 33503C — COLLAR(FOR SHIFT LEVER SUB-ASSY) (1 parts) 35976 — COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) (1 parts) 33623 — BUTTON, SHIFT LEVER KNOB (2 parts) 9046312008 — not listed in this catalogue 33623 — BUTTON, SHIFT LEVER KNOB (2 parts) 9015930027 — not listed in this catalogue 33653F — BUSH (1 parts) 33663G — SPRING, TORSION (FOR FLOOR SHIFT CONTROL LEVER) (1 parts) 9616000500 — not listed in this catalogue 33569A — GUIDE, SHIFT LOCK RELEASE BUTTON (1 parts) 9331913006 — not listed in this catalogue 9453100800 — not listed in this catalogue 9413060800 — not listed in this catalogue 33563B — JOINT, SHIFT LOCK RELEASE BUTTON (1 parts) 9453100800 — not listed in this catalogue 33663E — BUSH (FOR FLOOR SHIFT CONTROL LEVER) (1 parts) 33563A — SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) (1 parts) 33663F — COLLAR (FOR FLOOR SHIFT CONTROL LEVER) (1 parts) 9413060800 — not listed in this catalogue 33503Q — BOLT(FOR SHIFT LEVER SUB-ASSY) (1 parts) 33663 — LEVER, CONTROL (1 parts) 35976A — SPRING, TORSION (FOR POSITION INDICATER SLIDE COVER) (1 parts) 33653C — GUIDE, SHIFT LEVER WIRE (1 parts) 9015930027 — not listed in this catalogue 33663E — BUSH (FOR FLOOR SHIFT CONTROL LEVER) (1 parts) 9011908190 — not listed in this catalogue 9161160616 — not listed in this catalogue 33663D — BOLT (FOR FLOOR SHIFT CONTROL LEVER) (1 parts) 33890A — GUIDE ASSY, SHIFT LOCK SWITCH (1 parts) 33506Q — GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) (1 parts) 9331514008 — not listed in this catalogue 33537 — PLATE, CONTROL LEVER (1 parts) 33594 — PLATE, SHIFT LOCK (FOR FLOOR SHIFT) (2 parts) 8401 — not listed in this catalogue 33506H — BUSH (FOR SHIFT LEVER RETAINER) (1 parts) 33564 — LINK, SHIFT LOCK RELEASE, NO.1 (1 parts) 33506F — RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) (2 parts) 33594 — PLATE, SHIFT LOCK (FOR FLOOR SHIFT) (2 parts)
331471A · 35 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
41 parts on this figure
Part number Description Fitment Price
33502 — Plate Sub-assy, Shift Lever
33063-37010 Plate Sub-assy, Shift Lever
2000-10 → 2002-06 ended
XZU411 ATM —
33503C — Collar(FOR SHIFT LEVER SUB-ASSY)
90387-08089 Collar(FOR SHIFT LEVER SUB-ASSY)
2000-10 → 2002-06 ended
XZU411 ATM —
33503F — Lever Sub-assy, Shift(FOR FLOOR SHIFT)
33055-37050 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2000-10 → 2002-06 ended
XZU402 —
33055-37060 note Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2000-10 → 2002-06 ended
XZU402 —
33055-37070 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2000-10 → 2002-06 ended
XZU41#,420,430 MTM —
33055-37080 note Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2000-10 → 2002-06 ended
XZU41#,420,430 MTM —
33503-37030 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2000-10 → 2002-06 ended
XZU411 ATM —
33503G — Bush(FOR SHIFT LEVER)
90385-11003 Bush(FOR SHIFT LEVER)
2000-10 → 2002-06 ended
XZU411 ATM —
33503Q — Bolt(FOR SHIFT LEVER SUB-ASSY)
91111-40855 Bolt(FOR SHIFT LEVER SUB-ASSY)
2000-10 → 2002-06 ended
XZU411 ATM —
33504C — Screw (FOR SHIFT LEVER KNOB SETTING)
90152-40003 Screw (FOR SHIFT LEVER KNOB SETTING)
2000-10 → 2002-06 ended
XZU411 ATM —
33504F — Knob Sub-assy, Shift Lever
33504-37030-B0 note Knob Sub-assy, Shift Lever
2000-10 → 2002-06 ended
XZU41#,420,430 MTM —
33504-37040-B0 note Knob Sub-assy, Shift Lever
2000-10 → 2002-06 ended
XZU402 —
33542-37030 Knob Sub-assy, Shift Lever
2000-11 → 2002-06 ended
XZU411 ATM —
33542-37030-B0 note Knob Sub-assy, Shift Lever
2000-10 → 2000-11 ended
XZU411 ATM —
33506F — Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33506-37031 Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2000-10 → 2002-06 ended
XZU402,41#,420,430 MTM —
33570-37021 Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2000-10 → 2002-06 ended
XZU411 ATM —
33506H — Bush (FOR SHIFT LEVER RETAINER)
90386-12056 Bush (FOR SHIFT LEVER RETAINER)
2000-10 → 2002-06 ended
XZU402,41#,420,430 —
33506Q — Grommet, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33577-37060 Grommet, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
2000-10 → 2002-06 ended
XZU402,41#,420,430 —
33537 — Plate, Control Lever
33537-37010 Plate, Control Lever
2000-10 → 2002-06 ended
XZU411 ATM —
33563 — Button, Shift Lock Release
33563-37020 Button, Shift Lock Release
2000-10 → 2002-06 ended
XZU411 ATM —
33563A — Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON)
90501-04042 Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON)
2000-10 → 2002-06 ended
XZU411 ATM —
33563B — Joint, Shift Lock Release Button
33563-37010 Joint, Shift Lock Release Button
2000-10 → 2002-06 ended
XZU411 ATM —
33563C — Spring (FOR SHIFT LOCK RELEASE BUTTON JOINT)
90501-04042 Spring (FOR SHIFT LOCK RELEASE BUTTON JOINT)
2000-10 → 2002-06 ended
XZU411 ATM —
33564 — Link, Shift Lock Release, NO.1
33564-37010 Link, Shift Lock Release, NO.1
2000-10 → 2002-06 ended
XZU411 ATM —
33569A — Guide, Shift Lock Release Button
33569-37010 Guide, Shift Lock Release Button
2000-10 → 2002-06 ended
XZU411 ATM —
33594 — Plate, Shift Lock (FOR FLOOR SHIFT)
33594-37010 note Plate, Shift Lock (FOR FLOOR SHIFT)
2000-10 → 2002-06 ended
XZU411 ATM —
33594-37020 note Plate, Shift Lock (FOR FLOOR SHIFT)
2000-10 → 2002-06 ended
XZU411 ATM —
33623 — Button, Shift Lever Knob
33623-37010-B0 note Button, Shift Lever Knob
2000-10 → 2002-06 ended
XZU411 ATM —
33623-37020 note Button, Shift Lever Knob
2000-10 → 2002-06 ended
XZU411 ATM —
33653C — Guide, Shift Lever Wire
33653-37010 Guide, Shift Lever Wire
2000-10 → 2002-06 ended
XZU411 ATM —
33653F — Bush
90386-07031 Bush
2000-10 → 2002-06 ended
XZU411 ATM —
33663 — Lever, Control
33663-37050 Lever, Control
2000-10 → 2002-06 ended
XZU411 ATM —
33663D — Bolt (FOR FLOOR SHIFT CONTROL LEVER)
91111-40880 Bolt (FOR FLOOR SHIFT CONTROL LEVER)
2000-10 → 2002-06 ended
XZU411 ATM —
33663E — Bush (FOR FLOOR SHIFT CONTROL LEVER)
90385-11006 Bush (FOR FLOOR SHIFT CONTROL LEVER)
2000-10 → 2002-06 ended
XZU411 ATM —
33663F — Collar (FOR FLOOR SHIFT CONTROL LEVER)
90387-08096 Collar (FOR FLOOR SHIFT CONTROL LEVER)
2000-10 → 2002-06 ended
XZU411 ATM —
33663G — Spring, Torsion (FOR FLOOR SHIFT CONTROL LEVER)
90959-03260 Spring, Torsion (FOR FLOOR SHIFT CONTROL LEVER)
2000-10 → 2002-06 ended
XZU411 ATM —
33890A — Guide Assy, Shift Lock Switch
33890-37011 Guide Assy, Shift Lock Switch
2000-10 → 2002-06 ended
XZU411 ATM —
35902 — Cover Sub-assy, Position Indicator Housing
35902-37040 Cover Sub-assy, Position Indicator Housing
2000-11 → 2002-06 ended
XZU411 ATM —
35902-37040-B0 note Cover Sub-assy, Position Indicator Housing
2000-10 → 2000-11 ended
XZU411 ATM —
35976 — Cover, Slide, NO.2 (FOR POSITION INDICATOR)
35976-37010 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
2000-10 → 2002-06 ended
XZU411 ATM —
35976A — Spring, Torsion (FOR POSITION INDICATER SLIDE COVER)
90506-12082 Spring, Torsion (FOR POSITION INDICATER SLIDE COVER)
2000-10 → 2002-06 ended
XZU411 ATM —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
