Toyota Dyna

2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

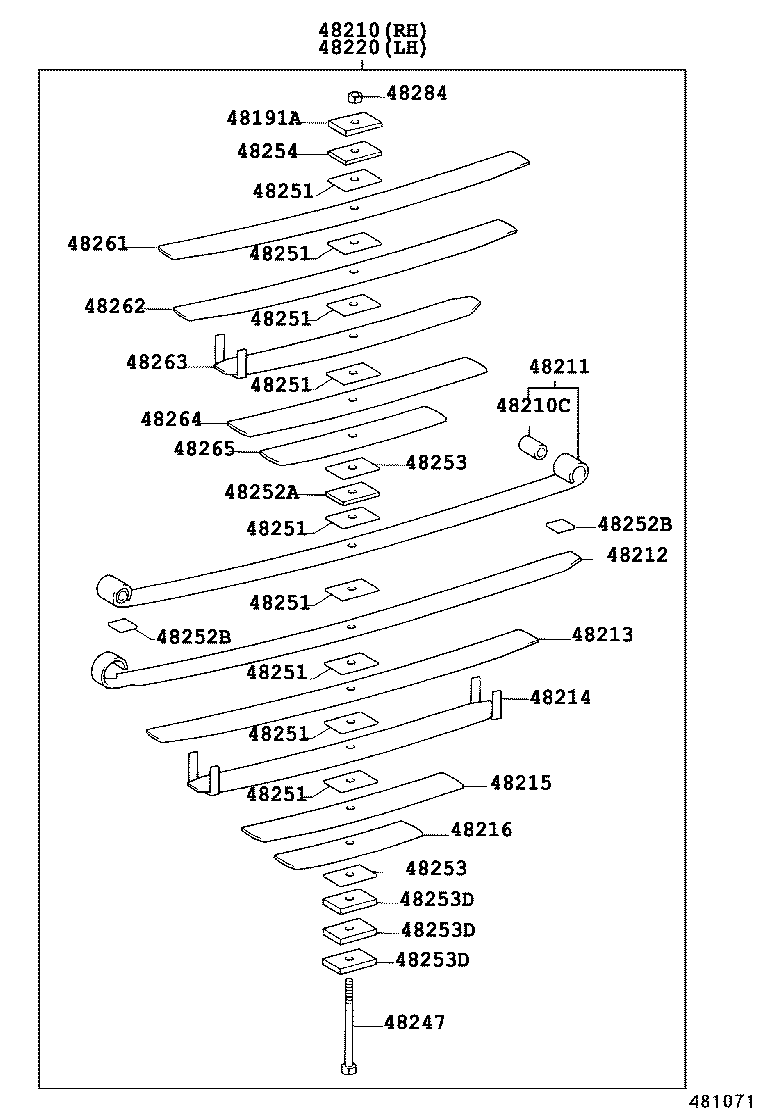

Exploded illustration 481071 48210 — SPRING ASSY, REAR RH (4 parts) 48220 — SPRING ASSY, REAR LH (4 parts) 48247 — BOLT, REAR SPRING, CENTER (3 parts) 48253D — SPACER, REAR SPRING, NO.3 (1 parts) 48253D — SPACER, REAR SPRING, NO.3 (1 parts) 48253D — SPACER, REAR SPRING, NO.3 (1 parts) 48211 — LEAF, REAR SPRING, NO.1 (4 parts) 48210C — BUSH(FOR REAR SPRING LEAF) (2 parts) 48212 — LEAF, REAR SPRING, NO.2 (4 parts) 48213 — LEAF, REAR SPRING, NO.3 (3 parts) 48214 — LEAF, REAR SPRING, NO.4 (2 parts) 48215 — LEAF, REAR SPRING, NO.5 (2 parts) 48216 — LEAF, REAR SPRING, NO.6 (2 parts) 48253 — SPACER, REAR SPRING, NO.1 (2 parts) 48251 — SPACER, REAR SPRING LEAF (3 parts) 48251 — SPACER, REAR SPRING LEAF (3 parts) 48251 — SPACER, REAR SPRING LEAF (3 parts) 48251 — SPACER, REAR SPRING LEAF (3 parts) 48251 — SPACER, REAR SPRING LEAF (3 parts) 48251 — SPACER, REAR SPRING LEAF (3 parts) 48251 — SPACER, REAR SPRING LEAF (3 parts) 48251 — SPACER, REAR SPRING LEAF (3 parts) 48251 — SPACER, REAR SPRING LEAF (3 parts) 48261 — LEAF, REAR HELPER SPRING, NO.1 (4 parts) 48254 — SPACER, REAR SPRING LEAF (3 parts) 48191A — WEDGE, CASTER(FOR REAR LEAF SPRING) (1 parts) 48262 — LEAF, REAR HELPER SPRING, NO.2 (4 parts) 48263 — LEAF, REAR HELPER SPRING, NO.3 (3 parts) 48264 — LEAF, REAR HELPER SPRING, NO.4 (2 parts) 48265 — LEAF, REAR HELPER SPRING, NO.5 (2 parts) 48252A — SPACER, REAR SPRING, NO.2 (1 parts) 48252B — SILENCER, REAR SPRING, NO.1 (3 parts) 48252B — SILENCER, REAR SPRING, NO.1 (3 parts) 48253 — SPACER, REAR SPRING, NO.1 (2 parts) 48284 — NUT, REAR SPRING CENTER BOLT (2 parts)
481071 · 35 callouts Full size ↗
61 parts on this figure
Part number Description Fitment Price
48191A — Wedge, Caster(FOR REAR LEAF SPRING)
48192-37100 Wedge, Caster(FOR REAR LEAF SPRING)
2000-10 → 2002-06 ended
XZU402,41#,420,430 —
48210 — Spring Assy, Rear RH
48210-3V031 note Spring Assy, Rear RH
2000-10 → 2002-06 ended
XZU402,412 —
48210-3V050 note Spring Assy, Rear RH
2000-10 → 2002-06 ended
XZU411 —
48210-3V091 note Spring Assy, Rear RH
2000-10 → 2002-06 ended
XZU410,420,430 —
48210-3V141 note Spring Assy, Rear RH
2000-10 → 2002-06 ended
XZU410,420,430 —
48210C — Bush(FOR REAR SPRING LEAF)
90033-84013 Bush(FOR REAR SPRING LEAF)
2000-10 → 2002-06 ended
XZU410,411,420,430 —
90389-16026 Bush(FOR REAR SPRING LEAF)
2000-10 → 2002-06 ended
XZU402,412 —
48211 — Leaf, Rear Spring, NO.1
48201-3V031 Leaf, Rear Spring, NO.1
2000-10 → 2002-06 ended
XZU402,412 —
48201-3V050 Leaf, Rear Spring, NO.1
2000-10 → 2002-06 ended
XZU411 —
48201-3V090 Leaf, Rear Spring, NO.1
2000-10 → 2002-06 ended
XZU410,420,430 —
48201-3V140 note Leaf, Rear Spring, NO.1
2000-10 → 2002-06 ended
XZU410,420,430 —
48212 — Leaf, Rear Spring, NO.2
48202-3V050 Leaf, Rear Spring, NO.2
2000-10 → 2002-06 ended
XZU411 —
48203-3V091 Leaf, Rear Spring, NO.2
2000-10 → 2002-06 ended
XZU410,420,430 —
48203-3V141 note Leaf, Rear Spring, NO.2
2000-10 → 2002-06 ended
XZU410,420,430 —
48212-3V031 Leaf, Rear Spring, NO.2
2000-10 → 2002-06 ended
XZU402,412 —
48213 — Leaf, Rear Spring, NO.3
48202-3V031 Leaf, Rear Spring, NO.3
2000-10 → 2002-06 ended
XZU402,412 —
48213-3V090 Leaf, Rear Spring, NO.3
2000-10 → 2002-06 ended
XZU410,420,430 —
48213-3V140 note Leaf, Rear Spring, NO.3
2000-10 → 2002-06 ended
XZU410,420,430 —
48214 — Leaf, Rear Spring, NO.4
48205-3V090 Leaf, Rear Spring, NO.4
2000-10 → 2002-06 ended
XZU410,420,430 —
48205-3V140 note Leaf, Rear Spring, NO.4
2000-10 → 2002-06 ended
XZU410,420,430 —
48215 — Leaf, Rear Spring, NO.5
48215-3V090 Leaf, Rear Spring, NO.5
2000-10 → 2002-06 ended
XZU410,420,430 —
48215-3V140 note Leaf, Rear Spring, NO.5
2000-10 → 2002-06 ended
XZU410,420,430 —
48216 — Leaf, Rear Spring, NO.6
48216-3V090 Leaf, Rear Spring, NO.6
2000-10 → 2002-06 ended
XZU410,420,430 —
48216-3V140 note Leaf, Rear Spring, NO.6
2000-10 → 2002-06 ended
XZU410,420,430 —
48220 — Spring Assy, Rear LH
48210-3V031 note Spring Assy, Rear LH
2000-10 → 2002-06 ended
XZU402,412 —
48210-3V050 note Spring Assy, Rear LH
2000-10 → 2002-06 ended
XZU411 —
48210-3V091 note Spring Assy, Rear LH
2000-10 → 2002-06 ended
XZU410,420,430 —
48210-3V141 note Spring Assy, Rear LH
2000-10 → 2002-06 ended
XZU410,420,430 —
48247 — Bolt, Rear Spring, Center
48247-3V031 Bolt, Rear Spring, Center
2000-10 → 2002-06 ended
XZU402,412 —
48247-3V050 Bolt, Rear Spring, Center
2000-10 → 2002-06 ended
XZU411 —
48247-3V280 Bolt, Rear Spring, Center
2000-10 → 2002-06 ended
XZU410,420,430 —
48251 — Spacer, Rear Spring Leaf
48253-3V020 Spacer, Rear Spring Leaf
2000-10 → 2002-06 ended
XZU402,412 —
48253-3V020 Spacer, Rear Spring Leaf
2000-10 → 2002-06 ended
XZU411 —
48282-3V150 Spacer, Rear Spring Leaf
2000-10 → 2002-06 ended
XZU410,420,430 —
48252A — Spacer, Rear Spring, NO.2
48269-3V150 Spacer, Rear Spring, NO.2
2000-10 → 2002-06 ended
XZU410,420,430 —
48252B — Silencer, Rear Spring, NO.1
48252-37570 Silencer, Rear Spring, NO.1
2000-10 → 2002-06 ended
XZU410,420,430 —
48252-3B800 Silencer, Rear Spring, NO.1
2000-10 → 2002-06 ended
XZU411 —
48252-3B800 Silencer, Rear Spring, NO.1
2000-10 → 2002-06 ended
XZU402,412 —
48253 — Spacer, Rear Spring, NO.1
48254-3V080 Spacer, Rear Spring, NO.1
2000-10 → 2002-06 ended
XZU402,412 —
48267-3V150 Spacer, Rear Spring, NO.1
2000-10 → 2002-06 ended
XZU410,420,430 —
48253D — Spacer, Rear Spring, NO.3
48218-3V280 Spacer, Rear Spring, NO.3
2000-10 → 2002-06 ended
XZU410,420,430 —
48254 — Spacer, Rear Spring Leaf
48254-3V070 Spacer, Rear Spring Leaf
2000-10 → 2002-06 ended
XZU411 —
48268-3V150 Spacer, Rear Spring Leaf
2000-10 → 2002-06 ended
XZU410,420,430 —
48268-3V150 note Spacer, Rear Spring Leaf
2000-10 → 2002-06 ended
XZU410,420,430 —
48261 — Leaf, Rear Helper Spring, NO.1
48213-3V050 Leaf, Rear Helper Spring, NO.1
2000-10 → 2002-06 ended
XZU411 —
48214-3V031 Leaf, Rear Helper Spring, NO.1
2000-10 → 2002-06 ended
XZU402,412 —
48261-3V090 Leaf, Rear Helper Spring, NO.1
2000-10 → 2002-06 ended
XZU410,420,430 —
48261-3V140 note Leaf, Rear Helper Spring, NO.1
2000-10 → 2002-06 ended
XZU410,420,430 —
48262 — Leaf, Rear Helper Spring, NO.2
48214-3V050 Leaf, Rear Helper Spring, NO.2
2000-10 → 2002-06 ended
XZU411 —
48215-3V031 Leaf, Rear Helper Spring, NO.2
2000-10 → 2002-06 ended
XZU402,412 —
48262-3V090 Leaf, Rear Helper Spring, NO.2
2000-10 → 2002-06 ended
XZU410,420,430 —
48262-3V140 note Leaf, Rear Helper Spring, NO.2
2000-10 → 2002-06 ended
XZU410,420,430 —
48263 — Leaf, Rear Helper Spring, NO.3
48207-3V090 Leaf, Rear Helper Spring, NO.3
2000-10 → 2002-06 ended
XZU410,420,430 —
48207-3V140 note Leaf, Rear Helper Spring, NO.3
2000-10 → 2002-06 ended
XZU410,420,430 —
48216-3V031 Leaf, Rear Helper Spring, NO.3
2000-10 → 2002-06 ended
XZU402,412 —
48264 — Leaf, Rear Helper Spring, NO.4
48264-3V090 Leaf, Rear Helper Spring, NO.4
2000-10 → 2002-06 ended
XZU410,420,430 —
48264-3V140 note Leaf, Rear Helper Spring, NO.4
2000-10 → 2002-06 ended
XZU410,420,430 —
48265 — Leaf, Rear Helper Spring, NO.5
48265-3V090 Leaf, Rear Helper Spring, NO.5
2000-10 → 2002-06 ended
XZU410,420,430 —
48265-3V140 note Leaf, Rear Helper Spring, NO.5
2000-10 → 2002-06 ended
XZU410,420,430 —
48284 — Nut, Rear Spring Center Bolt
48284-3B750 Nut, Rear Spring Center Bolt
2000-10 → 2002-06 ended
XZU402,411,412 —
48284-3V150 Nut, Rear Spring Center Bolt
2000-10 → 2002-06 ended
XZU410,420,430 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
