Toyota Dyna

2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

4 part groups · 2 illustrations

Illustrations

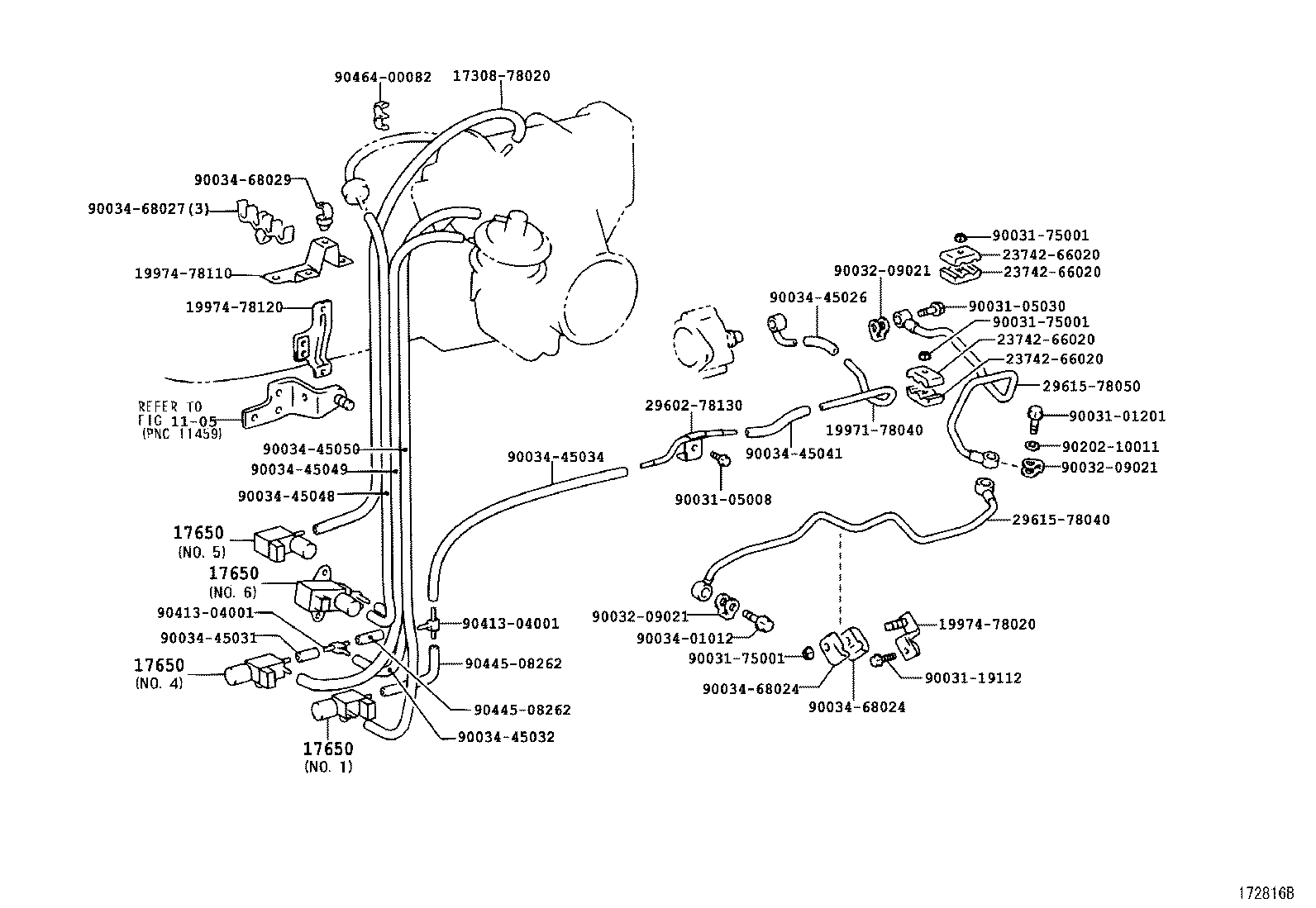

Figure 172854A 172854A 2000-10 → — Figure 172816B 172816B 2000-10 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25861 Bracket, Vacuum Switching Valve
87207G Pipe Sub-assy, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
