Toyota Dyna
2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe
Discontinued model
Data version 2003-07
Starter
33 part groups · 2 illustrations

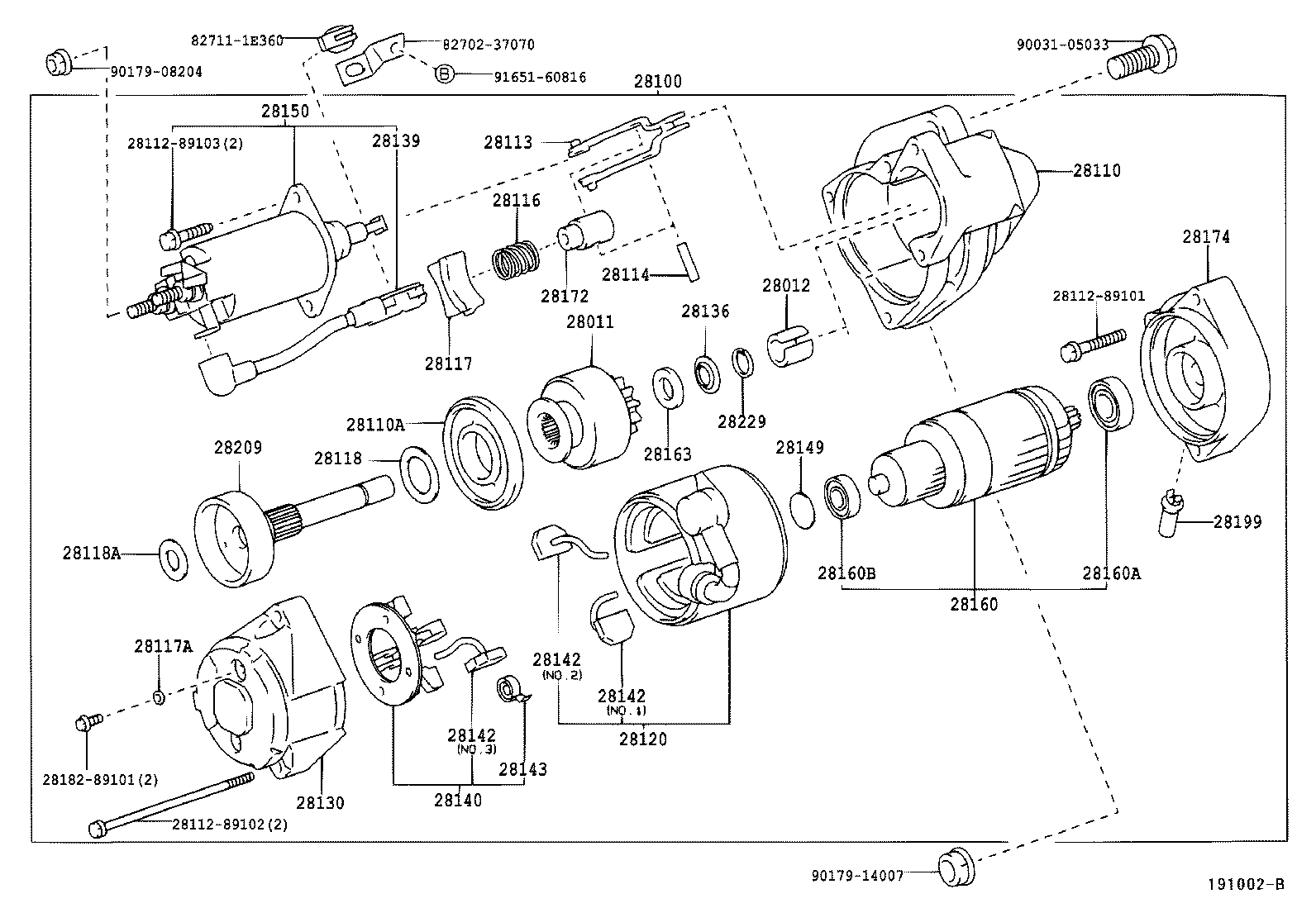

Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28012 | Bearing Sub-assy, Center |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28110A | Bearing(FOR STARTER HOUSING) |
| 28111 | Bush(FOR STARTER HOUSING) |
| 28113 | Lever, Starter Pinion Drive |
| 28114 | Pin, Starter Drive Lever Set |
| 28116 | Spring, Pinion Return |
| 28117 | Rubber(FOR STARTER YOKE) |
| 28117A | Seal, Rubber |
| 28118 | Plate(FOR STARTER YOKE) |
| 28118A | Plate(FOR STARTER YOKE) |
| 28120 | Yoke Assy, Starter |
| 28130 | Frame Assy, Starter Commutator End |
| 28136 | Plate, Starter Lock |
| 28139 | Wire, Lead, NO.1(FOR STARTER) |
| 28140 | Holder Assy, Starter Brush |
| 28142 | Brush, Starter |
| 28143 | Spring, Starter Brush |
| 28149 | Plate, Starter |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28160A | Bearing, Starter Armature |
| 28160B | Bearing, Starter Armature, NO.2 |
| 28163 | Nut OR Collar, Pinion Stop, Starter |
| 28172 | Holder, Starter Spring |
| 28174 | Housing, Starter Motor |
| 28199 | Cover, Starter |
| 28199A | Protector, Dust Starter |
| 28209 | Shaft Sub-assy, Starter |
| 28229 | Retainer, Starter Idle Gear |
| 28254 | Pinion, Starter Idle Gear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
