Toyota Dyna
2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe
Discontinued model
Data version 2003-07

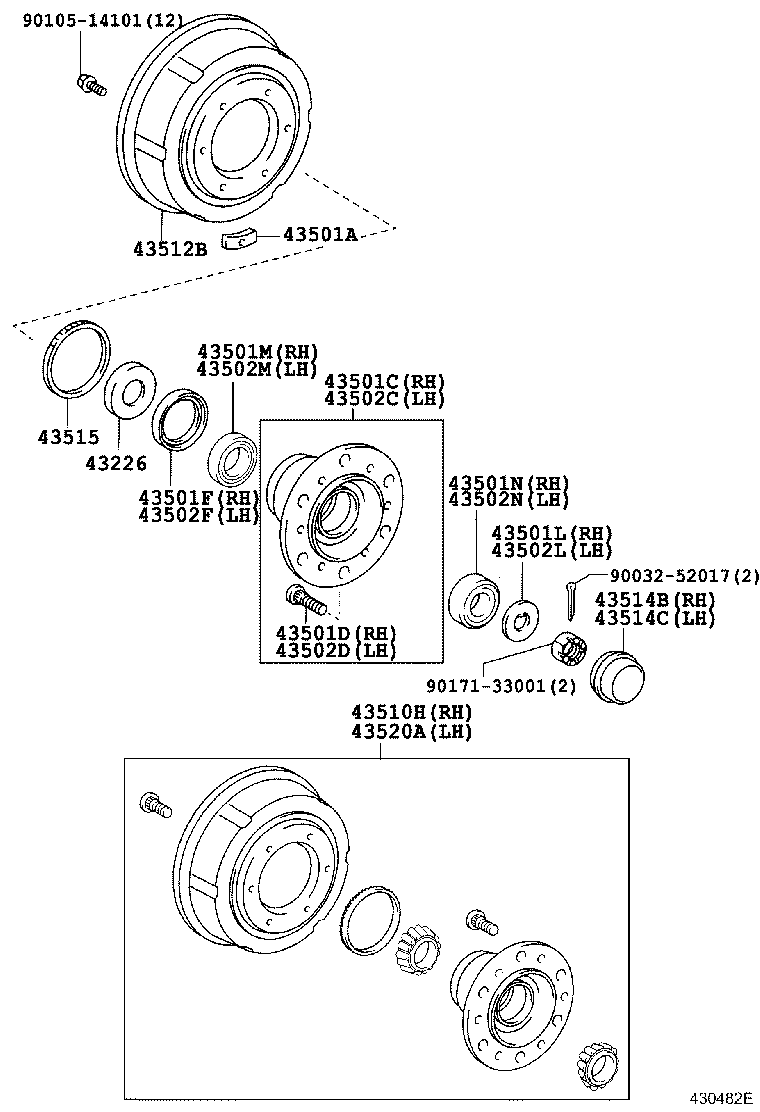

Front Axle Hub
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 43226 | Spacer, Steering Knuckle |
| 43501A | Piece, Balance (FOR FRONT BRAKE DRUM) |
| 43501C | Hub Sub-assy, Front Axle, RH |
| 43501D | Bolt, Hub (FOR FRONT AXLE RH) |
| 43501F | Seal, Oil (FOR FRONT AXLE HUB RH) |
| 43501H | Nut (FOR FRONT AXLE SHAFT RH) |
| 43501L | Washer, Claw (FOR FRONT AXLE HUB RH) |
| 43501M | Bearing (FOR FRONT AXLE HUB INNER RH) |
| 43501N | Bearing (FOR FRONT AXLE HUB OUTER RH) |
| 43502C | Hub Sub-assy, Front Axle, LH |
| 43502D | Bolt, Hub (FOR FRONT AXLE LH) |
| 43502F | Seal, Oil (FOR FRONT AXLE HUB LH) |
| 43502H | Nut (FOR FRONT AXLE SHAFT LH) |
| 43502L | Washer, Claw (FOR FRONT AXLE HUB LH) |
| 43502M | Bearing (FOR FRONT AXLE HUB INNER LH) |
| 43502N | Bearing (FOR FRONT AXLE HUB OUTER LH) |
| 43510H | Hub & Disc(DRUM) Assy, Front Axle, RH |
| 43512 | Disc, Front |
| 43512B | Drum, Brake |
| 43514B | Cap, Front Axle Hub Grease, RH |
| 43514C | Cap, Front Axle Hub Grease, LH |
| 43515 | Rotor, Skid Control, Front |
| 43520A | Hub & Disc(DRUM) Assy, Front Axle, LH |
| 43525B | Cap, Front Wheel Adjusting Lock, RH |
| 43525C | Cap, Front Wheel Adjusting Lock, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
