Toyota Dyna
2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe
Discontinued model
Data version 2003-07

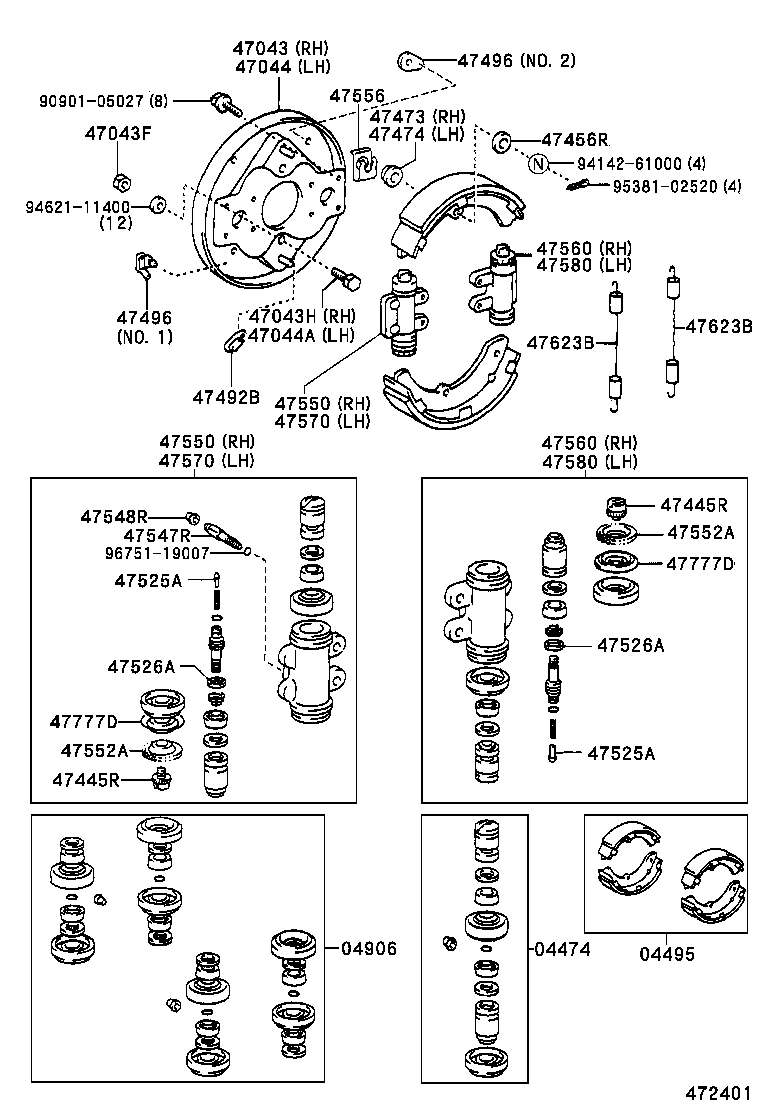

Rear Drum Brake Wheel Cylinder & Backing Plate
42 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04474 | Cylinder Kit, Rear Wheel |
| 04495 | Shoe Kit, Rear Brake |
| 04906 | Cup Kit, Rear Wheel Cylinder |
| 47043 | Plate Sub-assy, Brake Backing, Rear RH |
| 47043F | Nut(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47043H | Bolt, NO.1(FOR REAR BRAKE BACKING PLATE RH) |
| 47044 | Plate Sub-assy, Brake Backing, Rear LH |
| 47044A | Bolt, NO.1(FOR REAR BRAKE BACKING PLATE LH) |
| 47430C | Spring(FOR REAR BRAKE SHOE HOLD DOWN) |
| 47430D | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47445R | Rod, Rear Wheel Cylinder |
| 47447G | Pin, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47449B | Cup, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47456R | Plate, Rear Brake Shoe Guide |
| 47473 | Nut, Rear Wheel Cylinder Adjusting, RH(FOR REAR BRAKE) |
| 47474 | Nut, Rear Wheel Cylinder Adjusting, LH(FOR REAR BRAKE) |
| 47475 | Bolt, Rear Wheel Cylinder Adjusting, RH (FOR REAR BRAKE) |
| 47476 | Bolt, Rear Wheel Cylinder Adjusting, LH(FOR REAR BRAKE) |
| 47492B | Plug, Shoe Inspection(FOR REAR BRAKE) |
| 47496 | Plug, Hole(FOR REAR BRAKE) |
| 47506 | Nut Sub-assy, Automatic Adjust, RH(FOR REAR BRAKE) |
| 47507A | Nut Sub-assy, Automatic Adjust, LH(FOR REAR BRAKE) |
| 47525A | Pin, Wheel Cylinder Adjuster |
| 47526A | Ring, Automatic Adjuster |
| 47529S | Seal, Rear Brake Adjust Nut Dust, RH |
| 47529T | Seal, Rear Brake Adjust Nut Dust, LH |
| 47547R | Plug, Bleeder(FOR DRUM BRAKE, REAR) |
| 47548R | Cap, Bleeder Plug(FOR DRUM BRAKE, REAR) |
| 47549S | Seat, Rear Brake Automatic Adjust Nut, RH |
| 47549T | Seat, Rear Brake Automatic Adjust Nut, LH |
| 47550 | Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER) |
| 47550H | Bolt(FOR REAR WHEEL CYLINDER) |
| 47550Q | Washer(FOR REAR WHEEL CYLINDER) |
| 47552A | Nut, Rear Wheel Cylinder Adjusting |
| 47556 | Spring, Adjuster Lock(FOR REAR BRAKE) |
| 47559D | Spring, Rear Brake Automatic Adjust Lever Support, RH |
| 47559E | Spring, Rear Brake Automatic Adjust Lever Support, LH |
| 47560 | Cylinder Assy, Rear Wheel Brake(FOR RH, REAR OR LOWER) |
| 47570 | Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER) |
| 47580 | Cylinder Assy, Rear Wheel Brake(FOR LH, REAR OR LOWER) |
| 47623B | Spring, Tension(FOR PARKING BRAKE BELL CRANK RETURN) |
| 47777D | Protector, Dust Boot |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
