Toyota Dyna
2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe
Discontinued model
Data version 2003-07

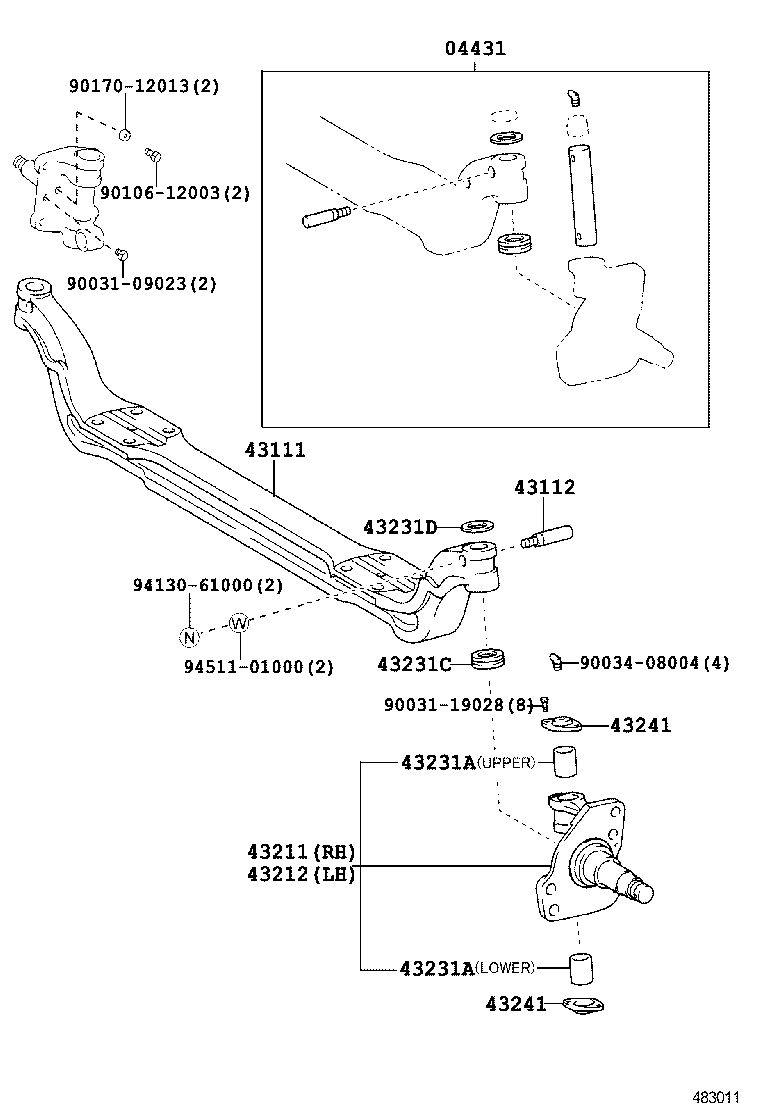

Front Axle Arm & Steering Knuckle
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04431 | Pin Kit, Steering Knuckle King |
| 43111 | I Beam, Front Axle |
| 43112 | Pin, King Pin Lock |
| 43132A | Bolt, Round Hexagon (FOR STEERING KNUCKLE STOPPER BOLT) |
| 43211 | Knuckle, Steering, RH |
| 43211D | Plug (FOR STEERING KNUCKLE) |
| 43212 | Knuckle, Steering, LH |
| 43231A | Bush, Bimetal Formed (FOR STEERING KNUCKLE KING PIN BUSH) |
| 43231B | Seal, Dust OR Ring, O (FOR STEERING KNUCKLE KING PIN) |
| 43231C | Bearing (FOR STEERING KNUCKLE KING PIN) |
| 43231D | Shim (FOR KING PIN) |
| 43241 | Cover, Steering Kunckle Oil Seal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
