Toyota Dyna

2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

12 part groups · 2 illustrations

Illustrations

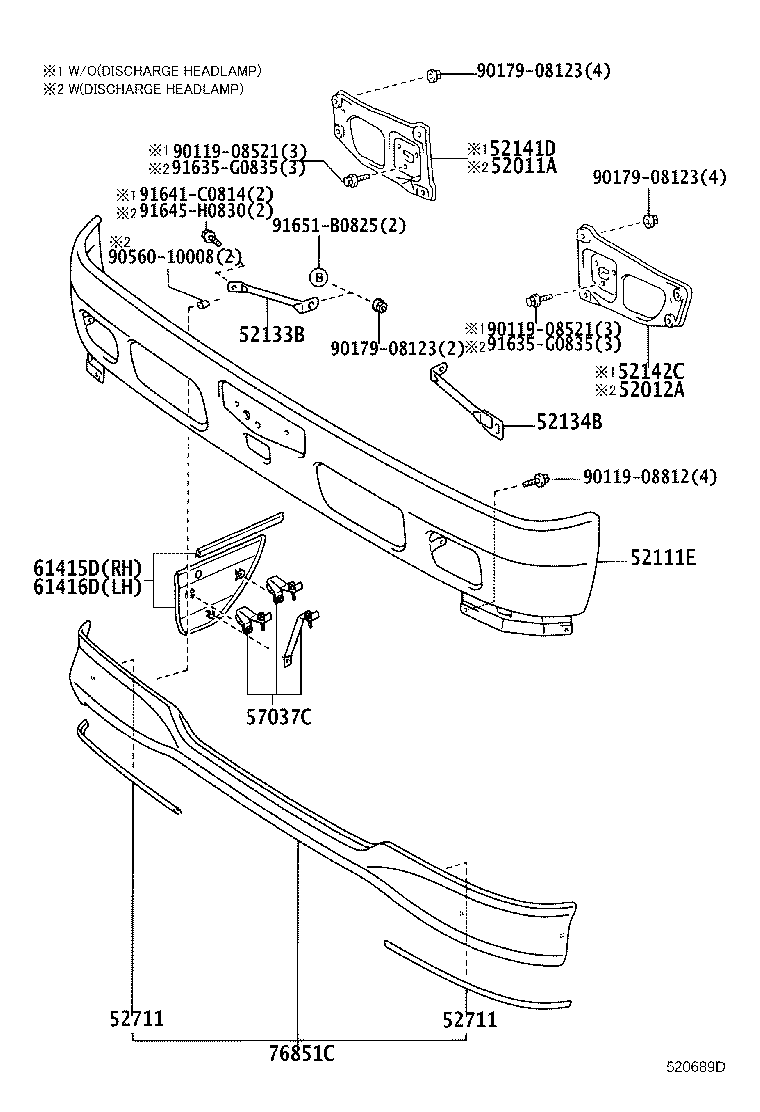

Figure 520688C 520688C 2000-10 → — Figure 520689D 520689D 2000-10 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52111E Bar, Front Bumper
52133B Bracket, Front Bumper Extension Mounting, RH
52134B Bracket, Front Bumper Extension Mounting, LH
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
52711 Moulding, Front Bumper
57037C Stay Sub-assy, Front Step
61415D Panel, Front Step Under, RH
61416D Panel, Front Step Under, LH
76851C Front Spoiler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
