Toyota Dyna
2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe
Discontinued model
Data version 2003-07

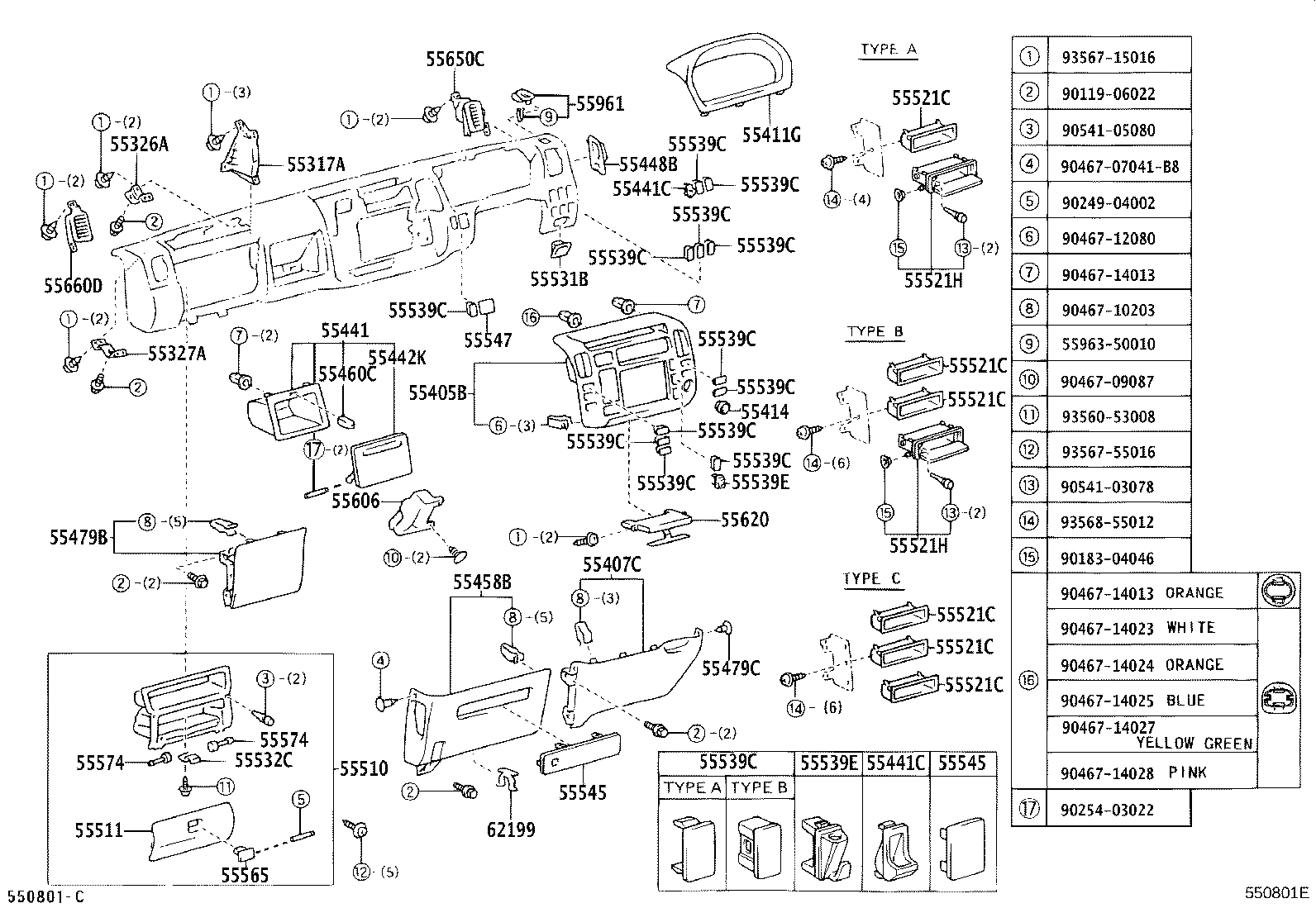

Instrument Panel & Glove Compartment
47 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45288C | Plate, Steering Column Cover |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55317A | Panel, Instrument Side, RH |
| 55326A | Stay, Instrument Panel, NO.1 |
| 55327A | Stay, Instrument Panel, NO.2 |
| 55328A | Stay, Instrument Panel, NO.3 |
| 55331 | Reinforcement, Instrument Panel |
| 55394B | Bolt, Instrument Panel |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55407C | Cover Sub-assy, Instrument, Lower |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55414 | Bezel, Cigar Lighter Hole |
| 55441 | Box, Instrument Panel |
| 55441C | Box, Instrument Panel Coin |
| 55442K | Door, Instrument Panel Box |
| 55448B | Cover, Oil Reservoir Tank, RH |
| 55458B | Cover, Instrument, Lwr |
| 55460C | Lock Assy, Instrument Panel Box |
| 55479B | Cover, Instrument, Lower Center |
| 55479C | Clip(FOR INSTRUMENT LOWER COVER) |
| 55510 | Door Assy, Glove Compartment |
| 55511 | Door, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55521H | Cover Assy, Stereo Opening |
| 55531B | Cover, Choke Knob Hole |
| 55532C | Stopper, Glove Door |
| 55539C | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55547 | Cover, Remote Control Mirror Hole |
| 55565 | Handle, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55650C | Register Assy, Instrument Panel, NO.1 |
| 55660D | Register Assy, Instrument Panel, NO.1 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55970A | Duct Assy, Side Defroster, RH |
| 55980A | Duct Assy, Side Defroster, LH |
| 55990A | Nozzle Assy, Defroster, Lower |
| 61181 | Bracket, Instrument Panel Side |
| 61183B | Bracket, Instrument Panel Side, NO.2 RH |
| 61184B | Bracket, Instrument Panel Side, NO.2 LH |
| 62199 | Holder, Fusee |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
