Toyota Dyna

2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

15 part groups · 2 illustrations

Illustrations

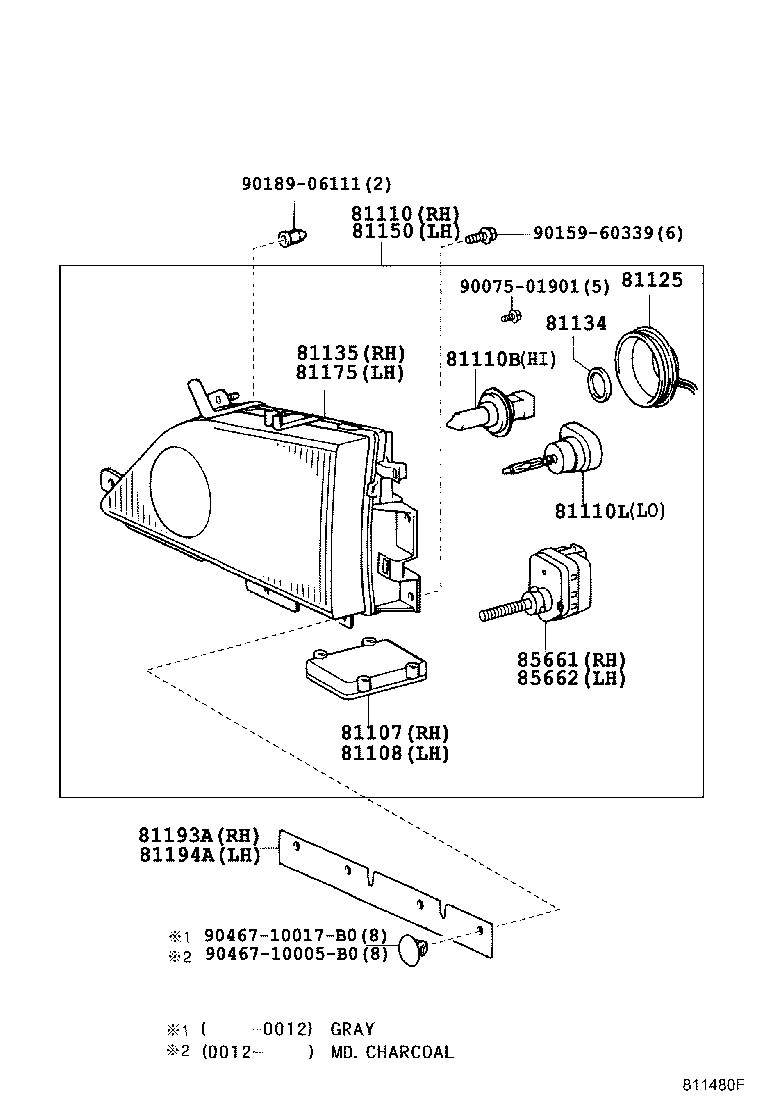

Figure 811123I 811123I 2000-10 → 2002-06 Figure 811480F 811480F 2000-10 → 2002-06

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110L Bulb, Discharge Headlamp
81125 Cord, Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81193A Protector, Headlamp, RH
81194A Protector, Headlamp, LH
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
