Toyota Dyna

2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 8 illustrations

Illustrations

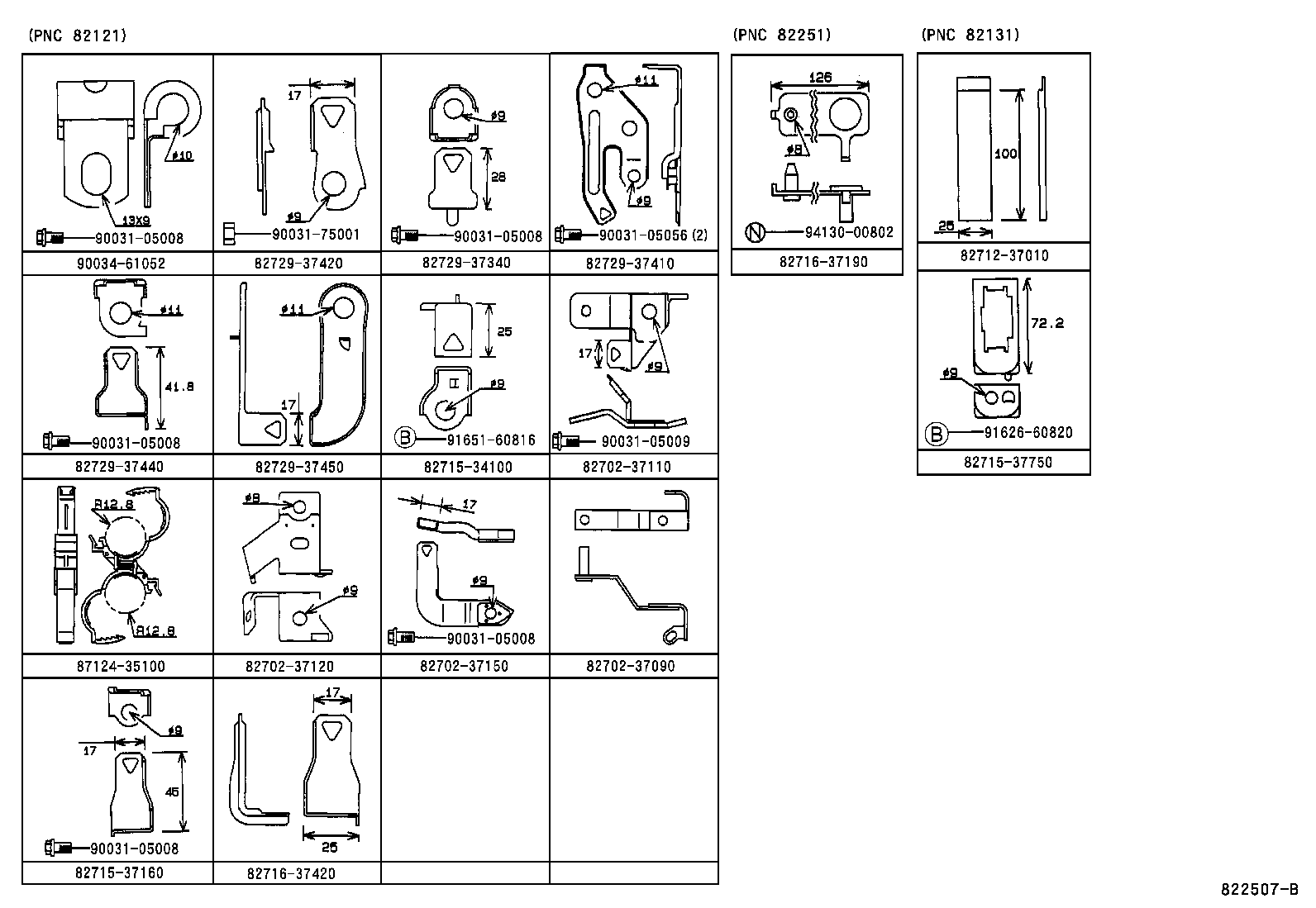

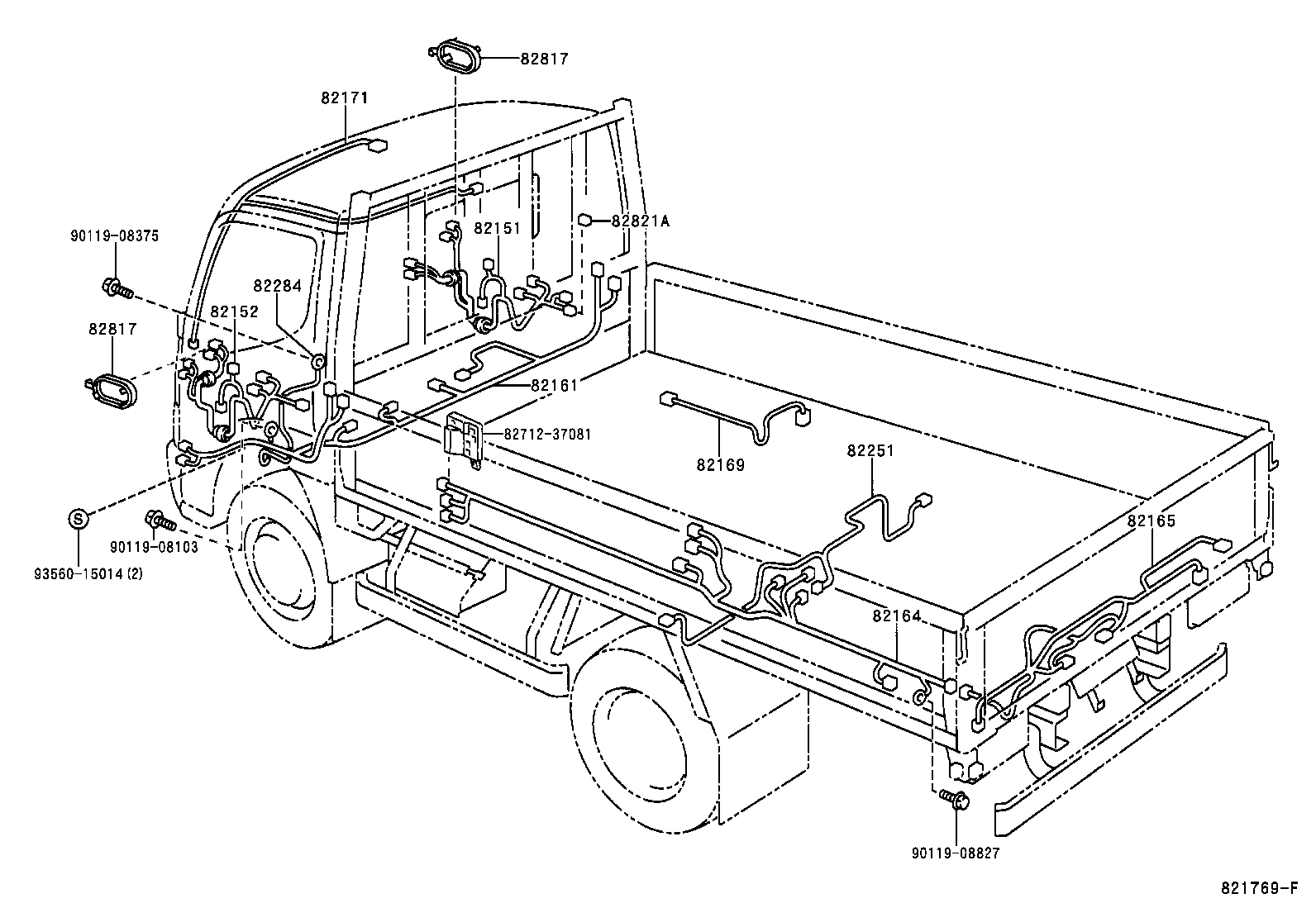

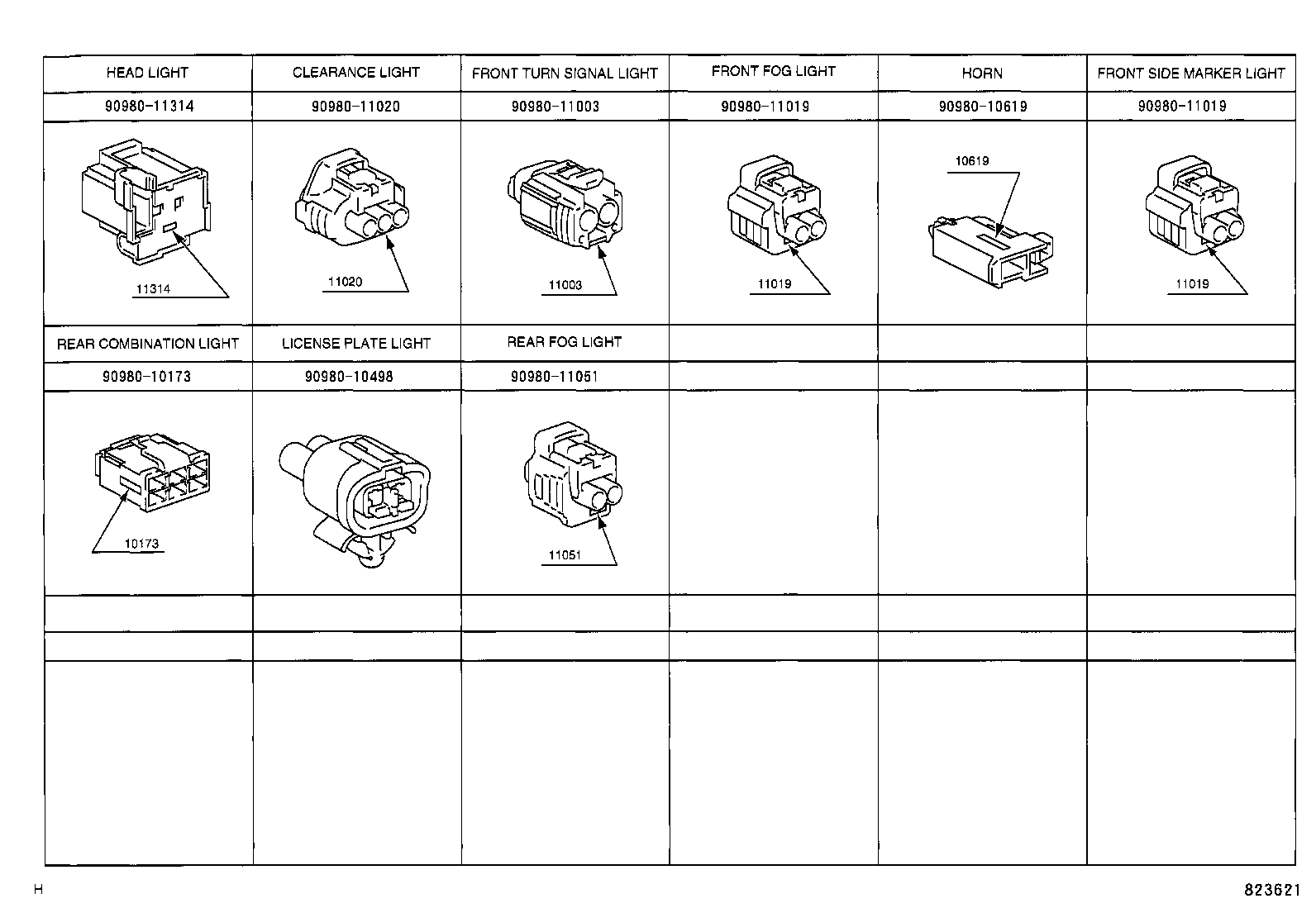

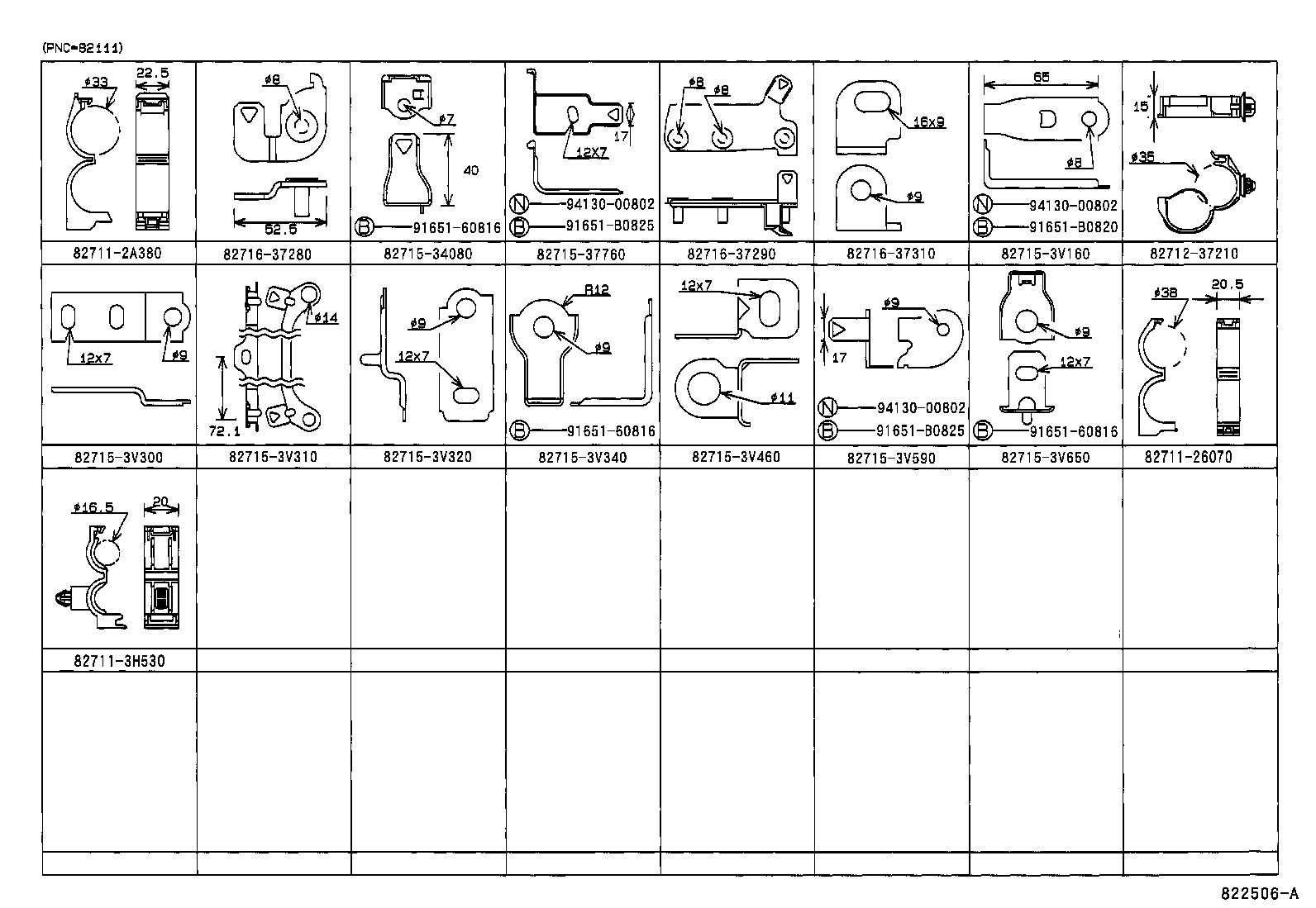

Figure 822504E 822504E 2000-10 → — Figure 822505C 822505C 2000-10 → — Figure 821767G 821767G 2000-10 → — Figure 821768 821768 2000-10 → — Figure 821769F 821769F 2000-10 → — Figure 822506B 822506B 2000-10 → — Figure 822507B 822507B 2000-10 → — Figure 823621 823621 2000-10 → —

Part groups

PNCDescription

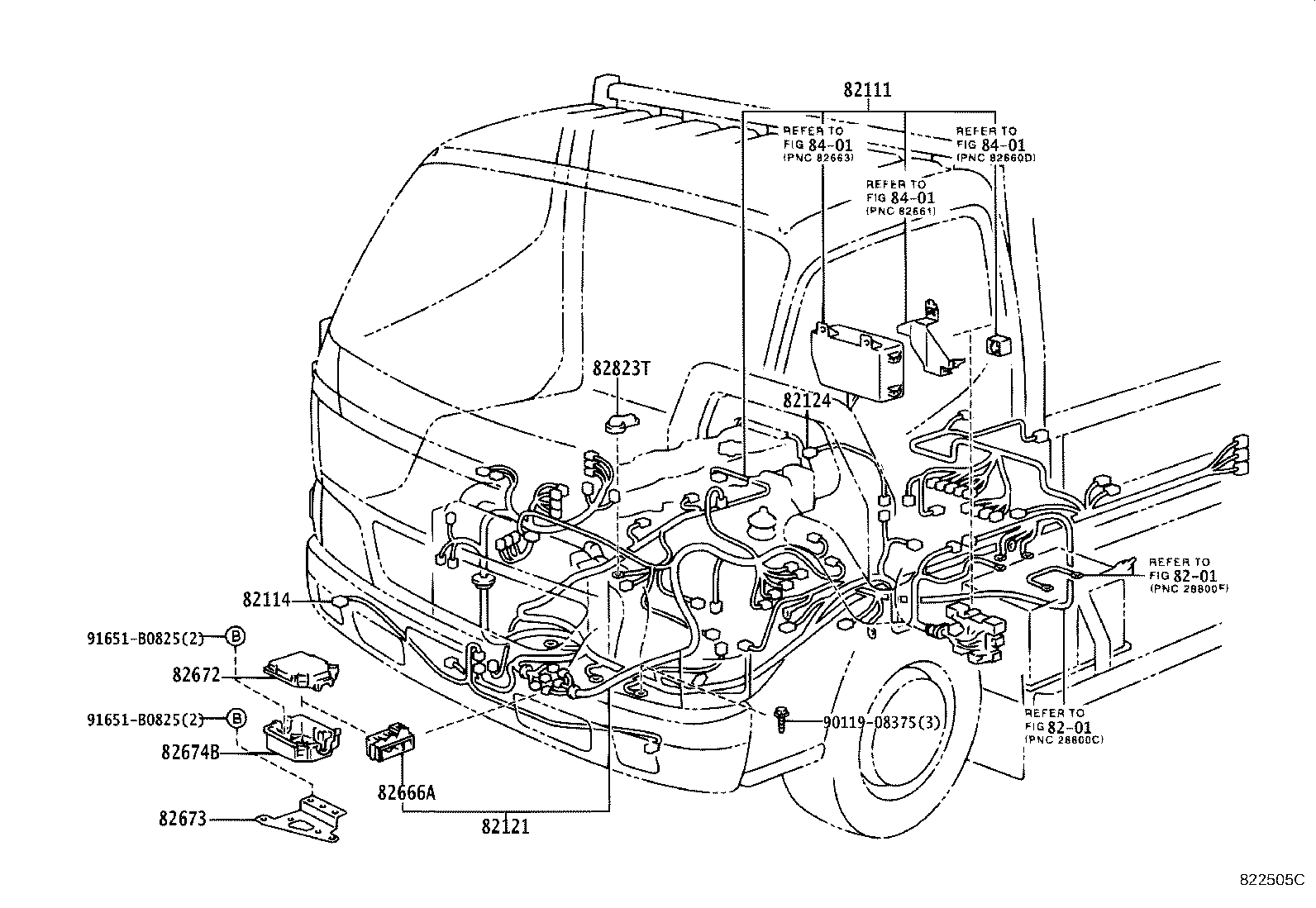

82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82124 Wire, Engine, NO.4

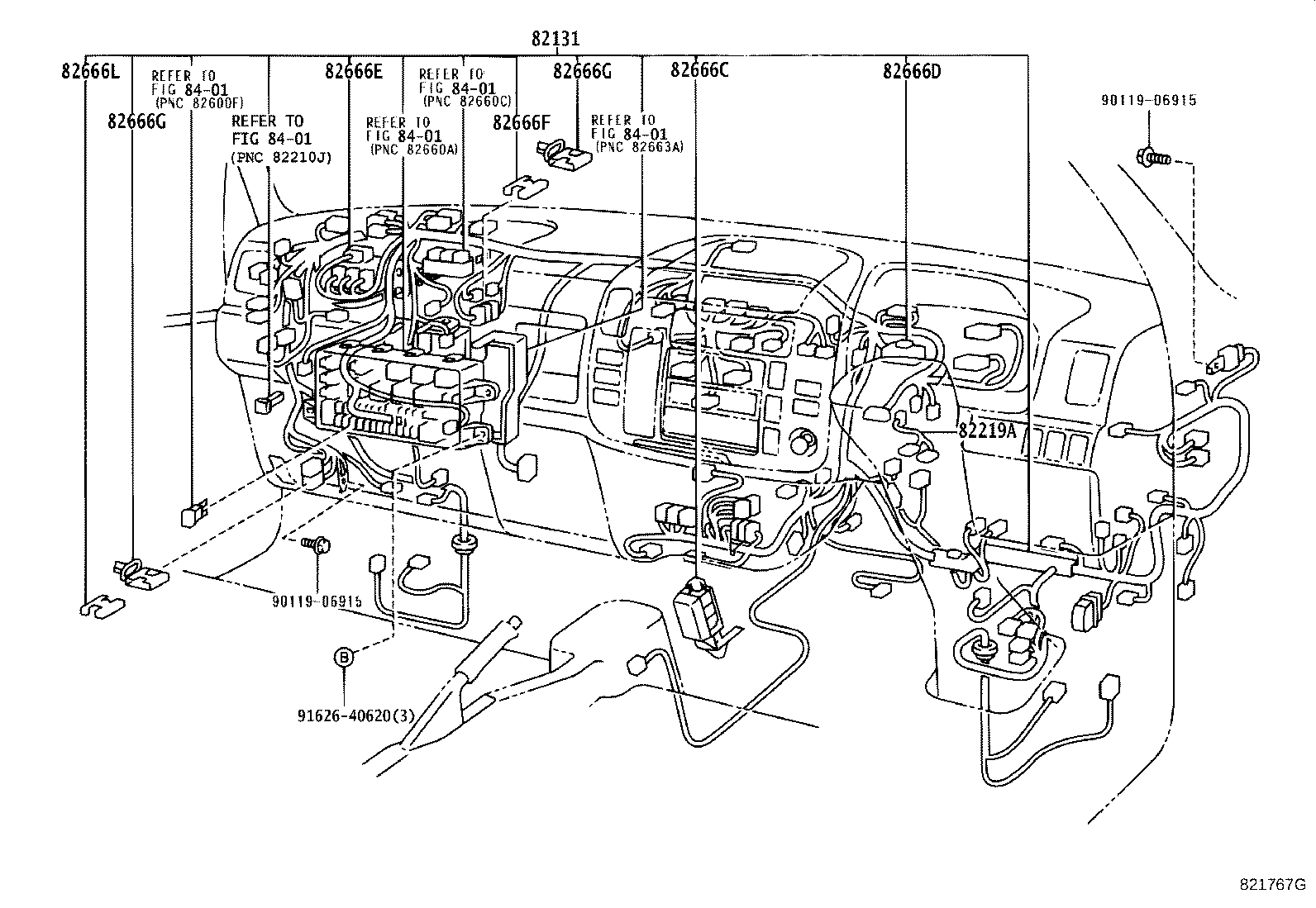

82131 Wire, Cowl

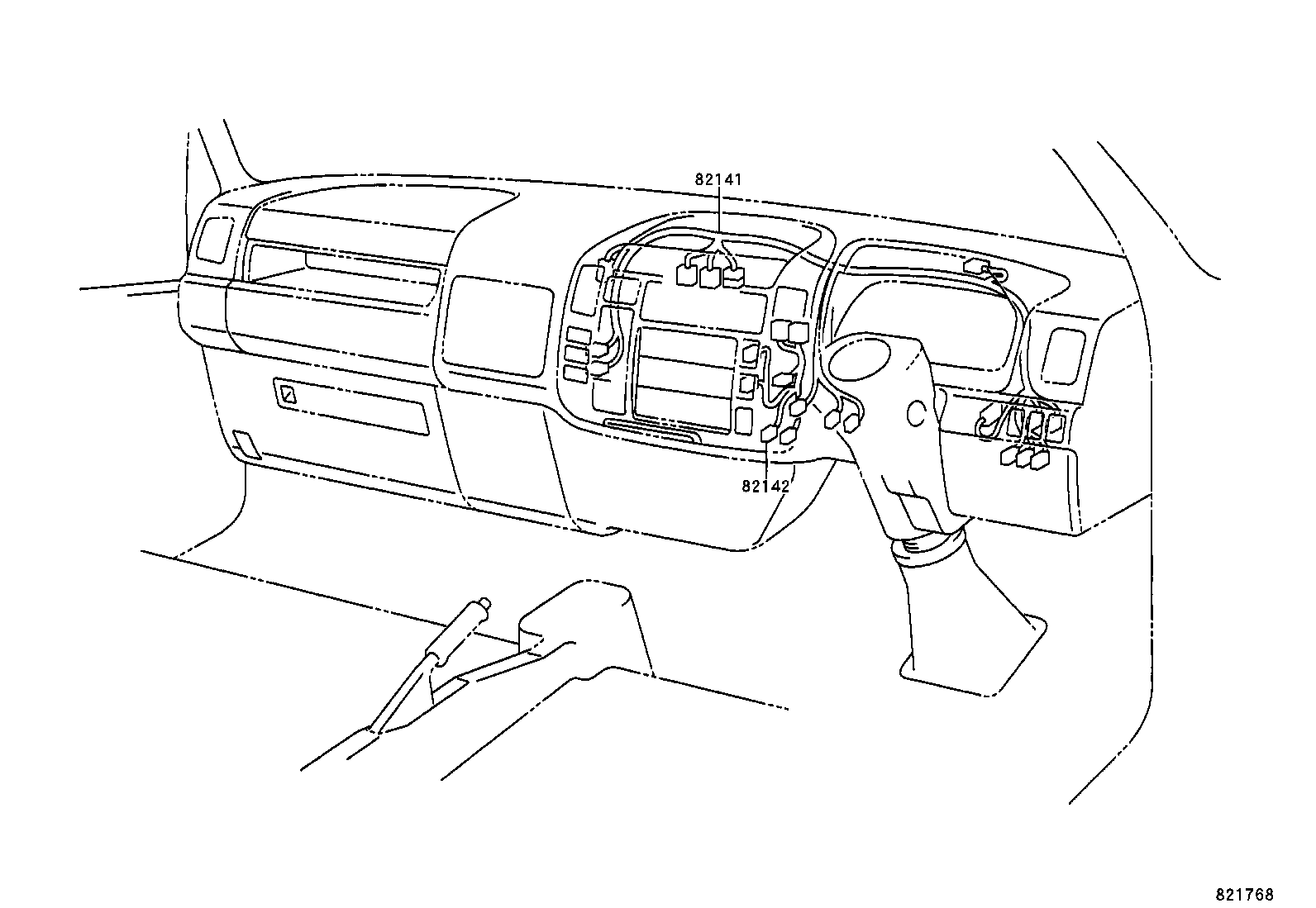

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82164 Wire, Frame
82165 Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82219A Wire, Sensor
82251 Wire, Speed Sensor
82284 Wire, Earth
82666A Holder, Connector NO.2
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82672 Cover, Junktion Block
82673 Bracket, Junction Block
82674B Cover, Junction Block, Lower
82817 Protector, Wiring Harness, NO.1
82821A Cover, Connector
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
