Toyota Dyna
2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe
Discontinued model
Data version 2003-07

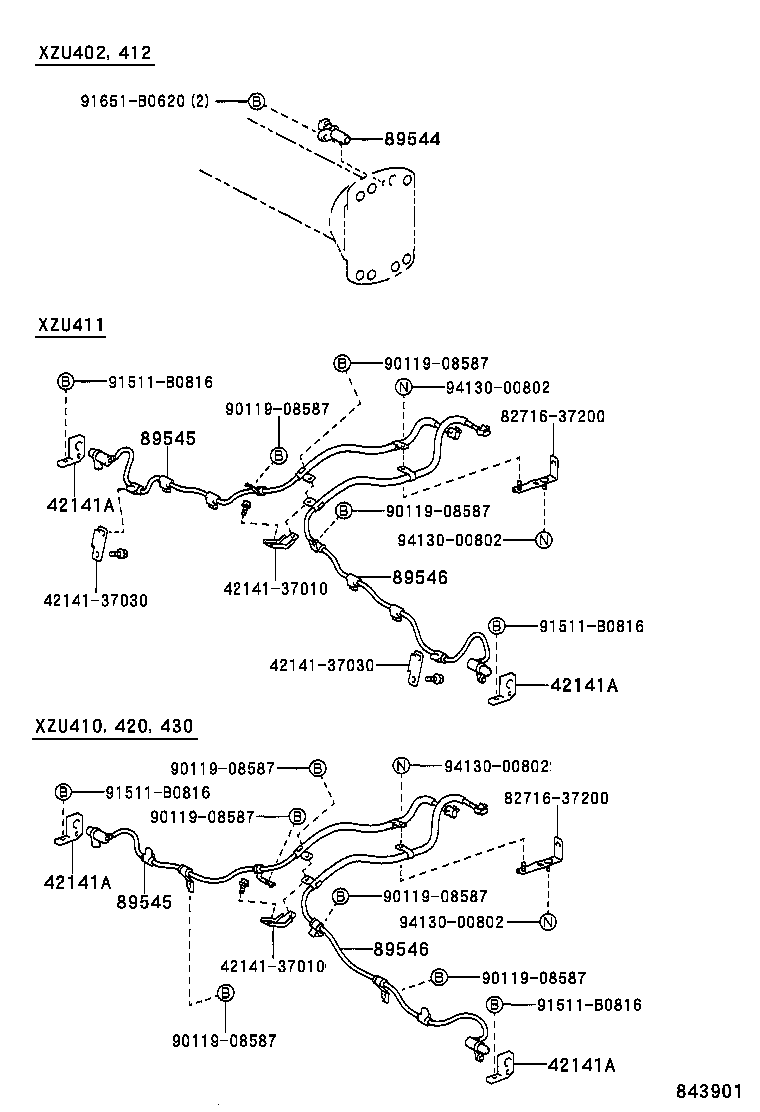

Abs & Vsc
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 42141A | Attachment, Skid Control Wire, NO.1 |
| 88263M | Relay, Abs Solenoid |
| 88263N | Relay, Abs Motor |
| 89421F | Sensor, Vacuum (FOR SKID CONTROL) |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544 | Sensor, Skid Control |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
