Toyota Dyna
2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe
Discontinued model
Data version 2003-07
Mirror

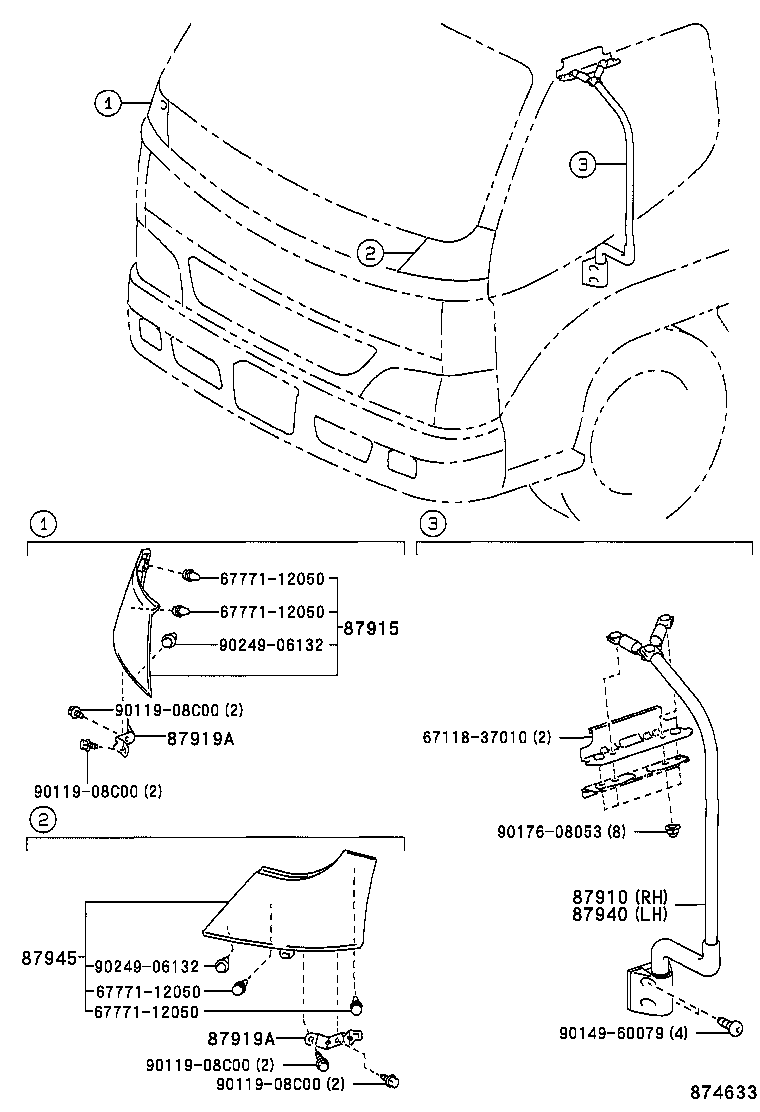

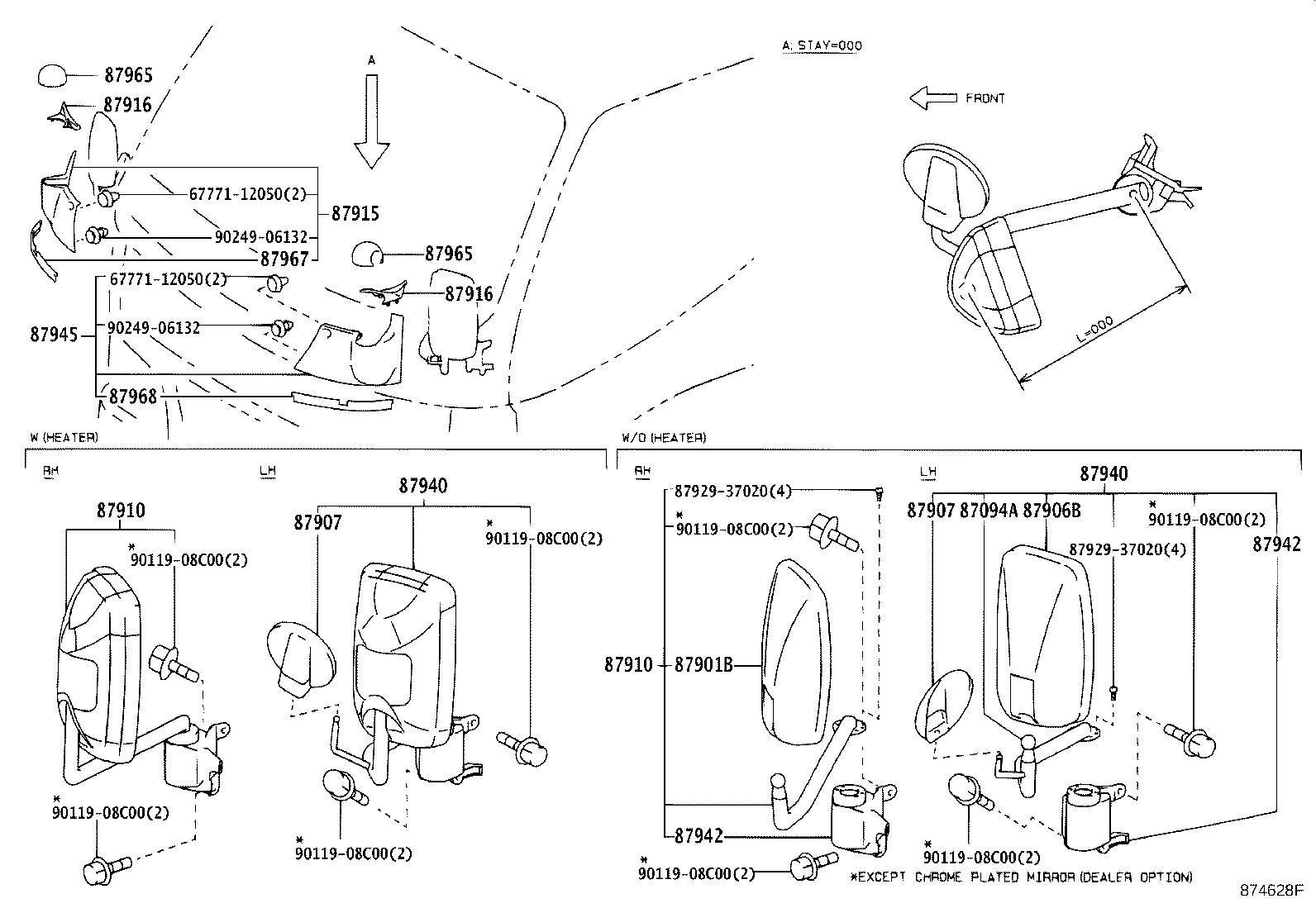

15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87094A | Stay Sub-assy, Outer Rear View Mirror, LH |
| 87810 | Mirror Assy, Inner Rear View |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87907 | Mirror Sub-assy, Outer Under View |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87916 | Bezel, Outer Mirror |
| 87919A | Bracket, Outer Mirror |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87942 | Motor, Mirror, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87965 | Grommet, Outer Mirror |
| 87967 | Holder, Mirror, Outer RH |
| 87968 | Holder, Mirror, Outer LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
