Toyota Dyna
2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe
Discontinued model
Data version 2003-07
Heating & Air Conditioning - Cooler Unit
11 part groups · 3 illustrations

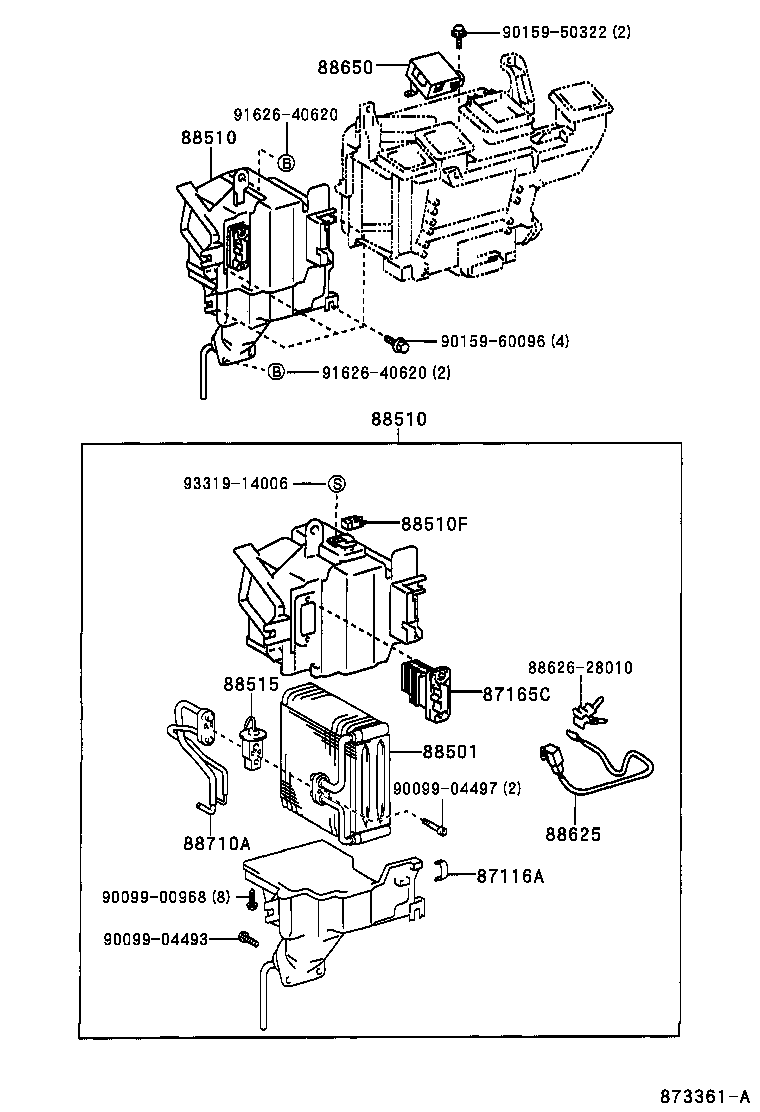

Part groups
| PNC | Description |
|---|---|
| 87116A | Spring, Holding (FOR COOLER UNIT CASE) |
| 87138C | Resistor, Blower |
| 87165C | Control, Blower Motor |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510 | Unit Assy, Cooler |
| 88510F | Holder, Fuse |
| 88515 | Valve, Cooler Expansion |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88650C | Amplifier Sub-assy, Airconditioner |
| 88710A | Tube Assy, Air Conditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
