Toyota Dyna
2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · Europe
Discontinued model
Data version 2003-07

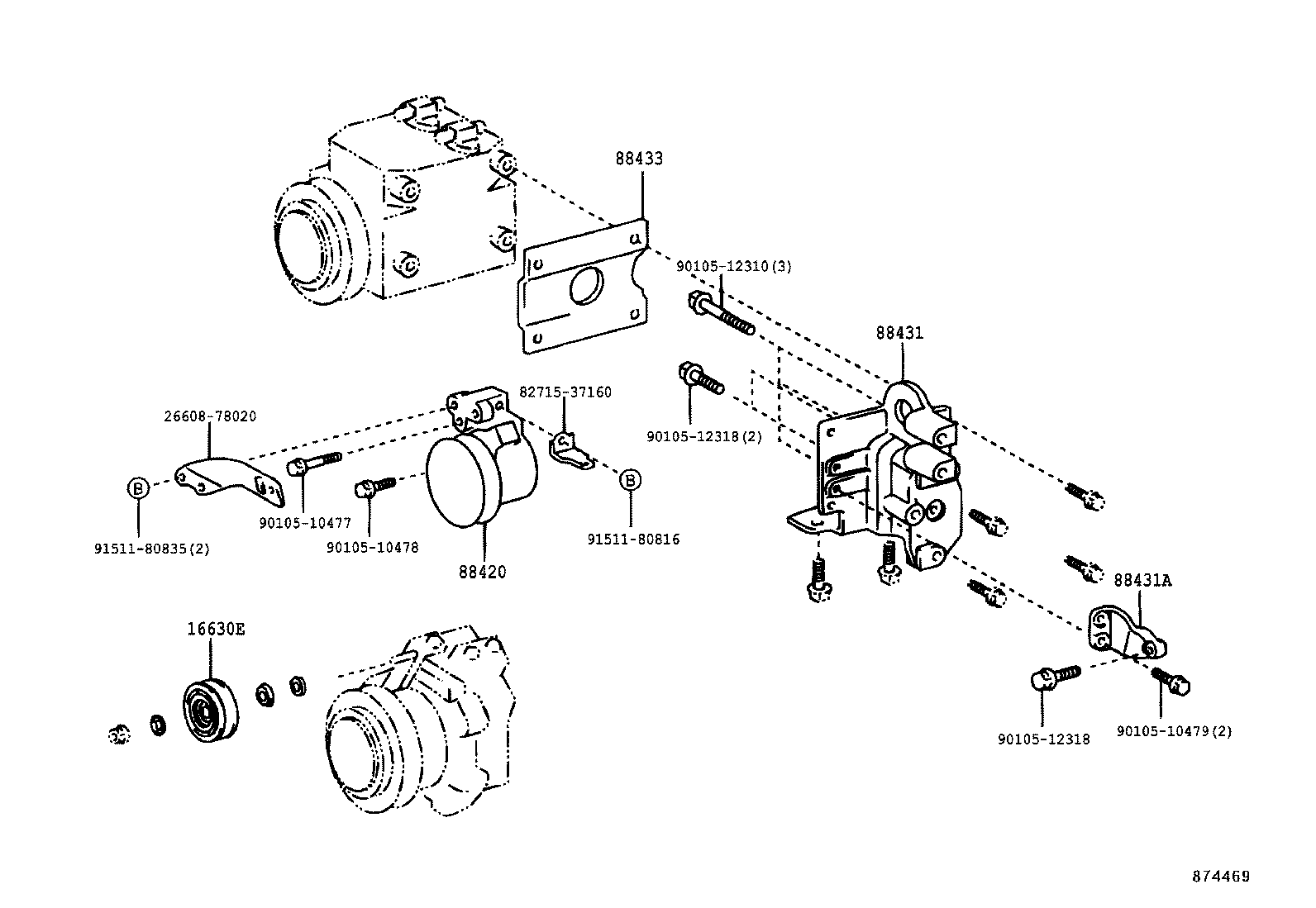

Heating & Air Conditioning - Compressor
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16630E | Pulley Assy, Idler |
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88420 | Pulley Assy, Idle, W/Bracket |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88431A | Bracket, Compressor Mounting, NO.2 |
| 88433 | Bracket, Compressor Mounting, NO.3 |
| 88440B | Pulley Assy, Idle |
| 88446 | Bolt, Idle Pulley |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
