Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

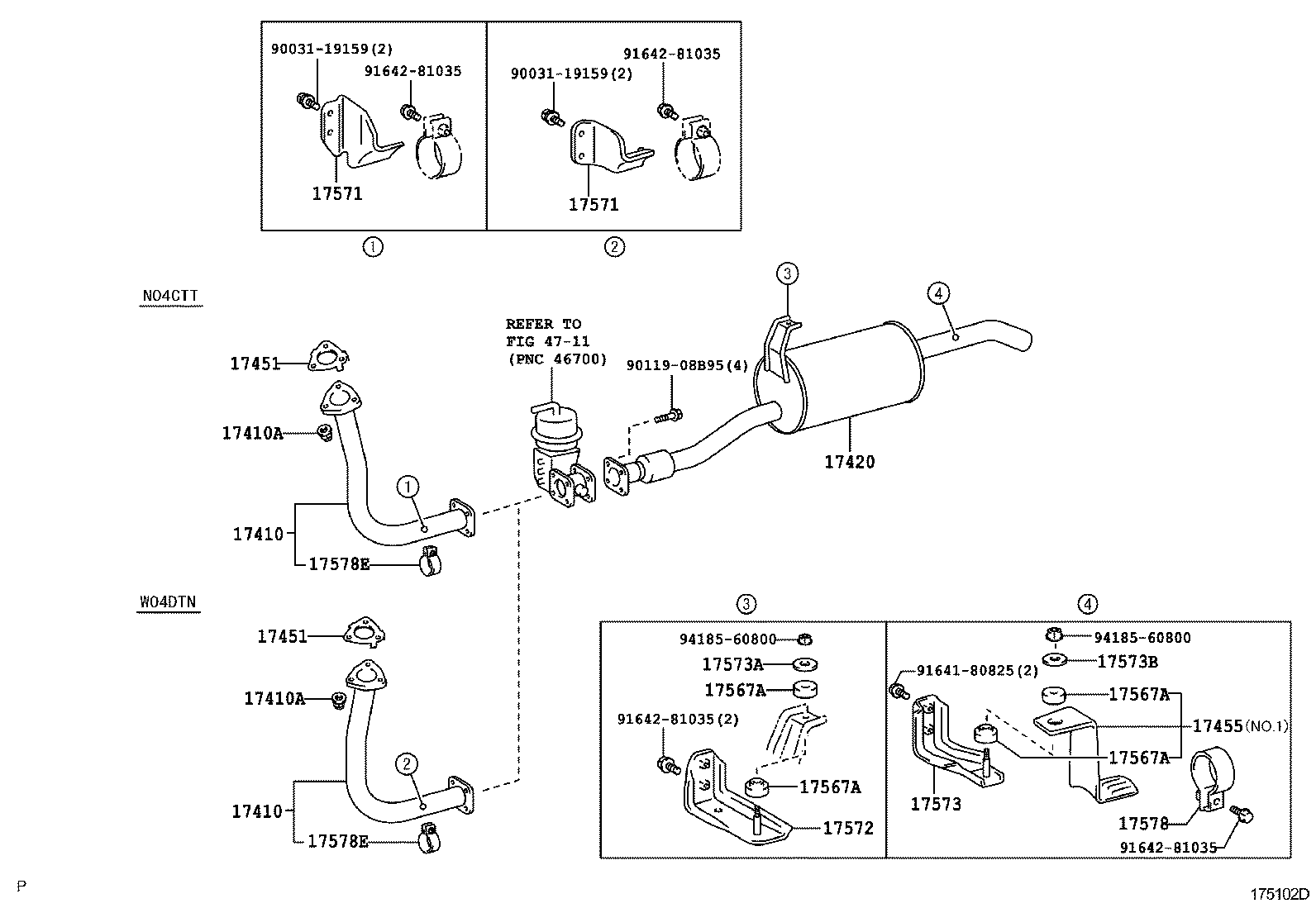

Exploded illustration 175102D 17420 — PIPE ASSY, EXHAUST, CENTER (22 parts) 17573 — BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER (36 parts) 17573B — BRACKET, EXHAUST PIPE SUPPORT, NO.5 (11 parts) 17455 — BRACKET, EXHAUST PIPE (13 parts) 17571 — BRACKET, EXHAUST PIPE SUPPORT, NO.1 (10 parts) 17578 — CLAMP, PIPE (13 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (15 parts) 17451 — GASKET, EXHAUST PIPE (3 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (7 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (15 parts) 17578E — CLAMP, PIPE(FOR FRONT EXHAUST PIPE) (7 parts) 17451 — GASKET, EXHAUST PIPE (3 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (7 parts) 17578E — CLAMP, PIPE(FOR FRONT EXHAUST PIPE) (7 parts) 9164281035 — not listed in this catalogue 9011908B95 — not listed in this catalogue 9418560800 — not listed in this catalogue 9164281035 — not listed in this catalogue 9164180825 — not listed in this catalogue 9164281035 — not listed in this catalogue 9003119159 — not listed in this catalogue 9164281035 — not listed in this catalogue 9003119159 — not listed in this catalogue 17571 — BRACKET, EXHAUST PIPE SUPPORT, NO.1 (10 parts) 17573A — BRACKET, EXHAUST PIPE SUPPORT, NO.3 (6 parts) 17567A — CUSHION, EXHAUST PIPE SUPPORT, NO.2 (12 parts) 17567A — CUSHION, EXHAUST PIPE SUPPORT, NO.2 (12 parts) 9418560800 — not listed in this catalogue 17572 — BRACKET, EXHAUST PIPE NO.1 SUPPORT (13 parts) 4711 — not listed in this catalogue
175102D · 19 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
168 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17401-58320 Pipe Assy, Exhaust, Front
2004-11 → 2007-01 ended
15BFTE BU410,420 —
17401-78050 Pipe Assy, Exhaust, Front
2003-04 → 2008-02 ended
J05C XZU420,430 —
17401-78060 Pipe Assy, Exhaust, Front
2002-12 → 2006-10 ended
S05C XZU412,422 GEN DSL —
17401-78090 Pipe Assy, Exhaust, Front
2003-02 → 2006-10 ended
S05C XZU412,422 GCC —
17401-78100 Pipe Assy, Exhaust, Front
2001-10 → 2006-10 ended
S05C XZU412,422 5F TD;S05C +2 —
17401-78100 Pipe Assy, Exhaust, Front
2001-10 → 2006-08 ended
S05C XZU414,424,434 EUR —
17401-78100 Pipe Assy, Exhaust, Front
2001-10 → 2008-02 ended
S05C XZU412,422 6F —
17401-78140 Pipe Assy, Exhaust, Front
2002-12 → 2008-02 ended
W04D WU410,420 SA —
17401-78140 Pipe Assy, Exhaust, Front
2002-12 → 2006-10 ended
W04D WU410 GCC,GEN —
17401-78201 Pipe Assy, Exhaust, Front
2006-08 → 2007-08 ended
N04C XZU415,425,435 —
17401-78310 Pipe Assy, Exhaust, Front
2007-01 → 2009-01 ended
N04C XZU417,427 —
17401-78320 Pipe Assy, Exhaust, Front
2006-10 → 2011-06 ended
N04C XZU413,423,433 —
17401-78330 Pipe Assy, Exhaust, Front
2006-10 → 2011-06 ended
W04D WU412,422 —
17401-78340 Pipe Assy, Exhaust, Front
2006-10 → 2011-06 ended
W04D WU420;W04D WU410 65T;W04D +3 —
17410-78050 Pipe Assy, Exhaust, Front
2007-08 → 2012-08 ended
N04C XZU415,419,425,429,435,439 —
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
2001-10 → 2007-01 ended
15BFTE BU410,420 —
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
2001-10 → 2008-02 ended
S05C XZU412,422 6F;J05C,W04D WU410,420,XZU420,430 +1 —
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
2001-10 → 2007-08 ended
N04C XZU415,425,435 —
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
2003-02 → 2006-10 ended
S05C XZU412,422 DSL —
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
2001-10 → 2006-10 ended
S05C XZU412,422 5F TD;S05C,W04D +2 —
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
2001-10 → 2006-08 ended
S05C XZU414,424,434 EUR —
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
2006-10 → 2012-08 ended
W04D ,425,427,429,433,435,439 WU410 DCRTJ,DCRTK,DSL +5 —
17420 — Pipe Assy, Exhaust, Center
17403-58580 Pipe Assy, Exhaust, Center
2004-11 → 2005-06 ended
15BFTE BU410,420 —
17403-58630 Pipe Assy, Exhaust, Center
2005-06 → 2007-01 ended
15BFTE BU410,420 —
17403-78210 note Pipe Assy, Exhaust, Center
2001-10 → 2006-08 ended
S05C XZU414,424,434 EUR —
17403-78210 note Pipe Assy, Exhaust, Center
2001-10 → 2006-10 ended
S05C XZU412 RHD TD;S05C +5 —
17403-78210 Pipe Assy, Exhaust, Center
2004-01 → 2008-02 ended
S05C XZU412,422 6F —
17403-78220 note Pipe Assy, Exhaust, Center
2001-10 → 2006-10 ended
S05C XZU414,424 RHD GEN;S05C +4 —
17403-78260 Pipe Assy, Exhaust, Center
2003-02 → 2006-10 ended
S05C XZU412,422 GCC —
17403-78390 note Pipe Assy, Exhaust, Center
2002-12 → 2006-10 ended
S05C XZU422 85T DSL —
17403-78460 Pipe Assy, Exhaust, Center
2002-12 → 2006-10 ended
S05C XZU412,422 GEN DSL —
17403-78480 Pipe Assy, Exhaust, Center
2002-12 → 2006-10 ended
W04D WU410 GCC,GEN —
17403-78480 Pipe Assy, Exhaust, Center
2002-12 → 2008-02 ended
W04D WU410,420 SA —
17403-78520 note Pipe Assy, Exhaust, Center
2002-12 → 2006-10 ended
S05C XZU404,414,424,434 ARL;S05C XZU412,422 +3 —
17403-78600 Pipe Assy, Exhaust, Center
2006-08 → 2007-08 ended
N04C XZU415,425,435 —
17403-78480 Pipe Assy, Exhaust, Center
2006-10 → 2011-06 ended
W04D WU420;W04D WU410 65T;W04D +3 —
17403-78840 Pipe Assy, Exhaust, Center
2006-10 → 2011-06 ended
N04C XZU413,423 GEN —
17403-78840 note Pipe Assy, Exhaust, Center
2008-01 → 2011-06 ended
W04D WU412,422 GCC —
17403-78860 note Pipe Assy, Exhaust, Center
2006-10 → 2011-06 ended
N04C,W04D WU412,422,XZU413,423,433 —
17403-78880 Pipe Assy, Exhaust, Center
2007-01 → 2009-01 ended
N04C XZU417,427 —
17403-78A30 Pipe Assy, Exhaust, Center
2006-10 → 2011-06 ended
W04D WU422 GCC;W04D WU412 +2 —
17403-78A40 note Pipe Assy, Exhaust, Center
2008-01 → 2011-06 ended
W04D WU410 GCC —
17420-78340 note Pipe Assy, Exhaust, Center
2007-08 → 2009-05 ended
N04C XZU415,425,435 —
17420-78610 note Pipe Assy, Exhaust, Center
2009-08 → 2012-08 ended
N04C XZU419,429,439 —
17451 — Gasket, Exhaust Pipe
17451-78020 Gasket, Exhaust Pipe
2006-08 → 2007-08 ended
N04C XZU415,425,435 —
90917-06076 Gasket, Exhaust Pipe
2004-11 → 2007-01 ended
15BFTE BU410,420 —
90917-06087 Gasket, Exhaust Pipe
2006-10 → 2012-08 ended
W04D ,425,427,429,433,435,439 WU410 DCRTJ,DCRTK,DSL +5 —
17455 — Bracket, Exhaust Pipe
17455-78020 note Bracket, Exhaust Pipe
2001-10 → 2005-06 ended
15BFTE BU410,420 —
17455-78020 note Bracket, Exhaust Pipe
2001-10 → 2008-02 ended
S05C ,414,424,434 XZU412,422 ARL,EUR +8 —
17455-78030 note Bracket, Exhaust Pipe
2002-12 → 2006-10 ended
S05C U412 XZU422 5F +10 —
17455-78040 note Bracket, Exhaust Pipe
2002-12 → 2006-10 ended
S05C U412 XZU422 5F +10 —
17455-78060 note Bracket, Exhaust Pipe
2001-10 → 2006-10 ended
S05C XZU414,424 RHD GEN;S05C +4 —
17455-78060 Bracket, Exhaust Pipe
2005-01 → 2008-02 ended
S05C XZU412,422 6F;S05C XZU414,424 +2 —
17455-78070 note Bracket, Exhaust Pipe
2003-02 → 2006-10 ended
S05C,W04D WU410,XZU412,422 (GCC,GEN) DSL —
17455-78070 Bracket, Exhaust Pipe
2003-04 → 2008-02 ended
J05C,W04D WU410,420,XZU420,430 SA —
17455-78100 note Bracket, Exhaust Pipe
2002-12 → 2006-10 ended
S05C U412 XZU422 5F +10 —
17455-78030 Bracket, Exhaust Pipe
2006-10 → 2011-06 ended
W04D WU422 GCC;W04D WU412 +2 —
17455-78040 note Bracket, Exhaust Pipe
2006-10 → 2011-06 ended
W04D WU422 GCC;W04D WU412 +2 —
17455-78070 note Bracket, Exhaust Pipe
2006-10 → 2011-06 ended
W04D WU410 65T;W04D WU410 +3 —
17455-78100 note Bracket, Exhaust Pipe
2006-10 → 2011-06 ended
W04D WU422 GCC;W04D WU412 +2 —
17567A — Cushion, Exhaust Pipe Support, NO.2
17567-78010 note Cushion, Exhaust Pipe Support, NO.2
2001-10 → 2006-08 ended
S05C XZU414,424,434 EUR —
17567-78010 note Cushion, Exhaust Pipe Support, NO.2
2001-10 → 2006-10 ended
S05C 424,434 XZU422 RHD +9 —
17567-78010 note Cushion, Exhaust Pipe Support, NO.2
2001-10 → 2006-10 ended
S05C XZU414,424 ARL;S05C XZU412,434 +5 —
17567-78010 note Cushion, Exhaust Pipe Support, NO.2
2003-02 → 2006-10 ended
S05C XZU422 75T DSL;S05C,W04D +3 —
17567-78010 Cushion, Exhaust Pipe Support, NO.2
2004-01 → 2007-01 ended
15BFTE BU410,420 —
17567-78010 Cushion, Exhaust Pipe Support, NO.2
2003-04 → 2008-02 ended
J05C,W04D WU410,420,XZU420,430 SA —
17567-78010 Cushion, Exhaust Pipe Support, NO.2
2004-01 → 2008-02 ended
S05C XZU412,422 6F —
17567-78040 Cushion, Exhaust Pipe Support, NO.2
2006-08 → 2007-08 ended
N04C XZU415,425,435 —
17567-78010 Cushion, Exhaust Pipe Support, NO.2
2006-10 → 2011-06 ended
W04D WU410 65T;W04D WU410 +3 —
17567-78010 note Cushion, Exhaust Pipe Support, NO.2
2008-01 → 2011-06 ended
W04D WU41#,422 GCC —
17567-78010 note Cushion, Exhaust Pipe Support, NO.2
2006-10 → 2011-06 ended
N04C XZU413,417,423,427 LHD —
17567-78040 Cushion, Exhaust Pipe Support, NO.2
2007-08 → 2012-08 ended
N04C XZU415,419,425,429,435,439 —
17571 — Bracket, Exhaust Pipe Support, NO.1
17571-58391 Bracket, Exhaust Pipe Support, NO.1
2004-11 → 2007-01 ended
15BFTE BU410,420 —
17571-78030 Bracket, Exhaust Pipe Support, NO.1
2001-10 → 2006-08 ended
S05C XZU414,424,434 EUR —
17571-78030 Bracket, Exhaust Pipe Support, NO.1
2001-10 → 2006-10 ended
S05C XZU412,422 5F TD;S05C +2 —
17571-78030 Bracket, Exhaust Pipe Support, NO.1
2003-02 → 2006-10 ended
S05C XZU412,422 DSL —
17571-78030 Bracket, Exhaust Pipe Support, NO.1
2001-10 → 2008-02 ended
J05C,S05C XZU412,420,422,430 6F —
17571-78040 Bracket, Exhaust Pipe Support, NO.1
2002-12 → 2006-10 ended
W04D WU410 GCC,GEN —
17571-78040 Bracket, Exhaust Pipe Support, NO.1
2002-12 → 2008-02 ended
W04D WU410,420 SA —
17571-78050 Bracket, Exhaust Pipe Support, NO.1
2006-08 → 2007-08 ended
N04C XZU415,425,435 —
17571-78040 Bracket, Exhaust Pipe Support, NO.1
2006-10 → 2011-06 ended
W04D WU412,42#;W04D WU410 65T;W04D +3 —
17571-78050 Bracket, Exhaust Pipe Support, NO.1
2006-10 → 2012-08 ended
N04C XZU413,415,417,419,423,425,427,429,433,435,439 DCRTK —
17572 — Bracket, Exhaust Pipe NO.1 Support
17572-78071 Bracket, Exhaust Pipe NO.1 Support
2003-02 → 2004-01 ended
J05C,S05C,W04D WU410,420,XZU412,420,422,430 DSL —
17572-78072 Bracket, Exhaust Pipe NO.1 Support
2004-01 → 2006-10 ended
S05C,W04D WU410,XZU412,422 (GCC,GEN) DSL —
17572-78072 Bracket, Exhaust Pipe NO.1 Support
2004-01 → 2008-02 ended
J05C,W04D WU410,420,XZU420,430 SA —
17572-78130 Bracket, Exhaust Pipe NO.1 Support
2001-10 → 2004-01 ended
S05C XZU404,41#,422,424,434 TD —
17572-78131 Bracket, Exhaust Pipe NO.1 Support
2004-01 → 2006-08 ended
S05C XZU414,424,434 EUR —
17572-78131 Bracket, Exhaust Pipe NO.1 Support
2004-01 → 2006-10 ended
S05C XZU412,422 5F TD;S05C +2 —
17572-78131 Bracket, Exhaust Pipe NO.1 Support
2004-01 → 2008-02 ended
S05C XZU412,422 6F —
17572-78181 note Bracket, Exhaust Pipe NO.1 Support
2004-11 → 2007-01 ended
15BFTE BU410,420 —
17572-78190 note Bracket, Exhaust Pipe NO.1 Support
2004-11 → 2005-05 ended
15BFTE BU410,420 —
17572-78191 note Bracket, Exhaust Pipe NO.1 Support
2005-06 → 2007-01 ended
15BFTE BU410,420 —
17572-78210 Bracket, Exhaust Pipe NO.1 Support
2006-08 → 2007-08 ended
N04C XZU415,425,435 —
17572-78072 Bracket, Exhaust Pipe NO.1 Support
2006-10 → 2011-06 ended
W04D WU410 65T;W04D WU410 +3 —
17572-78210 Bracket, Exhaust Pipe NO.1 Support
2007-08 → 2012-08 ended
N04C XZU415,419,425,429,435,439 —
17573 — Bracket, Exhaust Pipe NO.1 Support, Lower
17573-78082 Bracket, Exhaust Pipe NO.1 Support, Lower
2003-02 → 2006-10 ended
S05C XZU422 75T DSL;S05C,W04D +3 —
17573-78082 Bracket, Exhaust Pipe NO.1 Support, Lower
2002-12 → 2008-02 ended
J05C,W04D WU410,420,XZU420,430 SA —
17573-78082 Bracket, Exhaust Pipe NO.1 Support, Lower
2002-12 → 2006-10 ended
S05C XZU422 85T DSL —
17573-78130 Bracket, Exhaust Pipe NO.1 Support, Lower
2001-10 → 2006-10 ended
S05C XZU404 —
17573-78140 Bracket, Exhaust Pipe NO.1 Support, Lower
2005-01 → 2006-10 ended
S05C XZU414 LHD GEN —
17573-78140 note Bracket, Exhaust Pipe NO.1 Support, Lower
2002-12 → 2007-01 ended
15BFTE BU420 —
17573-78140 note Bracket, Exhaust Pipe NO.1 Support, Lower
2002-12 → 2006-10 ended
S05C XZU412 5F (75T,85T) +1 —
17573-78140 note Bracket, Exhaust Pipe NO.1 Support, Lower
2002-12 → 2006-10 ended
S05C XZU414,434 ARL —
17573-78140 note Bracket, Exhaust Pipe NO.1 Support, Lower
2002-12 → 2006-10 ended
S05C XZU412 RHD TD —
17573-78140 note Bracket, Exhaust Pipe NO.1 Support, Lower
2002-12 → 2006-10 ended
S05C XZU414,434 ARL;S05C XZU412 +2 —
17573-78140 note Bracket, Exhaust Pipe NO.1 Support, Lower
2001-10 → 2008-02 ended
S05C XZU412 6F —
17573-78140 note Bracket, Exhaust Pipe NO.1 Support, Lower
2001-10 → 2006-10 ended
S05C XZU414 LHD GEN —
17573-78140 Bracket, Exhaust Pipe NO.1 Support, Lower
2001-10 → 2006-10 ended
S05C XZU414 RHD GEN;S05C +3 —
17573-78140 Bracket, Exhaust Pipe NO.1 Support, Lower
2005-01 → 2008-02 ended
S05C XZU412 6F —
17573-78140 note Bracket, Exhaust Pipe NO.1 Support, Lower
2001-10 → 2006-08 ended
S05C XZU414,434 EUR —
17573-78150 note Bracket, Exhaust Pipe NO.1 Support, Lower
2001-10 → 2008-02 ended
S05C XZU422 6F —
17573-78150 Bracket, Exhaust Pipe NO.1 Support, Lower
2005-01 → 2006-10 ended
S05C XZU424 LHD GEN —
17573-78150 Bracket, Exhaust Pipe NO.1 Support, Lower
2005-01 → 2008-02 ended
S05C XZU422 6F —
17573-78150 note Bracket, Exhaust Pipe NO.1 Support, Lower
2002-12 → 2006-10 ended
S05C XZU422 5F TD —
17573-78150 note Bracket, Exhaust Pipe NO.1 Support, Lower
2002-12 → 2006-10 ended
S05C XZU424 ARL —
17573-78150 note Bracket, Exhaust Pipe NO.1 Support, Lower
2002-12 → 2006-10 ended
S05C XZU424 ARL —
17573-78150 note Bracket, Exhaust Pipe NO.1 Support, Lower
2001-10 → 2006-10 ended
S05C XZU424 LHD GEN —
17573-78150 Bracket, Exhaust Pipe NO.1 Support, Lower
2001-10 → 2006-10 ended
S05C XZU424 RHD GEN —
17573-78150 note Bracket, Exhaust Pipe NO.1 Support, Lower
2001-10 → 2006-08 ended
S05C XZU424 EUR —
17573-78160 Bracket, Exhaust Pipe NO.1 Support, Lower
2004-11 → 2007-01 ended
15BFTE BU410 —
17573-78160 note Bracket, Exhaust Pipe NO.1 Support, Lower
2004-11 → 2007-01 ended
15BFTE BU420 —
17573-78160 note Bracket, Exhaust Pipe NO.1 Support, Lower
2001-10 → 2006-10 ended
S05C XZU414,424 ARL;S05C XZU412,434 +5 —
17573-78160 note Bracket, Exhaust Pipe NO.1 Support, Lower
2001-10 → 2008-02 ended
S05C XZU412,422 6F —
17573-78160 note Bracket, Exhaust Pipe NO.1 Support, Lower
2001-10 → 2006-08 ended
S05C XZU414,424,434 EUR —
17573-78230 note Bracket, Exhaust Pipe NO.1 Support, Lower
2006-08 → 2007-08 ended
N04C XZU415,425,435 —
17573-78240 note Bracket, Exhaust Pipe NO.1 Support, Lower
2006-08 → 2007-08 ended
N04C XZU415,425,435 —
17573-78082 Bracket, Exhaust Pipe NO.1 Support, Lower
2006-10 → 2011-06 ended
W04D WU410 65T;W04D WU410 +3 —
17573-78082 note Bracket, Exhaust Pipe NO.1 Support, Lower
2006-10 → 2011-06 ended
N04C XZU413,417,423,427 LHD —
17573-78082 note Bracket, Exhaust Pipe NO.1 Support, Lower
2008-01 → 2011-06 ended
W04D WU41#,422 GCC —
17573-78230 note Bracket, Exhaust Pipe NO.1 Support, Lower
2007-08 → 2012-08 ended
N04C XZU415,419,425,429,435,439 —
17573-78240 note Bracket, Exhaust Pipe NO.1 Support, Lower
2007-08 → 2012-08 ended
N04C XZU415,419,425,429,435,439 —
17573A — Bracket, Exhaust Pipe Support, NO.3
16721-78010 Bracket, Exhaust Pipe Support, NO.3
2001-10 → 2006-08 ended
S05C XZU414,424,434 EUR —
16721-78010 Bracket, Exhaust Pipe Support, NO.3
2001-10 → 2006-10 ended
S05C XZU412,422 5F TD;S05C +2 —
16721-78010 Bracket, Exhaust Pipe Support, NO.3
2003-02 → 2006-10 ended
S05C,W04D WU410,XZU412,422 (GCC,GEN) DSL —
16721-78010 Bracket, Exhaust Pipe Support, NO.3
2004-11 → 2007-01 ended
15BFTE BU410,420 —
16721-78010 Bracket, Exhaust Pipe Support, NO.3
2001-10 → 2008-02 ended
S05C XZU412,422 6F;J05C,W04D WU410,420,XZU420,430 +1 —
16721-78010 Bracket, Exhaust Pipe Support, NO.3
2006-10 → 2011-06 ended
W04D WU410 65T;W04D WU410 +3 —
17573B — Bracket, Exhaust Pipe Support, NO.5
16721-78010 note Bracket, Exhaust Pipe Support, NO.5
2001-10 → 2007-01 ended
15BFTE BU420 —
16721-78010 Bracket, Exhaust Pipe Support, NO.5
2003-04 → 2008-02 ended
J05C,W04D WU410,420,XZU420,430 SA —
16721-78010 note Bracket, Exhaust Pipe Support, NO.5
2001-10 → 2008-02 ended
S05C XZU412,422 6F —
16721-78010 Bracket, Exhaust Pipe Support, NO.5
2003-04 → 2007-01 ended
15BFTE BU410 —
16721-78010 note Bracket, Exhaust Pipe Support, NO.5
2003-02 → 2006-10 ended
S05C XZU422 75T DSL;S05C,W04D +3 —
16721-78010 note Bracket, Exhaust Pipe Support, NO.5
2001-10 → 2006-10 ended
S05C XZU414,424 ARL;S05C XZU412,434 +5 —
16721-78010 note Bracket, Exhaust Pipe Support, NO.5
2001-10 → 2006-10 ended
S05C 424,434 XZU422 RHD +9 —
16721-78010 note Bracket, Exhaust Pipe Support, NO.5
2001-10 → 2006-08 ended
S05C XZU414,424,434 EUR —
16721-78010 Bracket, Exhaust Pipe Support, NO.5
2006-10 → 2011-06 ended
W04D WU410 65T;W04D WU410 +3 —
16721-78010 note Bracket, Exhaust Pipe Support, NO.5
2006-10 → 2011-06 ended
N04C XZU413,417,423,427 LHD —
16721-78010 note Bracket, Exhaust Pipe Support, NO.5
2008-01 → 2011-06 ended
W04D WU41#,422 GCC —
17578 — Clamp, Pipe
17578-78010 Clamp, Pipe
2003-04 → 2008-02 ended
J05C,W04D WU410,420,XZU420,430 SA —
17578-78010 note Clamp, Pipe
2002-12 → 2006-10 ended
S05C,W04D WU410,XZU412,422 (GCC,GEN) DSL —
17578-78060 note Clamp, Pipe
2001-10 → 2006-10 ended
S05C XZU414,424 ARL;S05C XZU412,434 +5 —
17578-78060 note Clamp, Pipe
2001-10 → 2008-02 ended
S05C XZU412,422 6F —
17578-78060 Clamp, Pipe
2002-12 → 2007-01 ended
15BFTE BU410 —
17578-78060 note Clamp, Pipe
2001-10 → 2007-01 ended
15BFTE BU420 —
17578-78060 Clamp, Pipe
2002-12 → 2006-10 ended
S05C U412 XZU422 5F +10 —
17578-78060 note Clamp, Pipe
2001-10 → 2006-08 ended
S05C XZU414,424,434 EUR —
17578-78010 Clamp, Pipe
2006-10 → 2011-06 ended
W04D WU410 65T;W04D WU410 +3 —
17578-78030 note Clamp, Pipe
2006-10 → 2011-06 ended
W04D WU422 GCC;W04D WU412 +2 —
17578-78030 note Clamp, Pipe
2006-10 → 2011-06 ended
N04C XZU413,417,423,427 LHD —
17578-78030 note Clamp, Pipe
2008-01 → 2011-06 ended
W04D WU41#,422 GCC —
17578-78060 note Clamp, Pipe
2006-10 → 2011-06 ended
W04D WU422 GCC;W04D WU412 +2 —
17578E — Clamp, Pipe(FOR FRONT EXHAUST PIPE)
17578-78010 Clamp, Pipe(FOR FRONT EXHAUST PIPE)
2002-12 → 2006-08 ended
S05C XZU414,424,434 EUR —
17578-78010 Clamp, Pipe(FOR FRONT EXHAUST PIPE)
2002-12 → 2006-10 ended
S05C XZU412,422 5F GEN;S05C,W04D +2 —
17578-78010 Clamp, Pipe(FOR FRONT EXHAUST PIPE)
2003-02 → 2006-10 ended
S05C XZU412,422 GCC —
17578-78010 Clamp, Pipe(FOR FRONT EXHAUST PIPE)
2002-12 → 2007-01 ended
15BFTE BU410,420 —
17578-78010 Clamp, Pipe(FOR FRONT EXHAUST PIPE)
2002-12 → 2007-08 ended
N04C XZU415,425,435 —
17578-78010 Clamp, Pipe(FOR FRONT EXHAUST PIPE)
2002-12 → 2008-02 ended
S05C XZU412,422 6F;J05C,W04D WU410,420,XZU420,430 +1 —
17578-78010 Clamp, Pipe(FOR FRONT EXHAUST PIPE)
2006-10 → 2012-08 ended
W04D ,425,427,429,433,435,439 WU410 DCRTJ,DCRTK,DSL +5 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
