Toyota Dyna
2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe
Discontinued model
Data version 2013-04

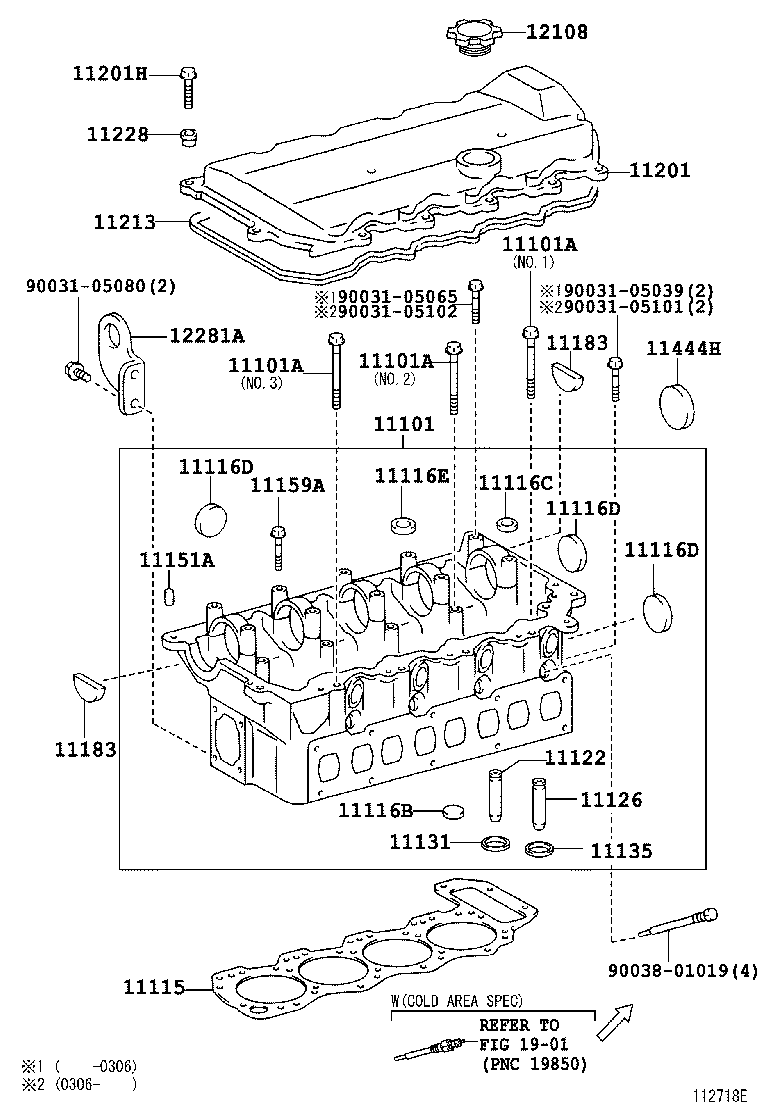

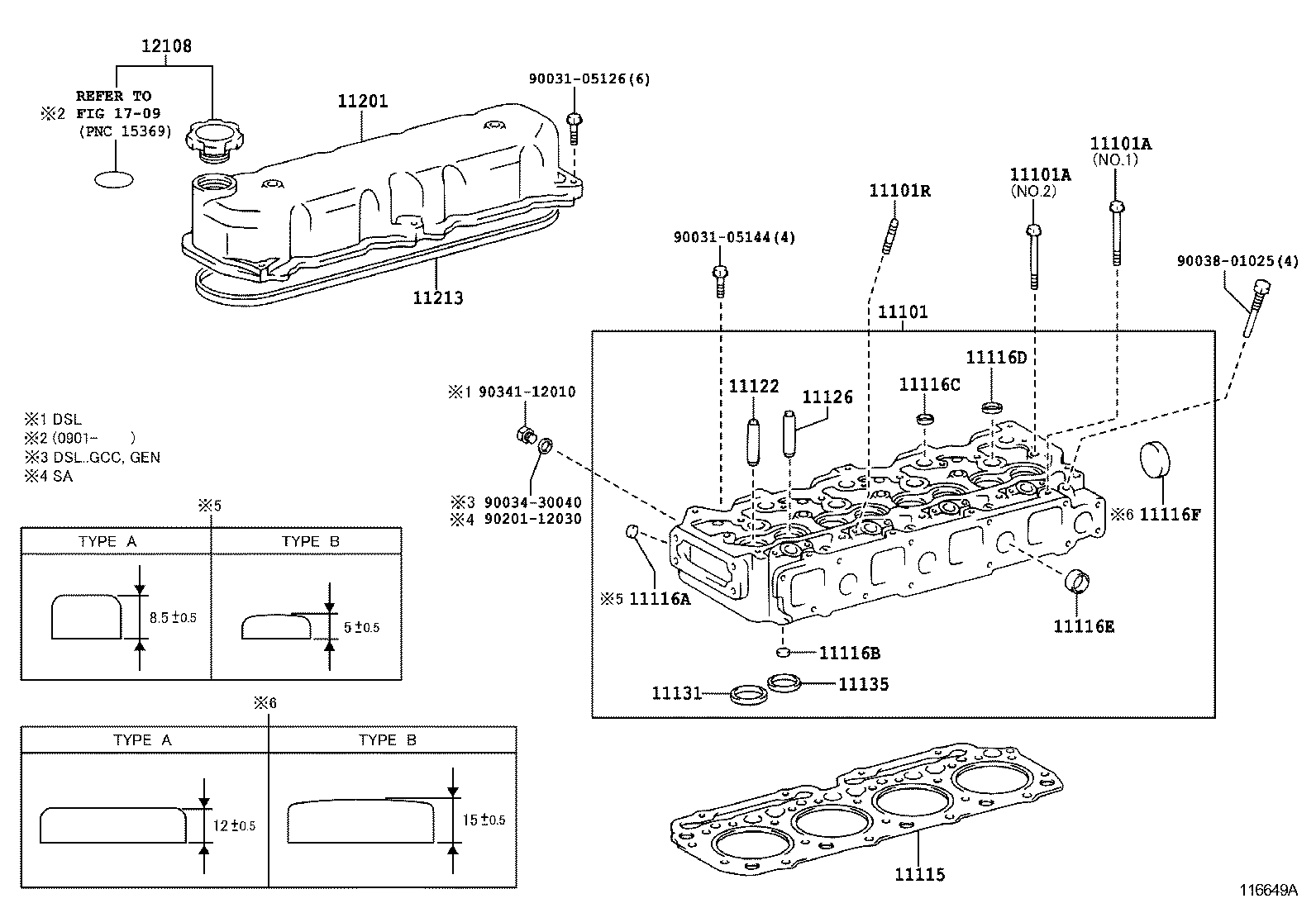

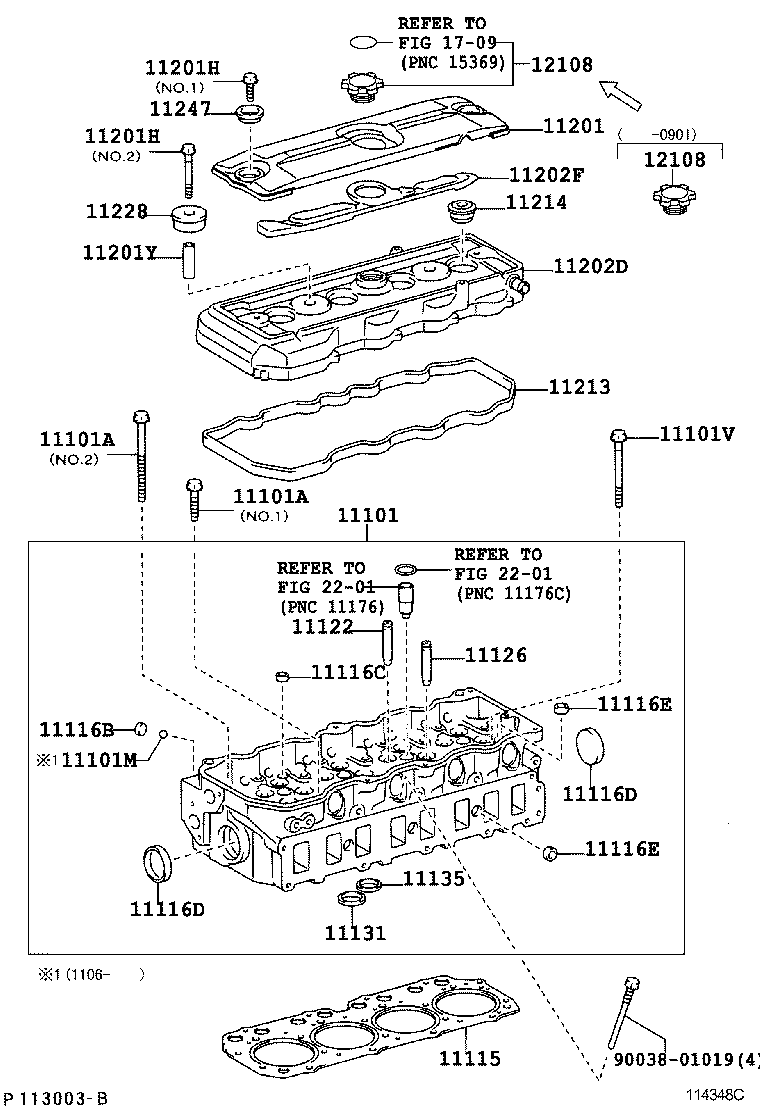

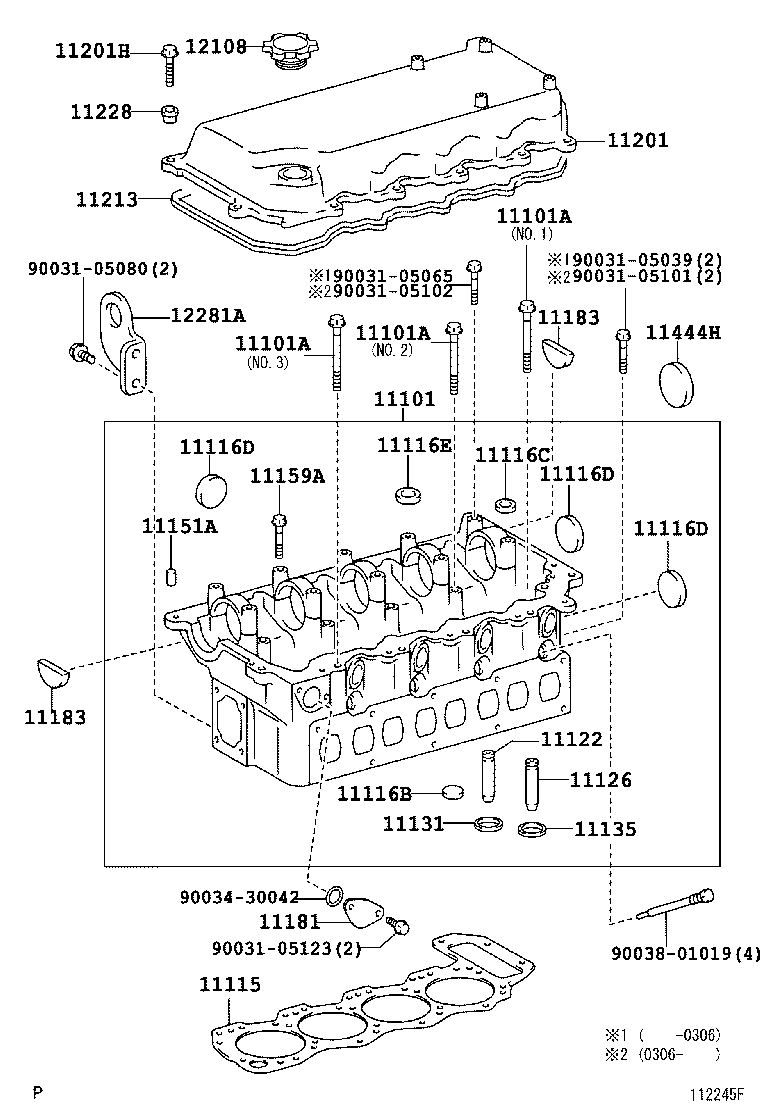

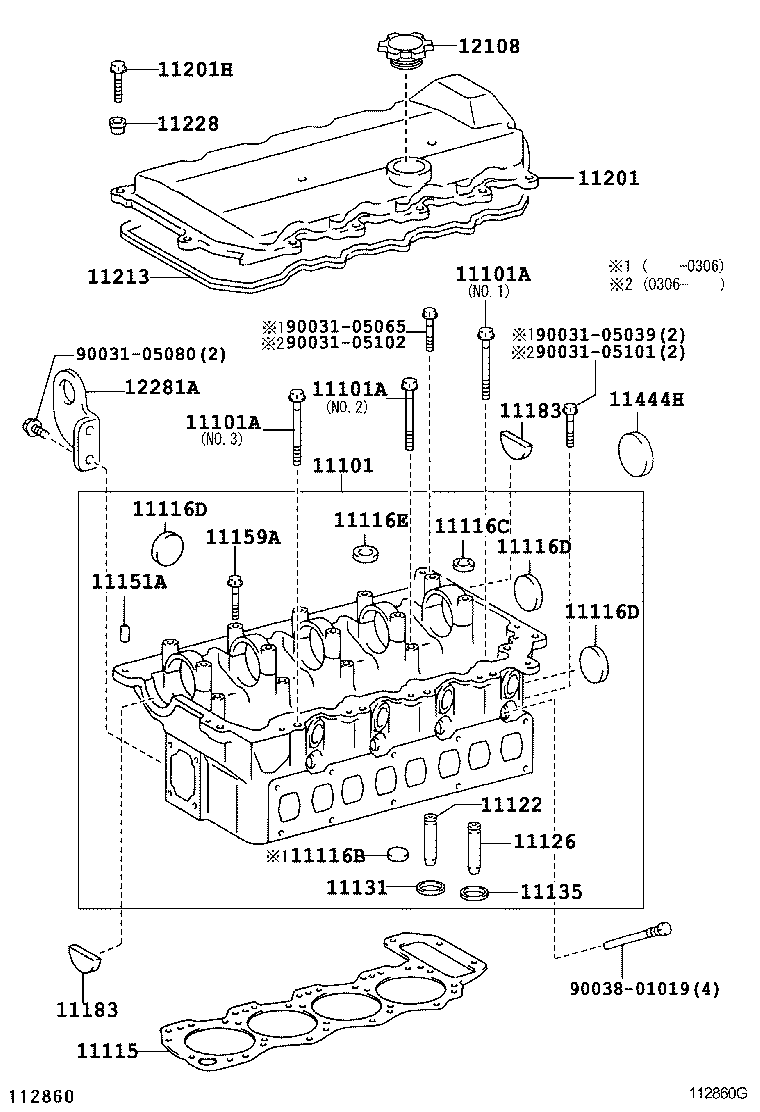

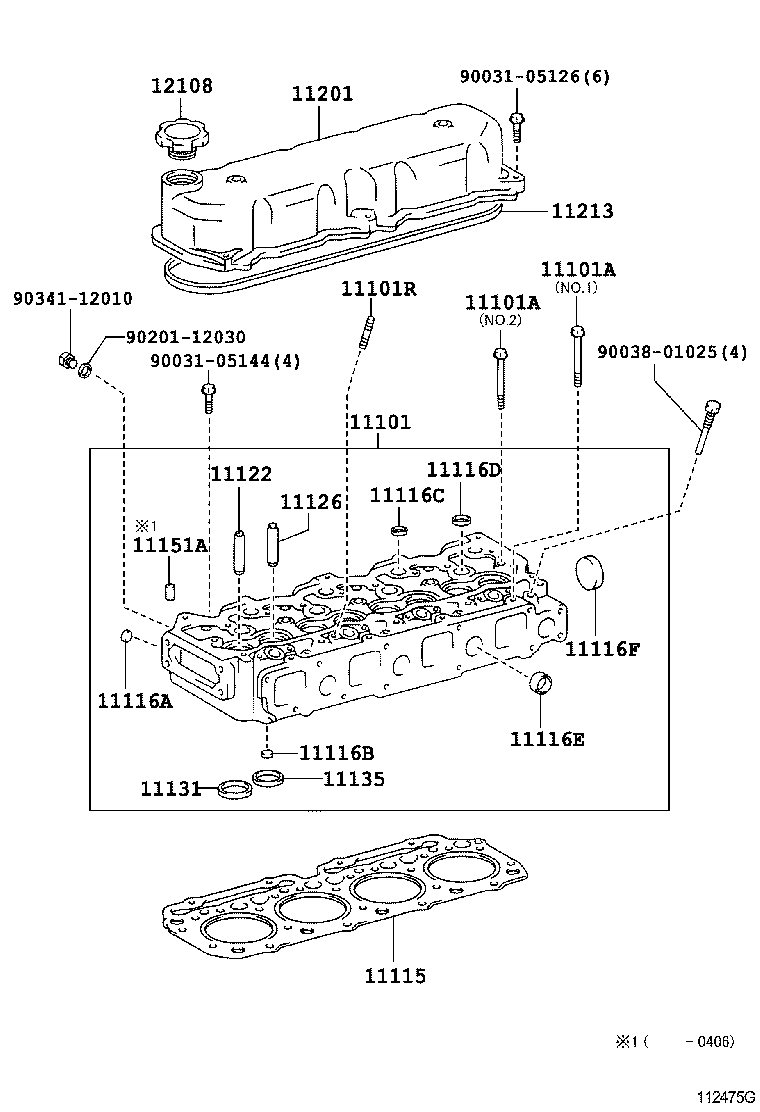

Cylinder Head
39 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101M | Ball NO.1(FOR CYLINDER HEAD) |
| 11101R | Bolt, Stud(FOR FUEL PIPE) |
| 11101V | Bolt(FOR CYLINDER HEAD SET SUB) |
| 11114A | Pin, Straight |
| 11115 | Gasket, Cylinder Head |
| 11116A | Plug, Tight, NO.1 |
| 11116B | Plug, Tight, NO.2 |
| 11116C | Plug, Tight, NO.3 |
| 11116D | Plug, Tight, NO.4 |
| 11116E | Plug, Tight, NO.5 |
| 11116F | Plug, Tight, NO.6 |
| 11117A | Plug, W/Head Taper Screw, NO.1 |
| 11122 | Bush, Intake Valve Guide |
| 11126 | Bush, Exhaust Valve Guide |
| 11131 | Seat, Intake Valve |
| 11135 | Seat, Exhaust Valve |
| 11151A | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11181 | Plate, Cylinder Head, Rear |
| 11183 | Plug, Semicircular |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201A | Nut, Cap(FOR CYLINDER HEAD COVER) |
| 11201E | Bolt, Stud(FOR CYLINDER HEAD COVER SET) |
| 11201H | Bolt(FOR CYLINDER HEAD COVER) |
| 11201Y | Spacer(FOR CYLINDER HEAD COVER) |
| 11202 | Cover Sub-assy, Cylinder Head, LH |
| 11202D | Cover Sub-assy, Cylinder Head, NO.2 |
| 11202F | Rubber, Cushion(FOR CYLINDER HEAD COVER) |
| 11212A | Cushion, Cylinder Head Cover |
| 11213 | Gasket, Cylinder Head Cover |
| 11214 | Gasket, Cylinder Head Cover, NO.2 |
| 11228 | Cushion, Cylinder Head Cover |
| 11247 | Stay, Cylinder Head Cover |
| 11444H | Plug, Hole(FOR CYLINDER HEAD) |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12281A | Hanger, Engine, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
