Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

53 part groups · 13 illustrations

Illustrations

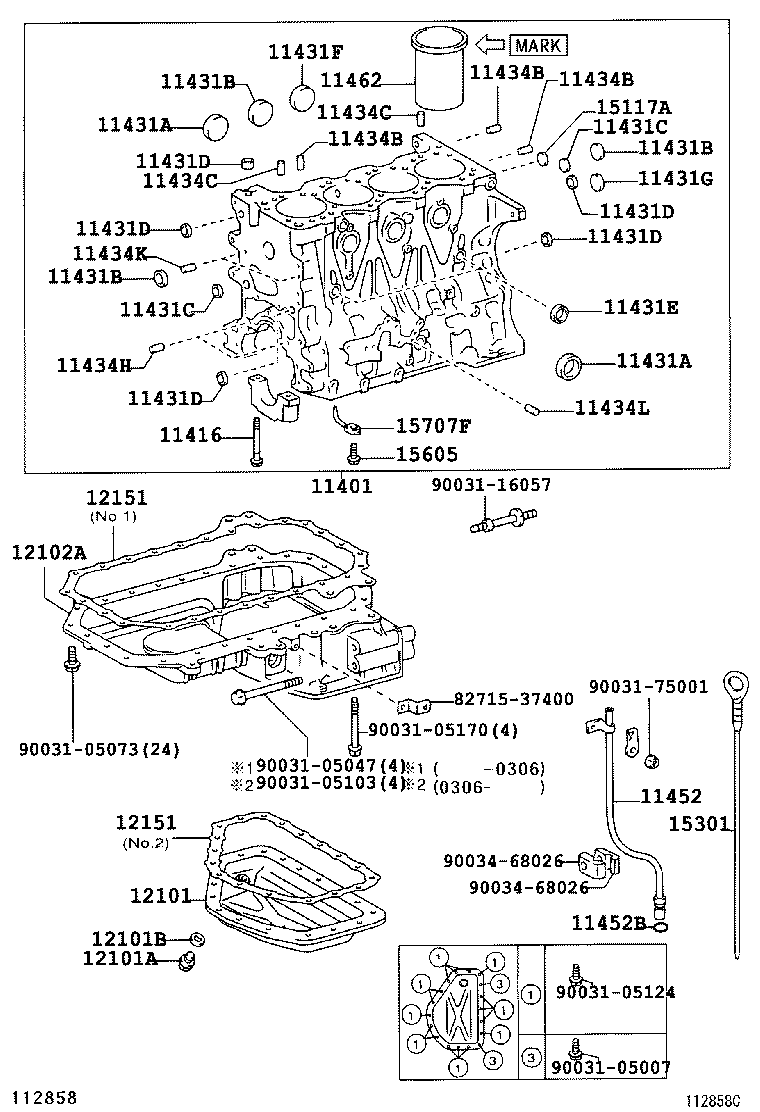

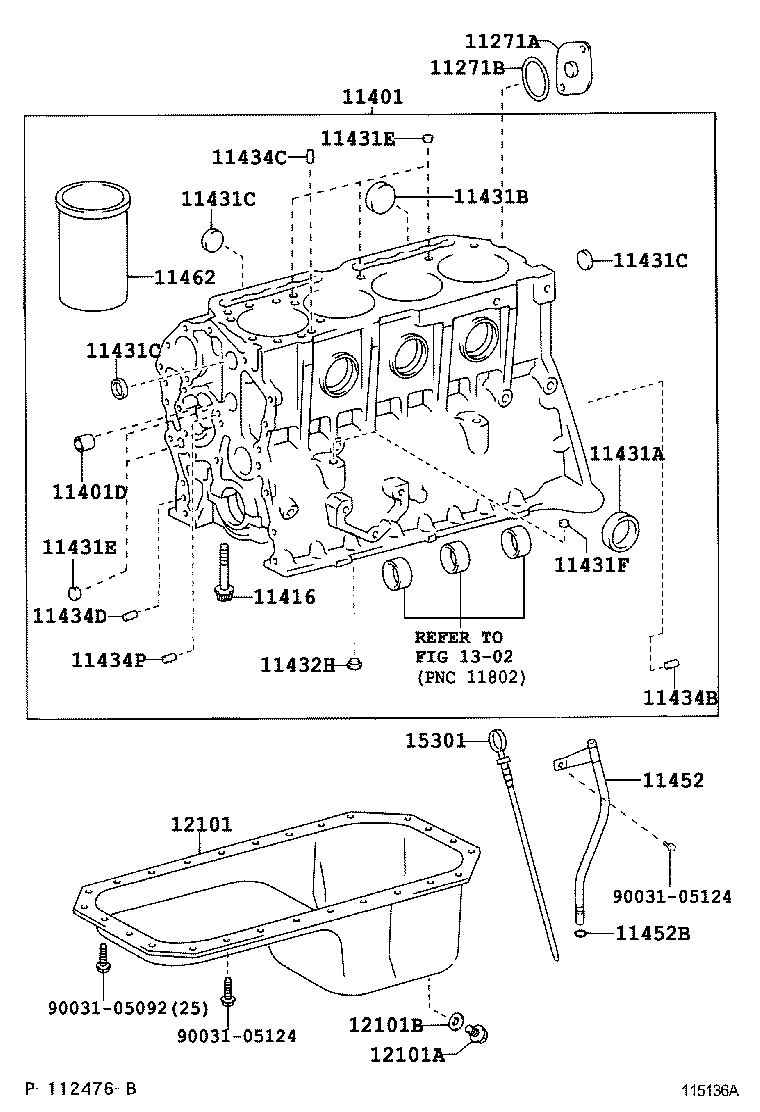

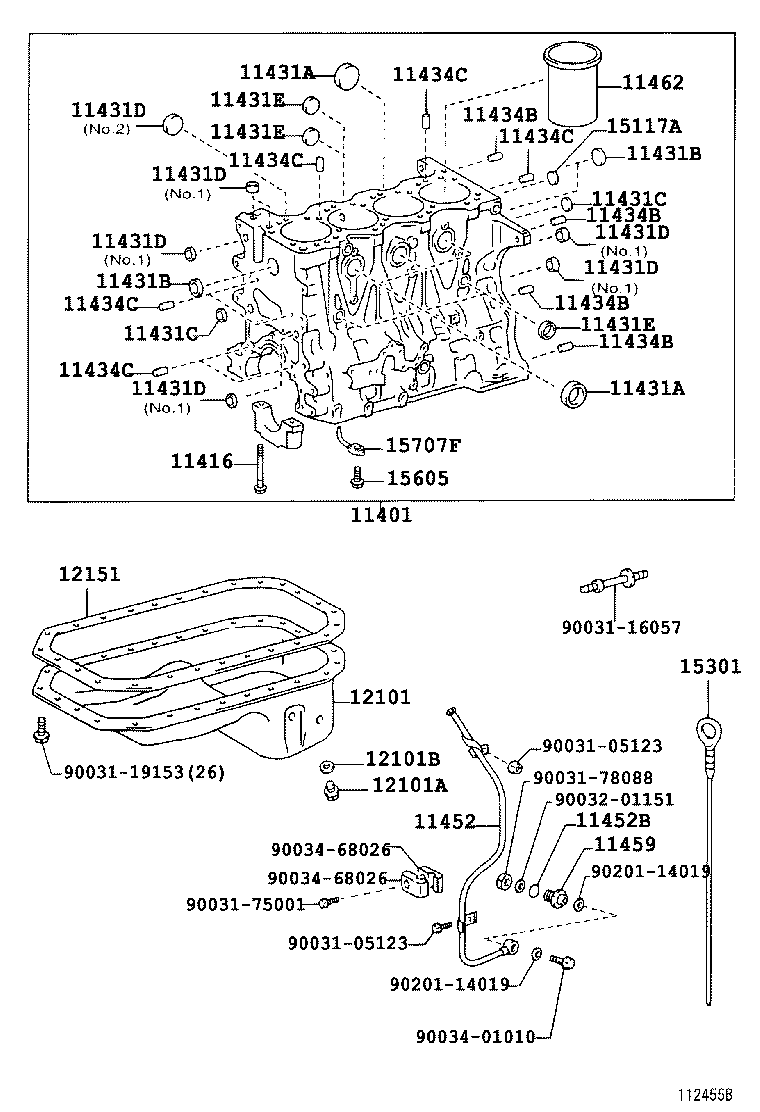

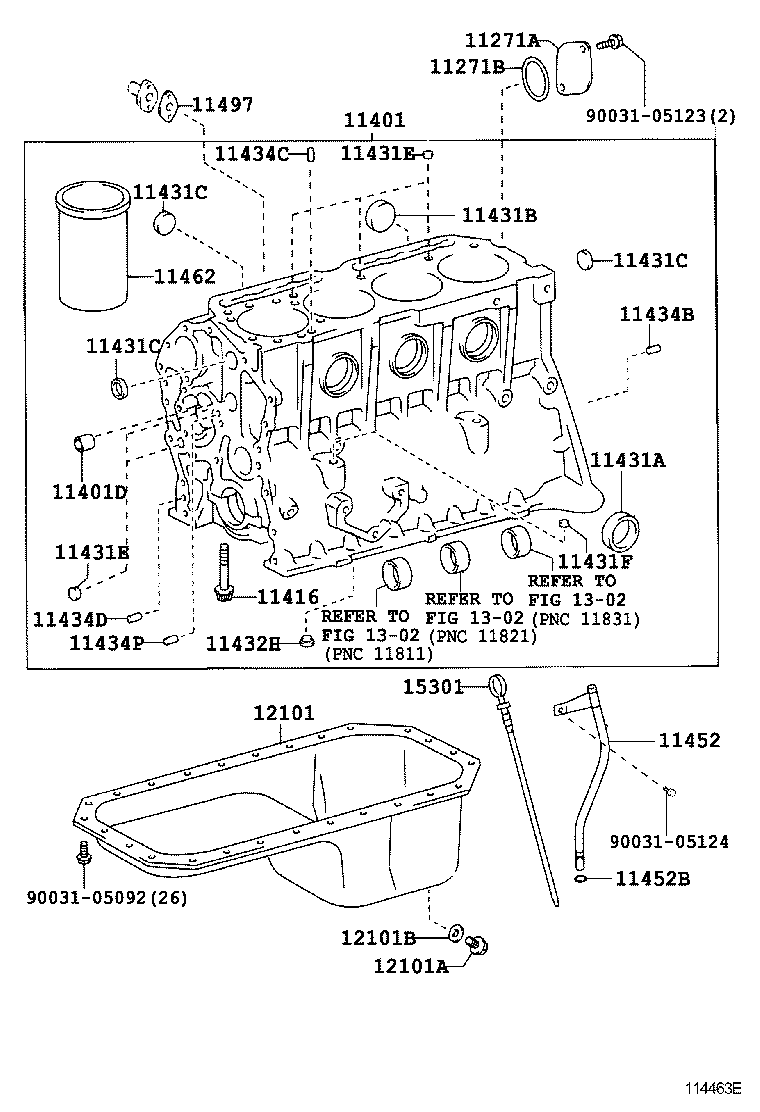

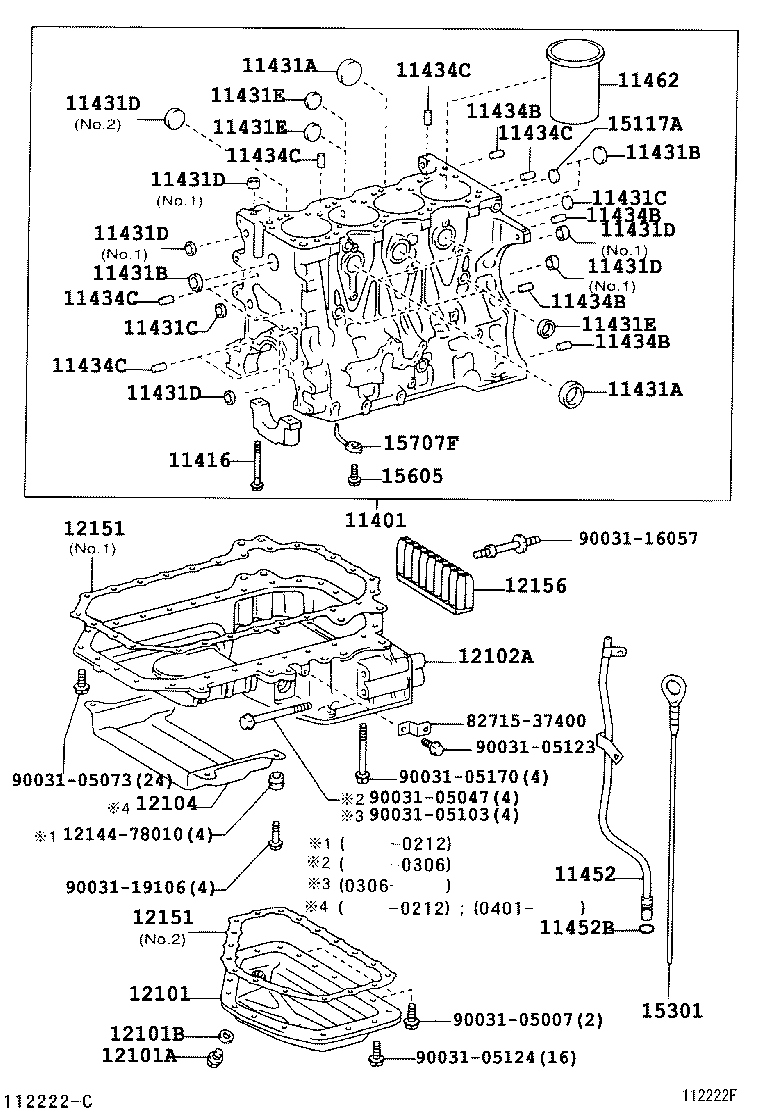

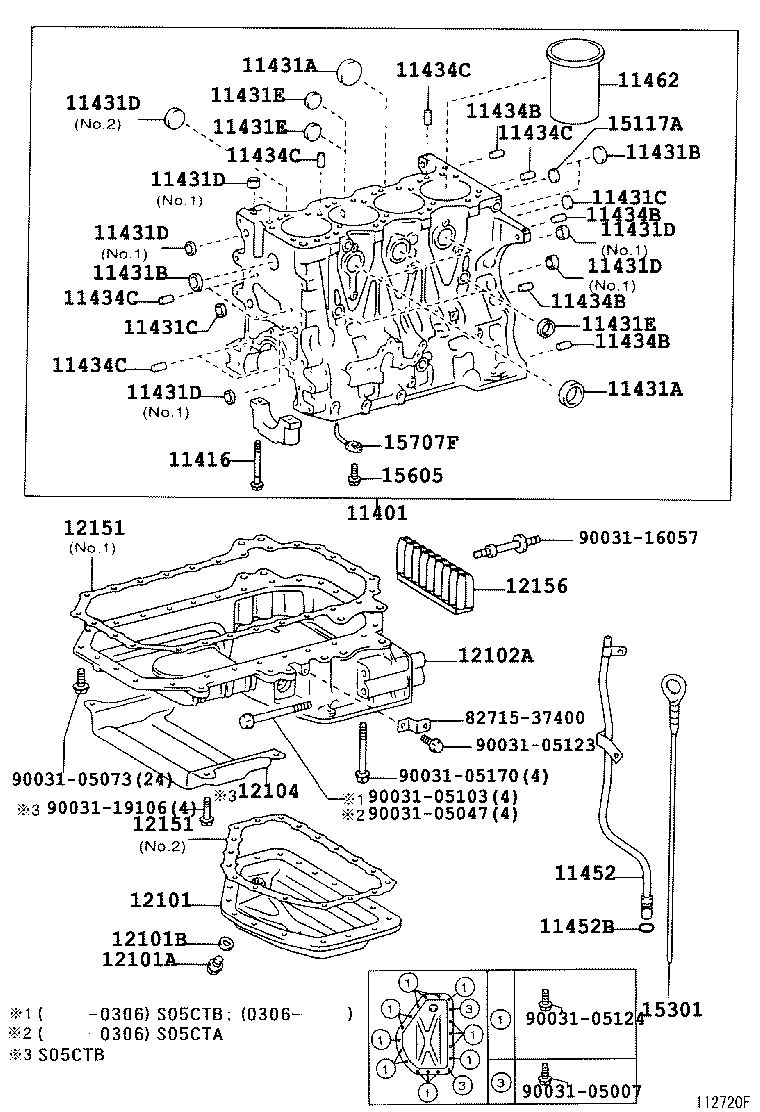

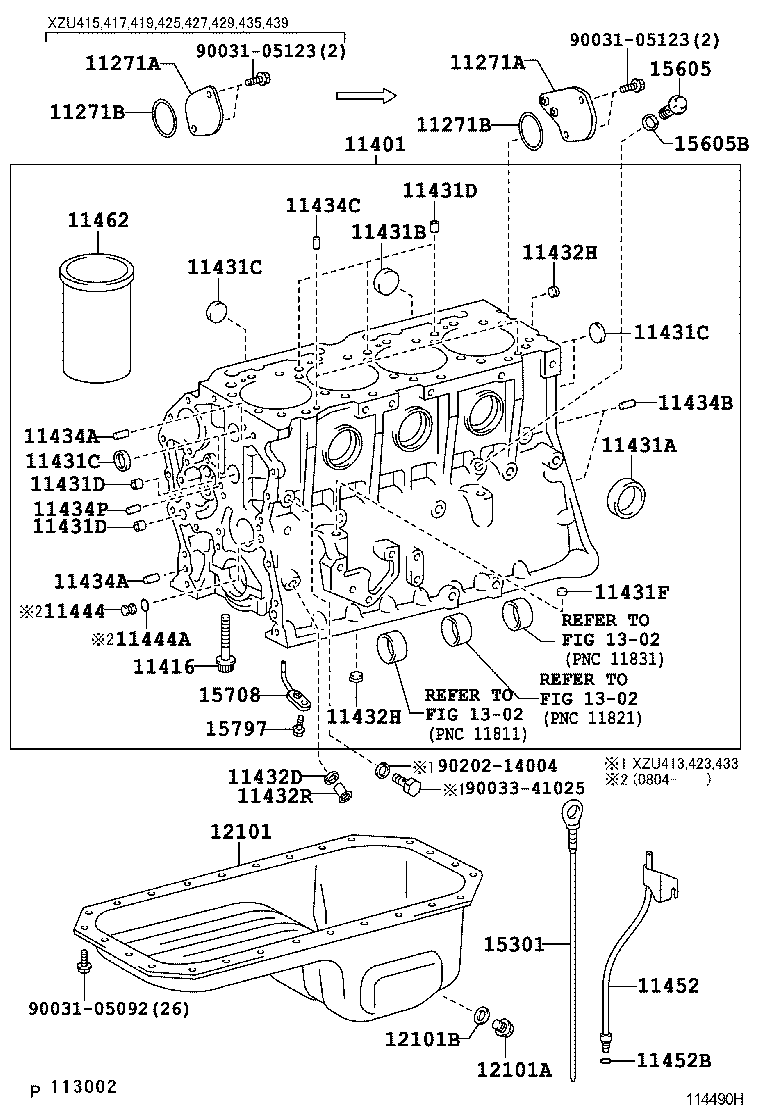

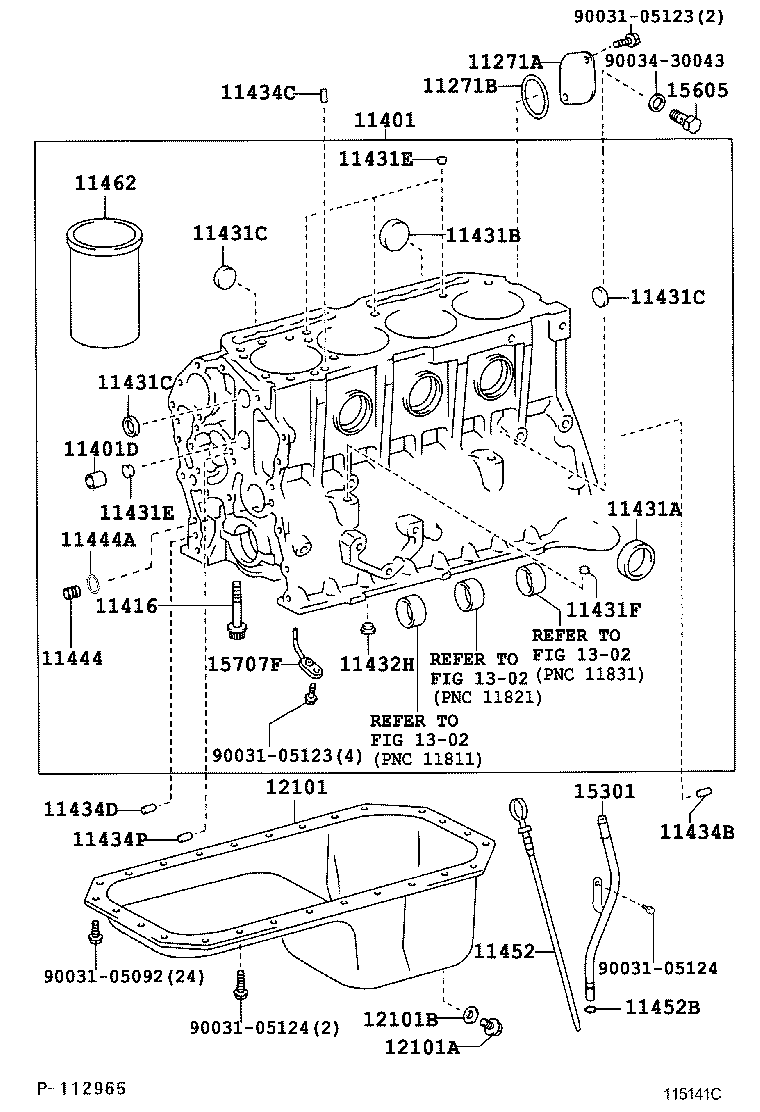

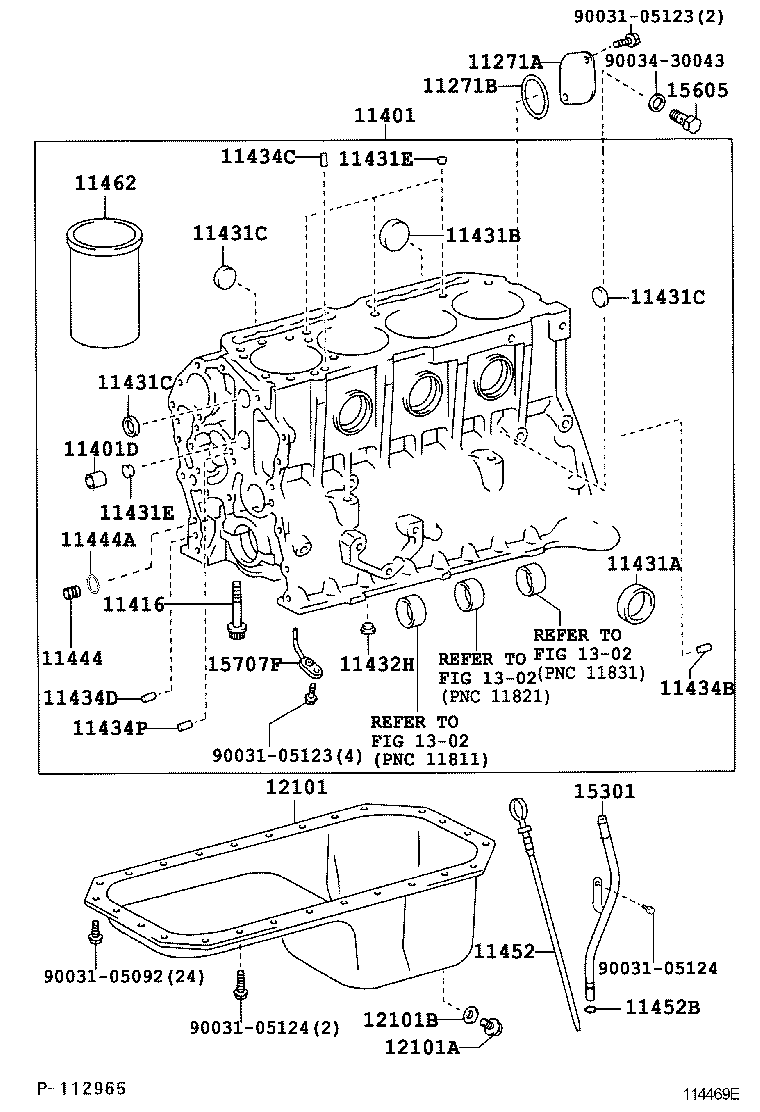

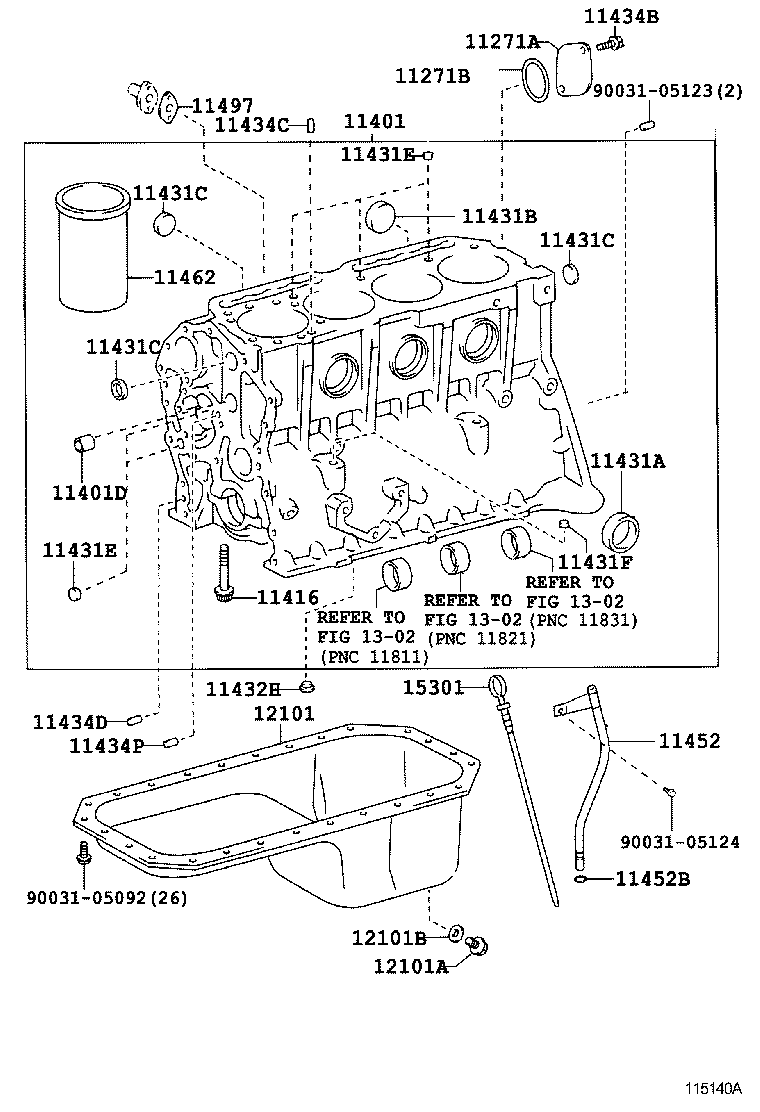

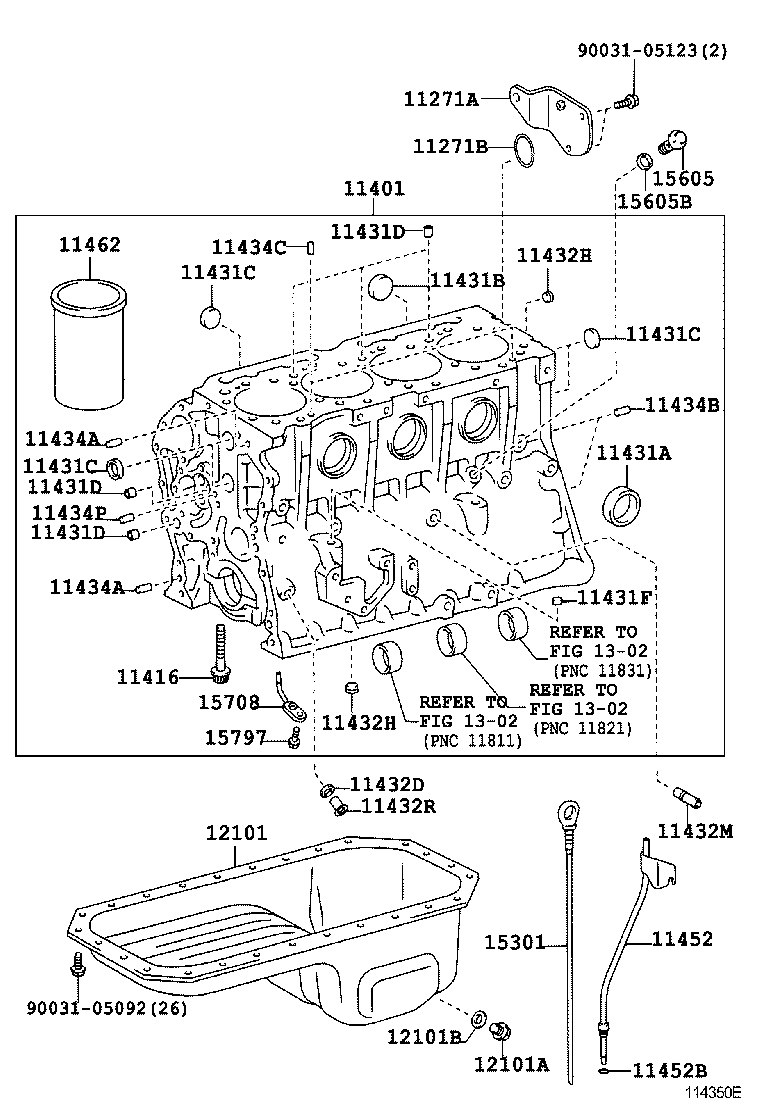

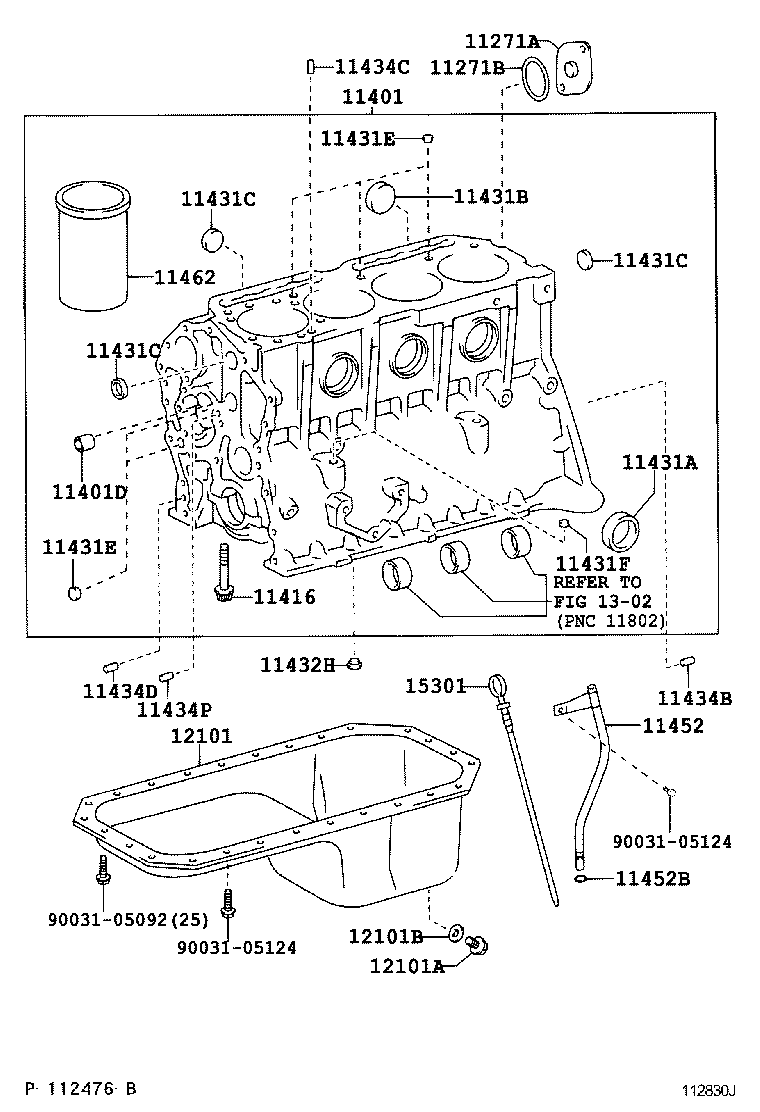

Figure 112920D 112920D 2004-11 → — Figure 112830J 112830J 2002-12 → 2007-04 Figure 115136A 115136A 2007-04 → — Figure 115140A 115140A 2006-10 → 2007-04 Figure 114463E 114463E 2007-04 → — Figure 115141C 115141C 2006-10 → 2007-04 Figure 114469E 114469E 2007-04 → — Figure 112222F 112222F 2001-10 → — Figure 112720F 112720F 2002-12 → — Figure 112455B 112455B 2002-12 → — Figure 112858C 112858C 2003-04 → — Figure 114350E 114350E 2006-08 → 2007-08 Figure 114490H 114490H 2006-10 → —

Part groups

PNCDescription
11271A Cover, Cylinder Block, Rear
11271B Ring, O(FOR CYLINDER BLOCK REAR PLATE)
11401 Block Sub-assy, Cylinder
11401D Bush(FOR OIL PUMP COVER)
11401G Sensor, Crank Position
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11431D Plug, Tight, NO.4(FOR CYLINDER BLOCK)
11431E Plug, Tight, NO.5(FOR CYLINDER BLOCK)
11431F Plug, Tight, NO.6(FOR CYLINDER BLOCK)
11431G Plug, Tight
11432A Plug, W/Head Taper Screw, NO.1
11432B Plug, W/Head Taper Screw, NO.2
11432C Plug, W/Head Taper Screw, NO.3
11432D Gasket, W/Head Taper Screw Plug
11432H Plug, W/Head Taper Screw, NO.5
11432M Union(FOR CYLINDER BLOCK)
11432R Plug, W/Head Straight Screw, NO.1(FOR CYLINDER BLOCK)
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434H Pin, Ring (FOR TIMING BELT COVER SET)
11434K Pin, Straight(FOR WATER PUMP)
11434L Pin, Straight(FOR ENGINE MOUNTING)
11434P Pin, Straight(FOR OIL PUMP SET)
11444 Plug, Hole
11444A Ring, O
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11459 Support, Oil Level Gage Guide
11462 Liner, Cylinder
11497 Gasket, Cylinder Block Oil Hole
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
12104 Cover Sub-assy, Oil Pan, NO.1
12151 Gasket, Oil Pan
12156 Insulator, Oil Pan
13613C Nozzle, Oil
15117A Bushing, Oil Pump Cover
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15605 Valve Sub-assy, Oil Check
15605B Gasket(FOR OIL CHECK VALVE)
15707F Pipe Sub-assy, Oil
15708 Nozzle Sub-assy, Oil, NO.1
15797 Bolt, Oil Nozzle Union
