Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

41 part groups · 15 illustrations

Illustrations

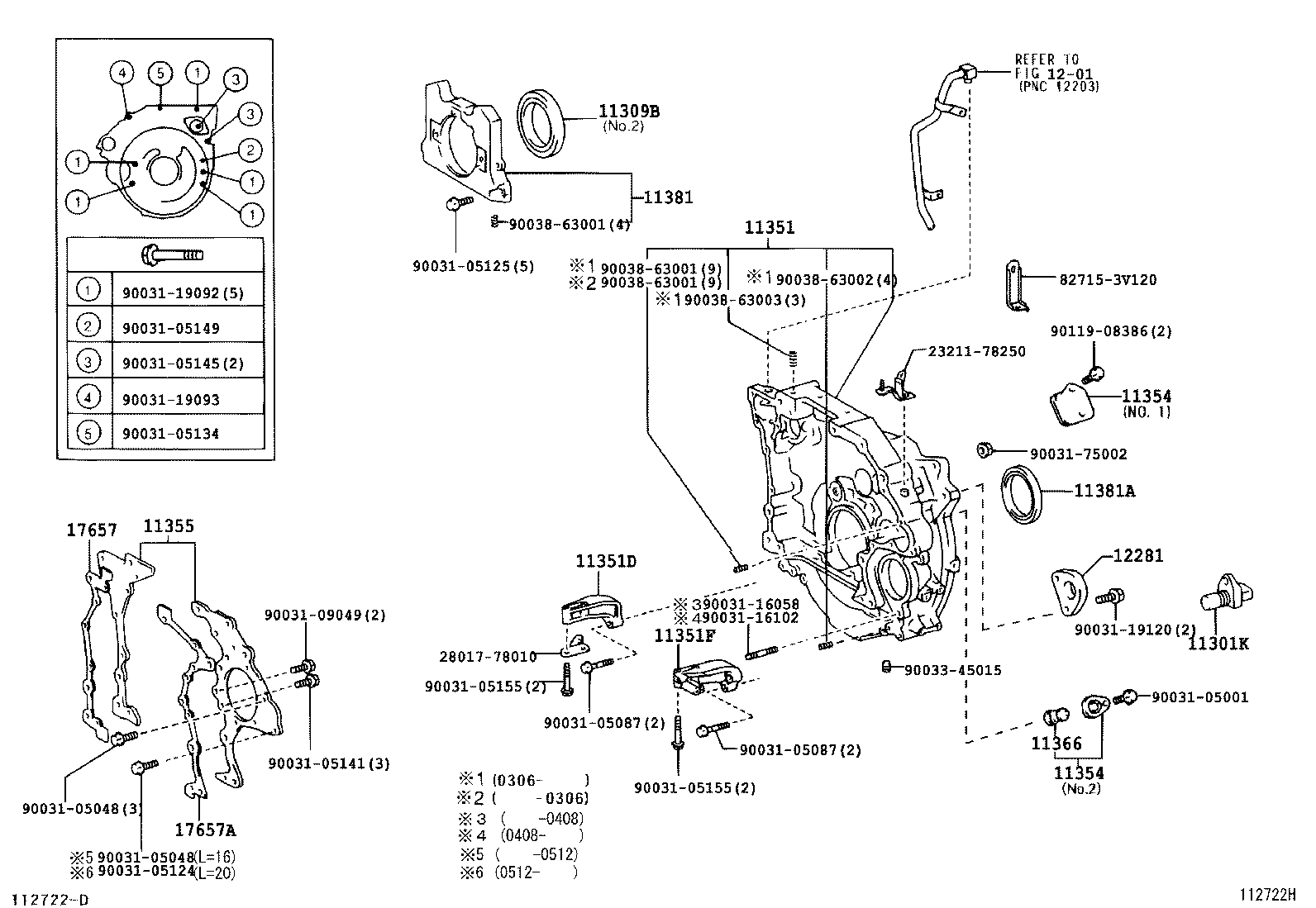

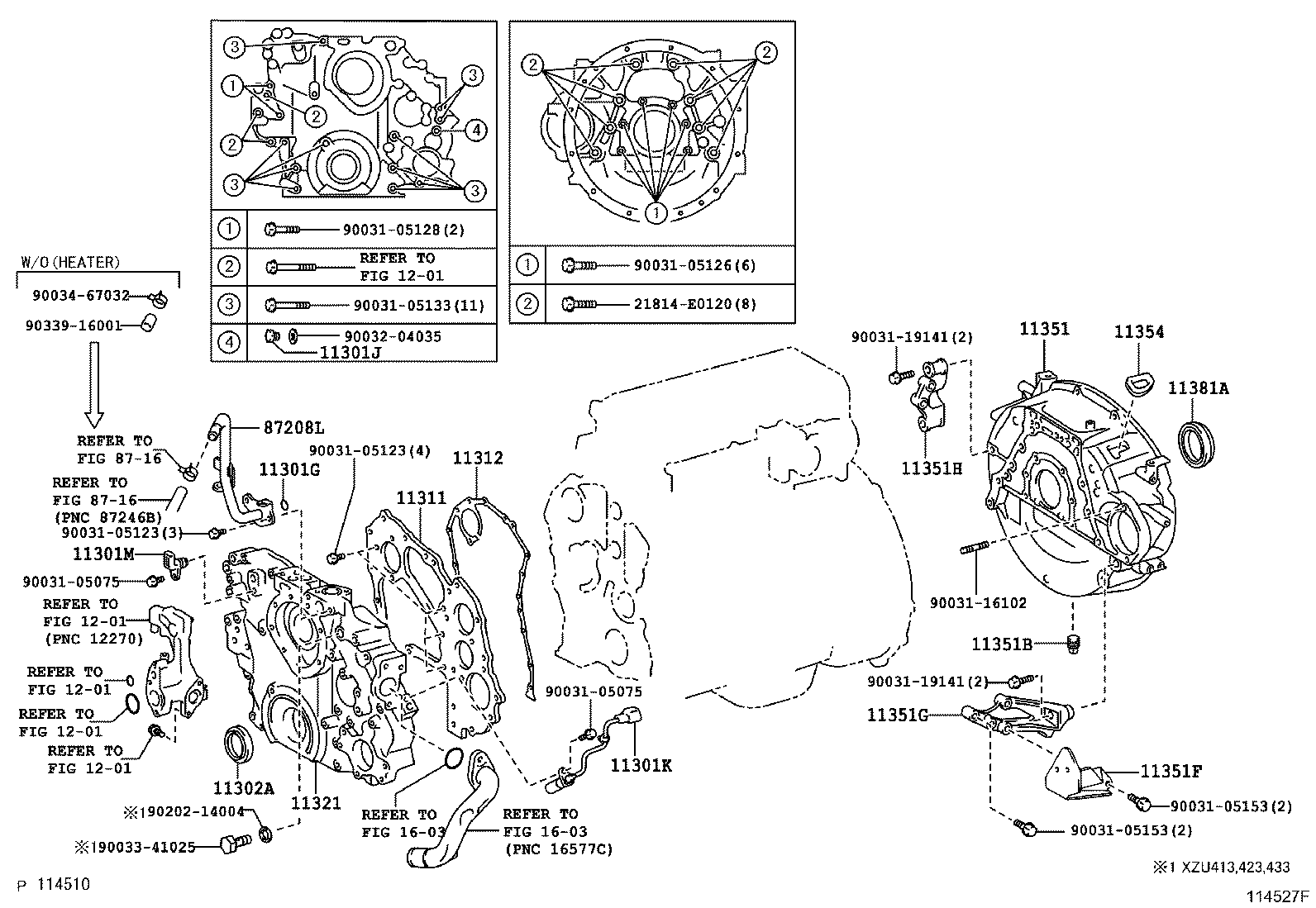

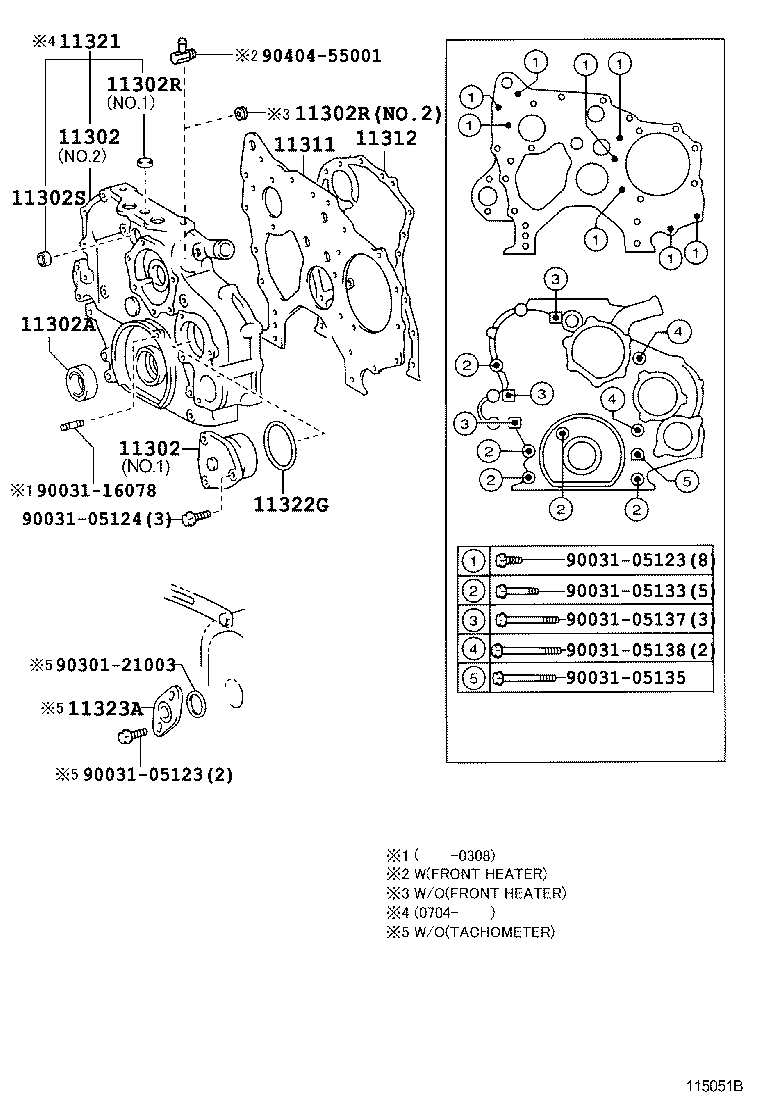

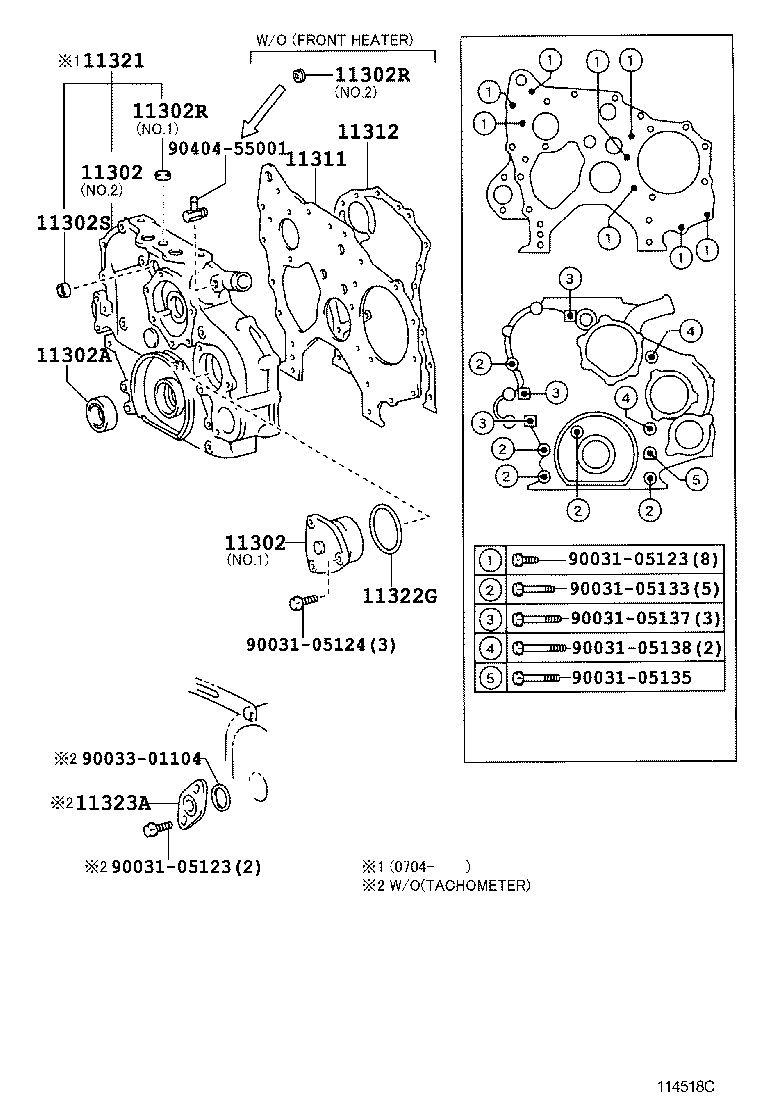

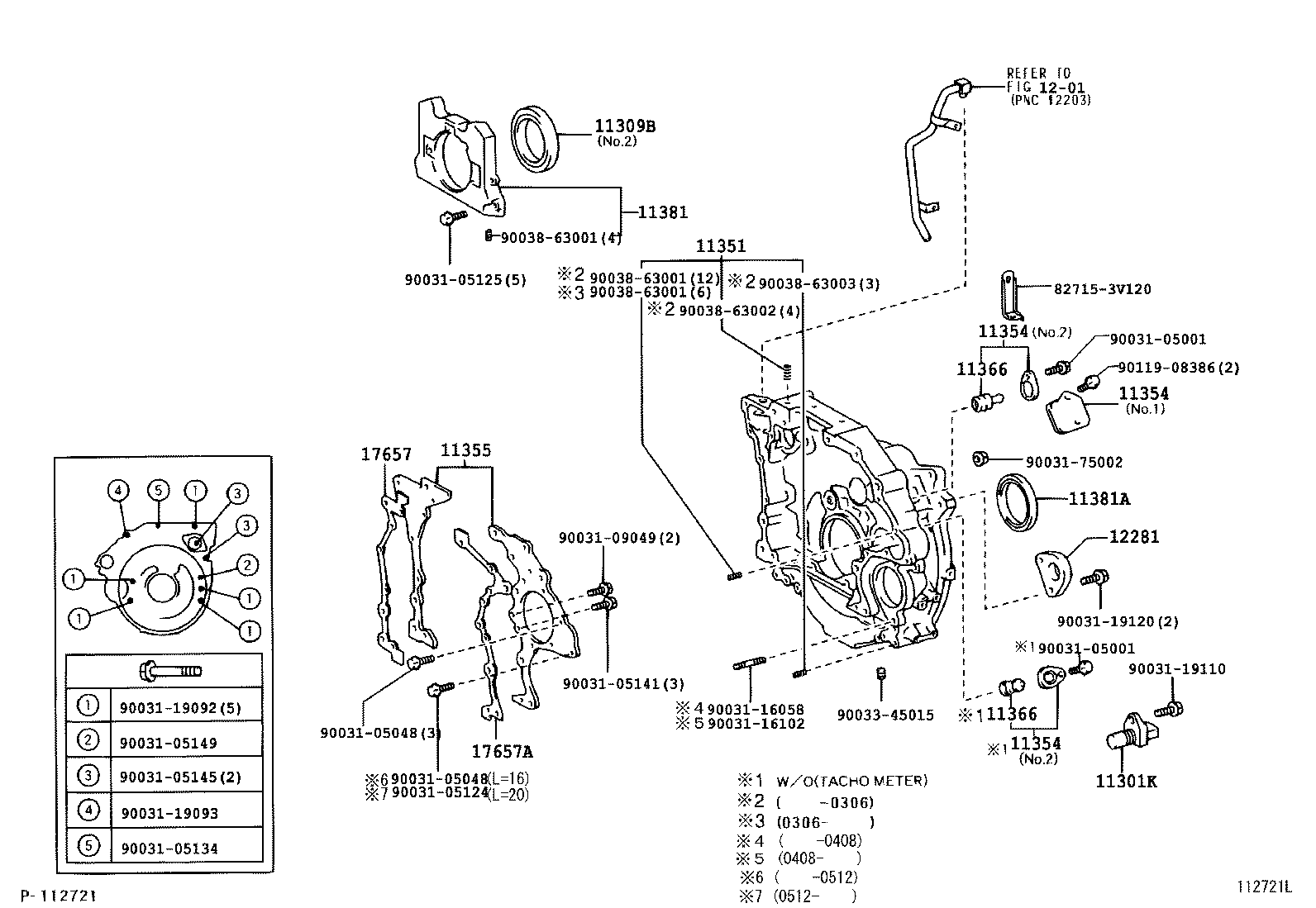

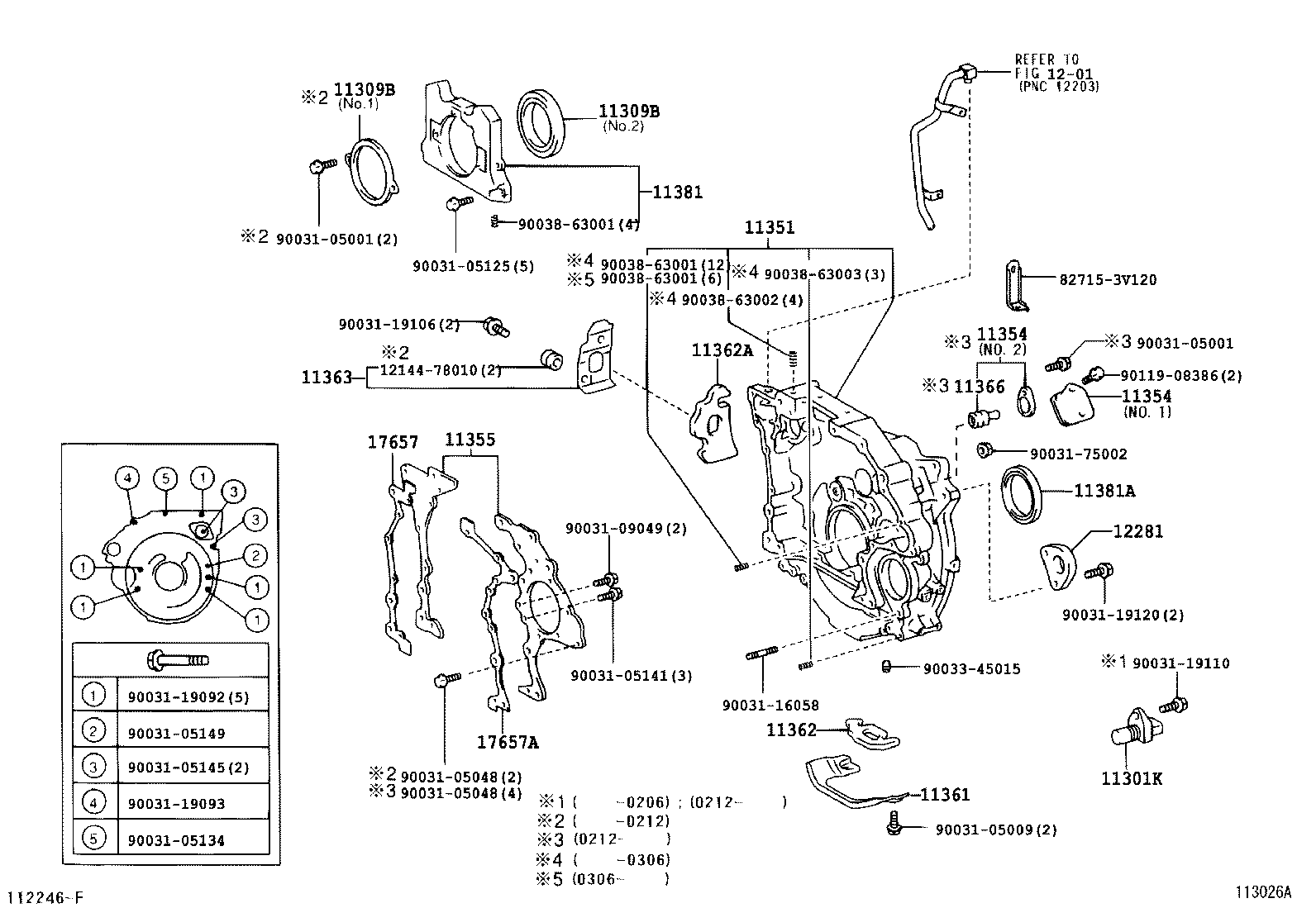

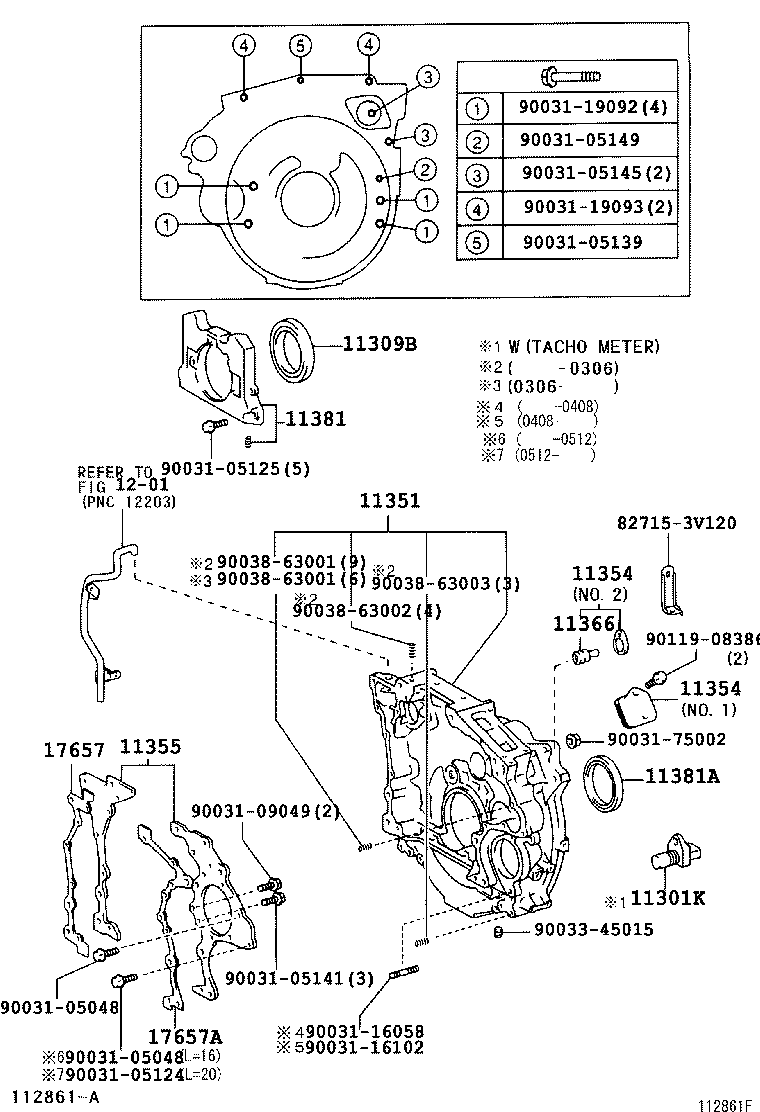

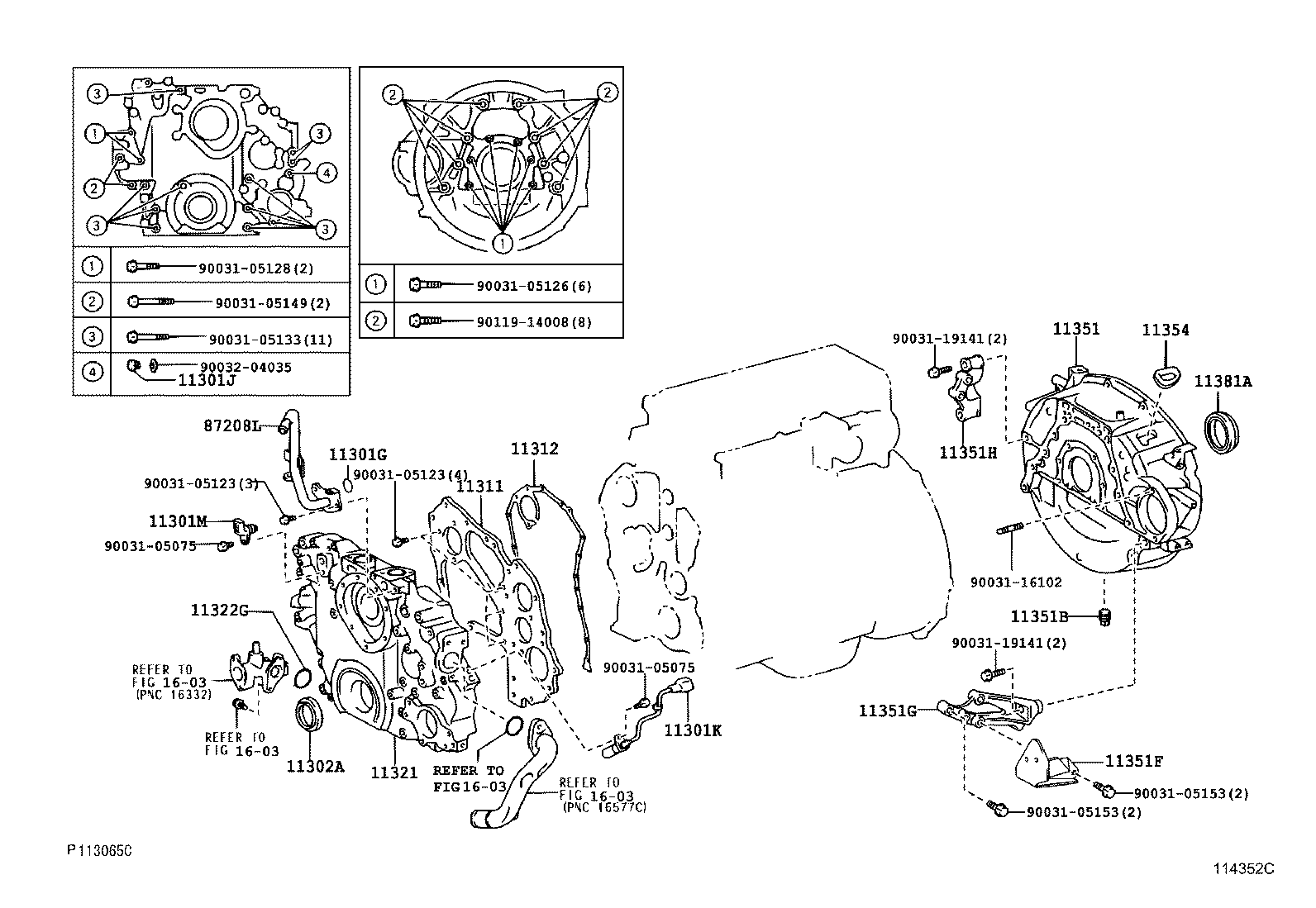

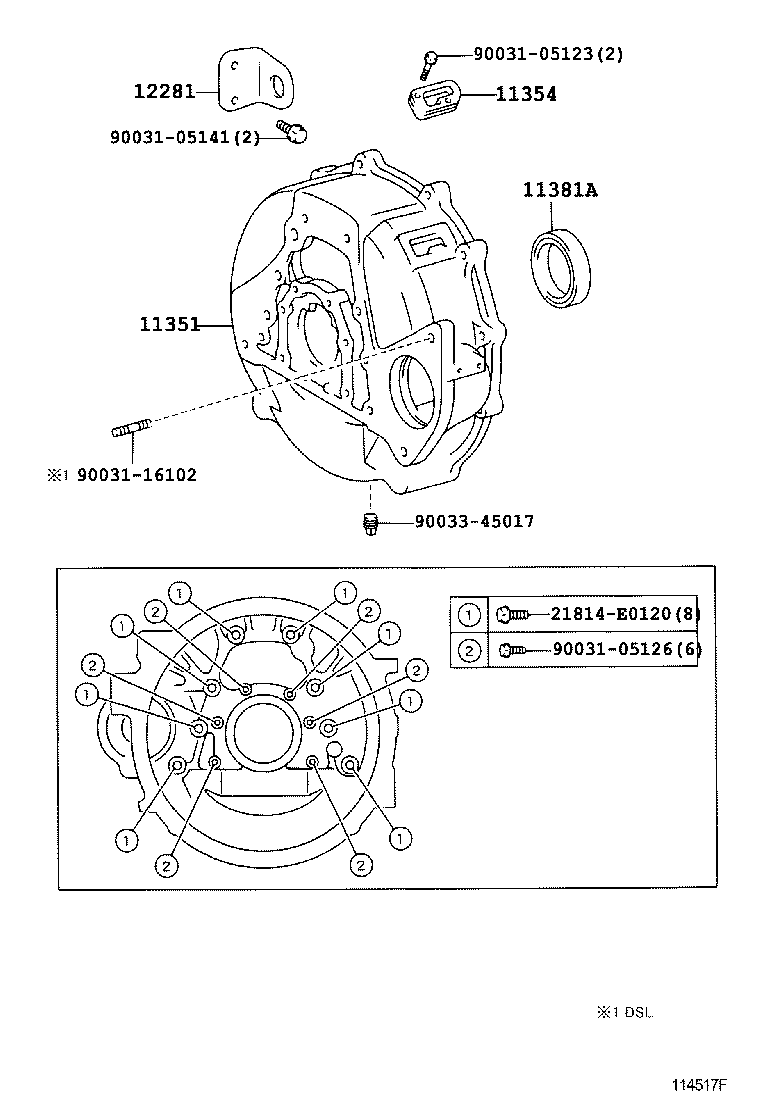

Figure 112747 112747 2004-11 → — Figure 112748 112748 2004-11 → — Figure 115051B 115051B 2002-12 → — Figure 112875C 112875C 2002-12 → — Figure 114518D 114518D 2006-10 → — Figure 116351 116351 2006-10 → — Figure 114517F 114517F 2006-10 → — Figure 113026A 113026A 2001-10 → 2002-12 Figure 113026A 113026A 2002-12 → 2004-01 Figure 112721L 112721L 2002-12 → 2004-01 Figure 112721L 112721L 2004-01 → — Figure 112722H 112722H 2002-12 → — Figure 112861F 112861F 2003-04 → — Figure 114352C 114352C 2006-08 → — Figure 114527F 114527F 2006-10 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301G Ring, O(FOR TIMING GEAR CASE, UPPER)
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11301M Sensor, Cam Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302R Plug, Tight, NO.1(FOR TIMING GEAR COVER)
11302S Plug, Tight, NO.2(FOR TIMING GEAR COVER)
11309B Seal(FOR OIL SEAL RETAINER)
11311 Plate, Front End
11312 Gasket, Front End Plate
11320A Cover Assy, Timing Gear, NO.2
11321 Case, Timing Gear
11322G Ring, O(FOR TIMING GEAR COVER)
11323A Retainer, Timing Gear Cover Oil
11328 Gasket, Timing Gear OR Chain Cover
11351 Housing, Flywheel
11351B Plug, Hole(FOR FLYWHEEL HOUSING)
11351D Plate, Stiffener, RH(FOR FLYWHEEL HOUSING)
11351F Plate, Stiffener, LH(FOR FLYWHEEL HOUSING)
11351G Stay, LH(FOR FLYWHEEL HOUSING)
11351H Stay, RH(FOR FLYWHEEL HOUSING)
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11361 Cover, Flywheel Housing Under
11362 Insulator, Flywheel Housing(FOR UNDER COVER)
11362A Insulator, Flywheel Housing(FOR SIDE COVER)
11363 Cover, Flywheel Side
11366 Seal, Flywheel Housing Under Cover Dust
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11494C Plate, Oil Hole Cover
11496A Gasket, Oil Hole Cover
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
17657 Gasket, Rear Plate
17657A Gasket, Rear Plate, NO.2
87208L Pipe Sub-assy, Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
