Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

19 part groups · 10 illustrations

Illustrations

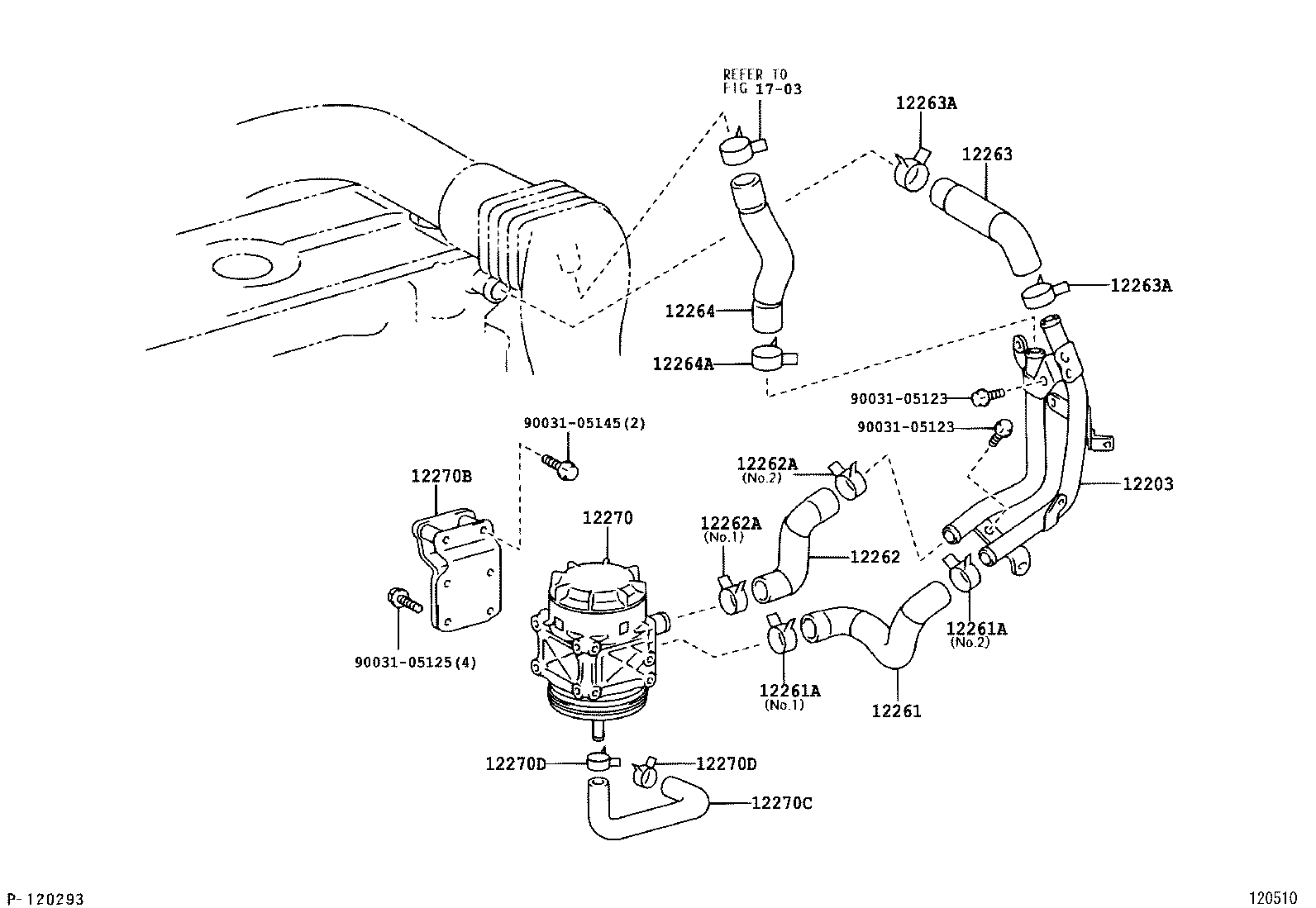

Figure 120109 120109 2004-11 → — Figure 120701 120701 2002-12 → 2006-10 Figure 120701 120701 2003-04 → — Figure 120537 120537 2006-10 → — Figure 120221A 120221A 2001-10 → — Figure 120246B 120246B 2002-12 → — Figure 120240A 120240A 2003-04 → — Figure 120510 120510 2006-08 → — Figure 120544B 120544B 2006-10 → — Figure 120562B 120562B 2007-01 → —

Part groups

PNCDescription
12203 Pipe Sub-assy, Ventilation
12221 Tube, Ventilation NO.1
12251 Clamp, Ventilation Tube
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12264 Hose, Ventilation, NO.4
12264A Clip(FOR VENTILATION HOSE)
12270 Separator Assy, Oil
12270B Bracket(FOR OIL SEPARATOR)
12270C Hose, Oil(FOR OIL SEPARATOR)
12270D Clip(FOR OIL SEPARATOR HOSE)
12270G Cover
12271 Screen, Oil Separator
17061C Diaphragm Sub-assy
17061D Spring L
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
