Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

46 part groups · 10 illustrations

Illustrations

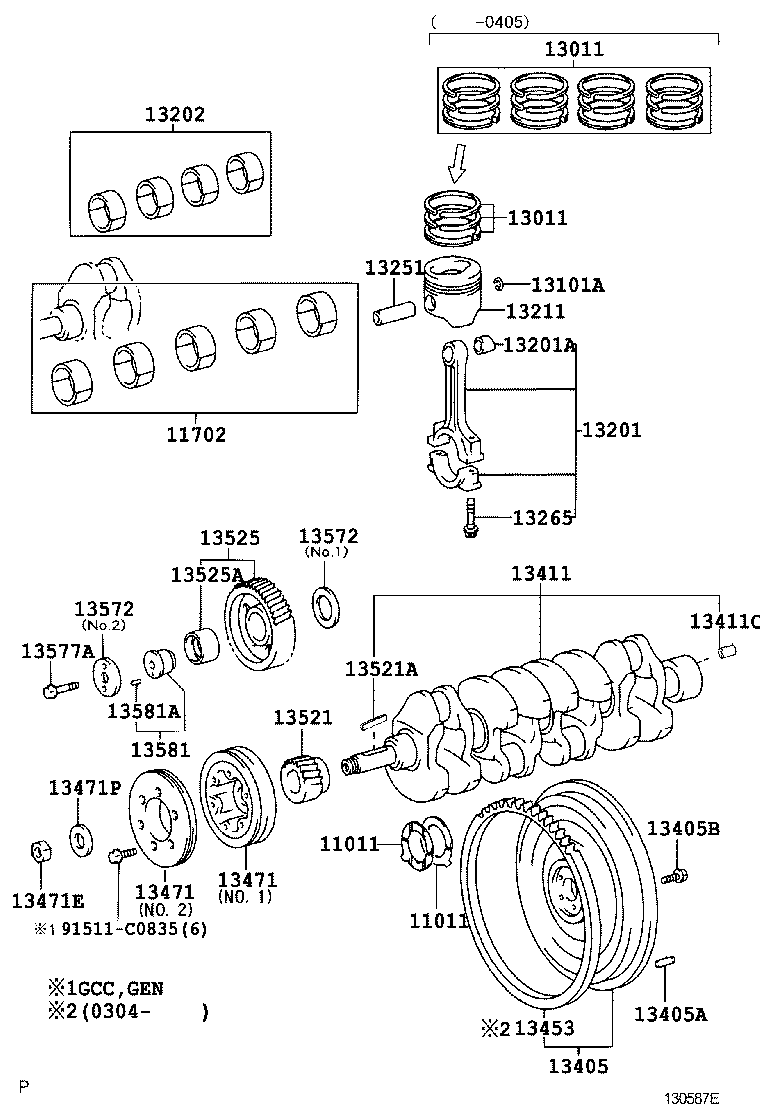

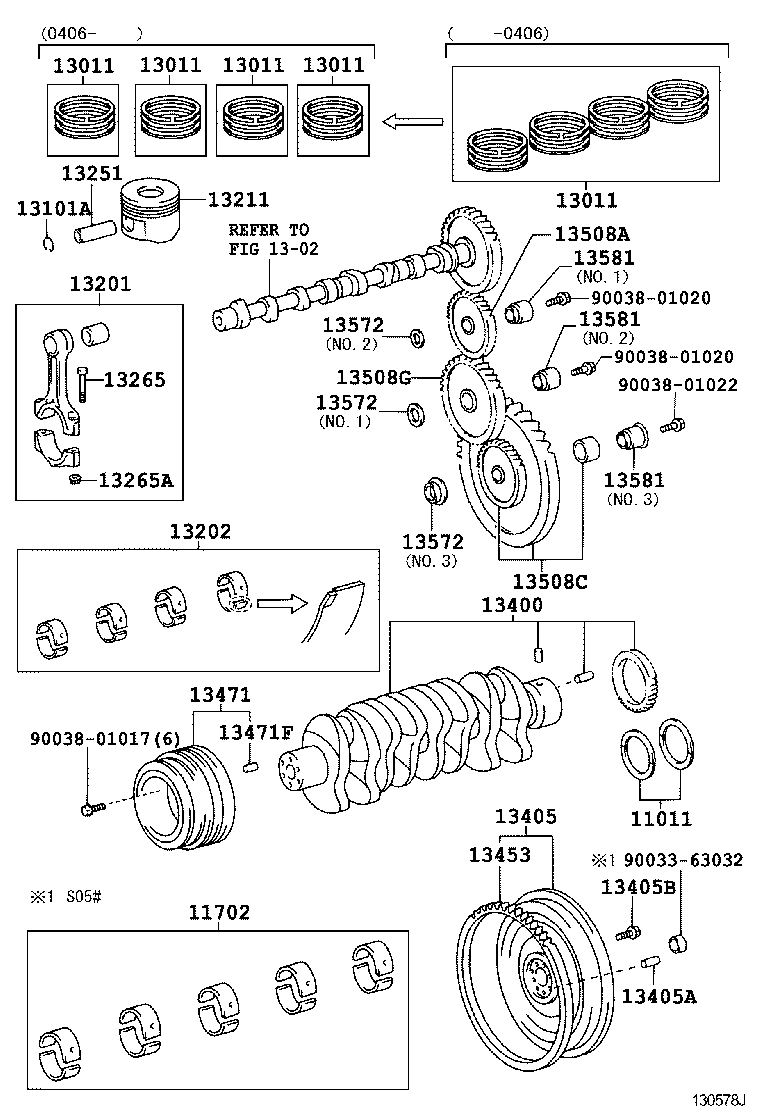

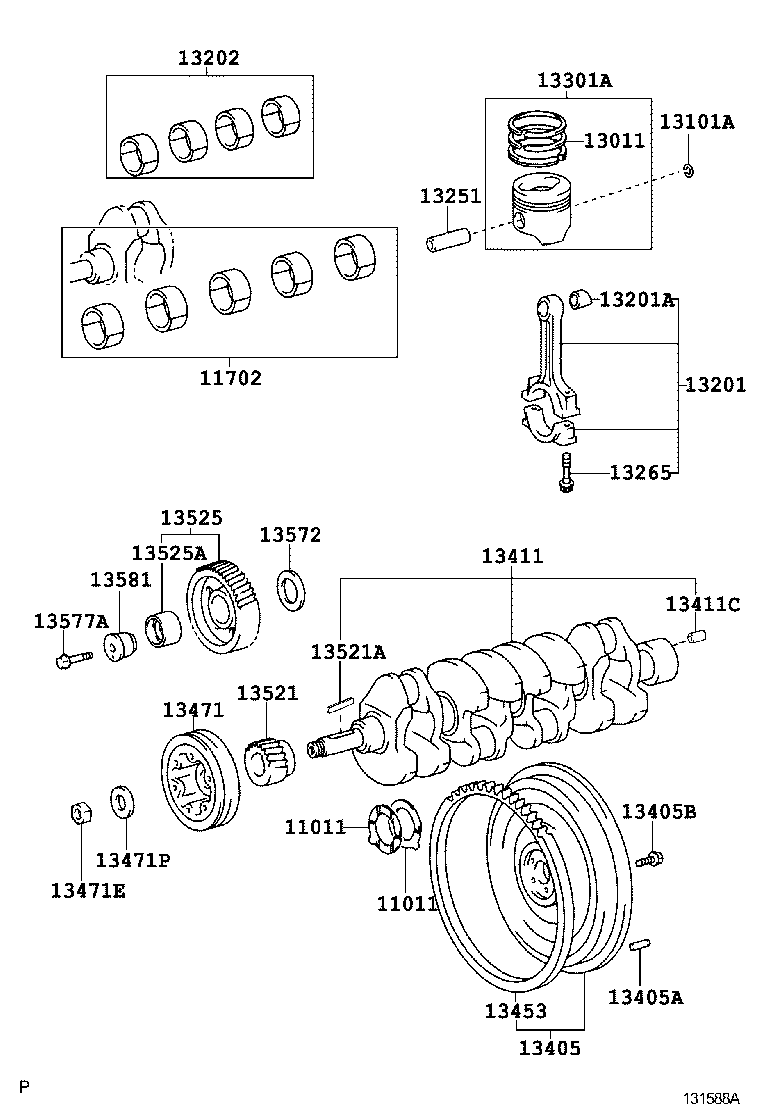

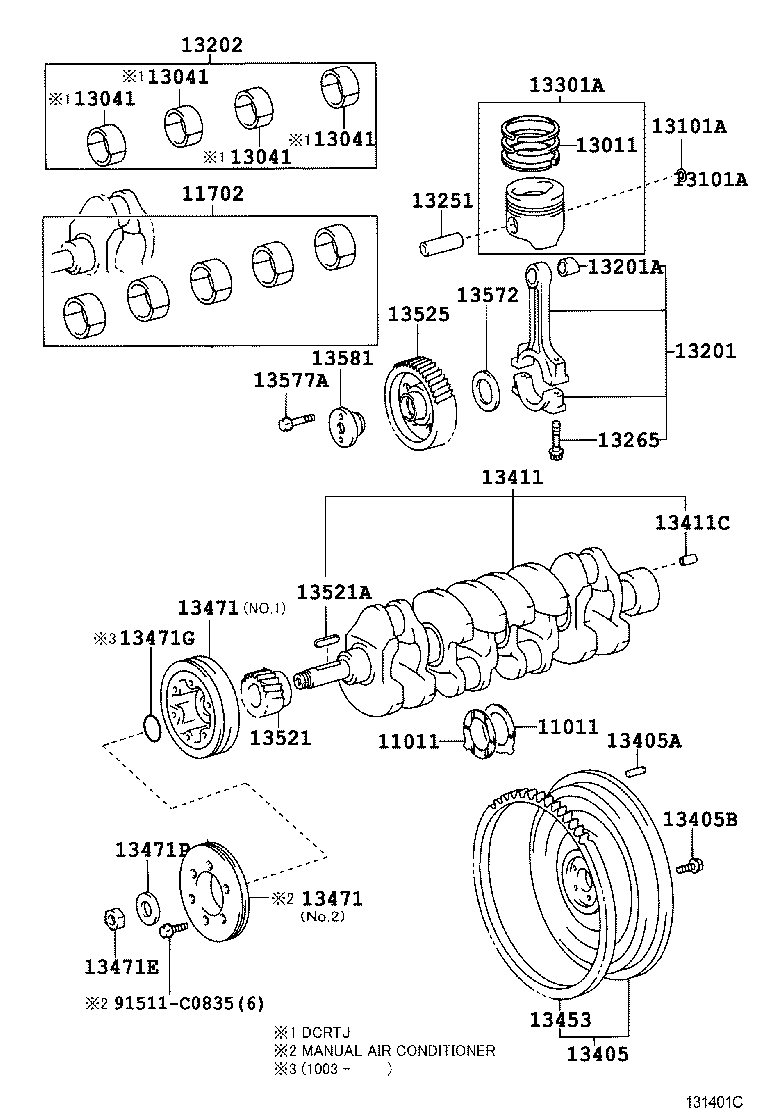

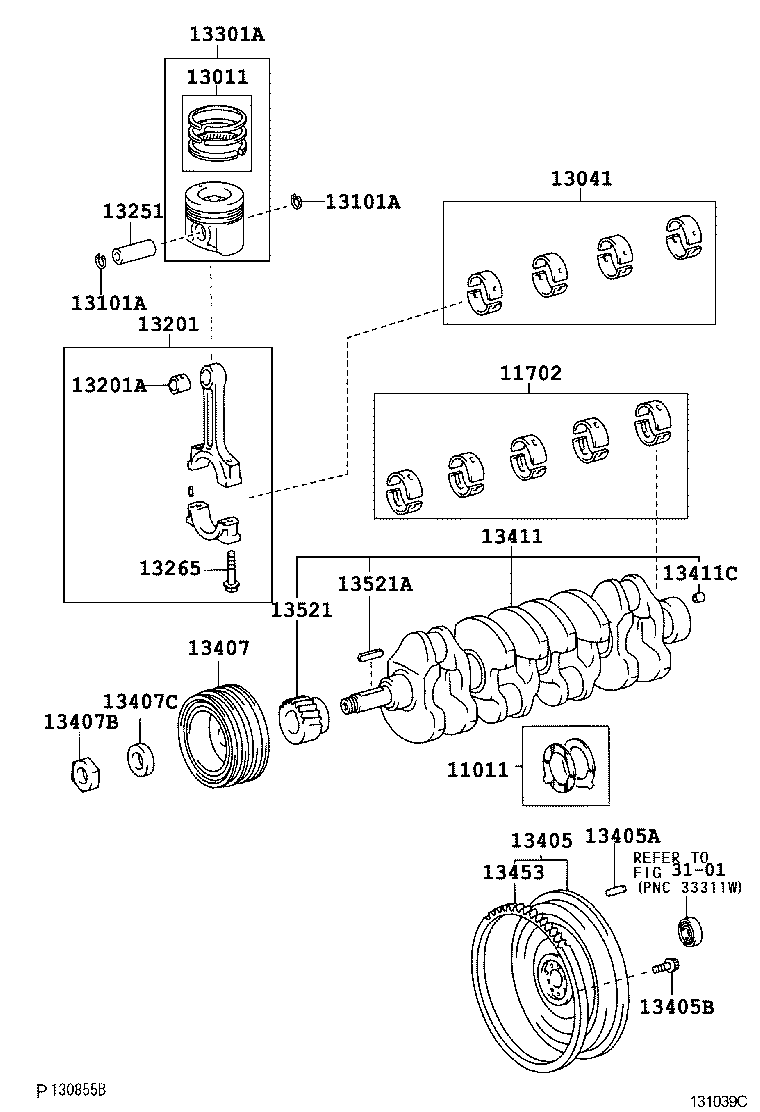

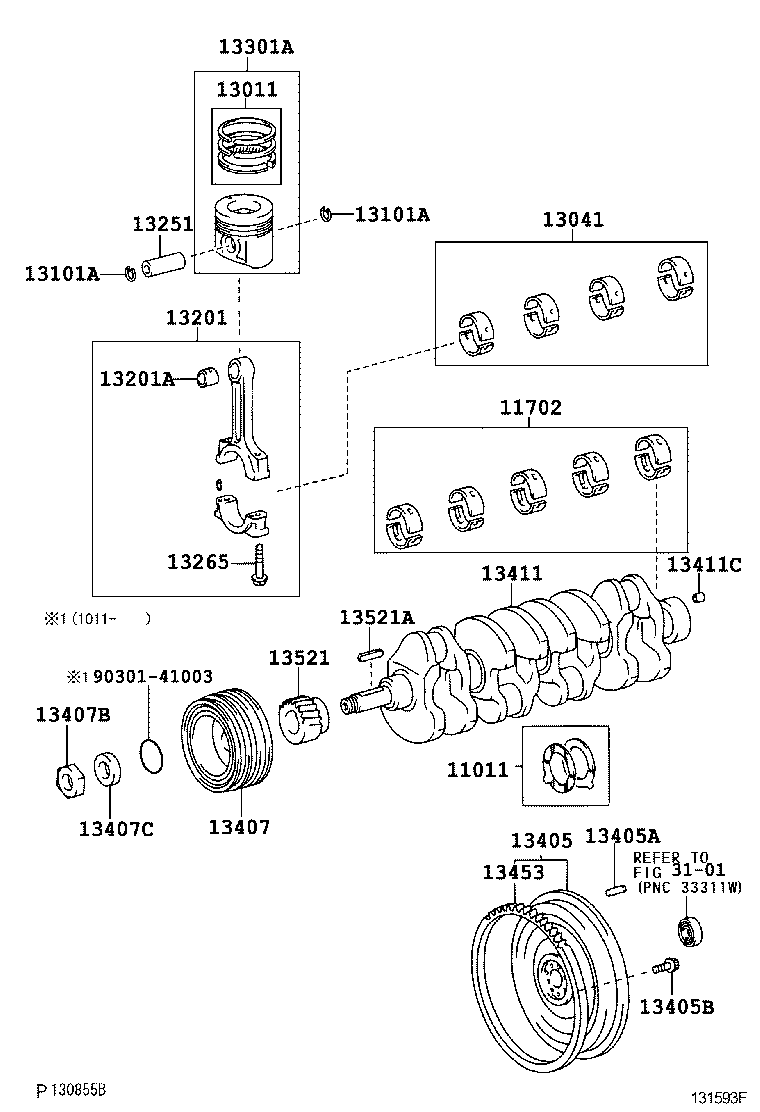

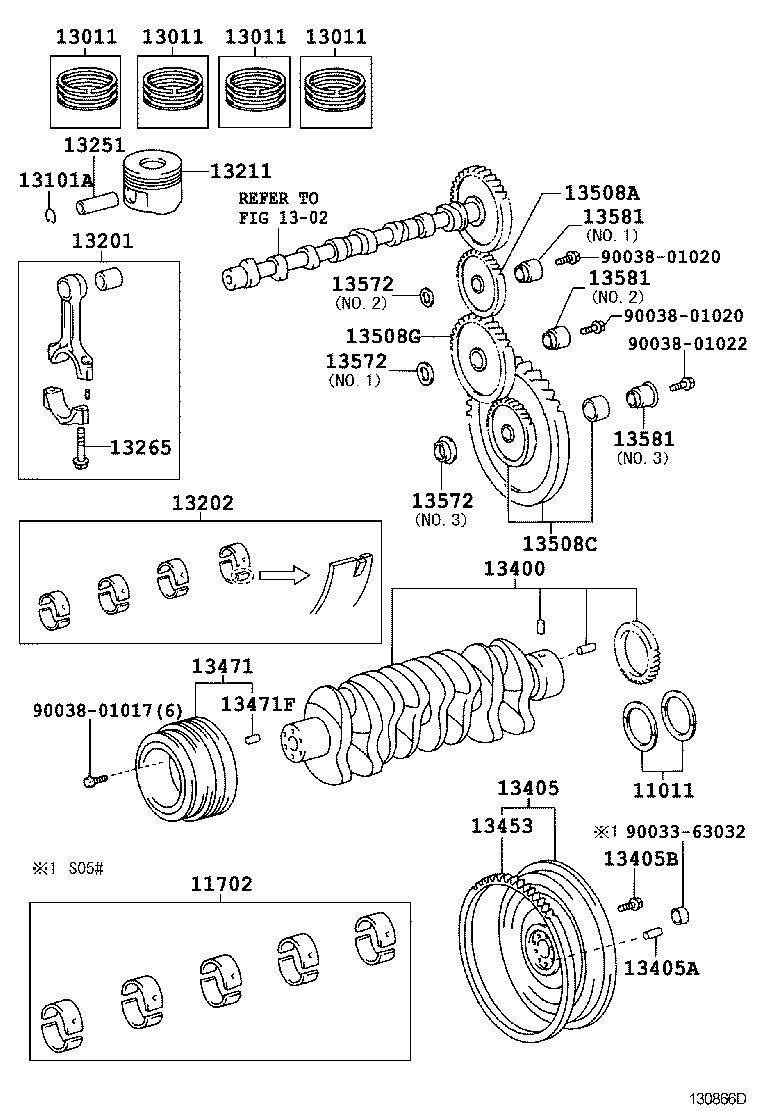

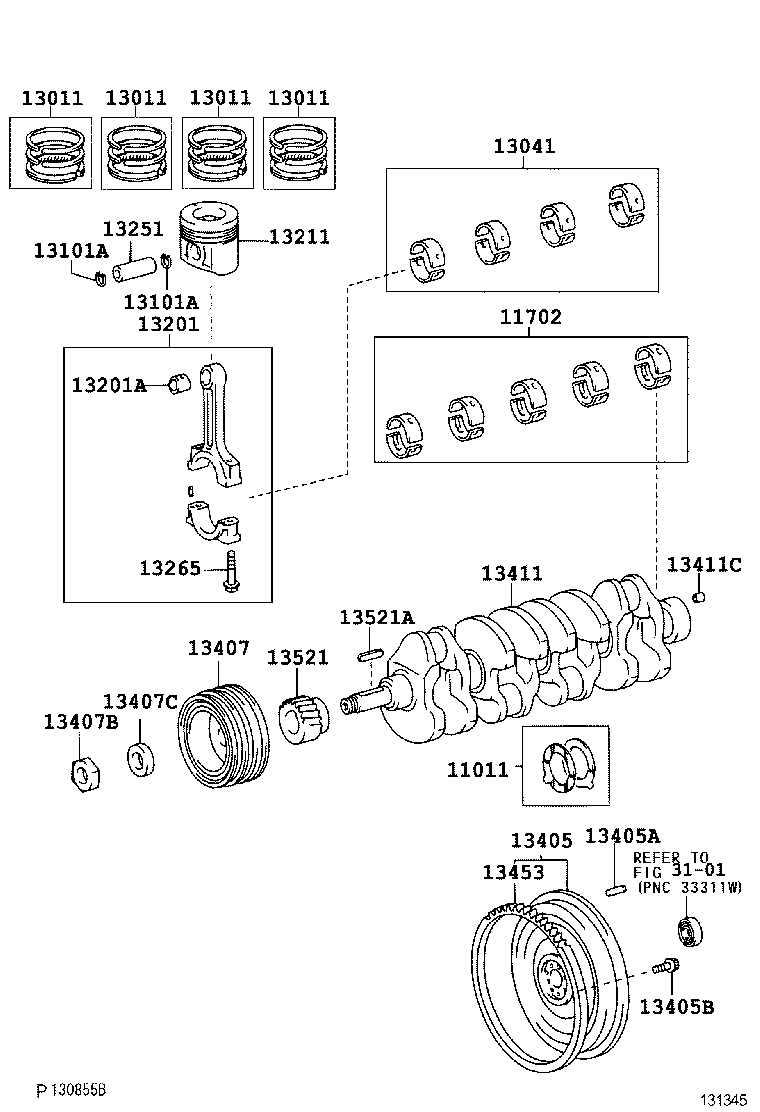

Figure 130610 130610 2004-11 → — Figure 130587E 130587E 2002-12 → 2006-10 Figure 130587E 130587E 2003-04 → 2008-02 Figure 131401C 131401C 2006-10 → — Figure 131588A 131588A 2008-02 → — Figure 130578J 130578J 2001-10 → 2005-05 Figure 130866D 130866D 2005-05 → — Figure 131345 131345 2006-08 → 2007-08 Figure 131039C 131039C 2006-10 → 2010-08 Figure 131593F 131593F 2010-08 → —

Part groups

PNCDescription
11011 Washer Set, Crankshaft Thrust
11702 Bearing Set, Crankshaft
11711 Bearing, Crankshaft
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13101A Ring, Hole Snap(FOR PISTON PIN)
13201 Rod Sub-assy, Connecting
13201A Bush(FOR CONNECTING ROD SMALL END)
13202 Bearing Set, Connecting Rod
13211 Piston
13251 Pin, Piston
13265 Bolt, Connecting Rod
13265A Nut, Hexagon(FOR CONNECTING ROD BOLT)
13301A Piston Set, W/Piston Ring
13400 Crankshaft Assy
13405 Flywheel Sub-assy
13405A Pin, Straight(FOR FLYWHEEL)
13405B Bolt, Flywheel Setting
13407 Damper Sub-assy, Crankshaft
13407B Nut, Hexagon(FOR CRANKSHAFT DAMPER)
13407C Spacer(FOR CRANKSHAFT DAMPER)
13411 Crankshaft
13411C Pin, Straight(FOR CRANKSHAFT)
13434 Spline, Oil Pump Drive
13453 Gear, Flywheel Ring
13471 Pulley, Crankshaft
13471A Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13471E Nut(FOR CRANKSHAFT PULLEY)
13471F Pin, Straight(FOR CRANKSHAFT PULLEY)
13471G Ring, O(FOR CRANKSHAFT PULLEY)
13471P Spacer(FOR CRANKSHAFT PULLEY)
13503 Shaft Sub-assy, Idle Gear
13508A Gear Sub-assy, Idle
13508C Gear Sub-assy, Idle, NO.2
13508G Gear Sub-assy, Idle, NO.3
13521 Gear OR Sprocket, Crankshaft Timing
13521A Key(FOR CRANKSHAFT TIMING GEAR)
13525 Gear, Idle, NO.1
13525A Bush, Idle Gear
13572 Plate, Idle Gear Thrust
13577A Bolt, Hexagon(FOR IDLE GEAR BOLT LOCK)
13581 Shaft, Idle Gear, NO.1
13581A Pin, Straight(FOR IDLE GEAR SHAFT)
13707A Union(FOR OIL PIPE, NO.1)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
