Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

22 part groups · 6 illustrations

Illustrations

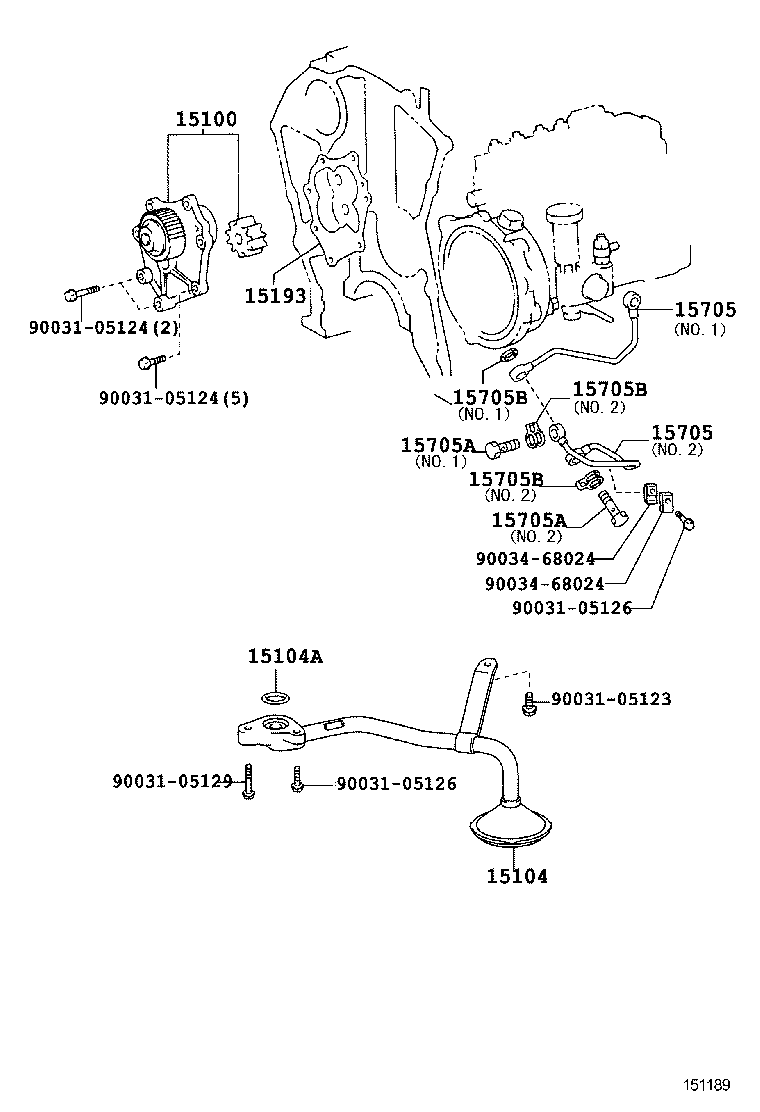

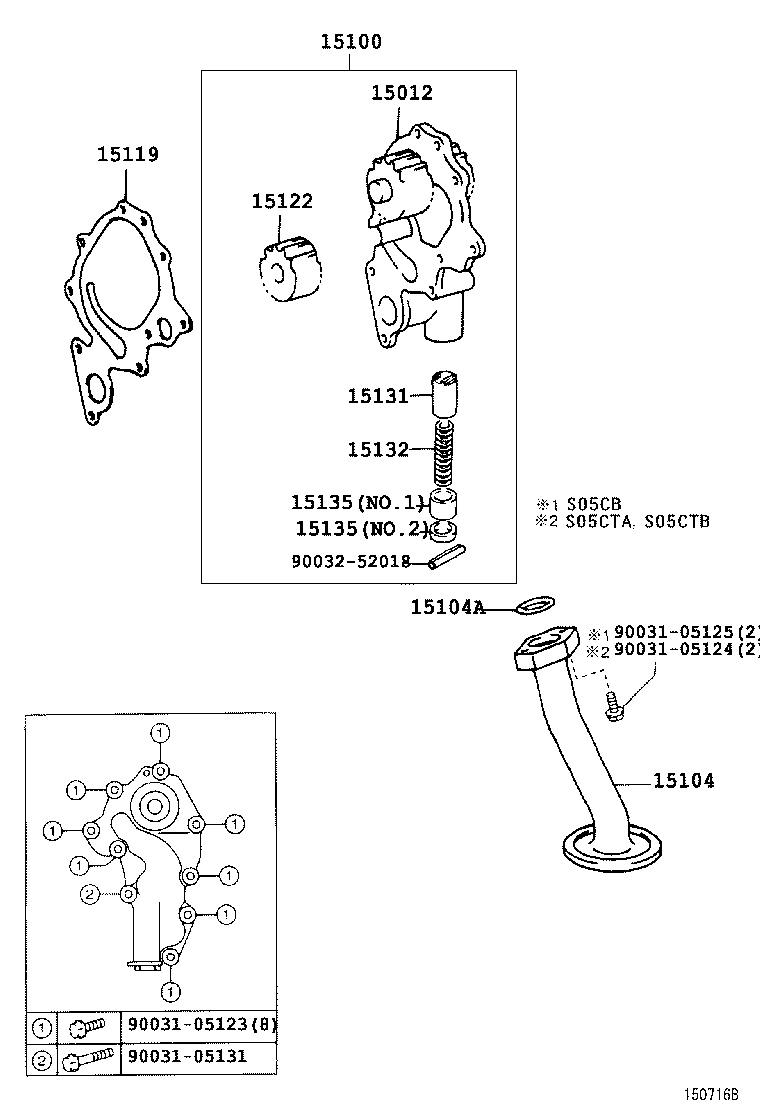

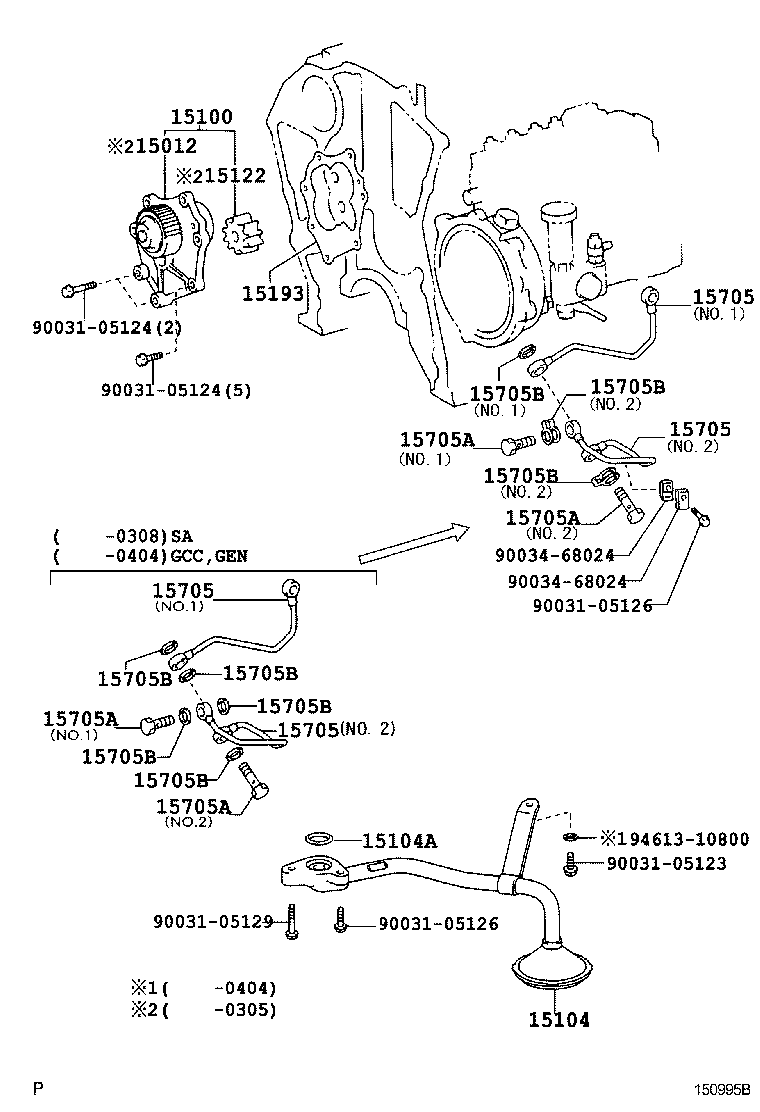

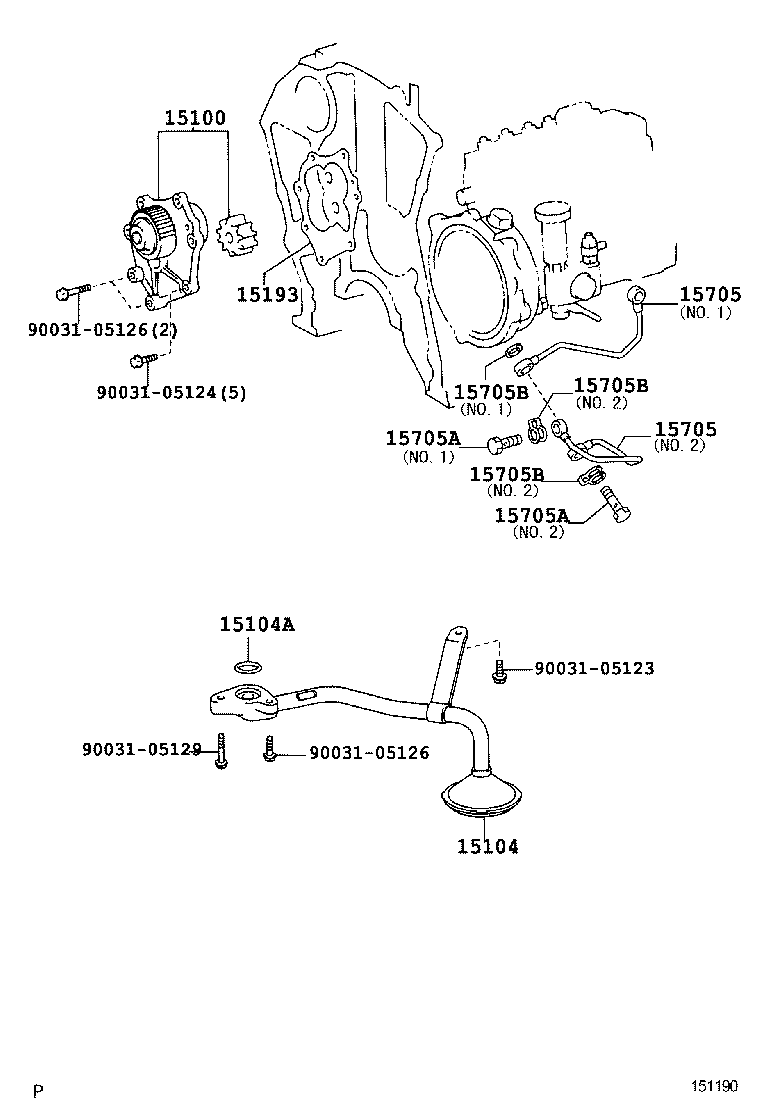

Figure 150737 150737 2004-11 → — Figure 150995B 150995B 2002-12 → — Figure 151189 151189 2006-10 → — Figure 151190 151190 2006-10 → — Figure 150716B 150716B 2001-10 → — Figure 151151B 151151B 2006-08 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15104C Gasket(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15115 Cover, Oil Pump
15119 Gasket, Oil Pump Cover
15122 Gear, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15135 Retainer, Oil Pump Relief Valve
15149 Gasket, Oil Strainer Flange
15193 Gasket, Oil Pump
15403 Pipe Sub-assy, Oil Pump Outlet
15403A Union(FOR OIL PUMP OUTLET PIPE)
15403B Gasket(FOR OIL PUMP OUTLET PIPE)
15705 Pipe Sub-assy, Oil, Injection Pump Inlet
15705A Union(FOR INJECTION PUMP INLET PIPE)
15705B Gasket(FOR INJECTION PUMP INLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
