Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

16 part groups · 10 illustrations

Illustrations

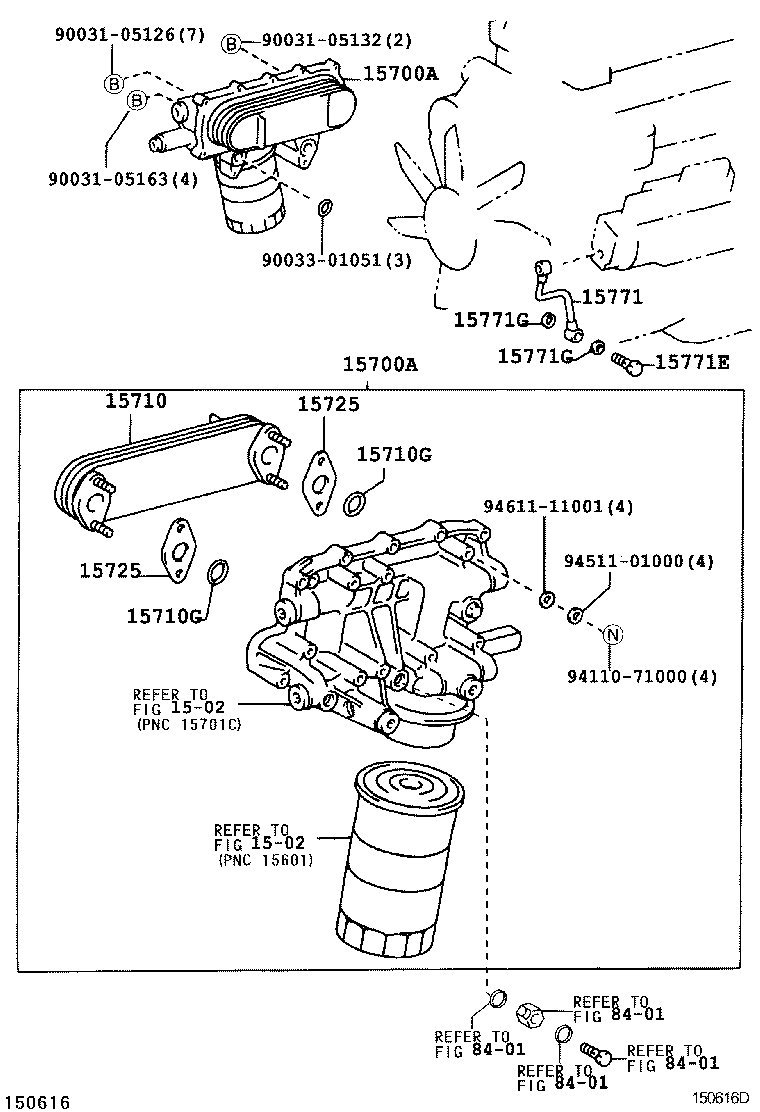

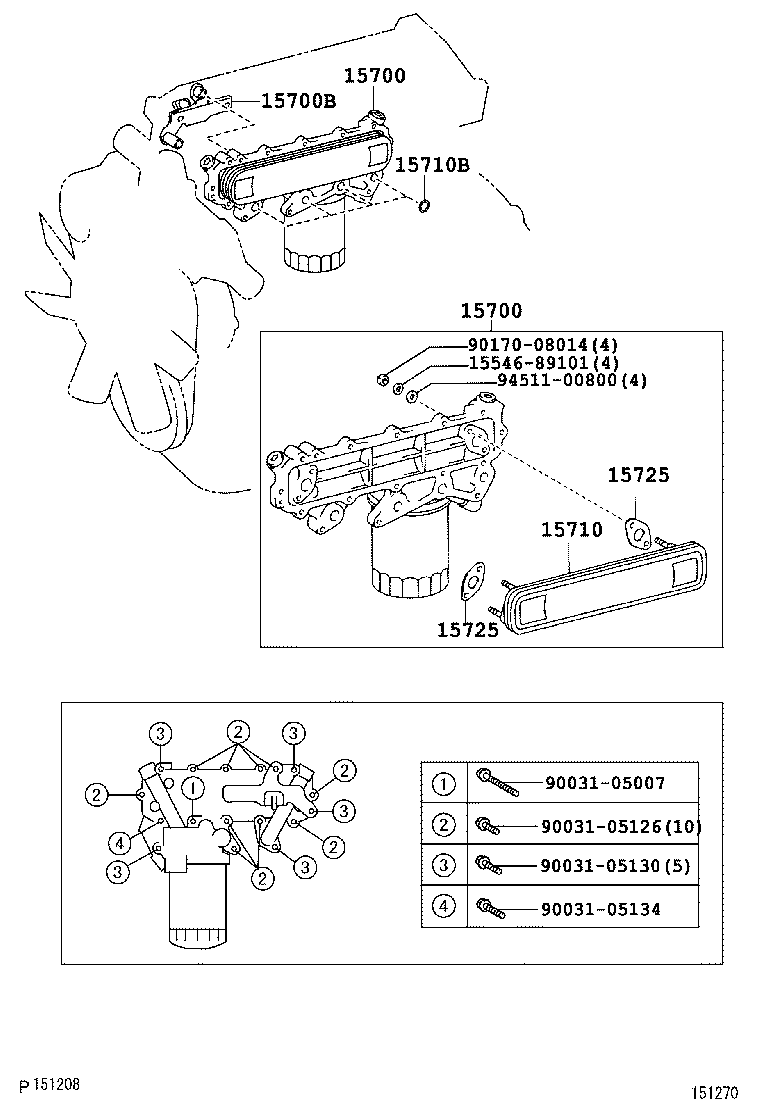

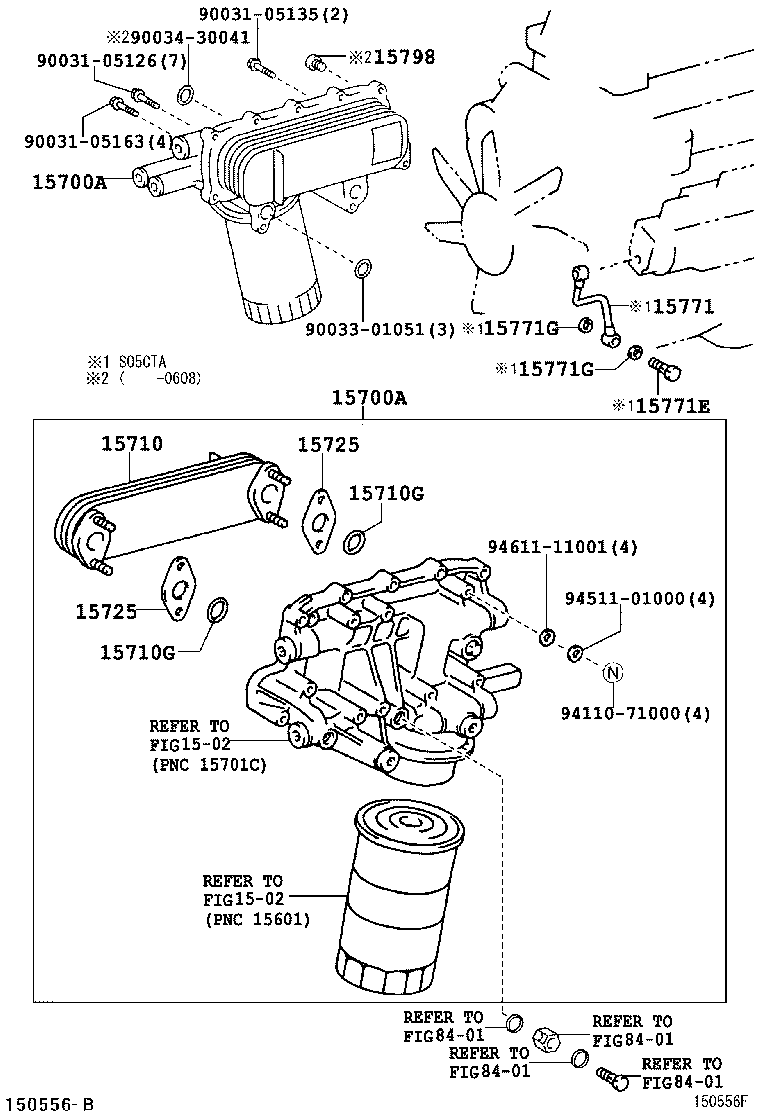

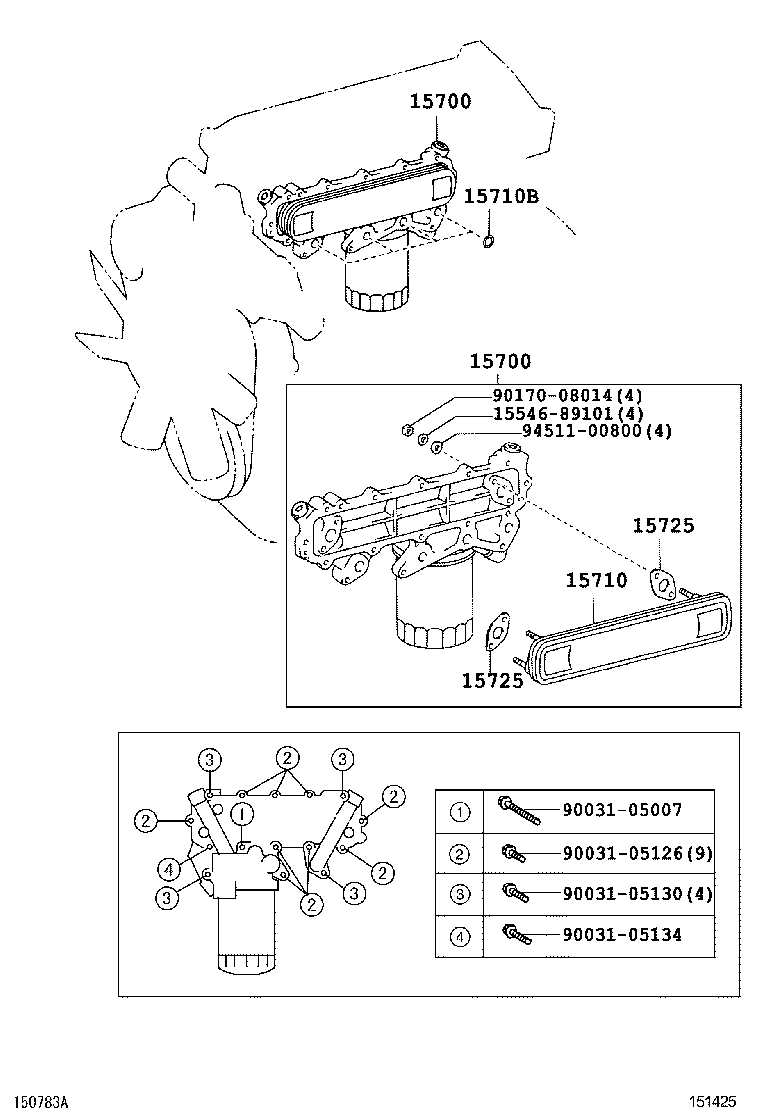

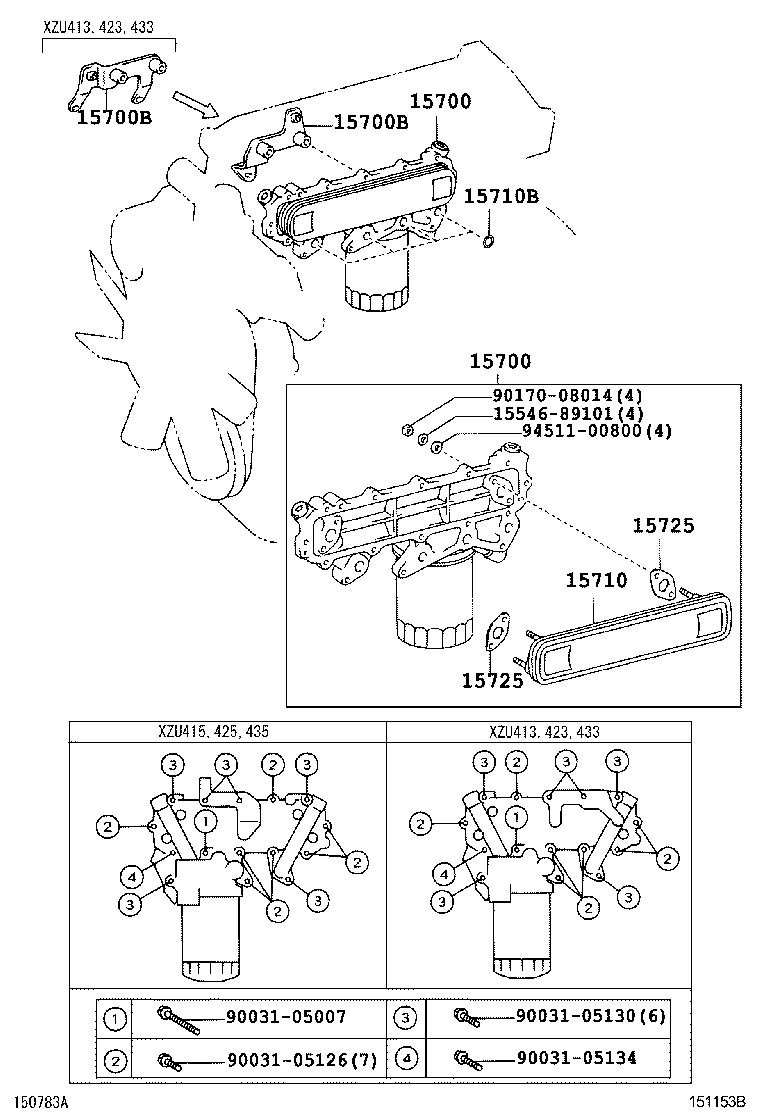

Figure 150643 150643 2004-11 → — Figure 150764G 150764G 2002-12 → 2006-10 Figure 150764G 150764G 2003-04 → 2008-02 Figure 151188C 151188C 2006-10 → — Figure 151188C 151188C 2008-02 → 2008-12 Figure 150556F 150556F 2001-10 → — Figure 150616D 150616D 2002-12 → — Figure 151153B 151153B 2006-08 → 2007-11 Figure 151425 151425 2007-11 → — Figure 151270 151270 2007-01 → —

Part groups

PNCDescription
15529A Plug
15700 Cooler Assy, Oil W/Bracket
15700A Cooler Assy, Oil W/Bracket
15700B Bracket(FOR OIL COOLER)
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15710G Ring, O, NO.2
15722 Gasket, Oil Cooler
15725 Gasket, Oil Cooler Cover
15726 Connector, Oil Cooler Union Bolt
15771 Pipe, Oil, NO.1
15771E Bolt, Union(FOR OIL PIPE)
15771G Gasket
15791 Case, Oil Cooler
15798 Plug, Oil Nozzle Union Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
