Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

34 part groups · 12 illustrations

Illustrations

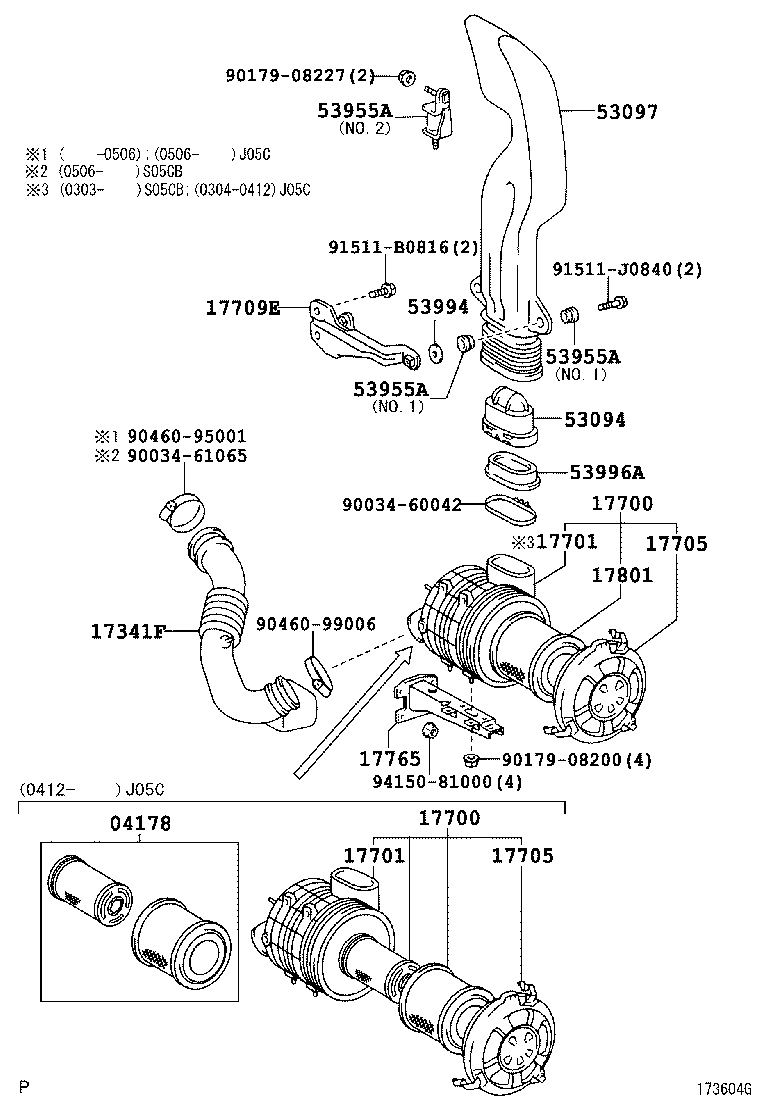

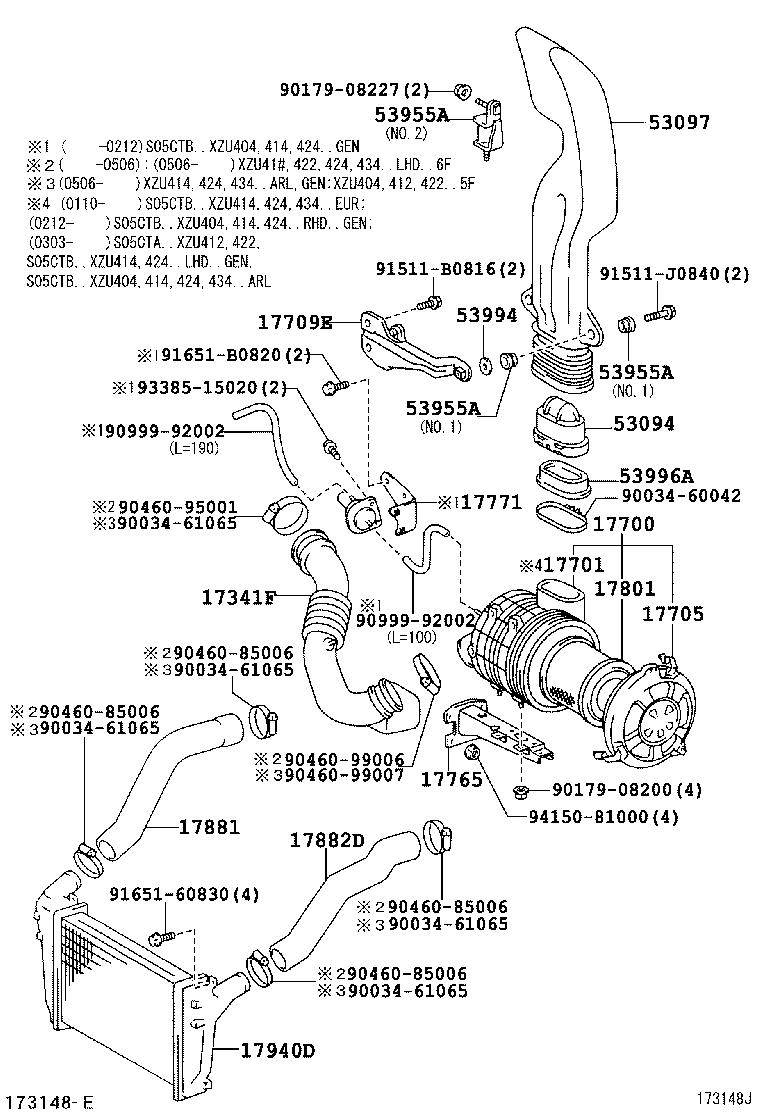

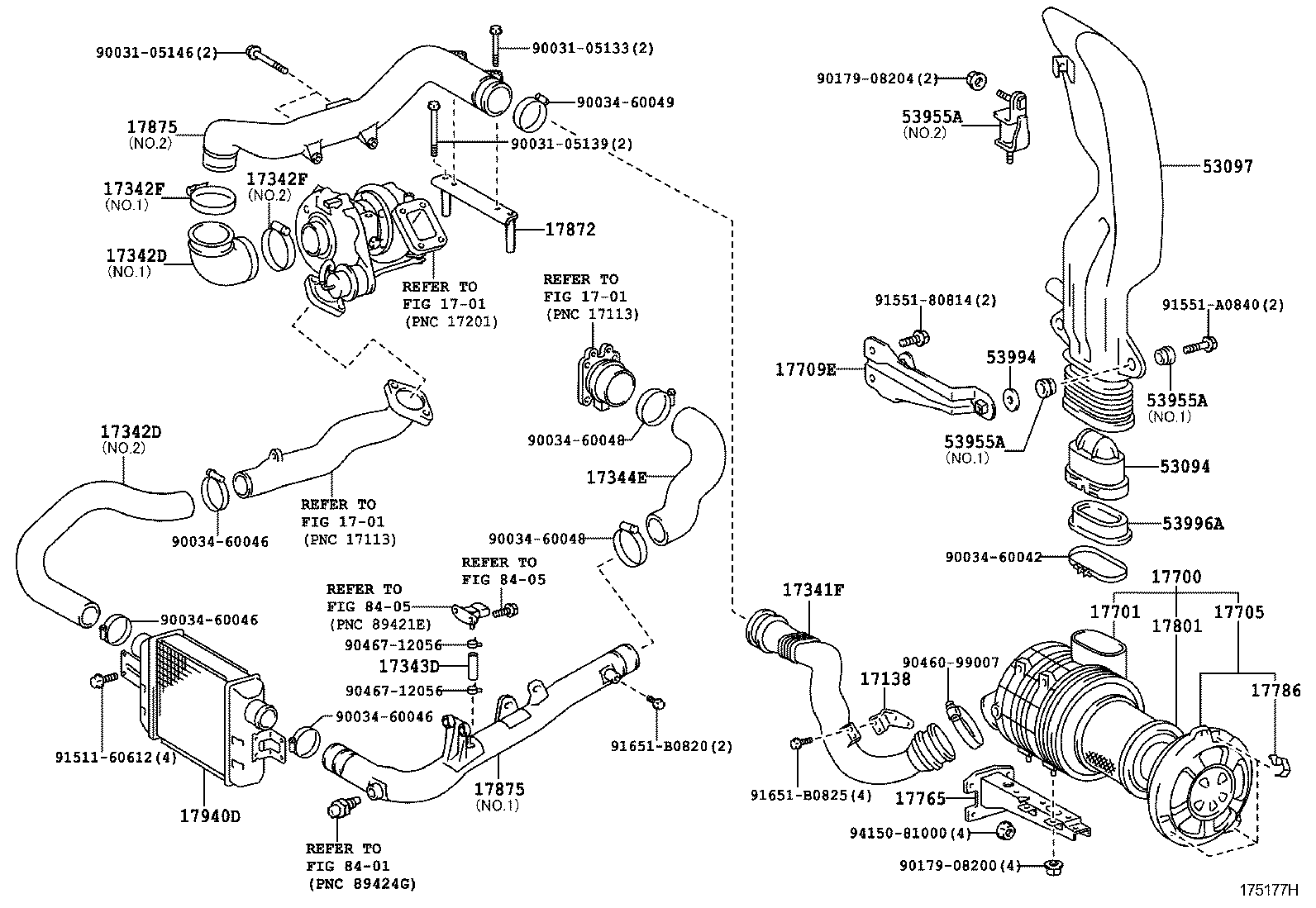

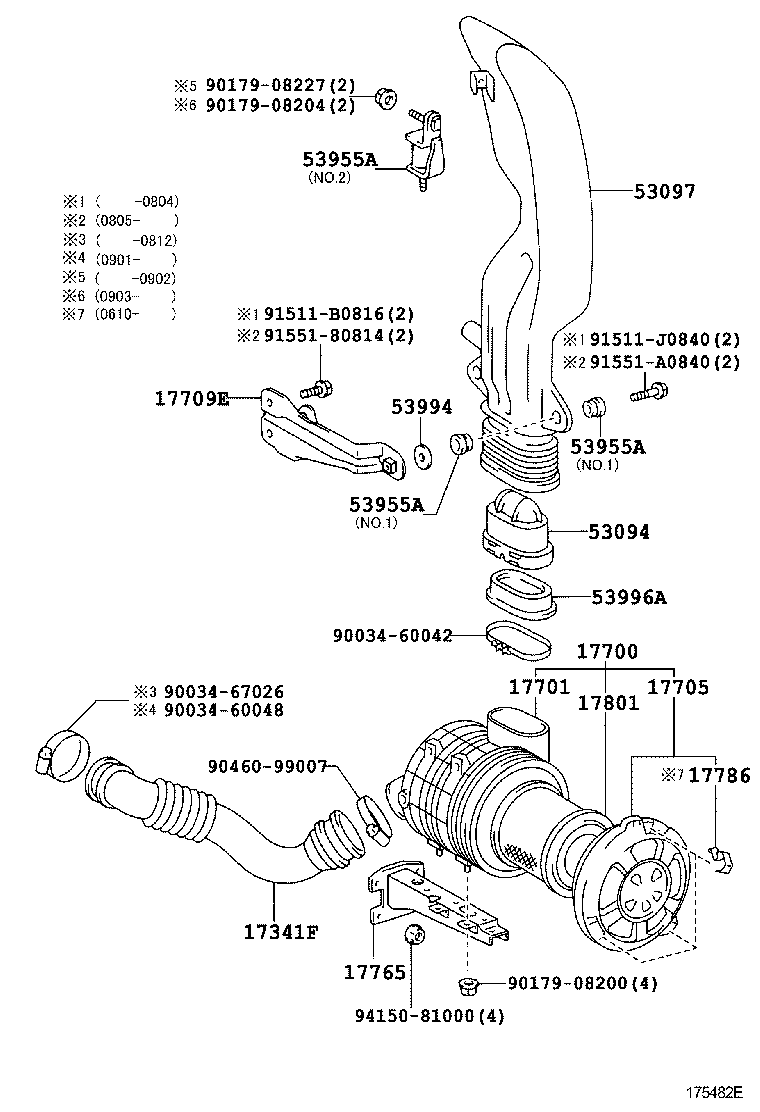

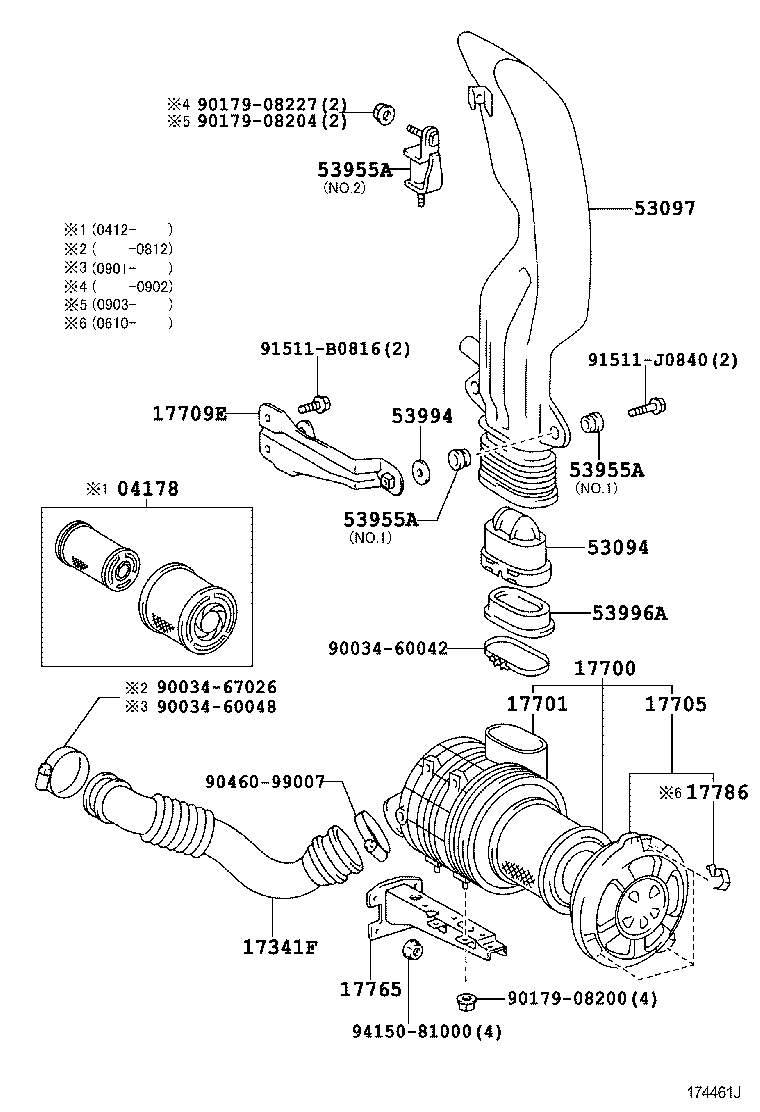

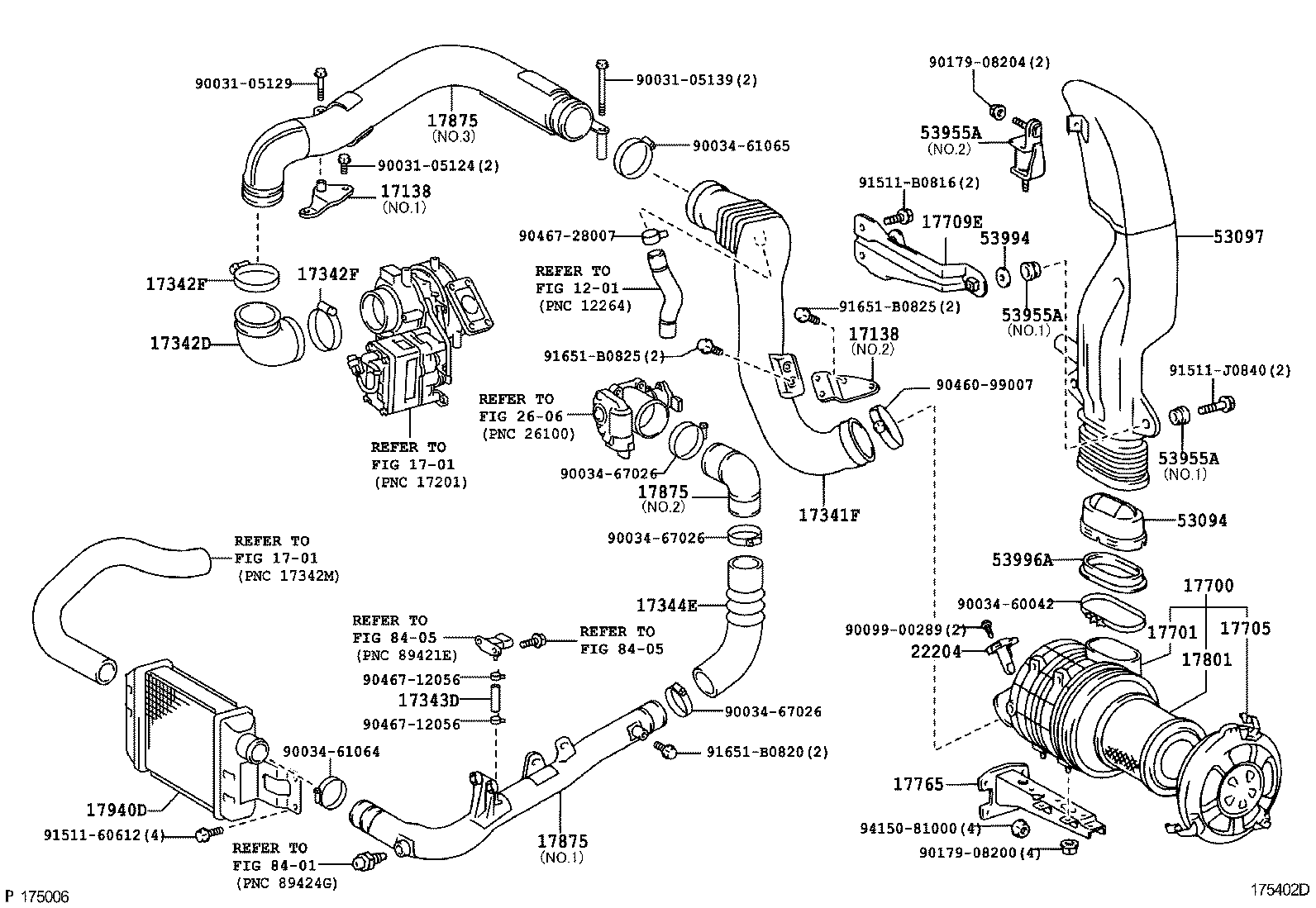

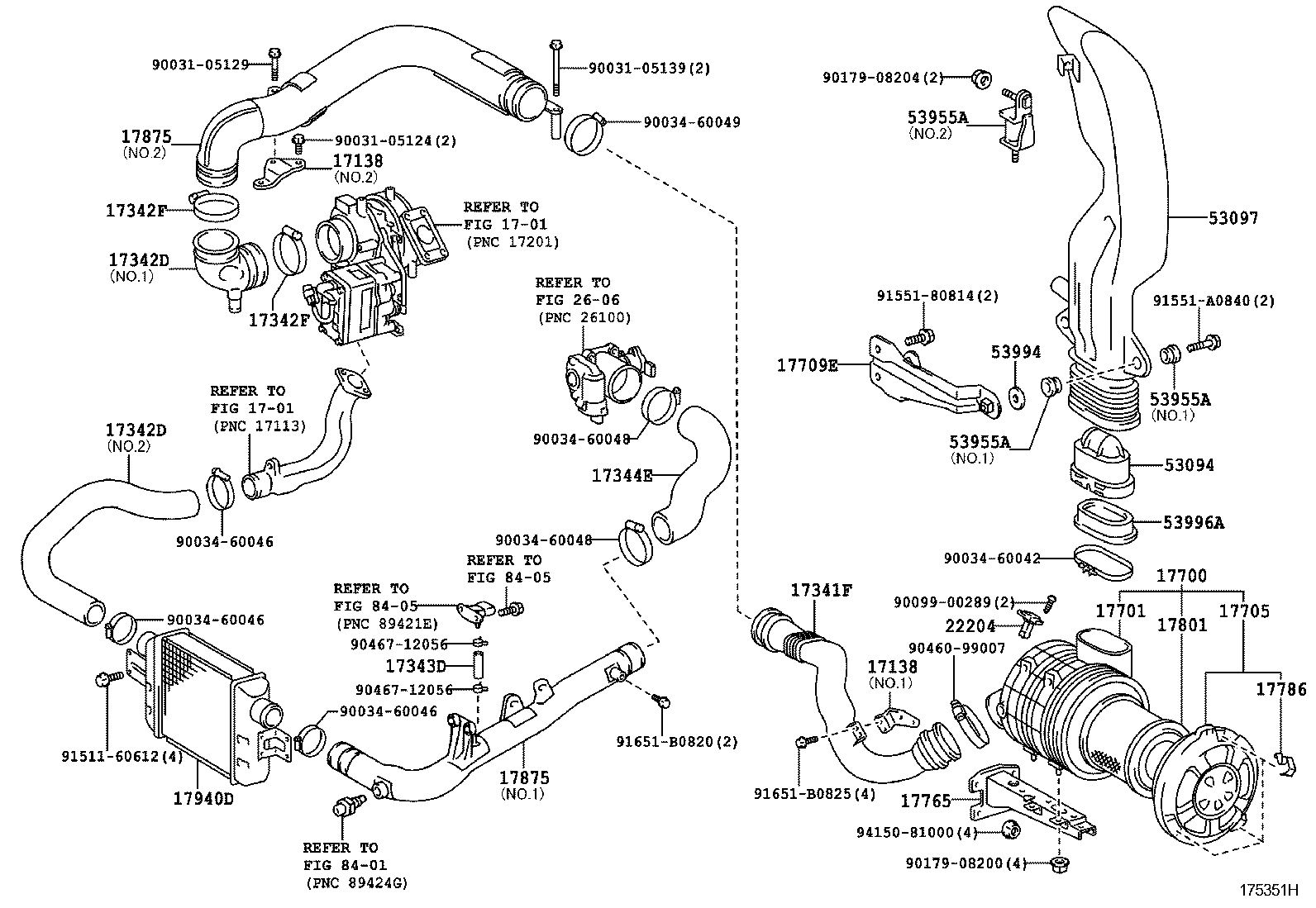

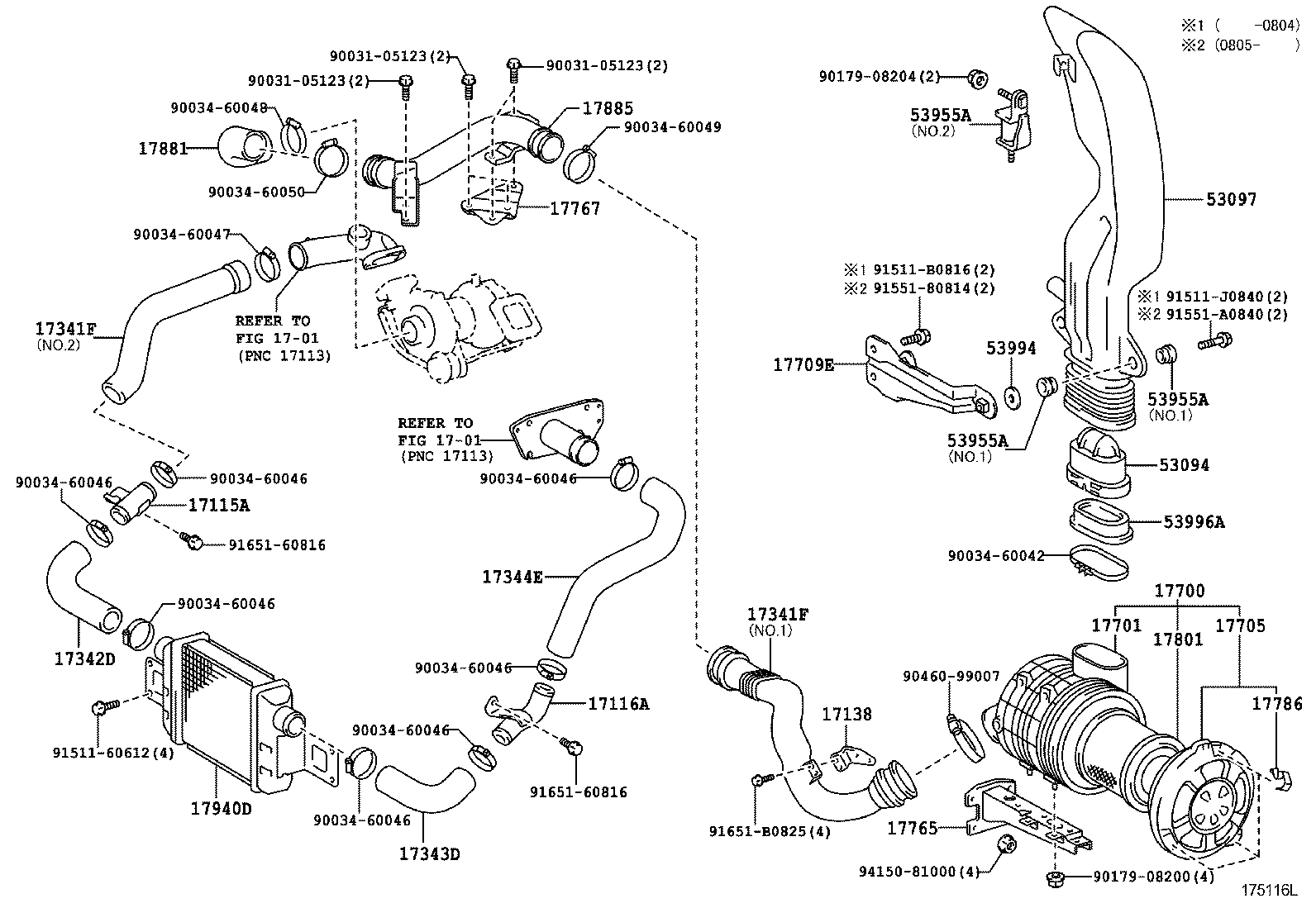

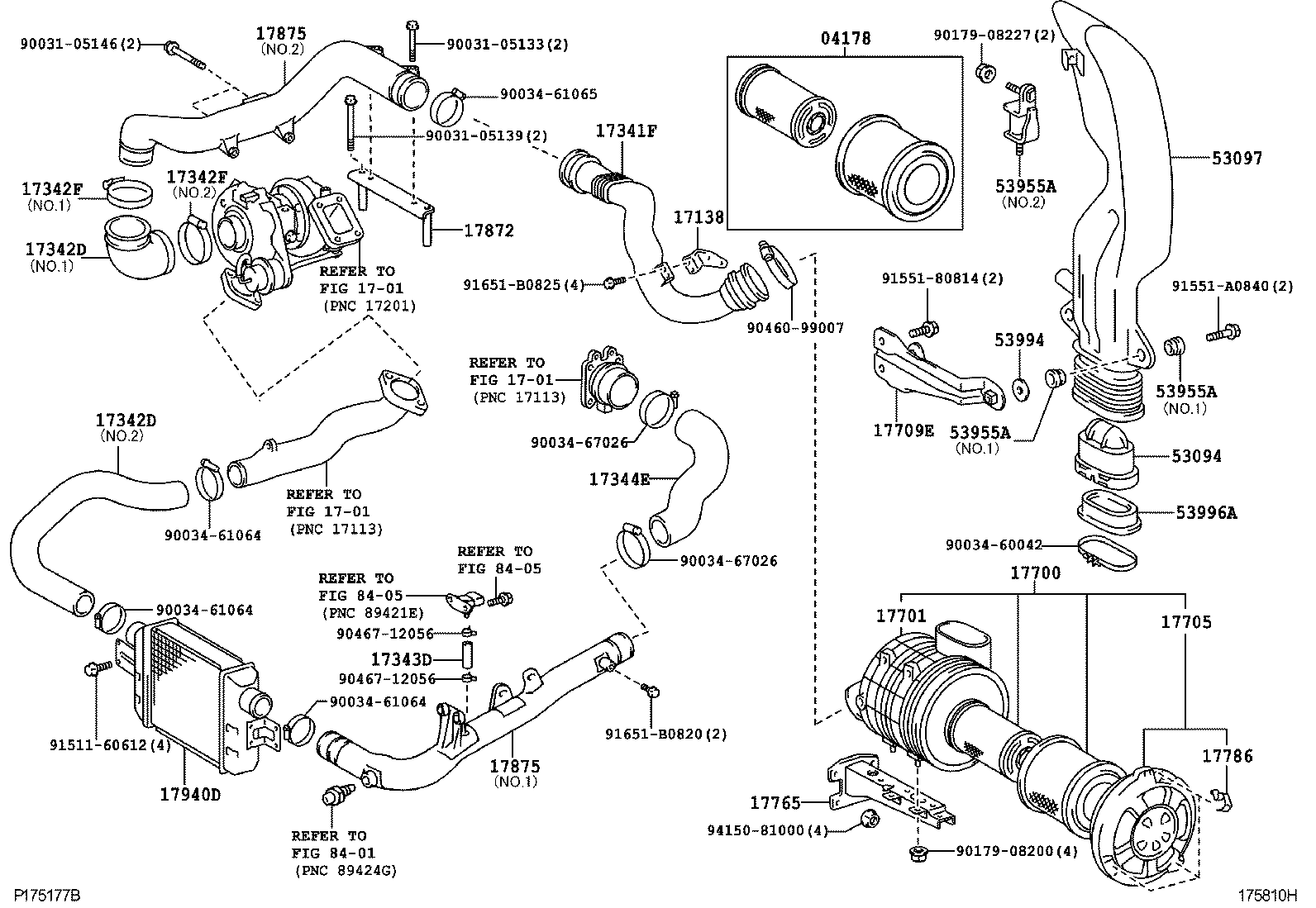

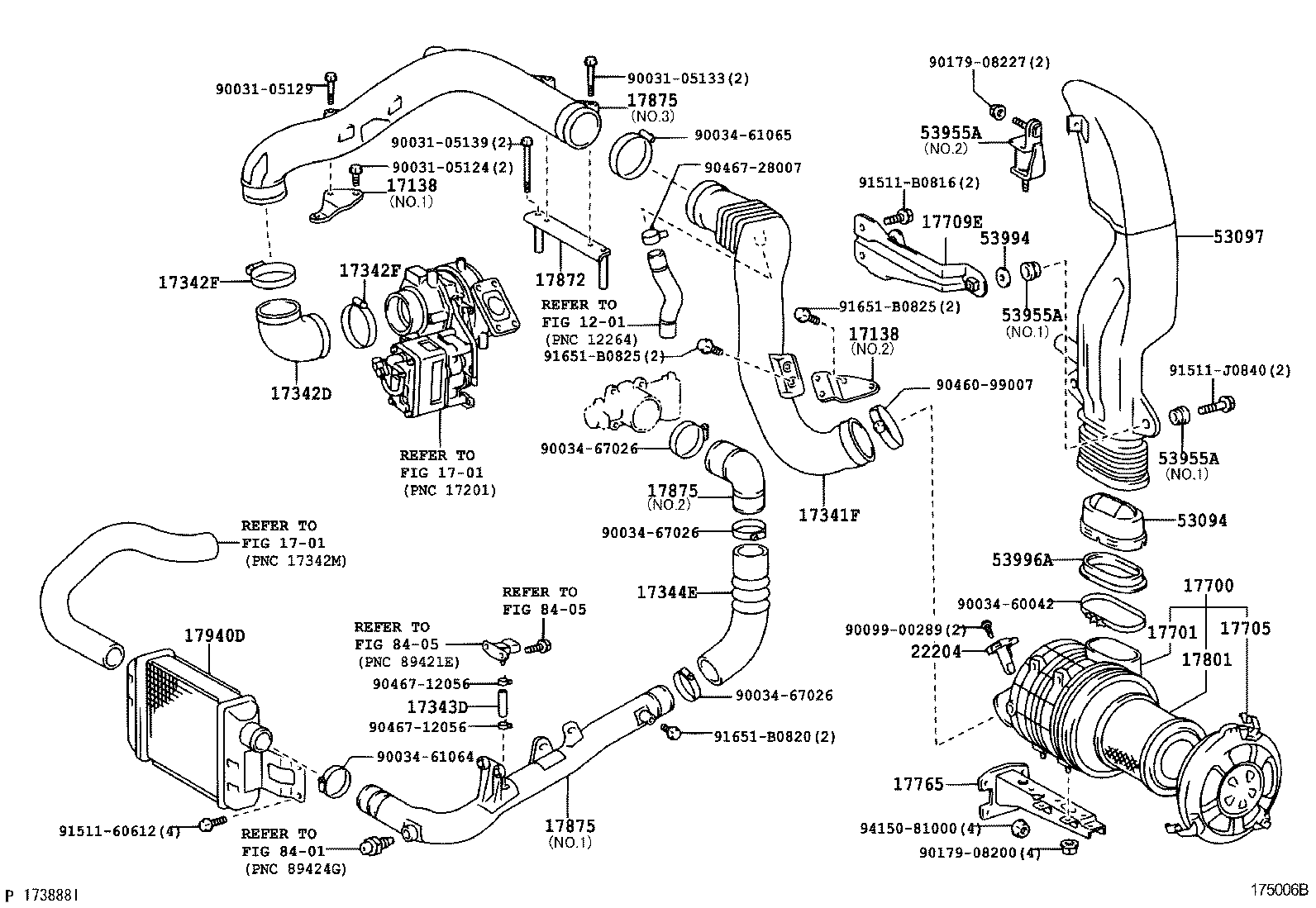

Figure 173809B 173809B 2004-11 → — Figure 175482E 175482E 2002-12 → 2004-12 Figure 175482E 175482E 2004-12 → — Figure 174461J 174461J 2004-12 → — Figure 175116L 175116L 2006-10 → — Figure 173148J 173148J 2001-10 → — Figure 173604G 173604G 2002-12 → — Figure 175006B 175006B 2006-08 → 2006-10 Figure 175402D 175402D 2006-10 → — Figure 175177H 175177H 2006-10 → — Figure 175351H 175351H 2007-01 → — Figure 175810H 175810H 2008-02 → —

Part groups

PNCDescription
04178 Element Kit, Air Cleaner
17115A Pipe, Intake, NO.2
17116A Pipe, Intake, NO.3
17138 Stay, Intake Pipe OR Hose
17341F Hose, Air, NO.1
17342D Hose, Air, NO.2
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17344E Hose, Air, NO.4
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17709E Bracket, Air Cleaner Inlet, NO.2
17765 Stay, Air Cleaner, NO.1
17767 Bracket, Air Cleaner
17771 Bracket, Air Cleaner Inlet Duct
17786 Clamp, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805C Pipe Sub-assy, Air Cleaner, NO.1
17805D Grommet(FOR INTAKE AIR CONNECTOR)
17805N Bush(FOR AIR CONNECTOR)
17872 Bracket, Intake Air Connector
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882D Hose, Cool Air Intake
17885 Pipe, Air Cleaner
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
53094 Inlet, Air Cleaner Pipe, NO.3
53097 Inlet Sub-assy
53955A Cushion, Air Cleaner Inlet NO.1
53994 Retainer, Air Cleaner Inlet Pipe
53996A Packing, Air Cleaner Inlet Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
