Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

13 part groups · 9 illustrations

Illustrations

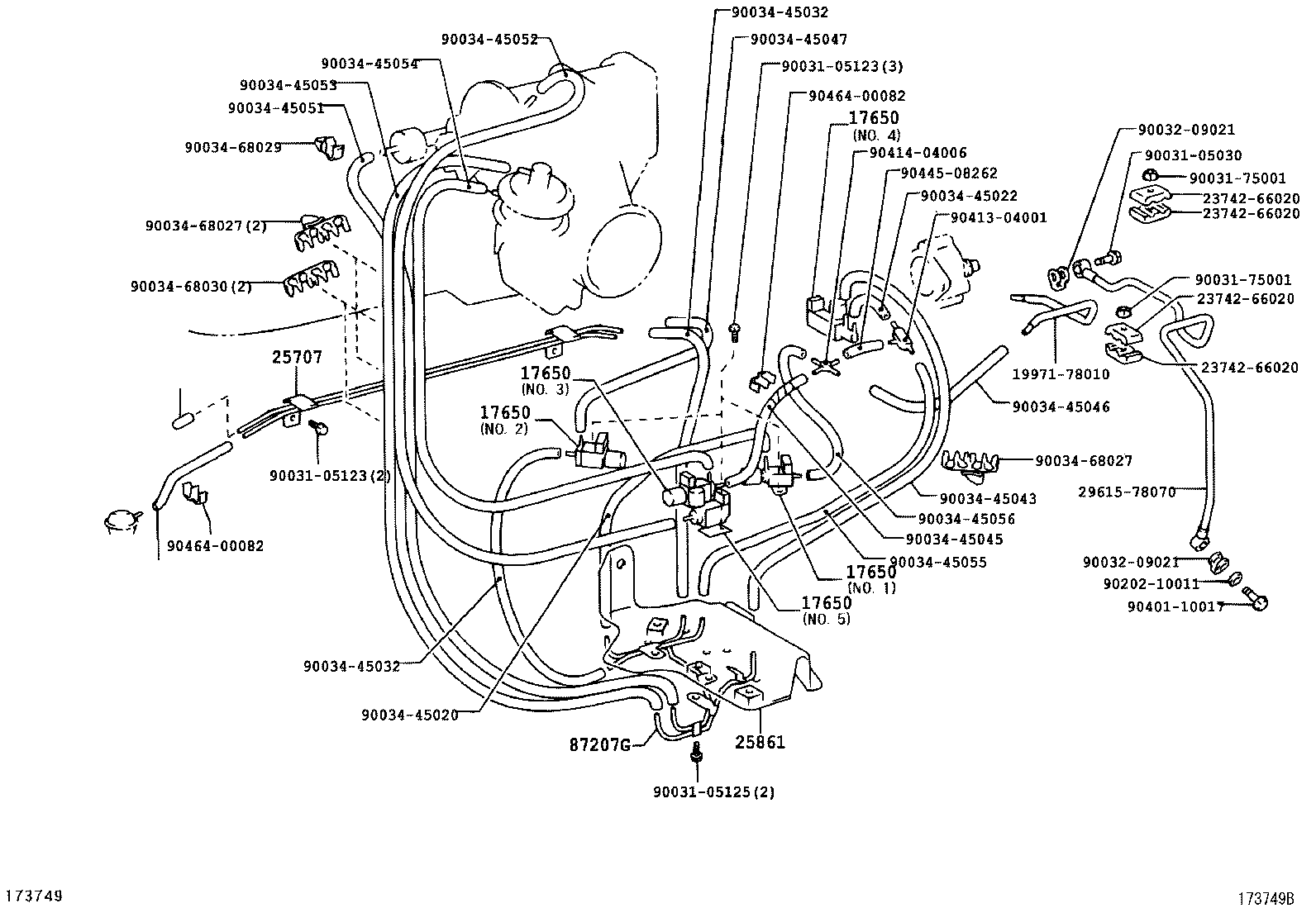

Figure 172190C 172190C 2004-11 → — Figure 173615P 173615P 2002-12 → 2006-10 Figure 173615P 173615P 2003-04 → 2008-02 Figure 175117G 175117G 2006-10 → 2011-06 Figure 175117G 175117G 2008-02 → 2008-12 Figure 175149E 175149E 2006-10 → 2011-06 Figure 173610D 173610D 2002-12 → — Figure 173609F 173609F 2002-12 → — Figure 173749B 173749B 2003-04 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23265 Filter, Gas, NO.1
25693A Damper, Egr Vacuum Modulator
25695A Hose, Egr Vacuum Modulator
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25819 Valve Assy, Vacuum Regulating
25860A Valve, Vacuum Switching, NO.1
25860E Valve, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
25861A Bracket, Vacuum Switching Valve, NO.2
87207G Pipe Sub-assy, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
