Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

48 part groups · 7 illustrations

Illustrations

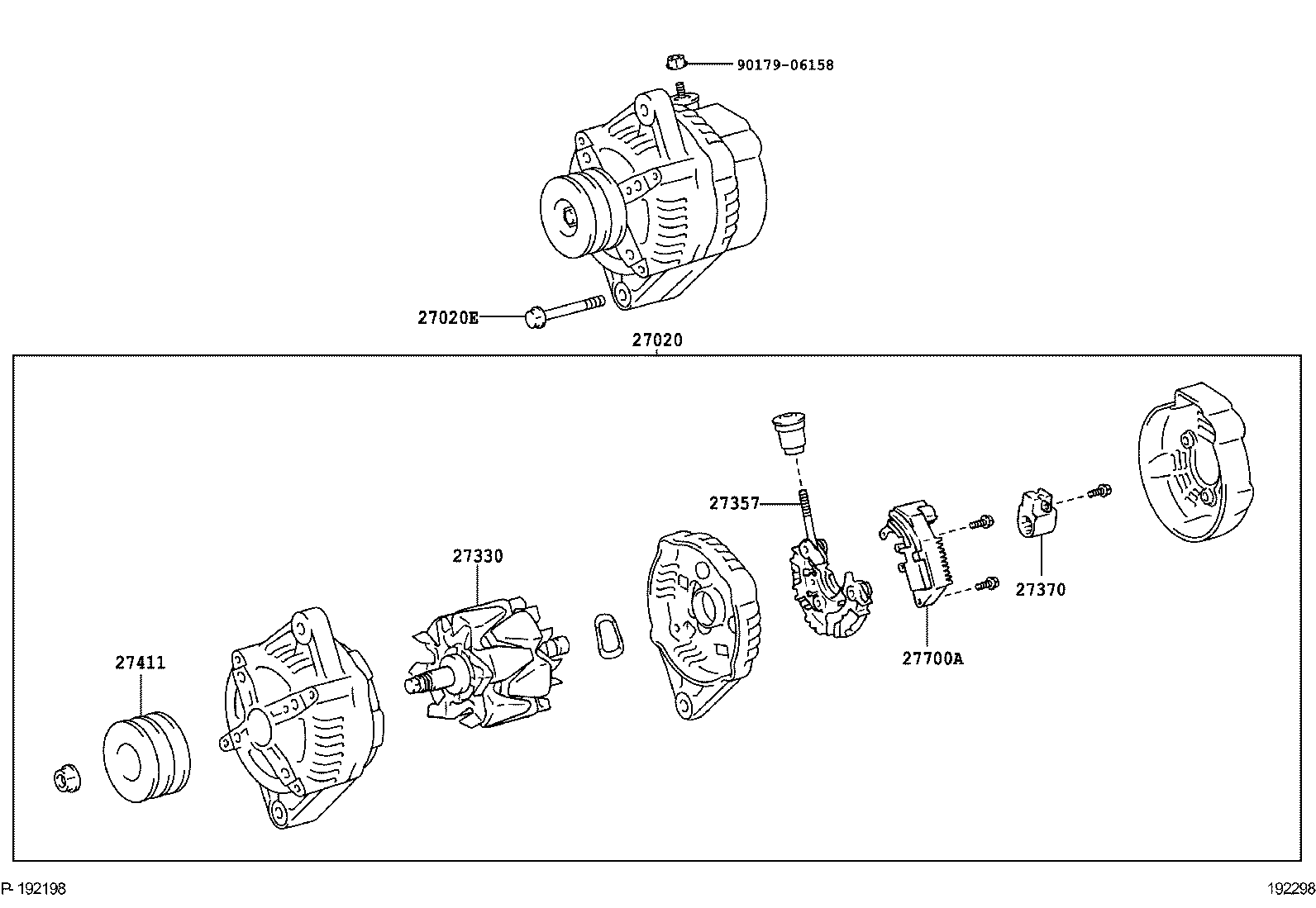

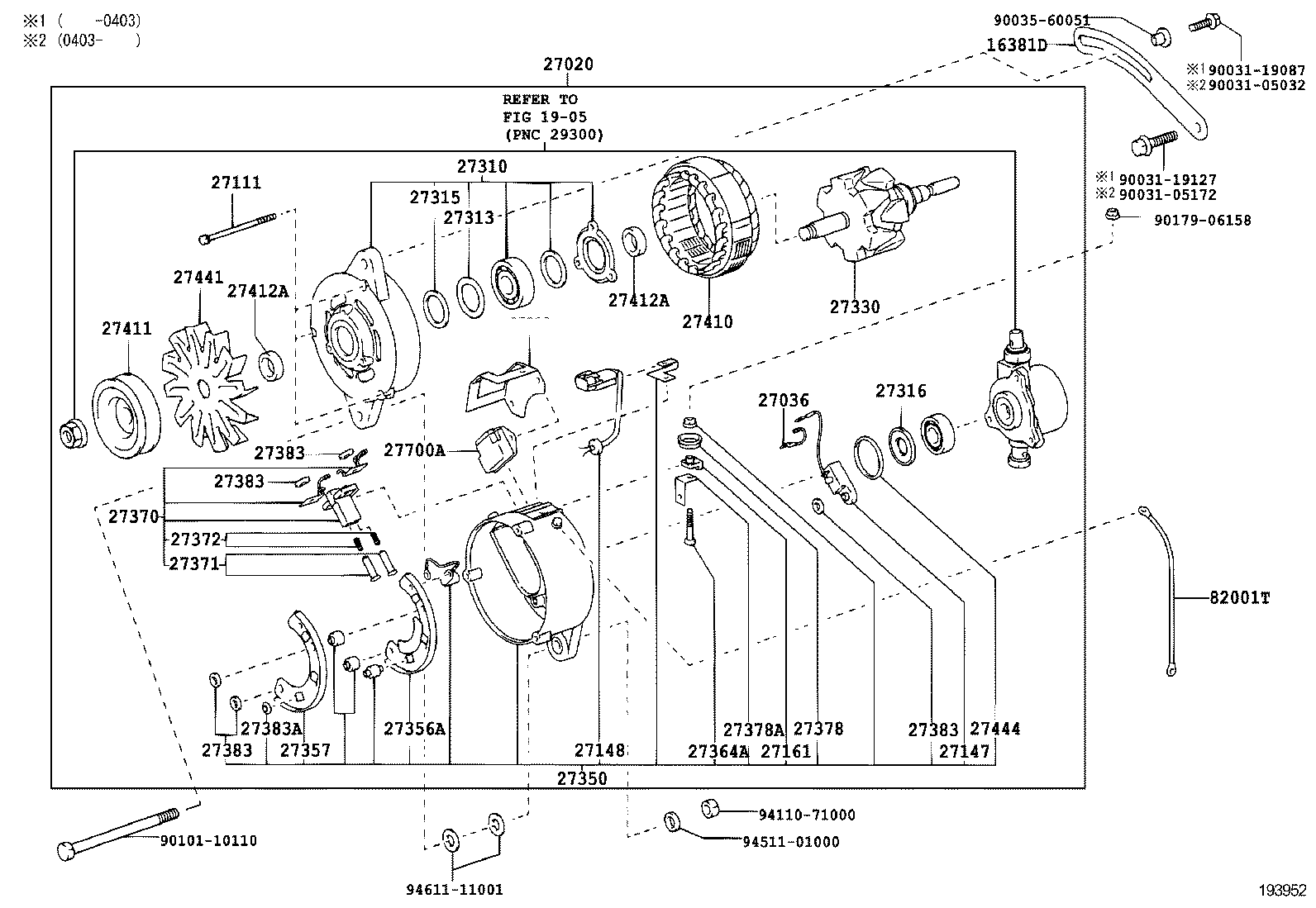

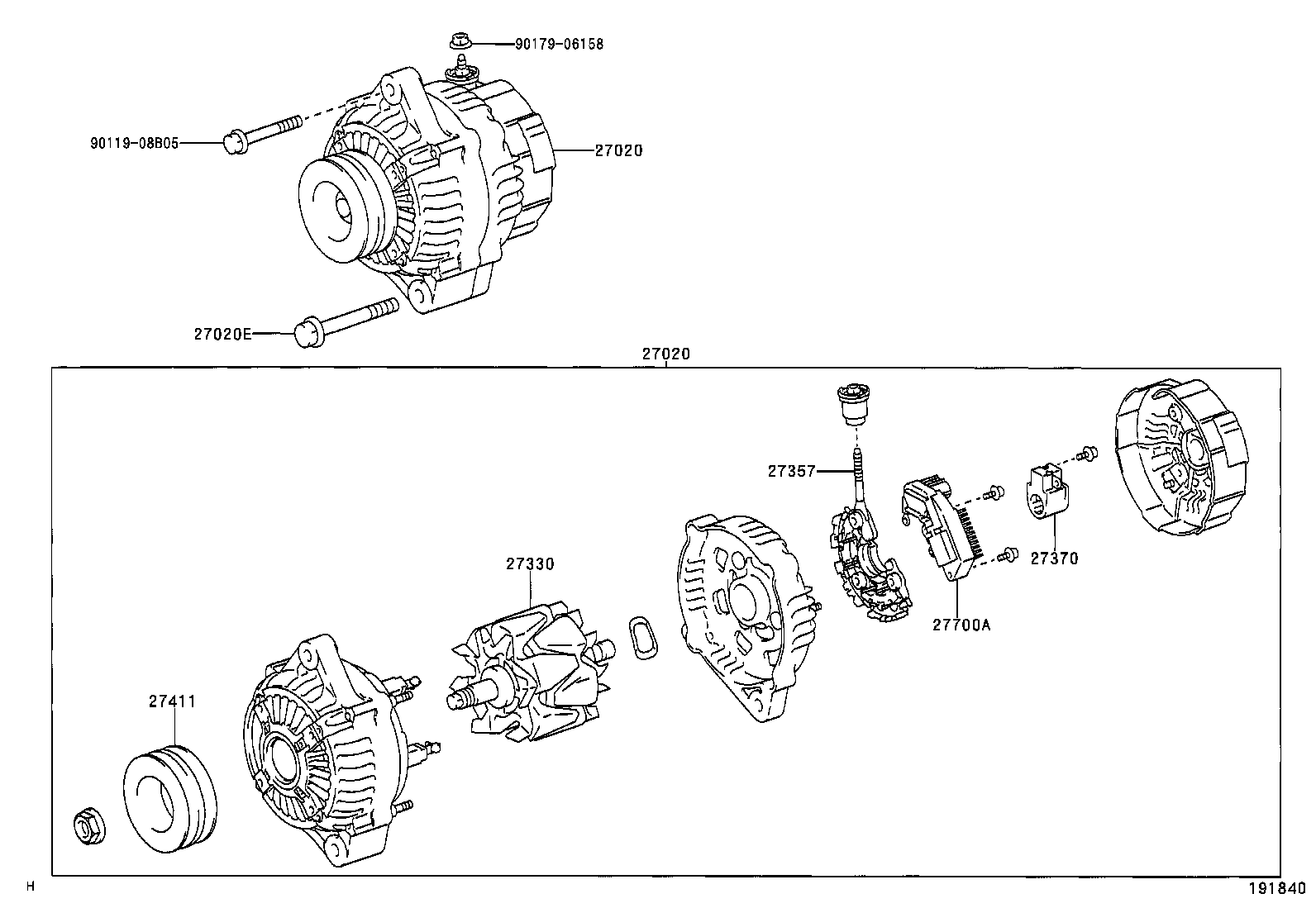

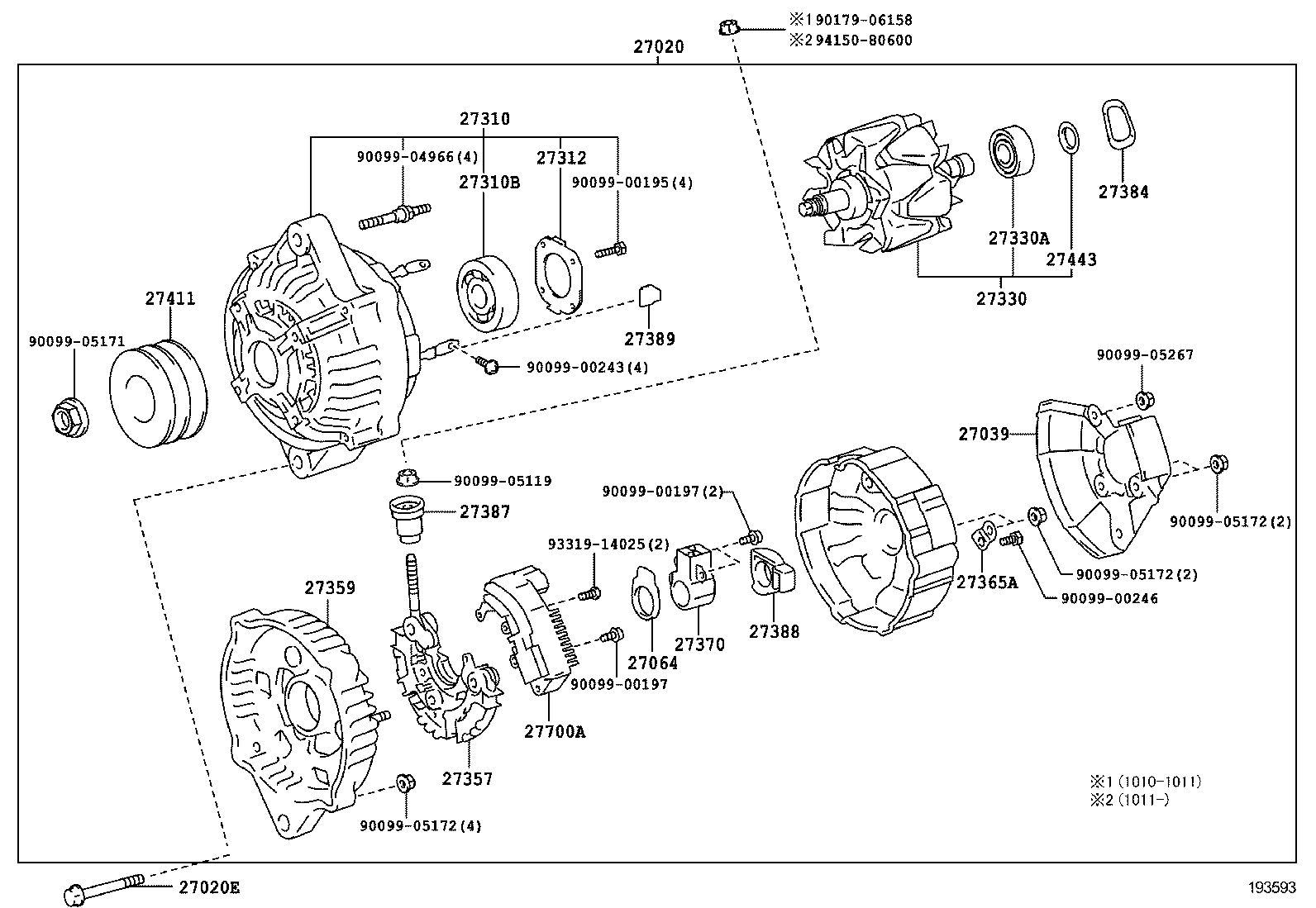

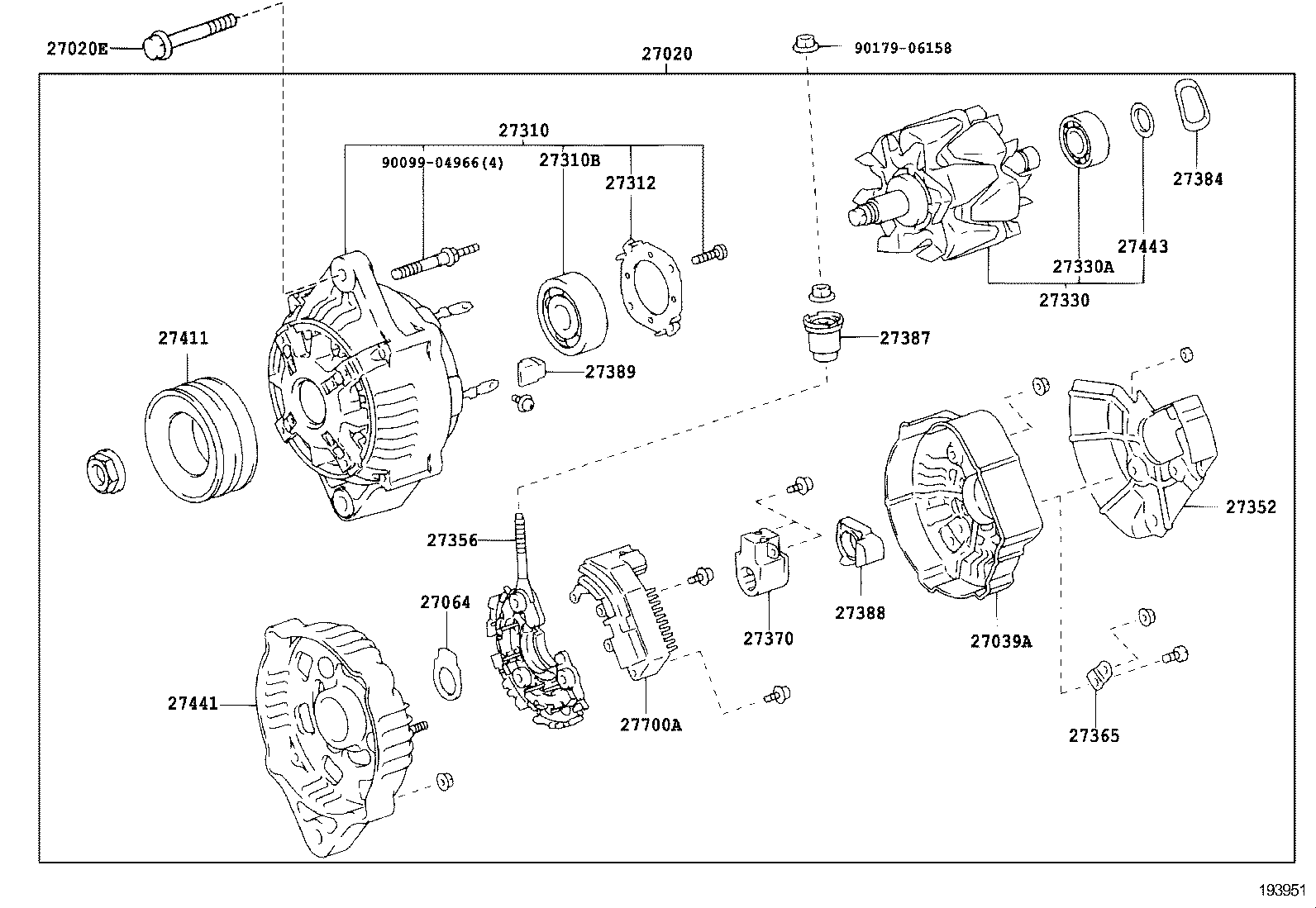

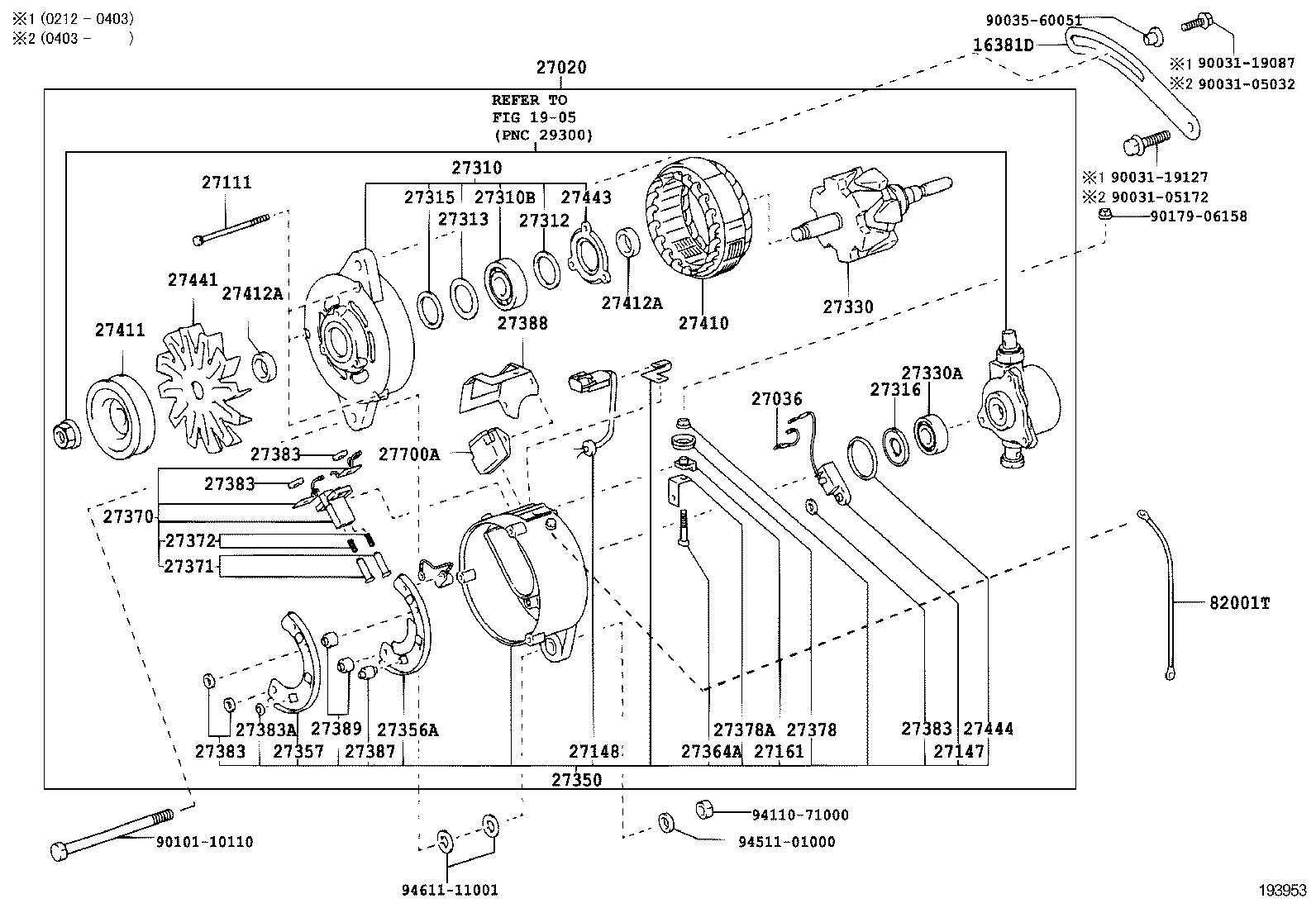

Figure 193950 193950 2001-10 → — Figure 193951 193951 2002-12 → — Figure 193953 193953 2002-12 → 2003-11 Figure 193952 193952 2003-11 → — Figure 191840 191840 2004-11 → — Figure 192298 192298 2006-08 → 2010-10 Figure 193593 193593 2010-10 → —

Part groups

PNCDescription
16381D Bar, Fan Belt Adjusting
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27036 Terminal Sub-assy, Lead Wire, Alternator
27039 Cover, Alternator Rear End
27039A Cover, Alternator Rear End, NO.2
27064 Seal, Alternator Plate
27111 Bolt, Alternator
27147 Terminal, W/Lead Wire
27148 Wire, Alternator Connecting
27161 Insulator, Brush Holder, B
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27313 Cover, Alternator Felt, Inner NO.2
27315 Cover, Alternator Felt, Inner NO.1
27316 Packing, Retainer Plate, Alternator
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27350 Frame Assy, Rectifier End
27352 Cover, Frame Brush
27356 Holder, W/Rectifier Negative, Alternator
27356A Holder Sub-assy, Rectifier
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27364A Bolt, Alternator Terminal
27365 Plate, Terminal
27365A Plate, Rectifier
27370 Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27378 Insulator, Alternator, NO.1
27378A Insulator, Alternator, NO.2
27383 Washer, Alternater Terminal Insulator, NO.1
27383A Washer, Alternater Terminal Insulator, NO.2
27384 Washer
27387 Insulator, Terminal
27388 Cover, Alternator Brush
27389 Insulator, Terminal
27410 Stator Assy, Alternator
27411 Pulley, Alternator
27412A Collar, Space(FOR ALTERNATOR DRIVE END FRAME)
27441 Fan, Alternator
27443 Cover, Alternator Bearing
27444 Packing, Alternator Bearing Cover
27446 Clip, Alternator Cord
27700A Regulator Assy, Generator
82001T Cable, Bond
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
