Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

24 part groups · 7 illustrations

Illustrations

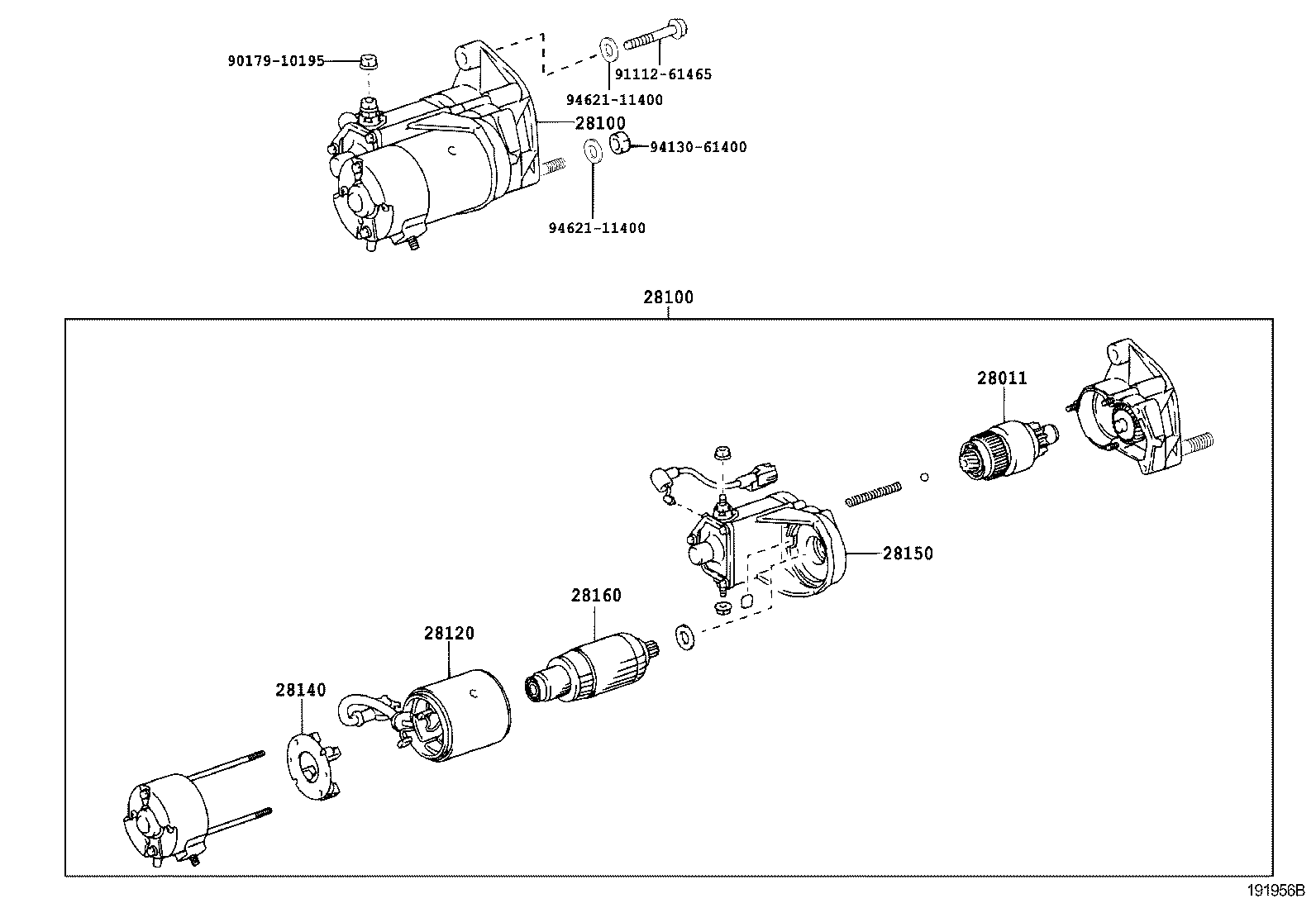

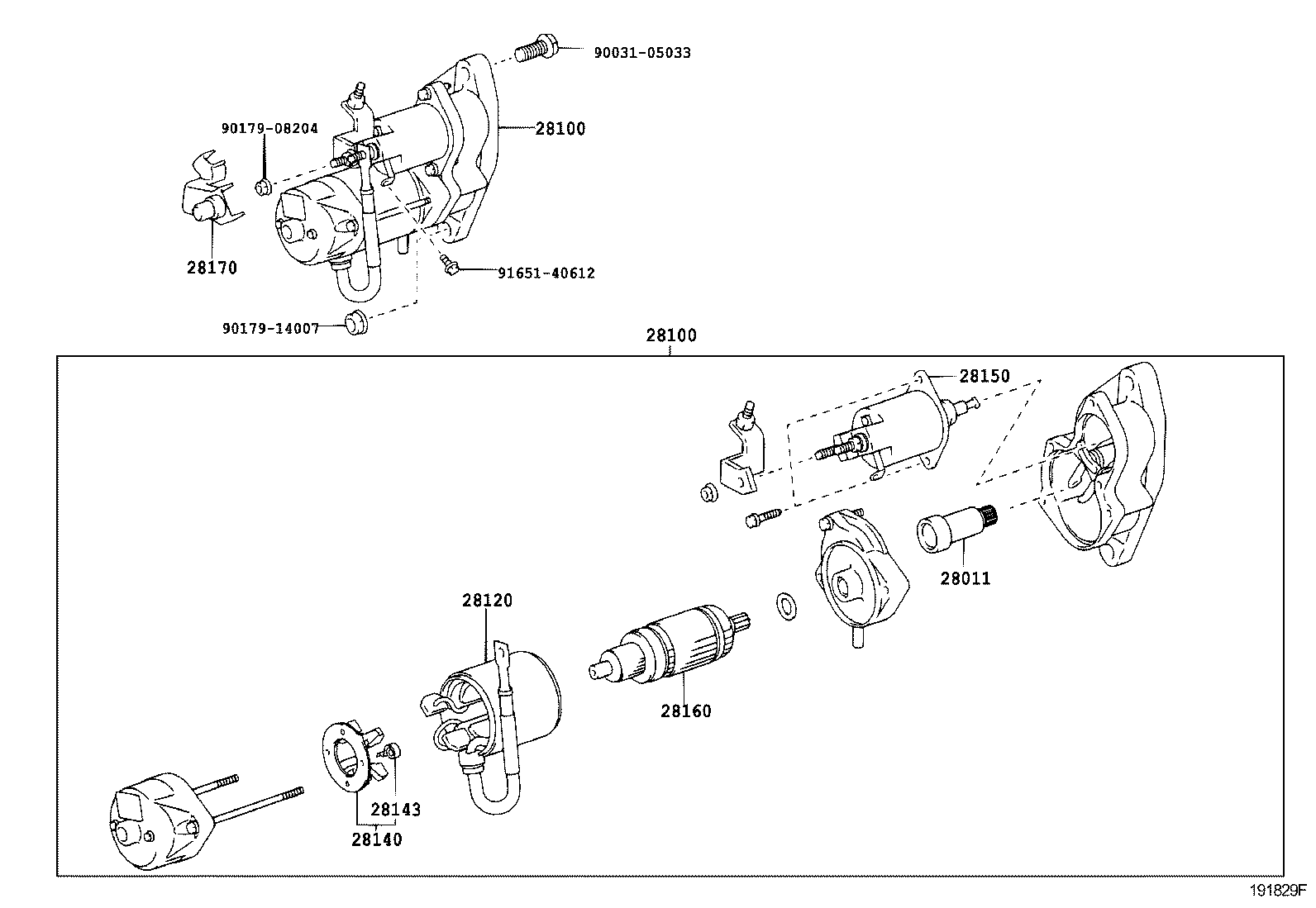

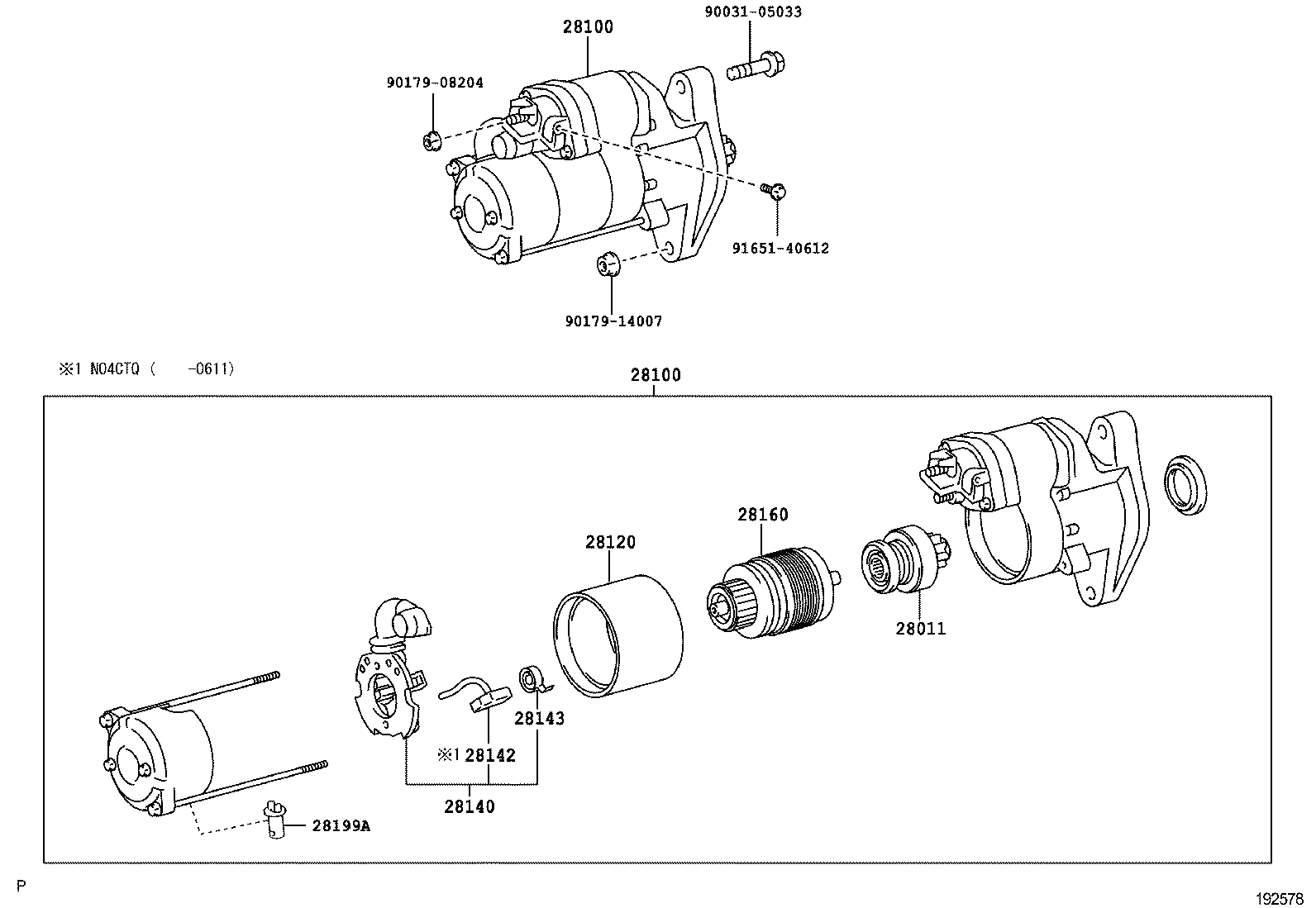

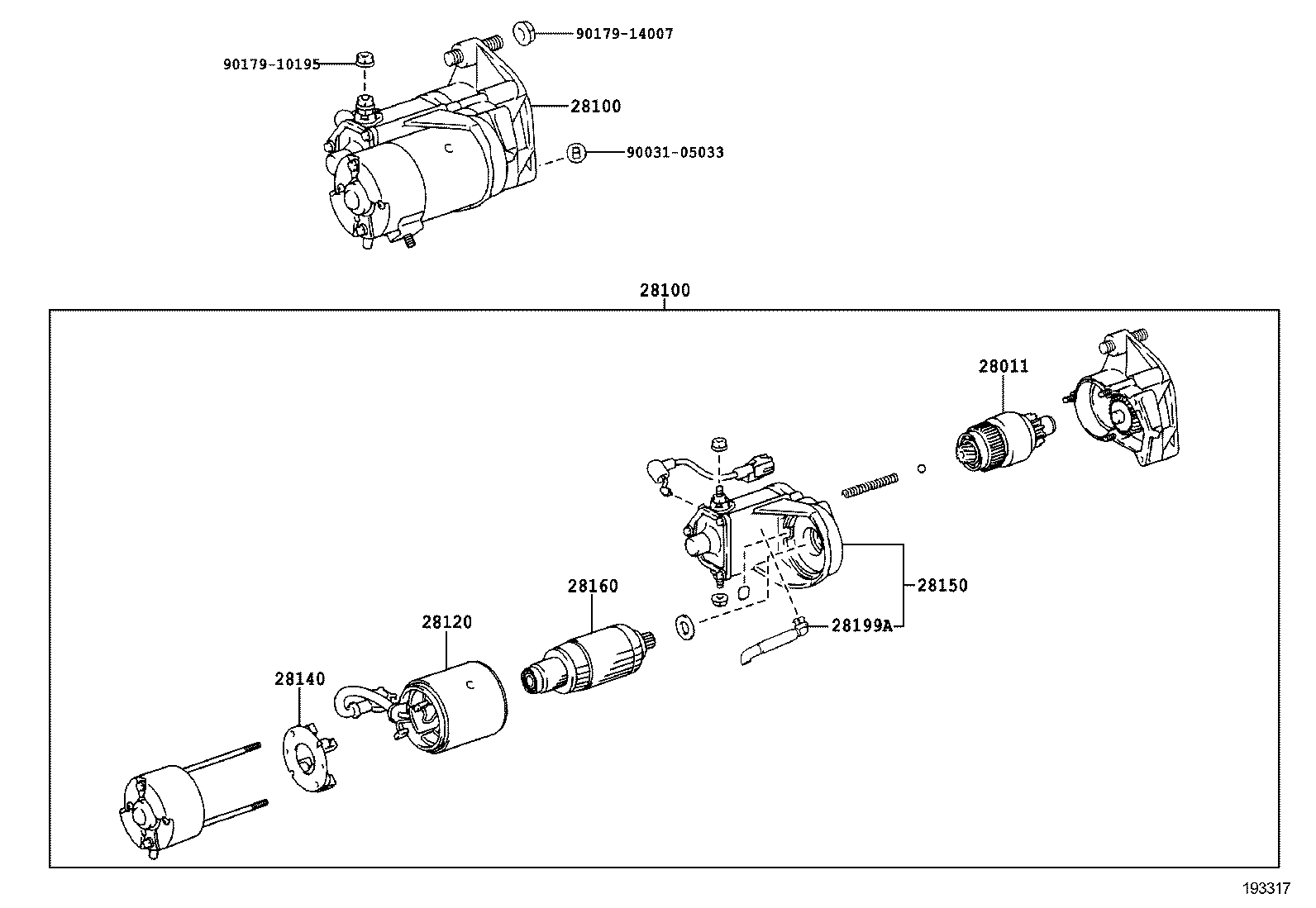

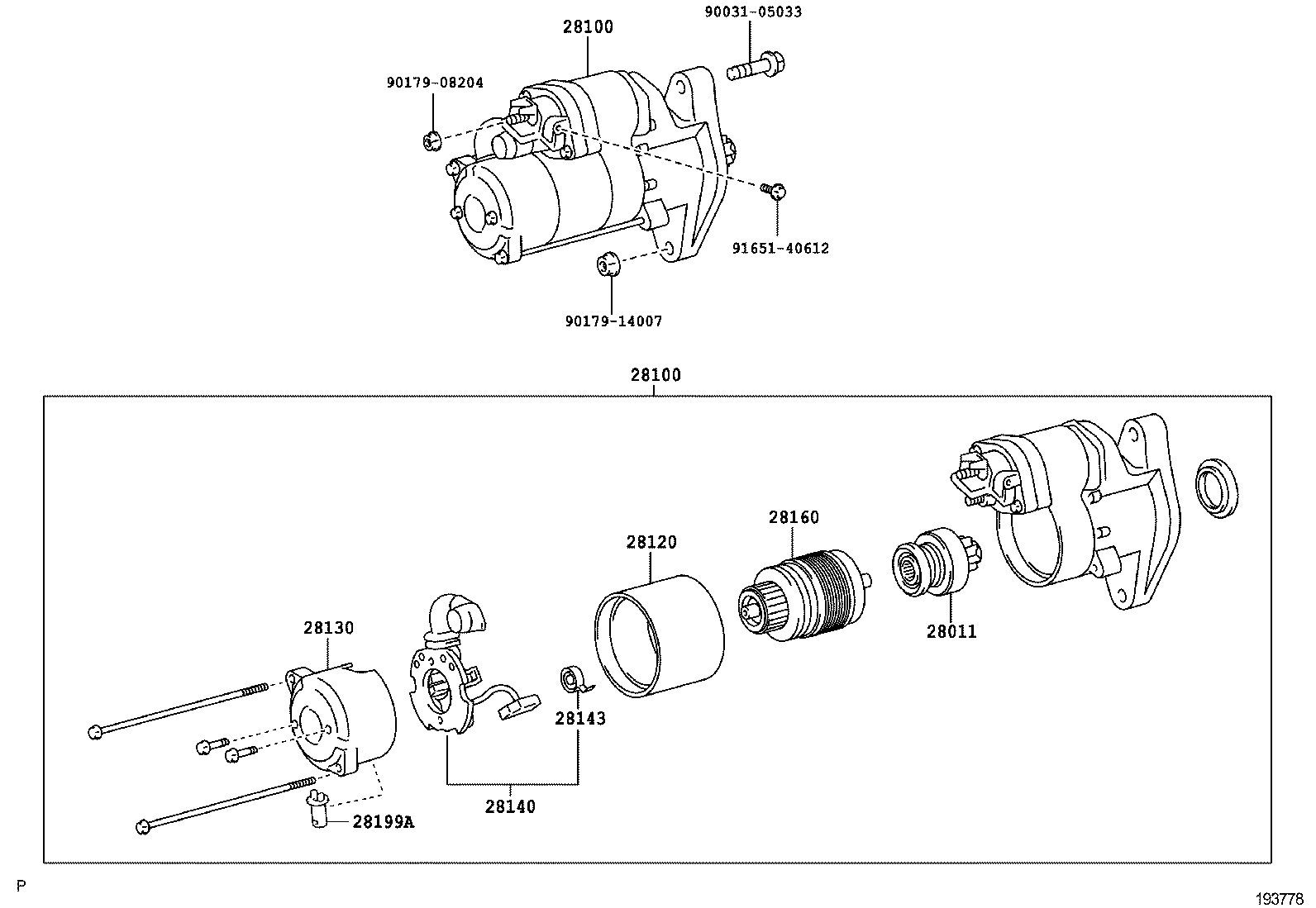

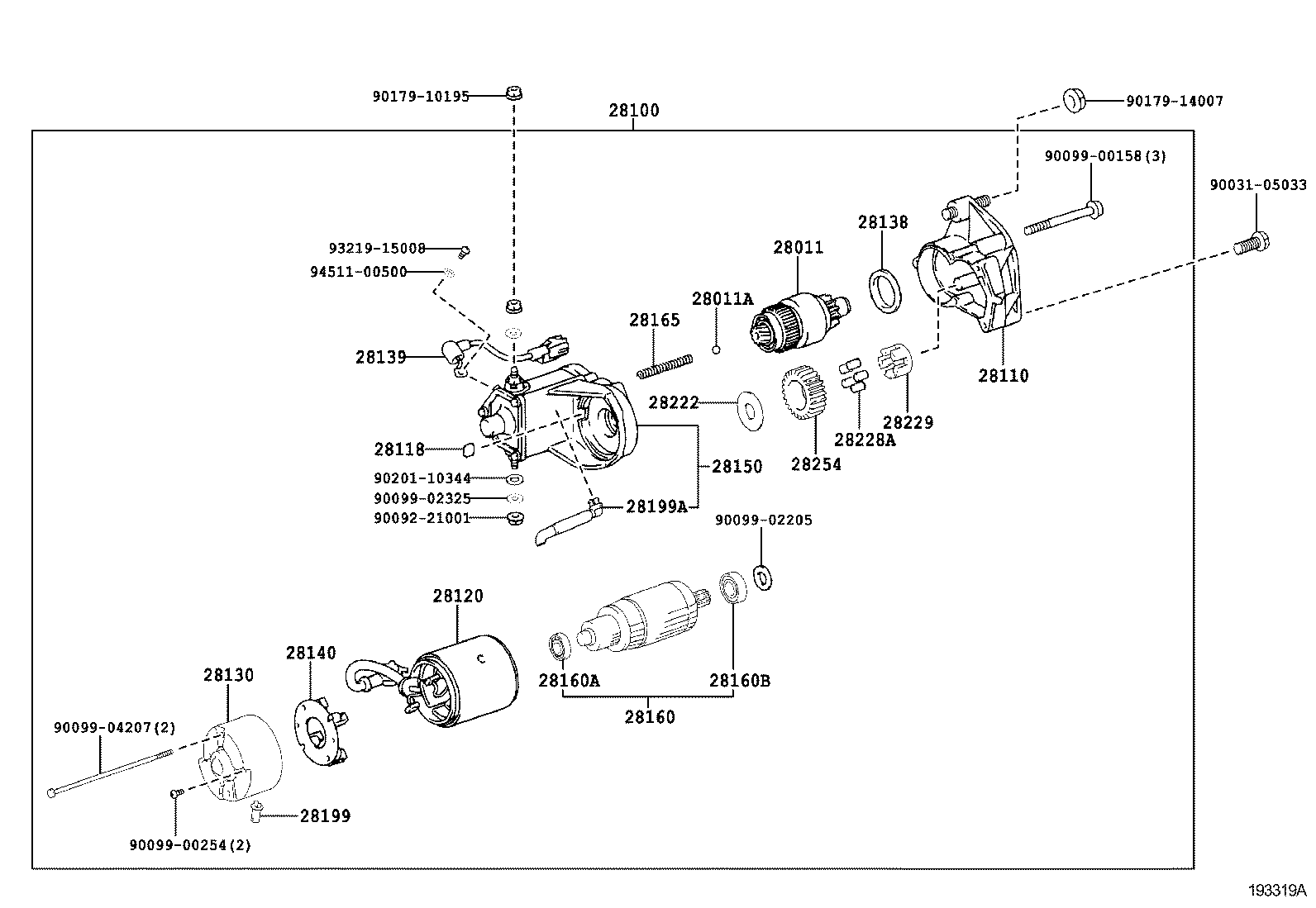

Figure 191531D 191531D 2001-10 → — Figure 191829F 191829F 2002-12 → — Figure 191956B 191956B 2004-11 → — Figure 192578D 192578D 2006-08 → 2011-04 Figure 193317 193317 2006-10 → 2009-07 Figure 193319A 193319A 2006-10 → — Figure 193778 193778 2011-04 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28011A Ball, Starter Clutch
28100 Starter Assy
28110 Housing Assy, Starter Drive
28118 Plate(FOR STARTER YOKE)
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28138 Rubber(FOR STARTER BEARING COVER)
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28160B Bearing, Starter Armature, NO.2
28165 Spring, Starter Magnet Switch Return
28170 Cover Assy, Starter
28199 Cover, Starter
28199A Protector, Dust Starter
28222 Washer, Starter Idle Gear Clutch
28228A Roller, Starter Clutch
28229 Retainer, Starter Idle Gear
28254 Pinion, Starter Idle Gear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
