Toyota Dyna
2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe
Discontinued model
Data version 2013-04

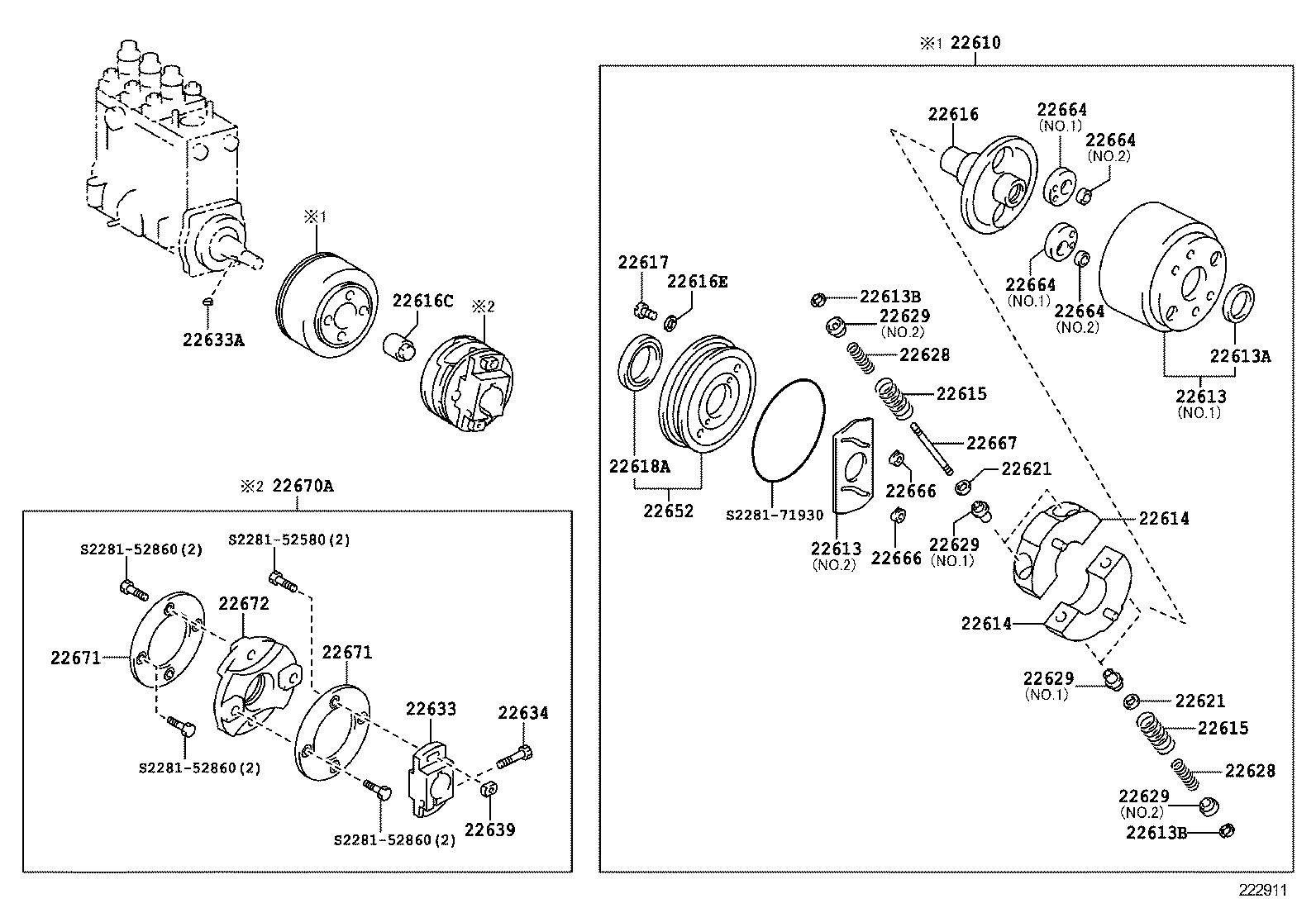

Automatic Timer
29 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 21332A | Washer(FOR AUTOMATIC TIMER) |
| 22610 | Timer Assy, Automatic |
| 22612E | Washer, Special |
| 22613 | Flange, Timer Driving |
| 22613A | Seal, Oil(FOR TIMER DRIVING FLANGE) |
| 22613B | Retainer, Timer Spring Seat |
| 22614 | Weight, Timer |
| 22615 | Spring, Timer |
| 22616 | Hub, Timer |
| 22616C | Nut, Timer Cover |
| 22616E | Washer, Plate(FOR TIMER HUB) |
| 22617 | Screw, Timer Hub |
| 22618A | Seal, Oil |
| 22621 | Washer, Timer Spring Adjust |
| 22626A | Ring, Clamp(FOR DRIVE GEAR) |
| 22628 | Spring, Timer Sub |
| 22629 | Seat, Spring(FOR TIMER SPRING) |
| 22633 | Flange, Coupling |
| 22633A | Key, Woodruff(FOR COUPLING FLANGE) |
| 22634 | Bolt, Coupling Flange Set |
| 22637 | Washer, Coupling Set Bolt |
| 22639 | Nut, Coupling Flange Set Bolt Lock |
| 22652 | Cover Sub-assy, Timer |
| 22664 | Cam, Timer |
| 22666 | Roller, Timer |
| 22667 | Sleeve |
| 22670A | Coupling Assy, Injection Pump |
| 22671 | Plate, Coupling |
| 22672 | Coupling, Cross |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
