Toyota Dyna
2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe
Discontinued model
Data version 2013-04

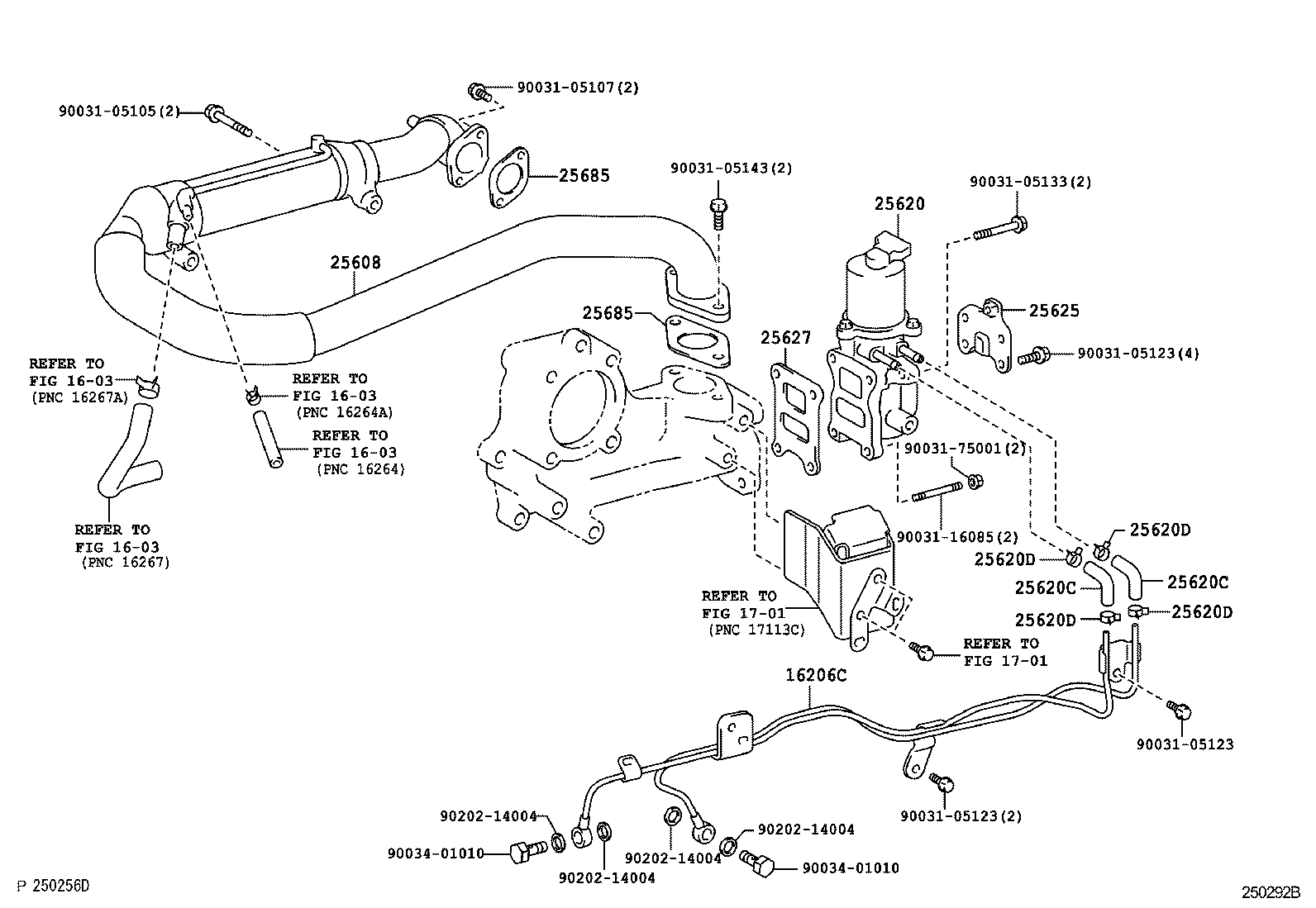

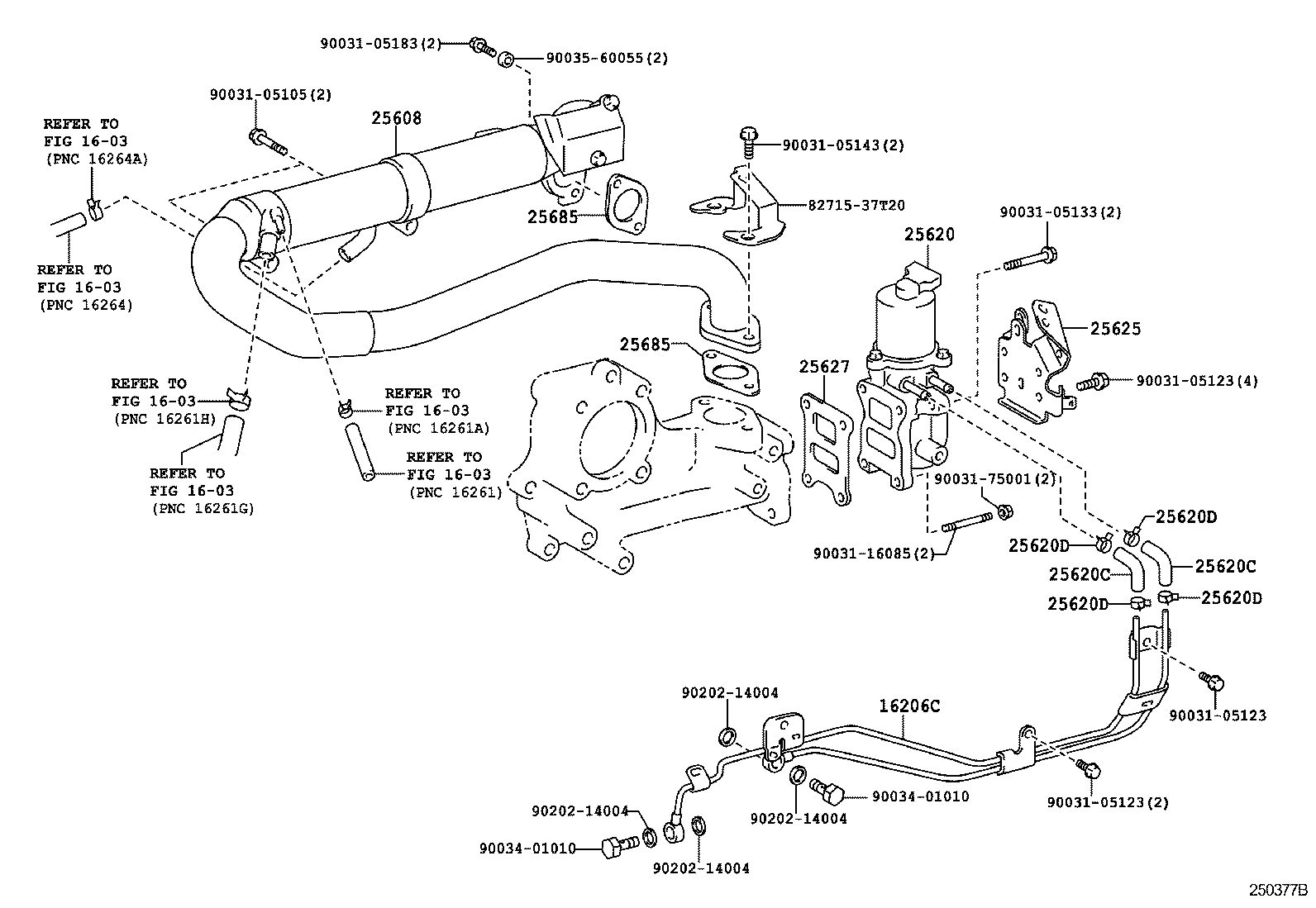

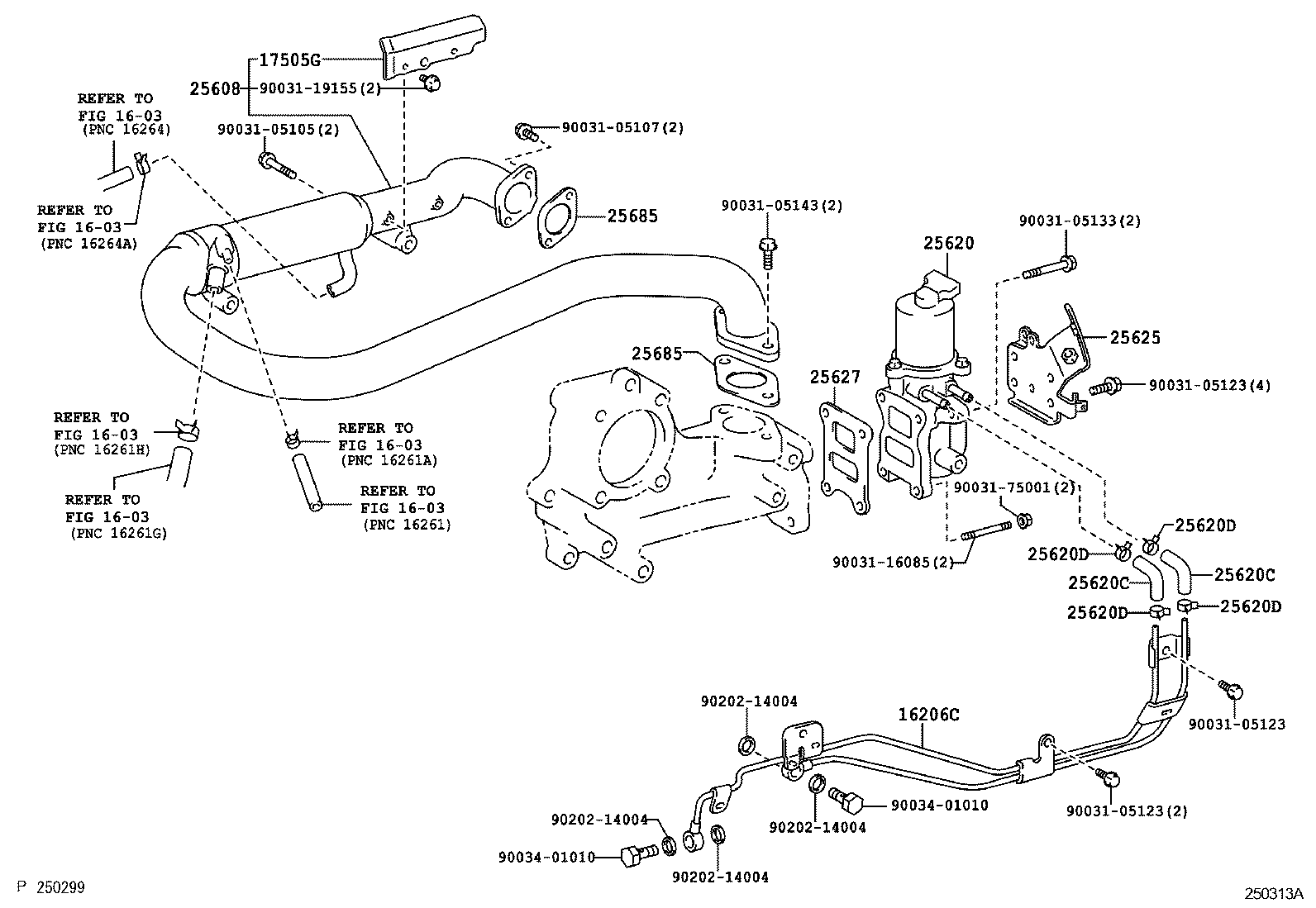

Exhaust Gas Recirculation System
12 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 16206C | Pipe Sub-assy, Water By-pass |
| 17505G | Insulator Sub-assy, Exhaust Pipe Heat NO.1 |
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601J | Gasket(FOR EGR PIPE, NO.1) |
| 25608 | Cooler Sub-assy, Egr |
| 25620 | Valve Assy, Egr |
| 25620C | Hose, Water By-pass, NO.1 |
| 25620D | Clip(FOR WATER BY-PASS HOSE, NO.1) |
| 25625 | Bracket, Egr Valve |
| 25627 | Gasket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25685 | Gasket, Egr Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
