Toyota Dyna
2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe
Discontinued model
Data version 2013-04

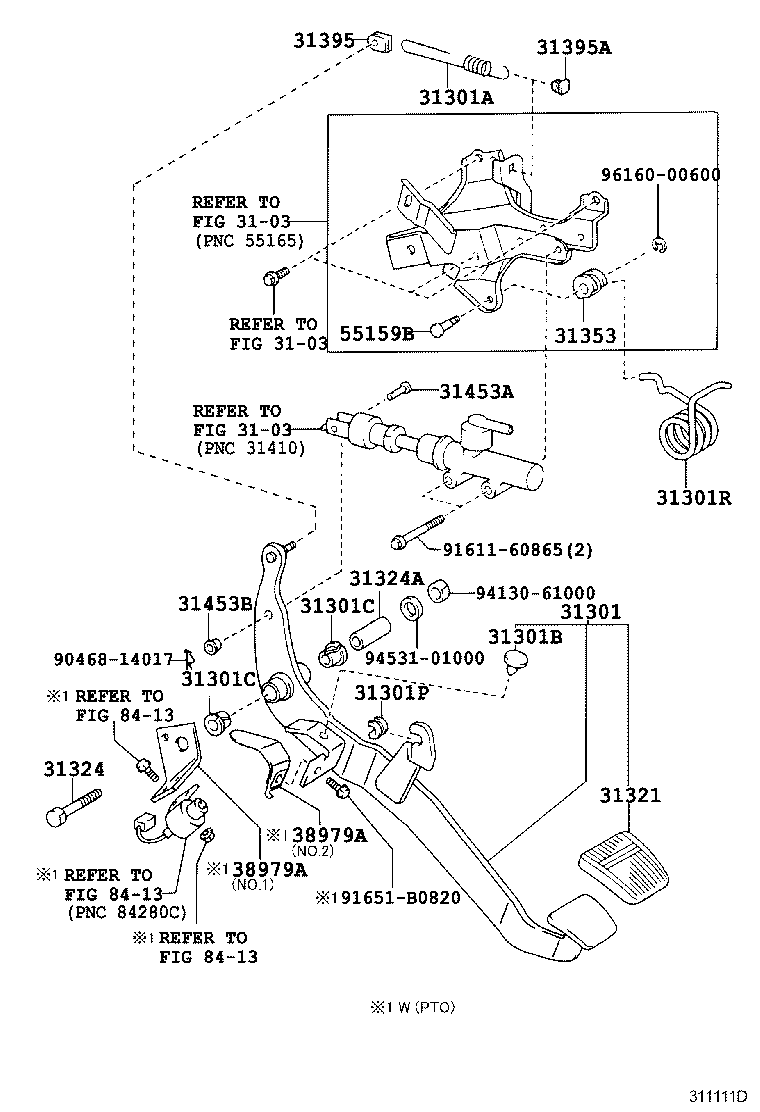

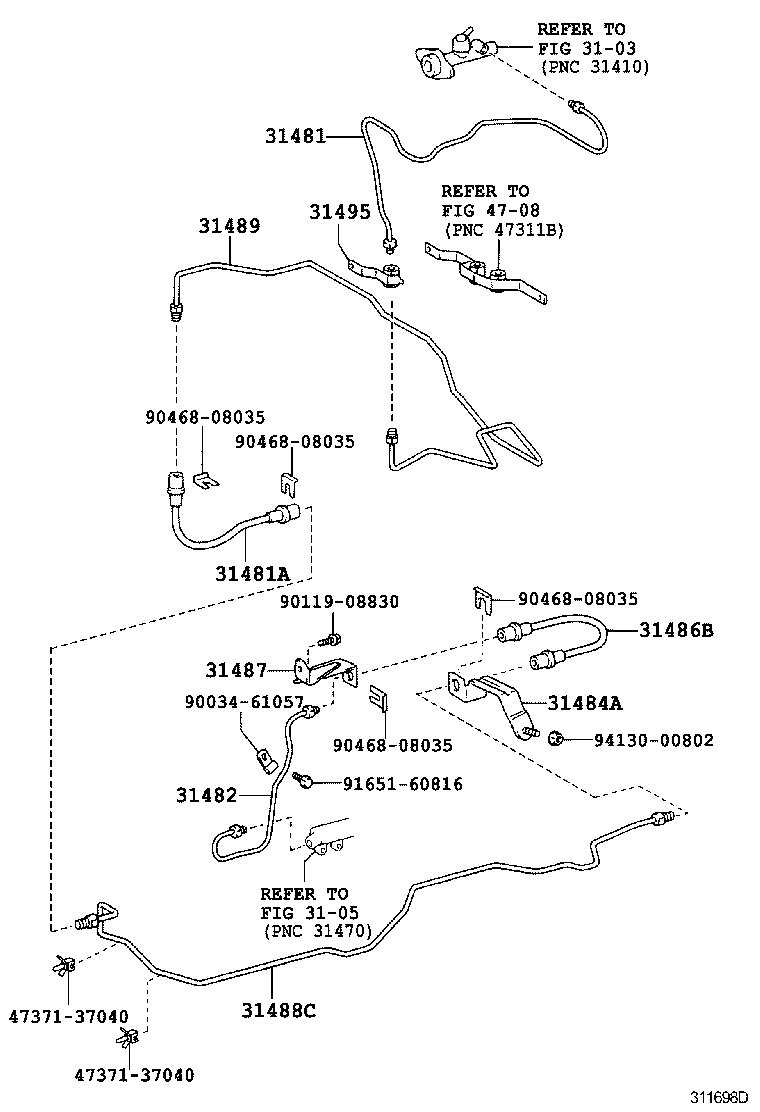

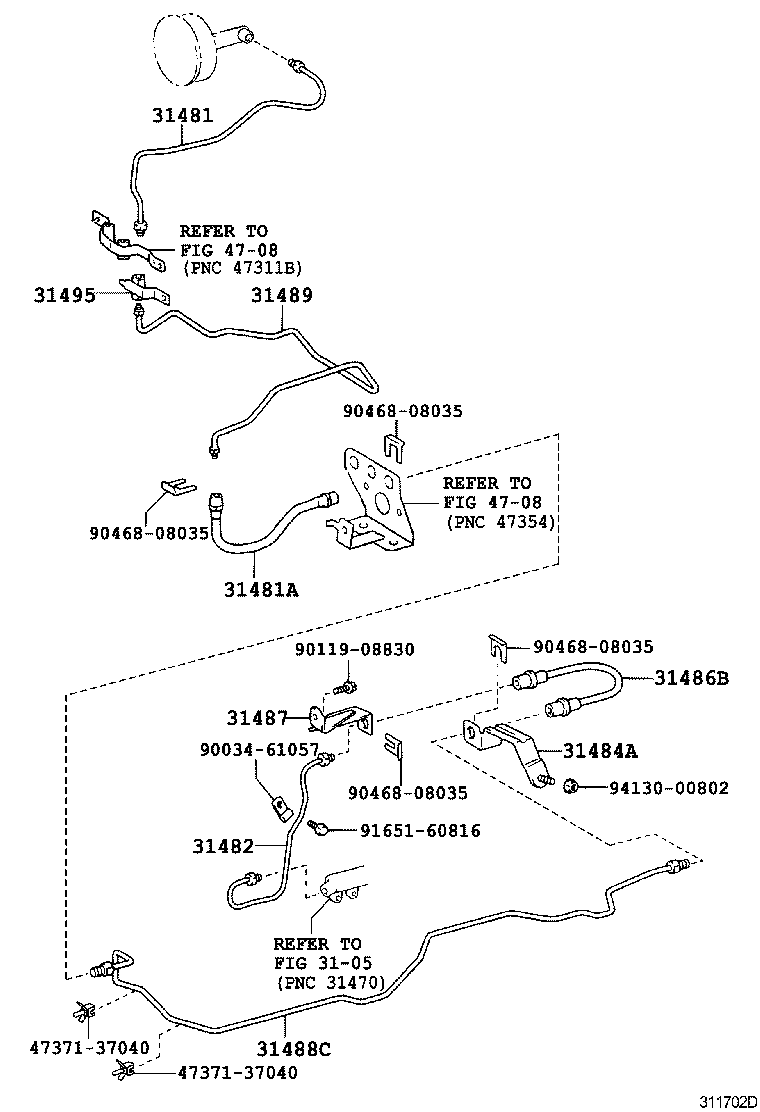

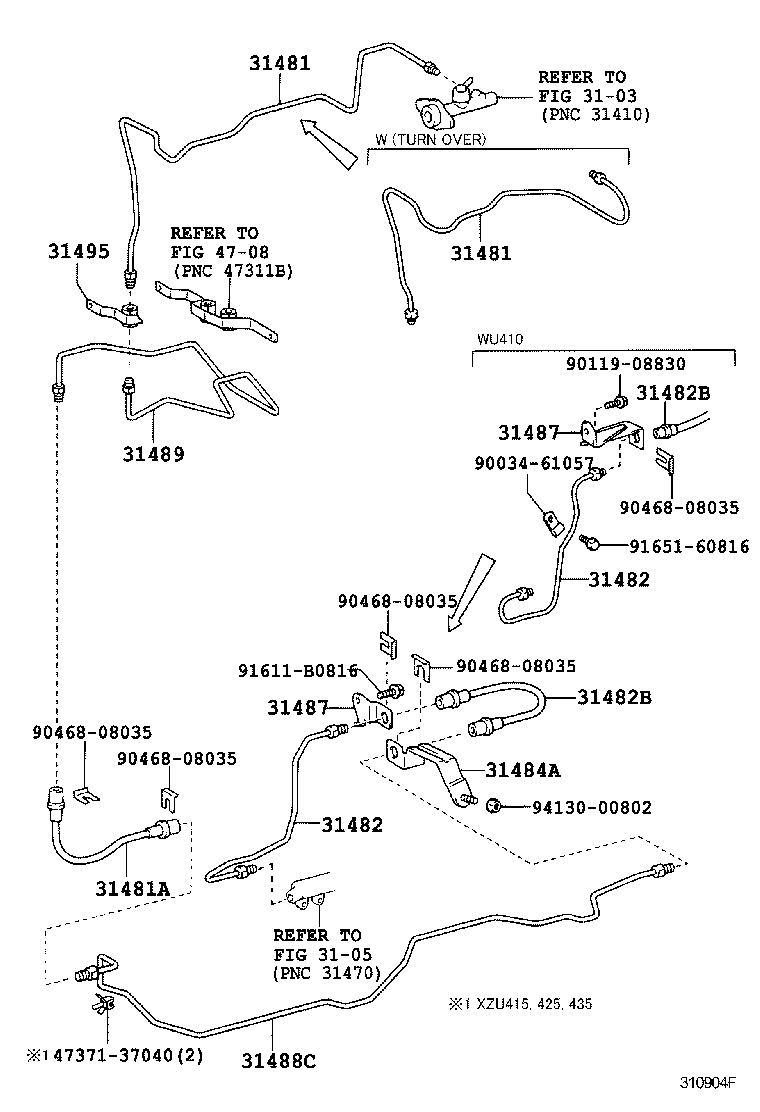

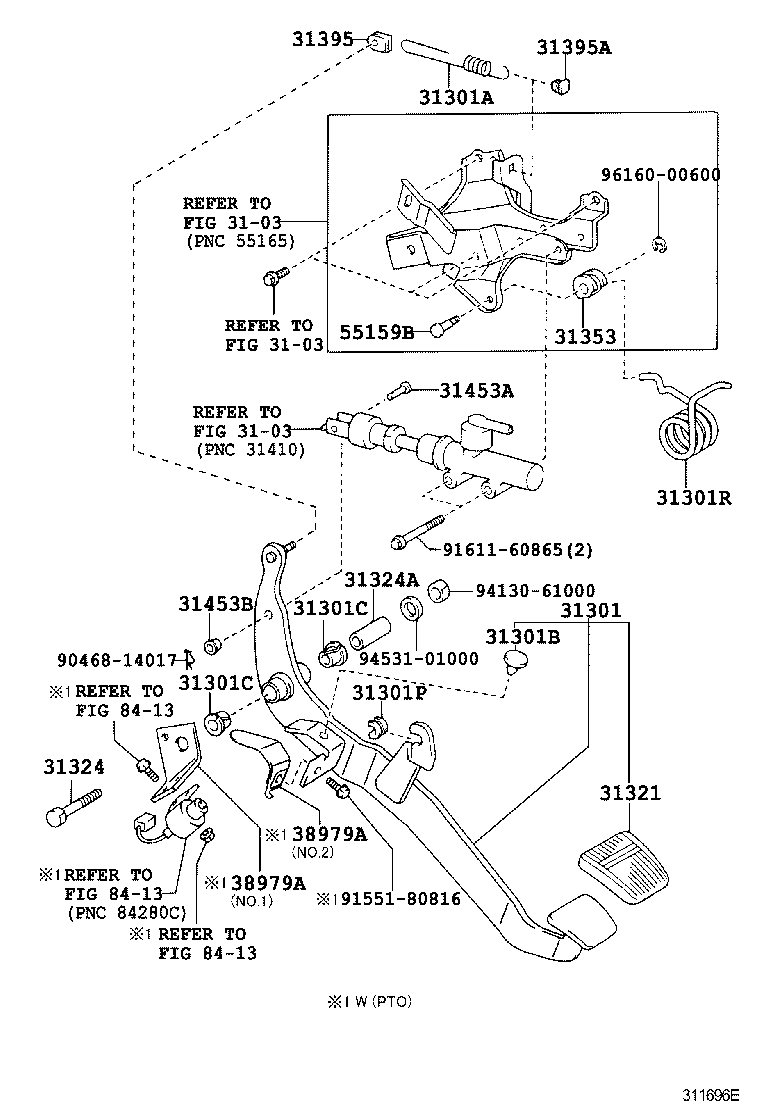

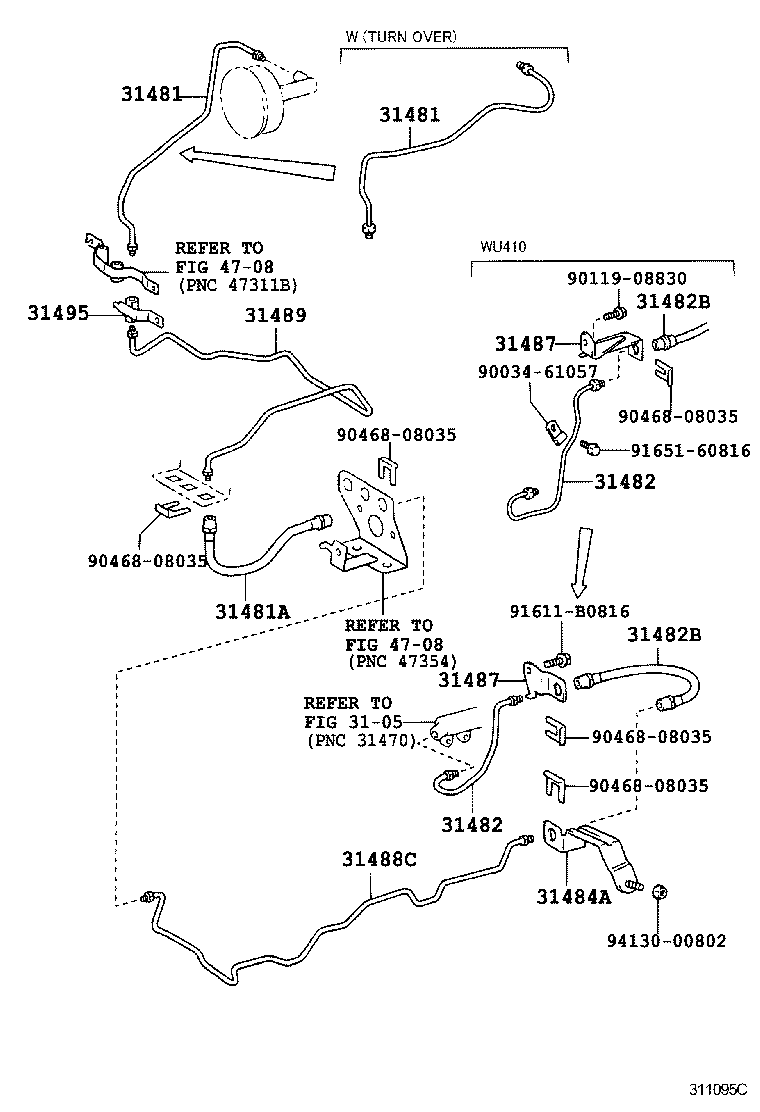

Clutch Pedal & Flexible Hose
28 part groups · 17 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301P | Bush(FOR CLUTCH PEDAL TURNOVER) |
| 31301R | Spring, Compression(FOR TURNOVER SPRING SEAT) |
| 31321 | Pad, Clutch Pedal |
| 31323 | Bracket, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31353 | Holder, Clutch Pedal Spring |
| 31395 | Hook, Pedal Spring |
| 31395A | Hook, Pedal Spring, NO.1 |
| 31406 | Bracket Sub-assy, Flexible Hose |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31481A | Hose, Clutch, NO.1 |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31482B | Hose, Clutch, NO.2 |
| 31484A | Bracket, Flexible Hose, NO.1(FOR CLUTCH) |
| 31486B | Hose, Master Cylinder TO Release Cylinder |
| 31487 | Plate, Release Tube Set |
| 31488C | Tube, Flexible Hose TO Flexible Hose |
| 31489 | Tube, Tube Connector TO Flexible Hose |
| 31495 | Way, Clutch Tube |
| 38979A | Bracket, Power Take-off Clutch Switch |
| 55159B | Pin, Clutch Pedal Turnover Spring |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
