Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 8 illustrations

Illustrations

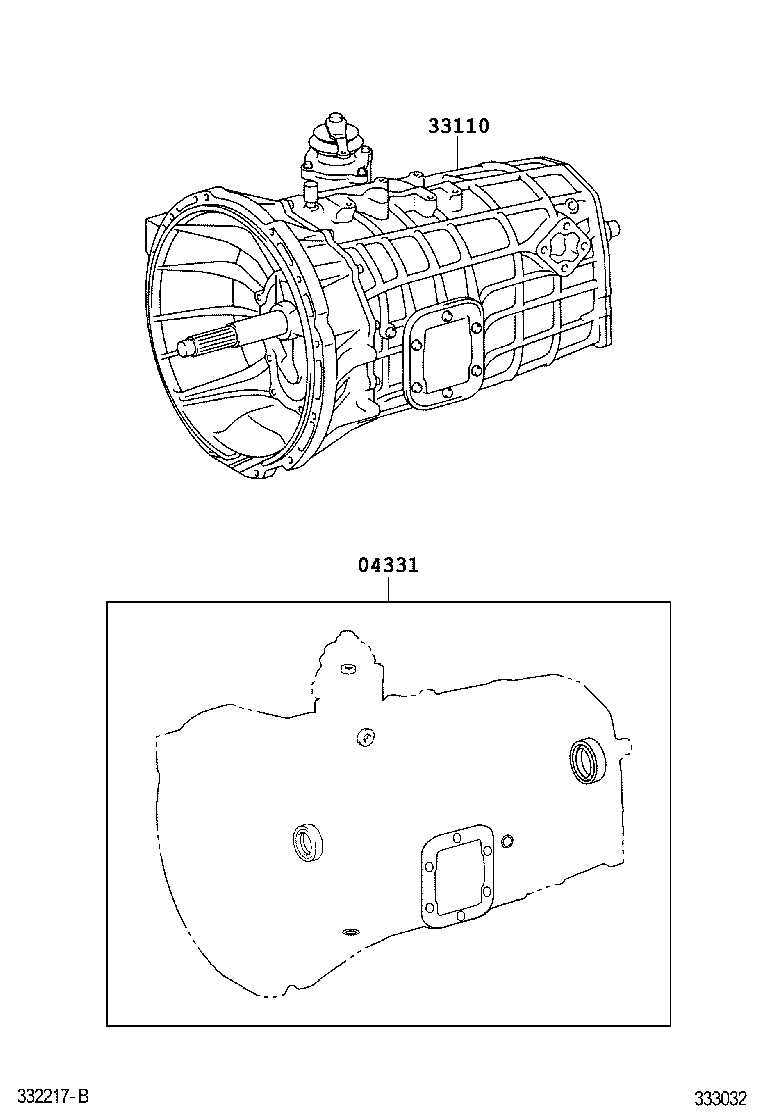

Figure 331067B 331067B 2001-10 → 2006-10 Figure 331067B 331067B 2002-12 → — Figure 331897 331897 2002-12 → 2006-10 Figure 331897 331897 2003-04 → — Figure 332977A 332977A 2006-08 → — Figure 333031 333031 2006-10 → — Figure 333032 333032 2006-10 → — Figure 333086 333086 2006-10 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
