Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Case & Gear

52 part groups · 16 illustrations

Illustrations

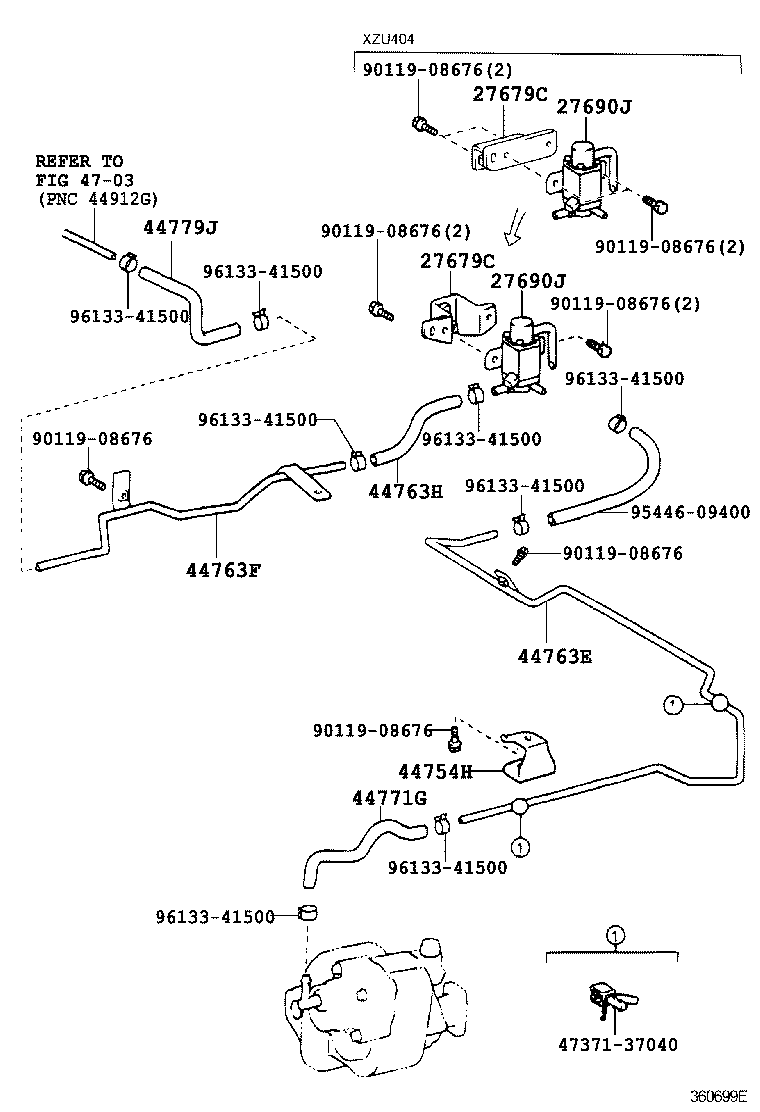

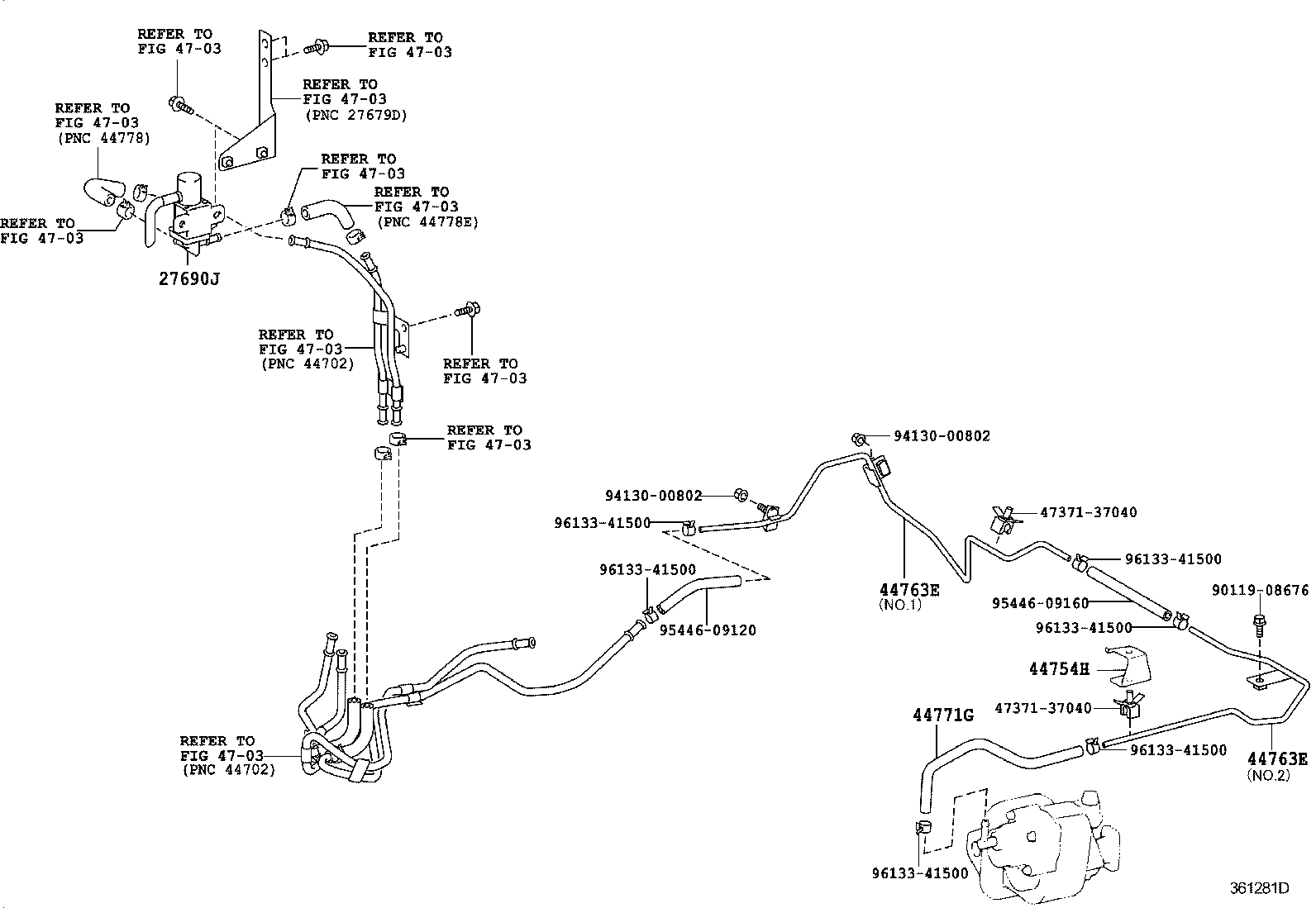

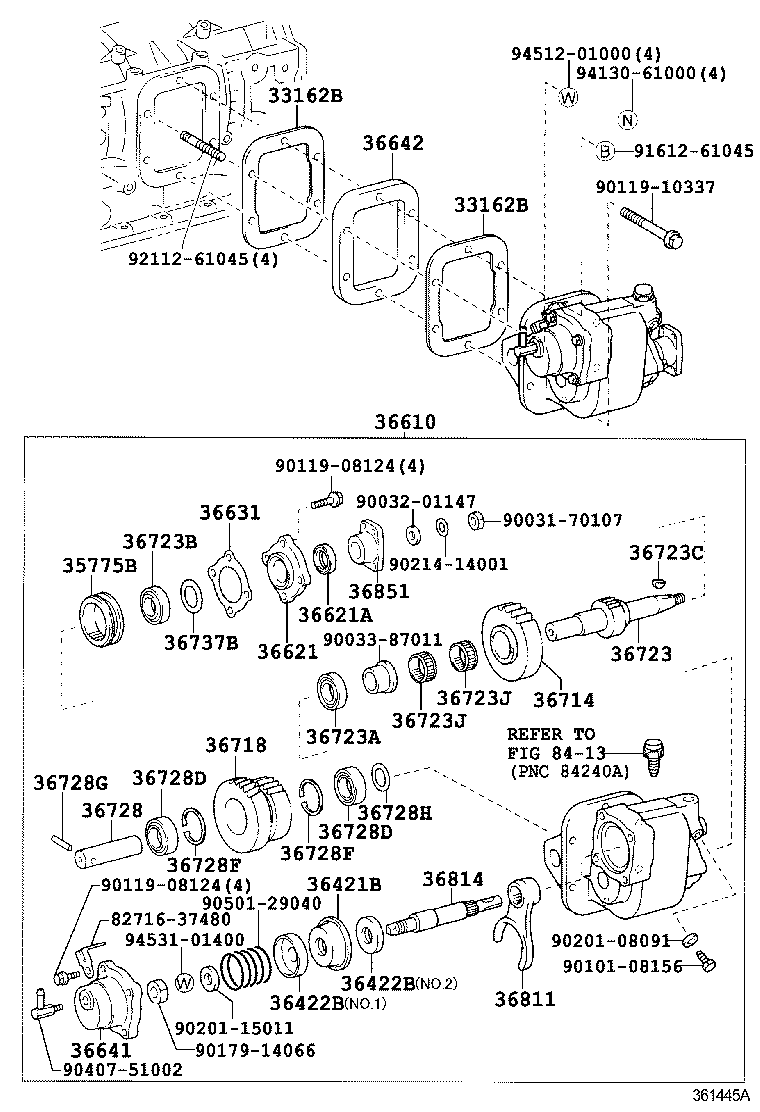

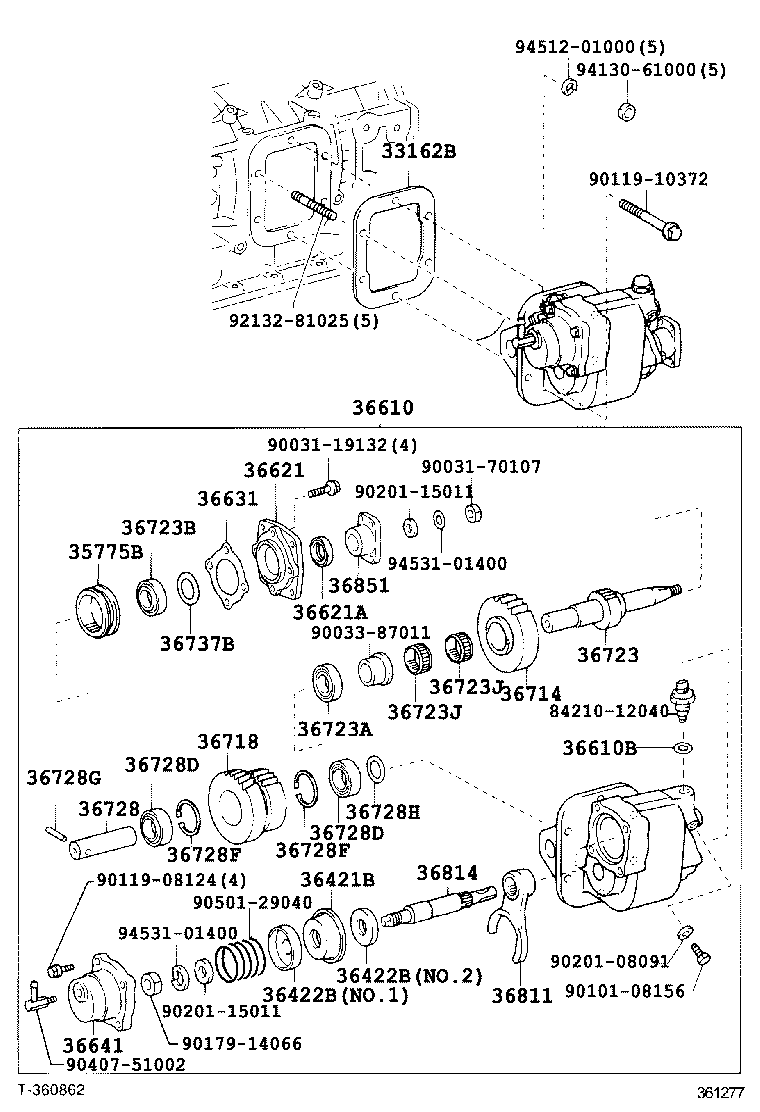

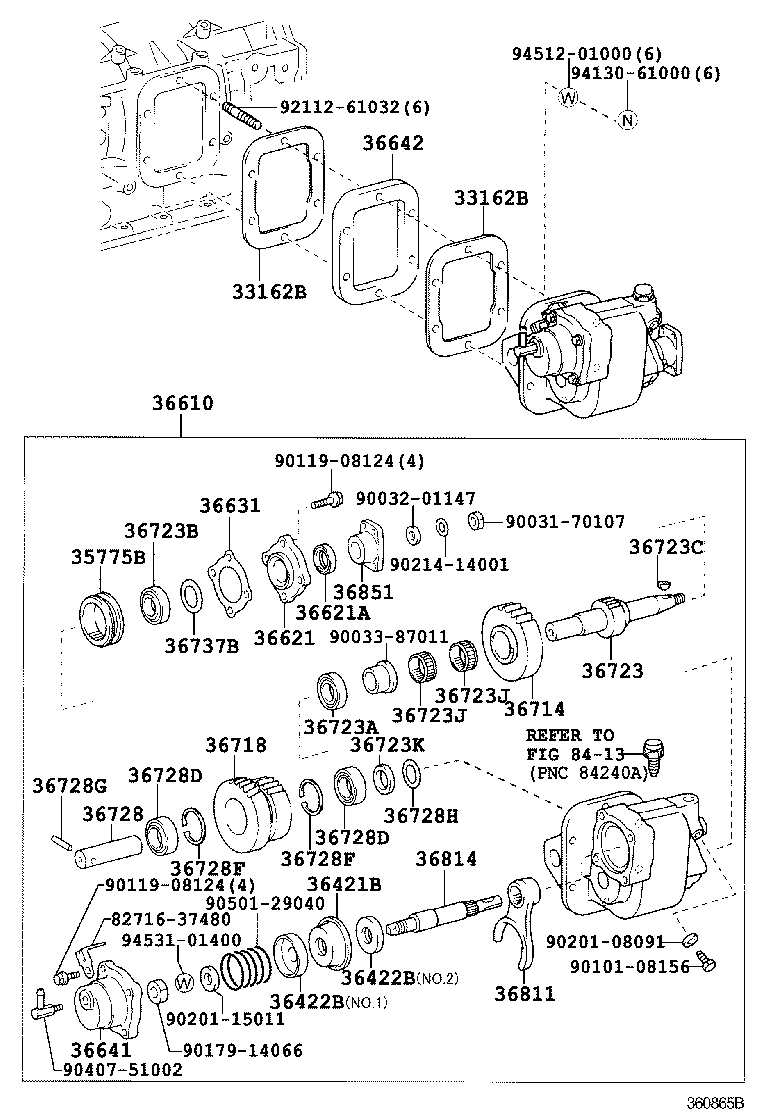

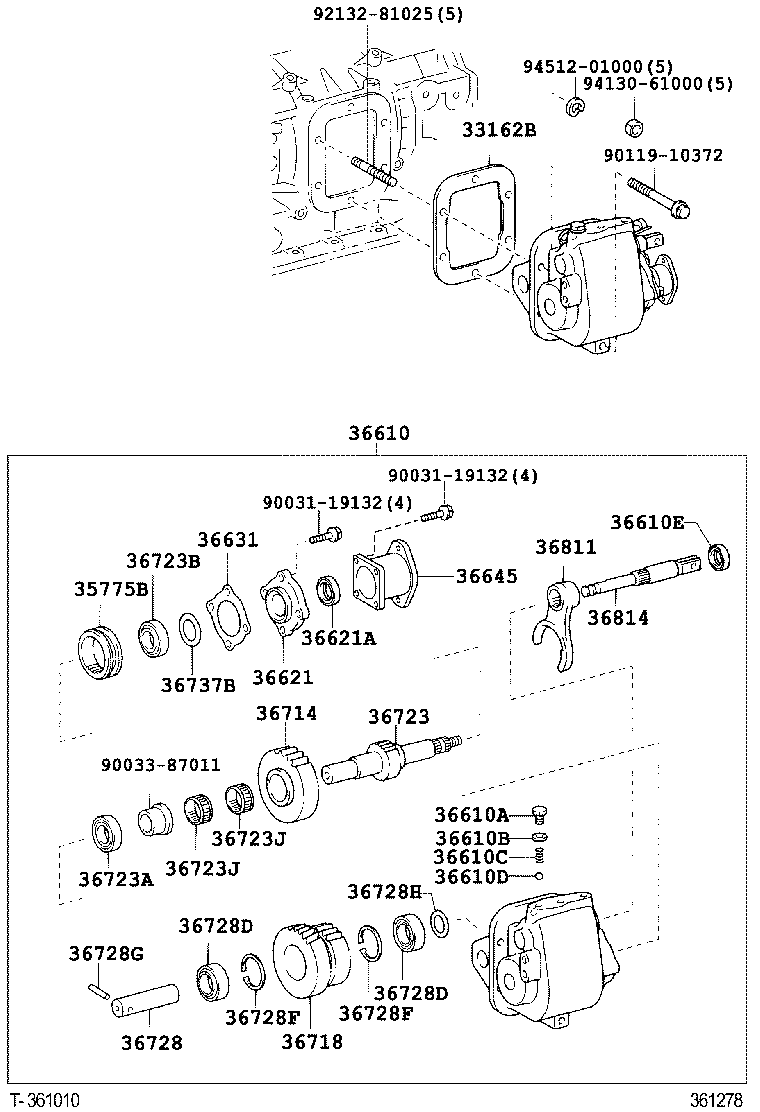

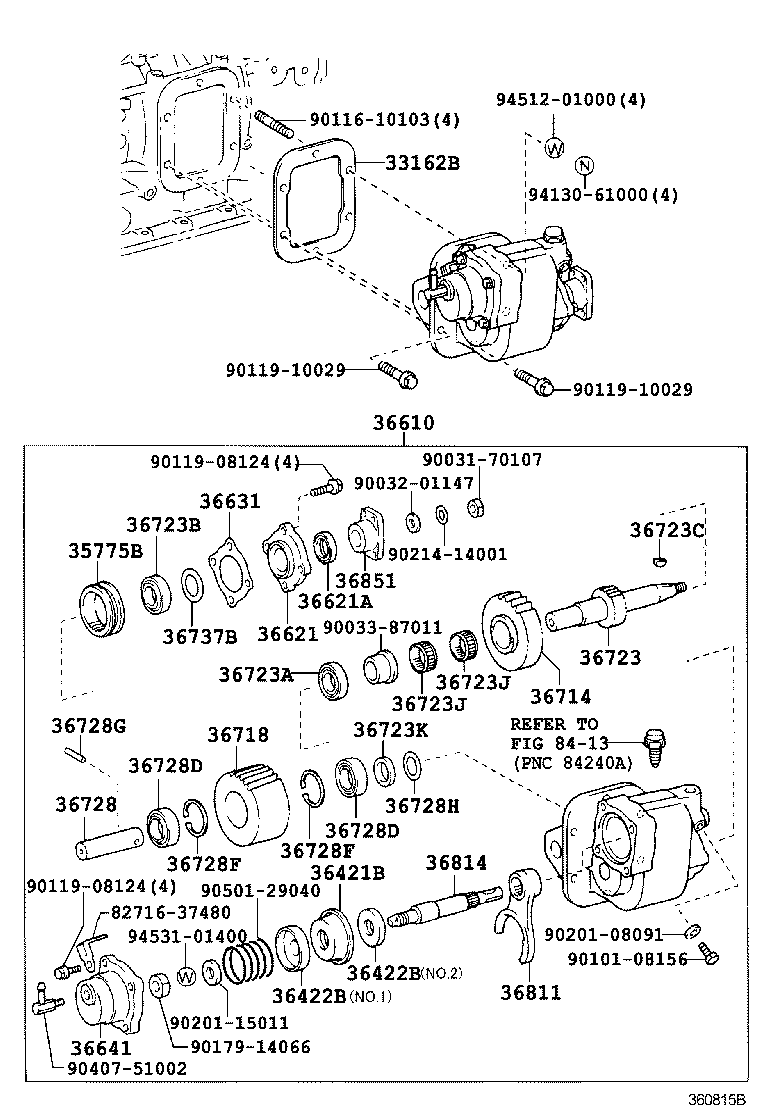

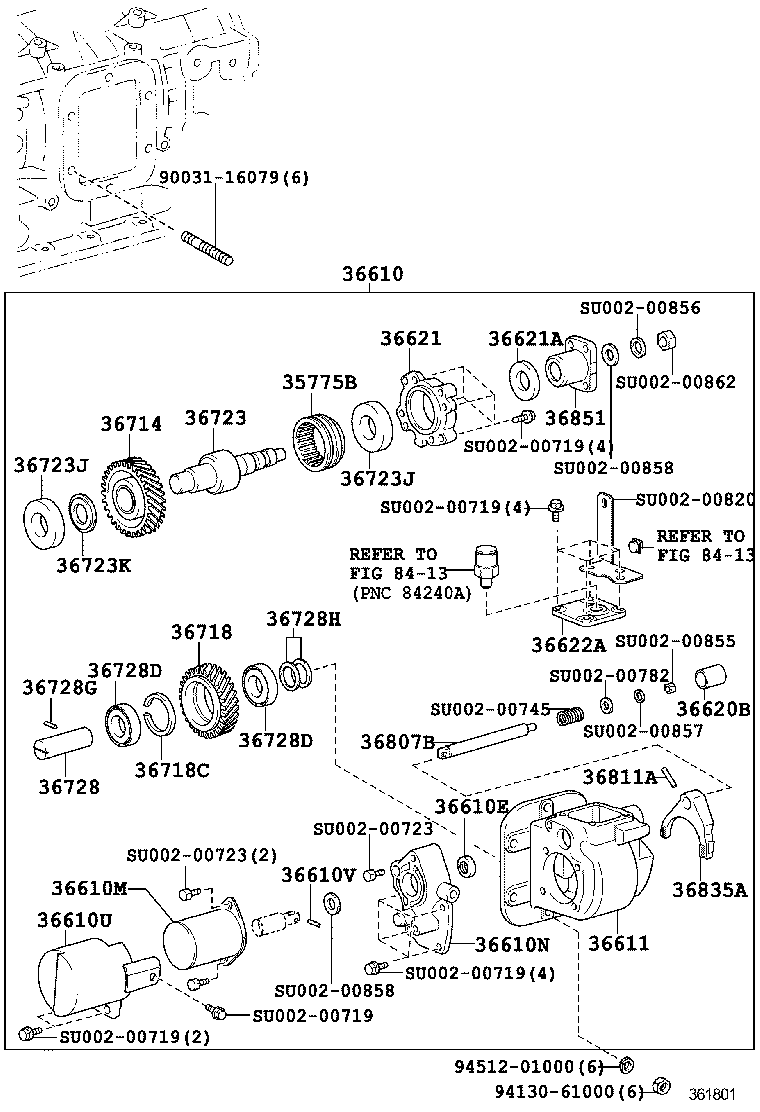

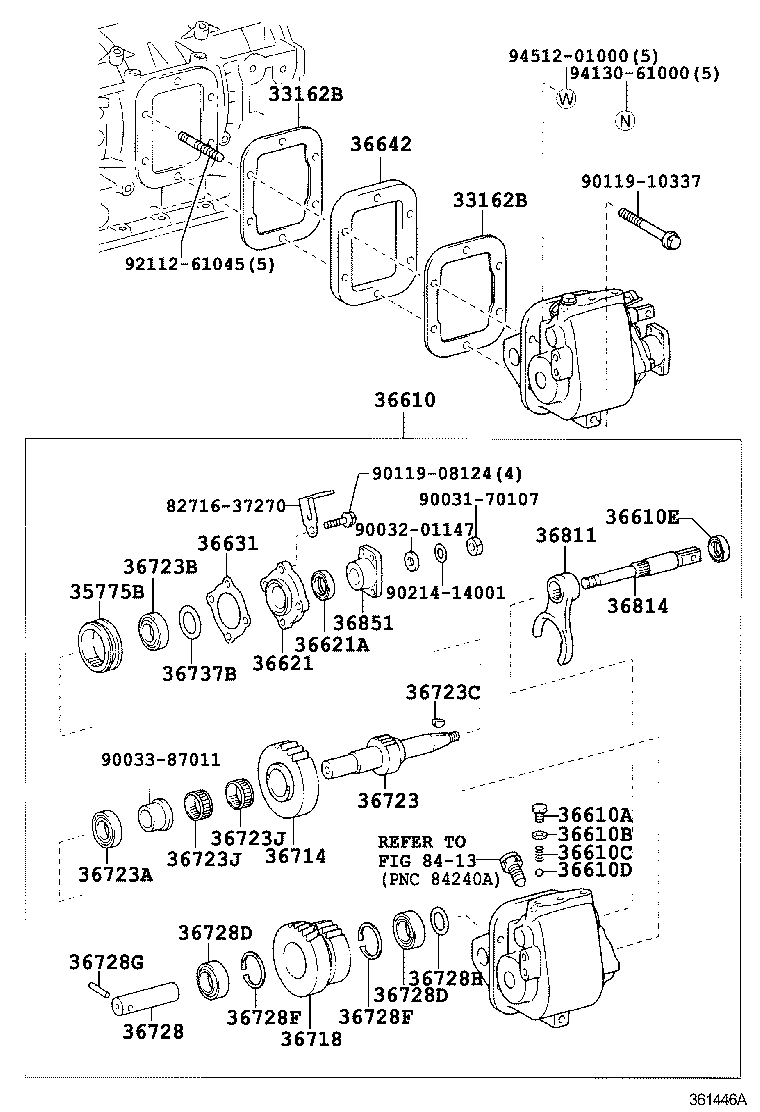

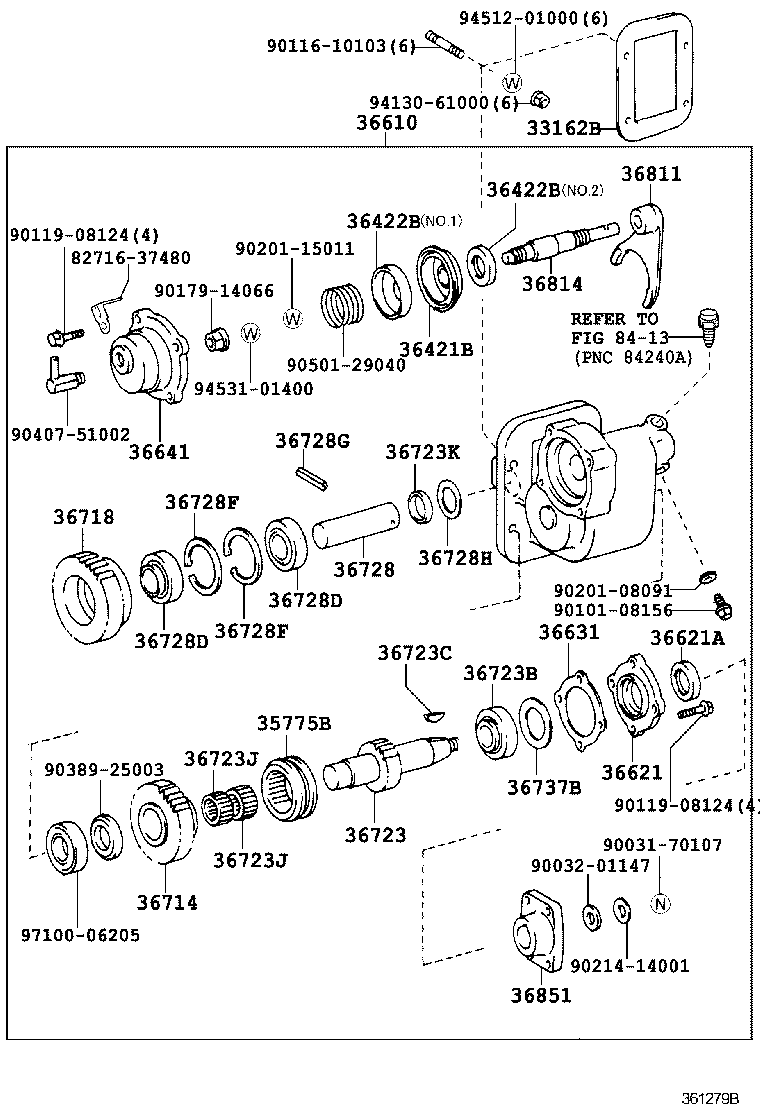

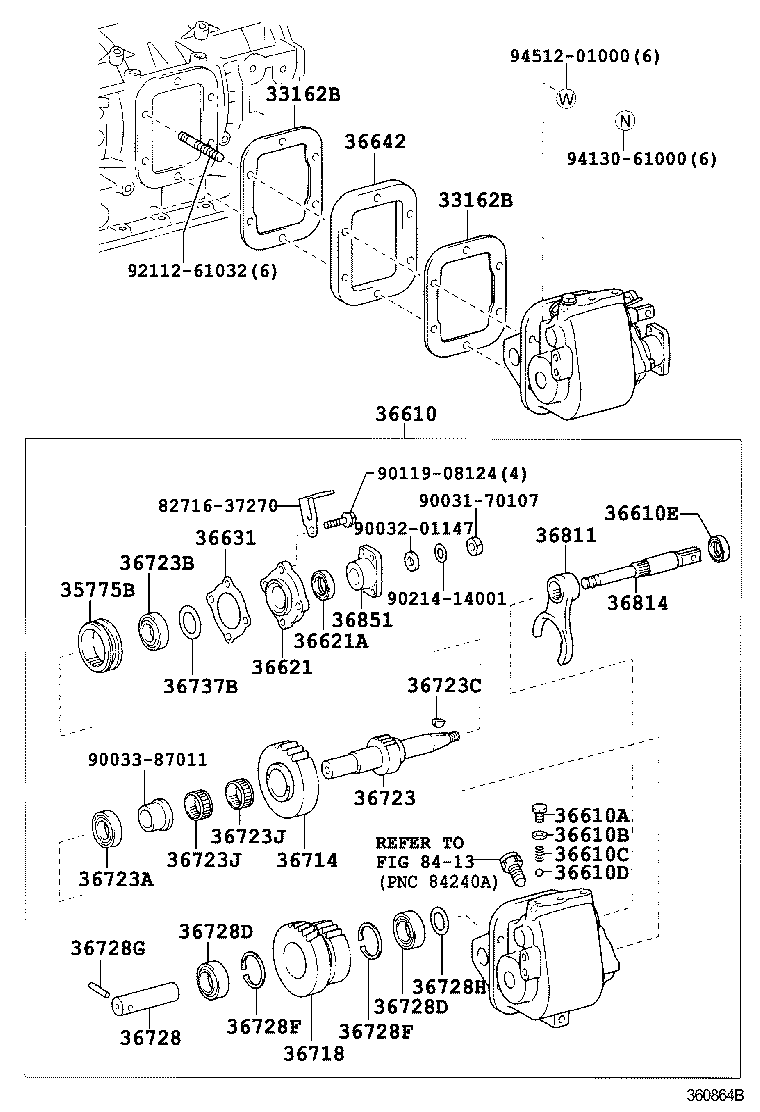

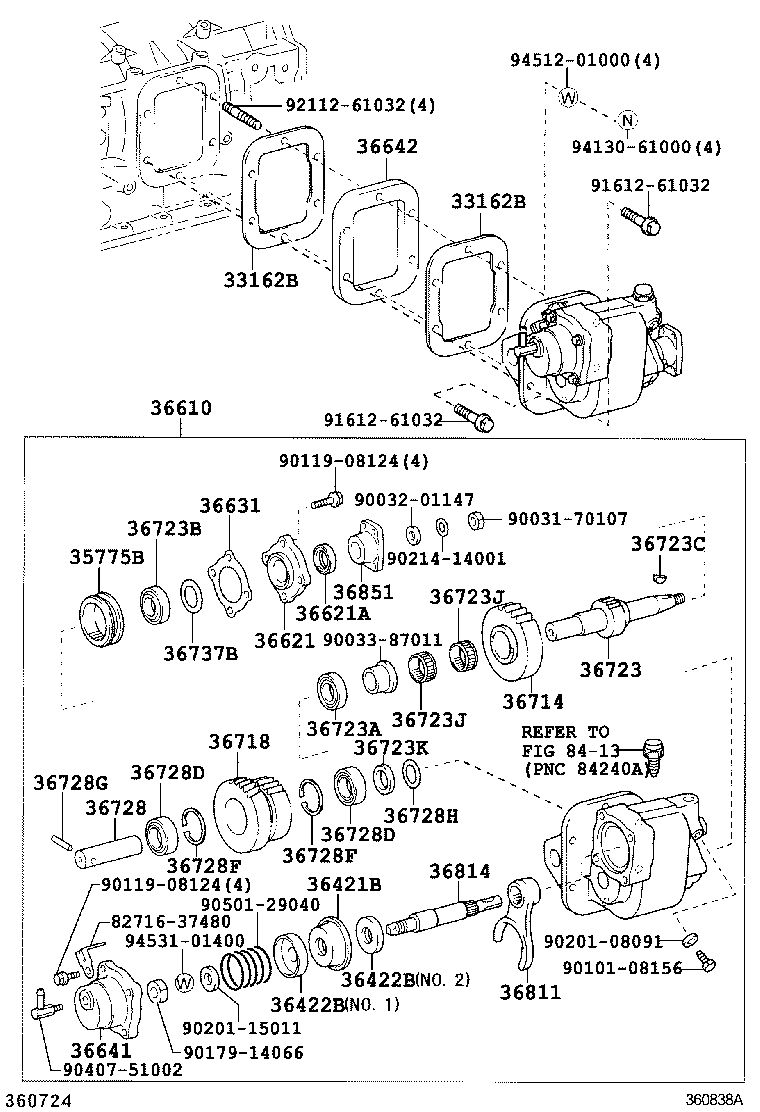

Figure 360814B 360814B 2002-12 → 2006-10 Figure 360814B 360814B 2003-04 → — Figure 360815B 360815B 2002-12 → 2007-01 Figure 361445A 361445A 2001-10 → 2006-10 Figure 360838A 360838A 2003-04 → — Figure 360865B 360865B 2004-01 → — Figure 360699E 360699E 2001-10 → 2007-01 Figure 360699E 360699E 2002-12 → — Figure 361446A 361446A 2002-12 → 2006-10 Figure 360864B 360864B 2004-01 → — Figure 361279B 361279B 2006-10 → — Figure 361277 361277 2006-10 → — Figure 361280A 361280A 2006-10 → — Figure 361281D 361281D 2006-10 → — Figure 361278 361278 2006-10 → — Figure 361801 361801 2006-10 → —

Part groups

PNCDescription
27679C Bracket, Power Take-off Solenoid
27690J Solenoid Assy, Power Take-off
33162B Gasket, Power Take-off Cover
35775B Sleeve, Output Shaft
36421B Diaphragm (FOR POWER TAKE-OFF)
36422B Plate, Diaphragm (FOR POWER TAKE-OFF)
36610 Power Take-off Assy
36610A Bolt, Lock Ball (FOR POWER TAKE-OFF)
36610B Gasket, Seat (FOR POWER TAKE-OFF)
36610C Spring, Gear Shift Fork Lock Ball (FOR POWER TAKE-OFF)
36610D Ball, Gear Shift Fork Lock (FOR POWER TAKE-OFF)
36610E Seal, Oil (FOR POWER TAKE-OFF)
36610M Solenoid Assy, Power Take-off
36610N Adapter, Power Take-off Solenoid
36610U Cover, Power Take-off Dust
36610V Pin Assy, Spring (FOR POWER TAKE-OFF SOLENOID)
36611 Case, Power Take-off
36620B Plug(FOR POWER TAKE-OFF)
36621 Retainer, Power Take-off Bearing
36621A Seal, Oil (FOR POWER TAKE-OFF BEARING RETAINER)
36622A Cover, Power Take-off
36631 Gasket, Power Take-off Bearing Retainer
36641 Cap, Power Take-off Shift Shaft
36642 Spacer, Power Take-off Cover
36645 Spacer, Power Take-off Output Shaft
36714 Gear, Power Take-off Output
36718 Gear, Power Take-off Idler
36718C Ring, Hole Snap(FOR POWER TAKE-OFF IDLER GEAR)
36723 Shaft, Power Take-off Output, NO.1
36723A Bearing (FOR OUTPUT SHAFT FRONT)
36723B Bearing (FOR OUTPUT SHAFT REAR)
36723C Key, Woodruff (FOR POWER TAKE-OFF OUTPUT SHAFT)
36723J Bearing (FOR POWER TAKE-OFF OUTPUT SHAFT)
36723K Collar (FOR POWER TAKE-OFF OUTPUT SHAFT)
36728 Shaft, Power Take-off Idler
36728D Bearing (FOR POWER TAKE-OFF IDLER SHAFT)
36728F Ring, Shaft Snap (FOR POWER TAKE-OFF IDLER SHAFT)
36728G Pin (FOR POWER TAKE-OFF IDLER SHAFT)
36728H Shim (FOR POWER TAKE-OFF IDLER SHAFT)
36737B Shim (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
36807B Rod Sub-assy, Power Take-off Shift
36811 Fork, Powr Take-off Shift, NO.1
36811A Pin, Slotted Spring (FOR POWER TAKE-OFF SHIFT FORK)
36814 Shaft, Powr Take-off Fork, NO.1
36835A Arm, Power Take-off Shift
36851 Retainer, Power Take-off Joint
44754H Bracket, Vacuum Tube
44763E Tube, Hose TO Hose, NO.1
44763F Tube, Hose TO Hose, NO.2
44763H Hose, Vacuum Brake
44771G Hose, Vacuum Tube Connector, NO.1
44779J Hose, Connector Tube TO Solenoid
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
