Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

21 part groups · 11 illustrations

Illustrations

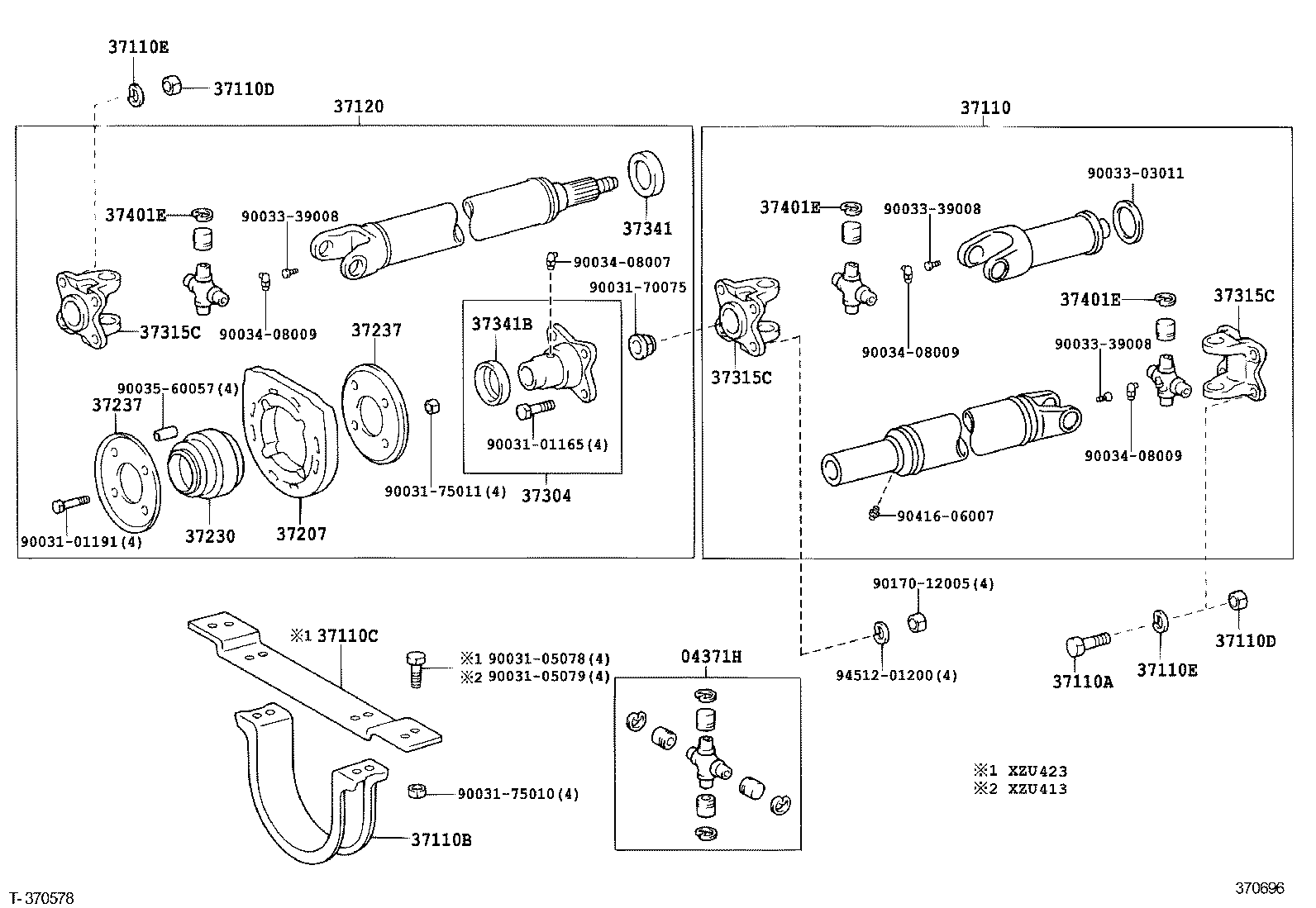

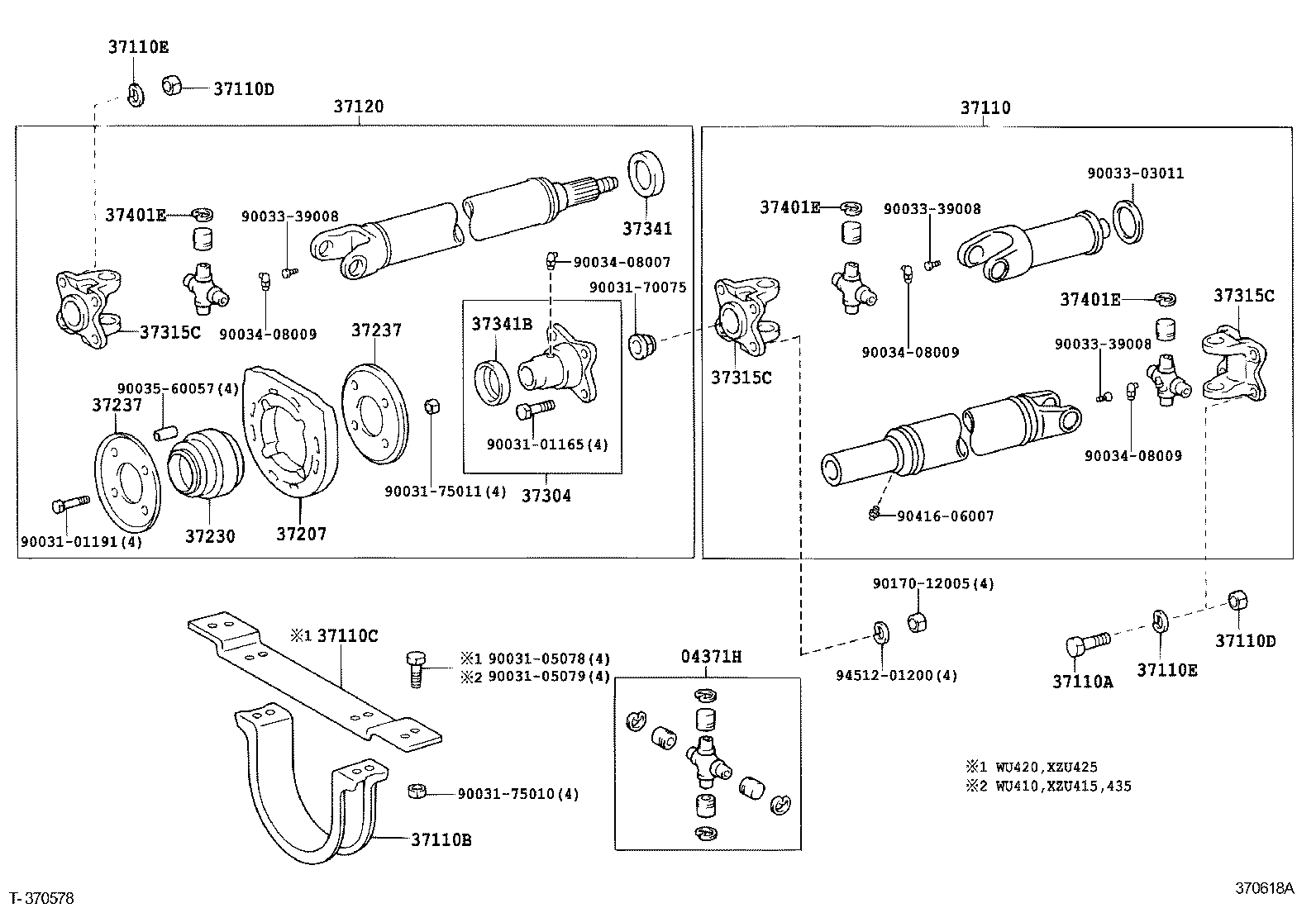

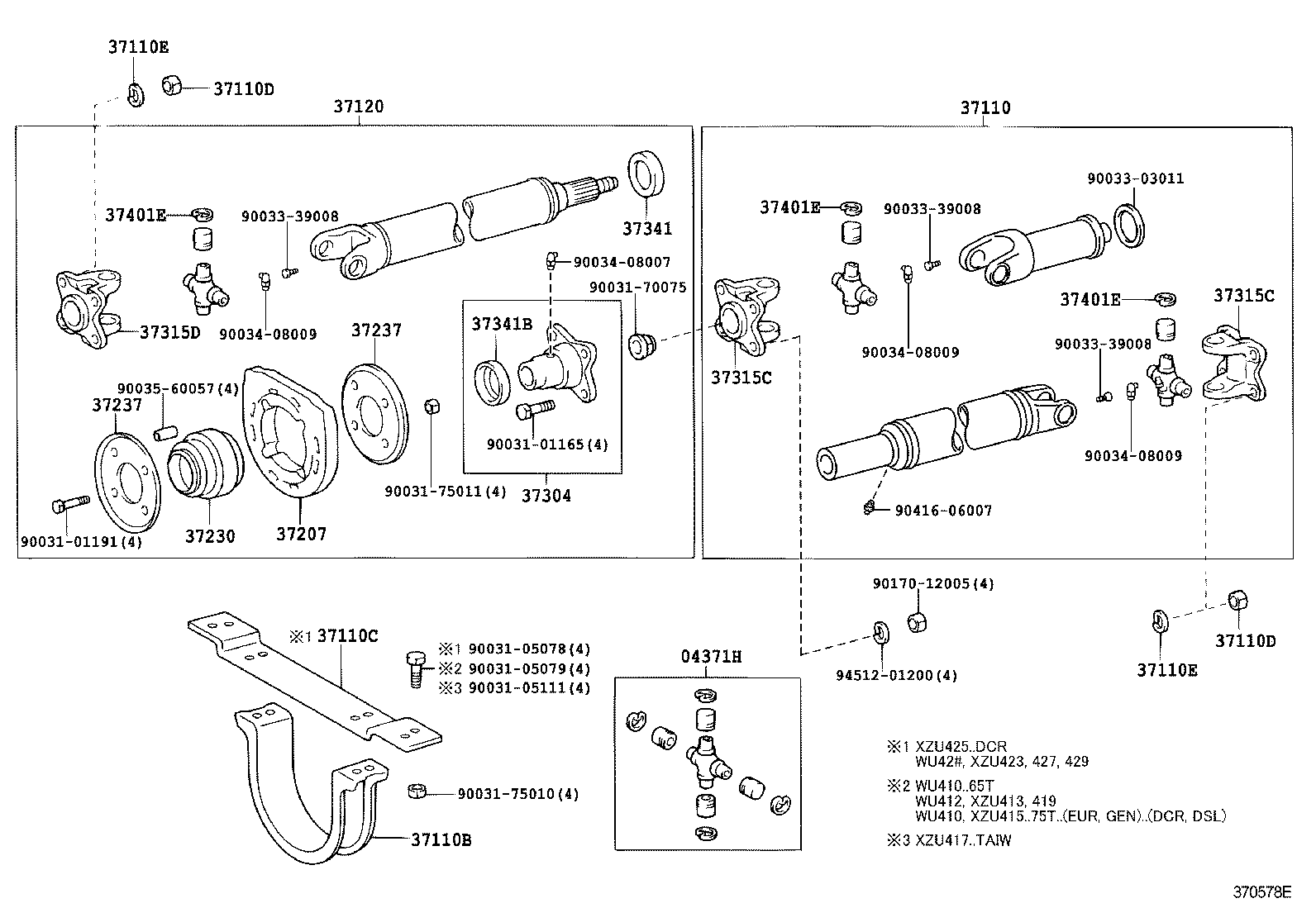

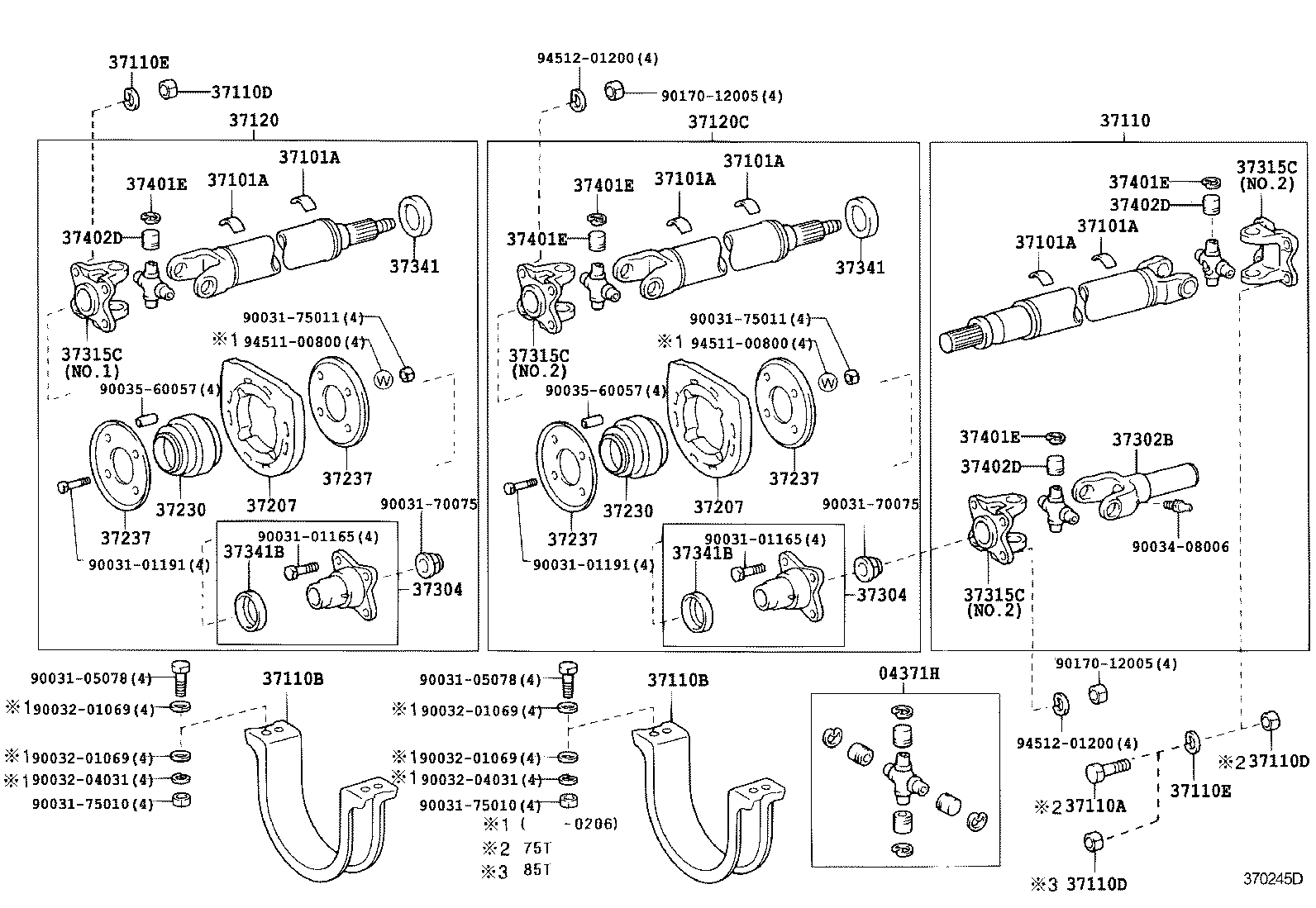

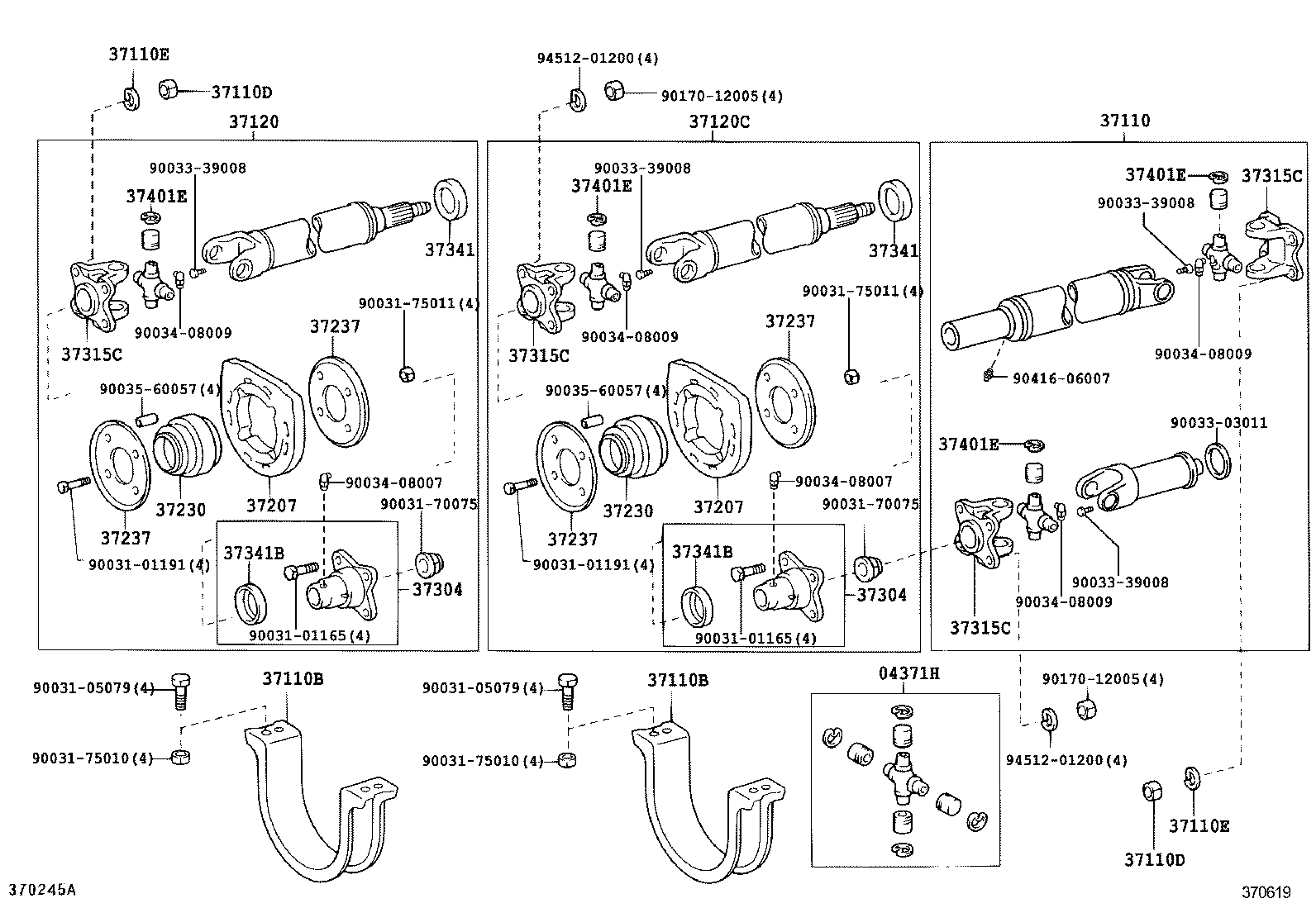

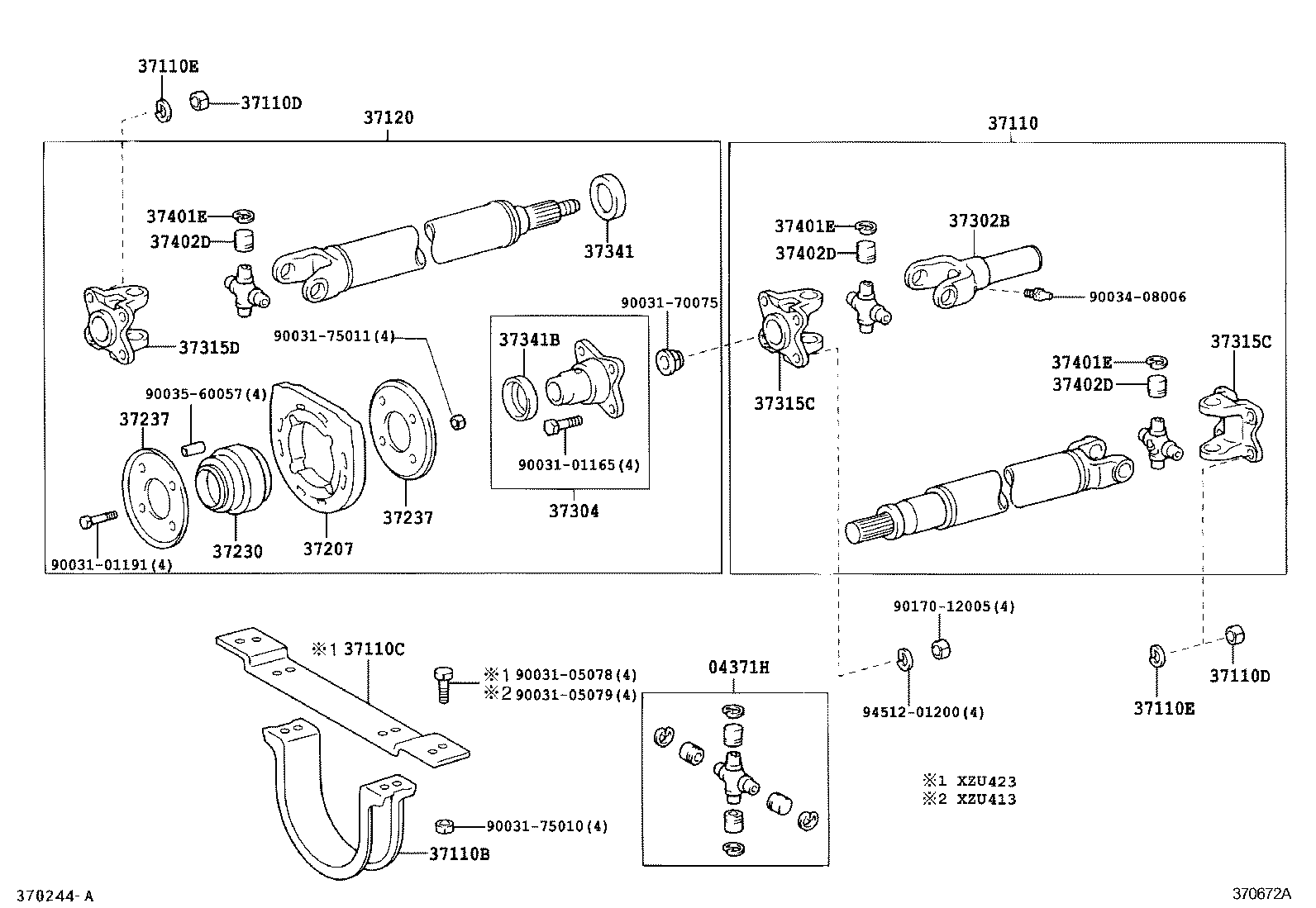

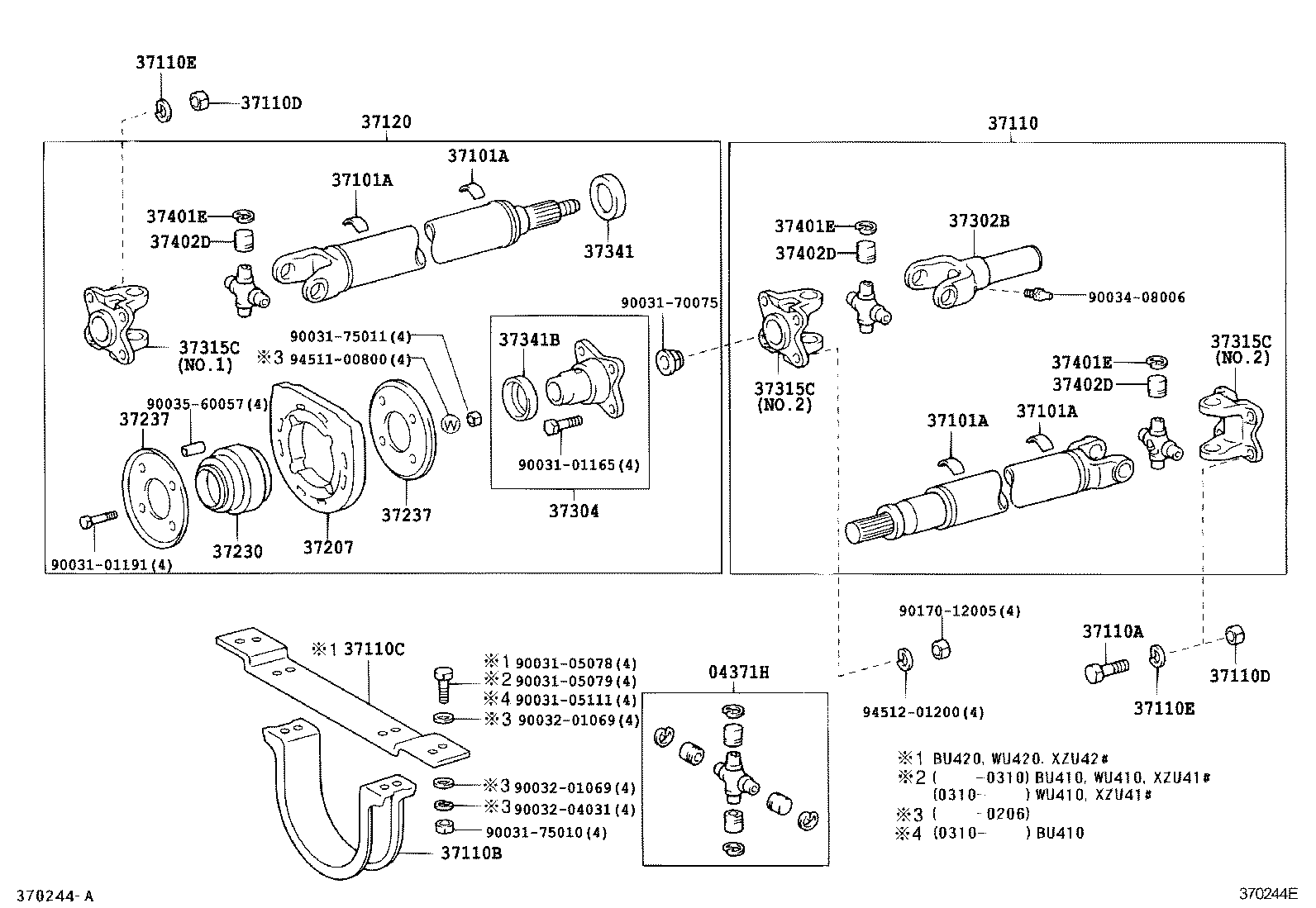

Figure 370243A 370243A 2001-10 → 2006-10 Figure 370244E 370244E 2001-10 → — Figure 370244E 370244E 2004-11 → 2007-01 Figure 370245D 370245D 2001-10 → 2006-10 Figure 370618A 370618A 2006-10 → — Figure 370619 370619 2006-10 → 2008-02 Figure 370578E 370578E 2006-10 → — Figure 370578E 370578E 2006-10 → — Figure 370582A 370582A 2007-08 → — Figure 370672A 370672A 2008-02 → — Figure 370696 370696 2008-05 → —

Part groups

PNCDescription
04371H Spider Kit, Rear Propeller Shaft Universal Joint
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37110B Guard, Propeller Shaft
37110C Bracket, Propeller Shaft Guard
37110D Nut (FOR PROPELLER SHAFT)
37110E Washer (FOR PROPELLER SHAFT)
37120 Shaft Assy, Propeller Intermediate
37120C Shaft Assy, Propeller, Center
37207 Cushion Sub-assy, Center Support Bearing, NO.1
37230 Bearing Assy, Center Support, NO.1
37237 Plate, Center Support Bearing, NO.1
37302B Yoke Sub-assy, RR Propeller Shaft Universal J0INT Sleeve
37304 Flange Sub-assy, Universal Joint
37315C Yoke, NO.1, Rear Propeller Shaft Universal Joint Flange
37315D Yoke, NO.2, Rear Propeller Shaft Universal Joint Flange
37341 Deflector, Propeller Shaft Dust, NO.1
37341B Deflector, Propeller Shaft Dust, NO.5
37401E Ring, Snap (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
37402D Bearing, Rear Propeller Shaft Universal Joint Spider
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
