Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

21 part groups · 15 illustrations

Illustrations

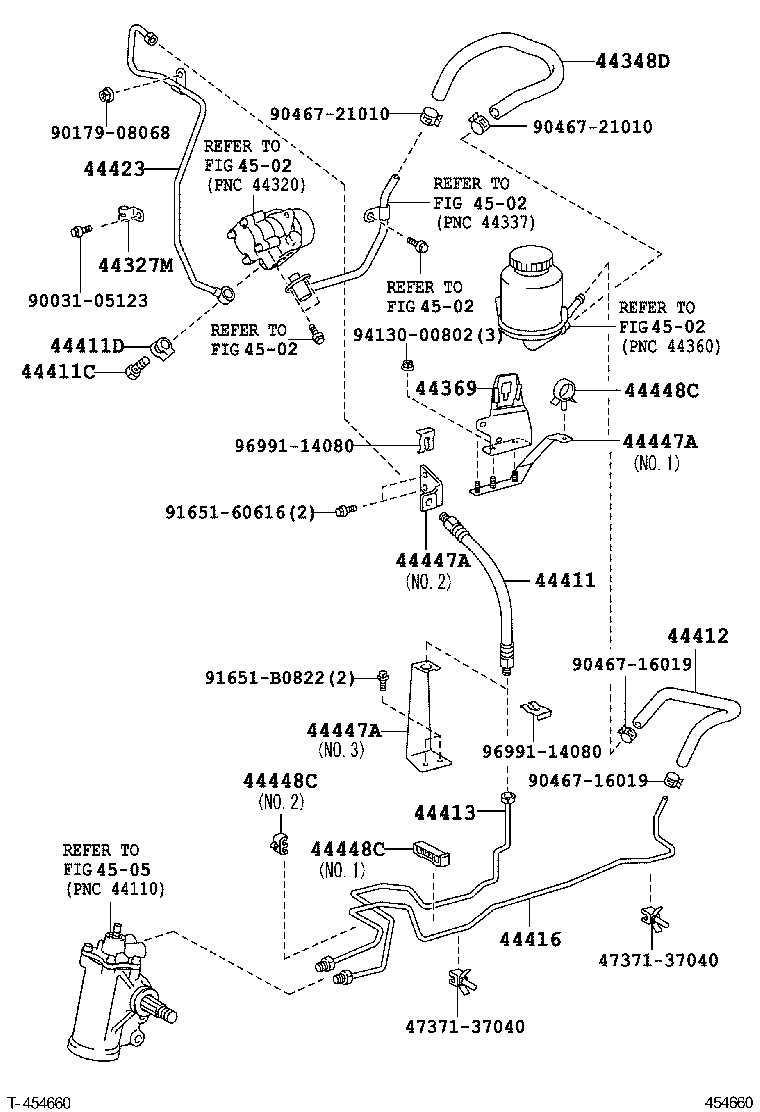

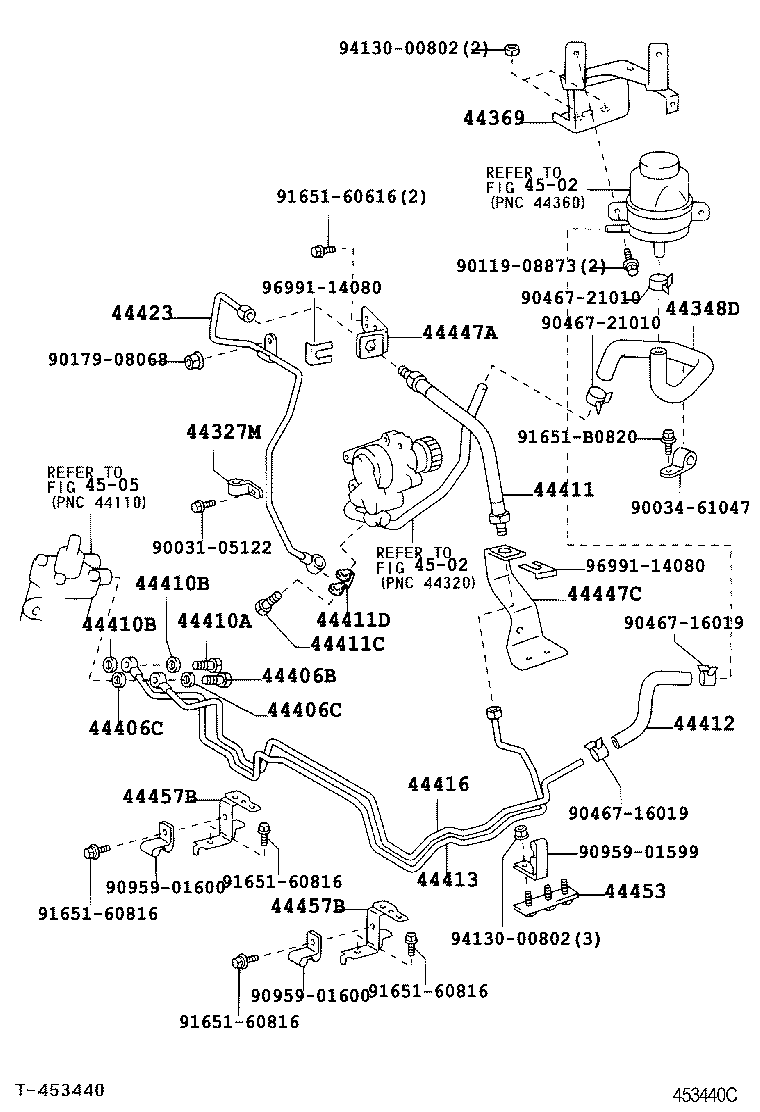

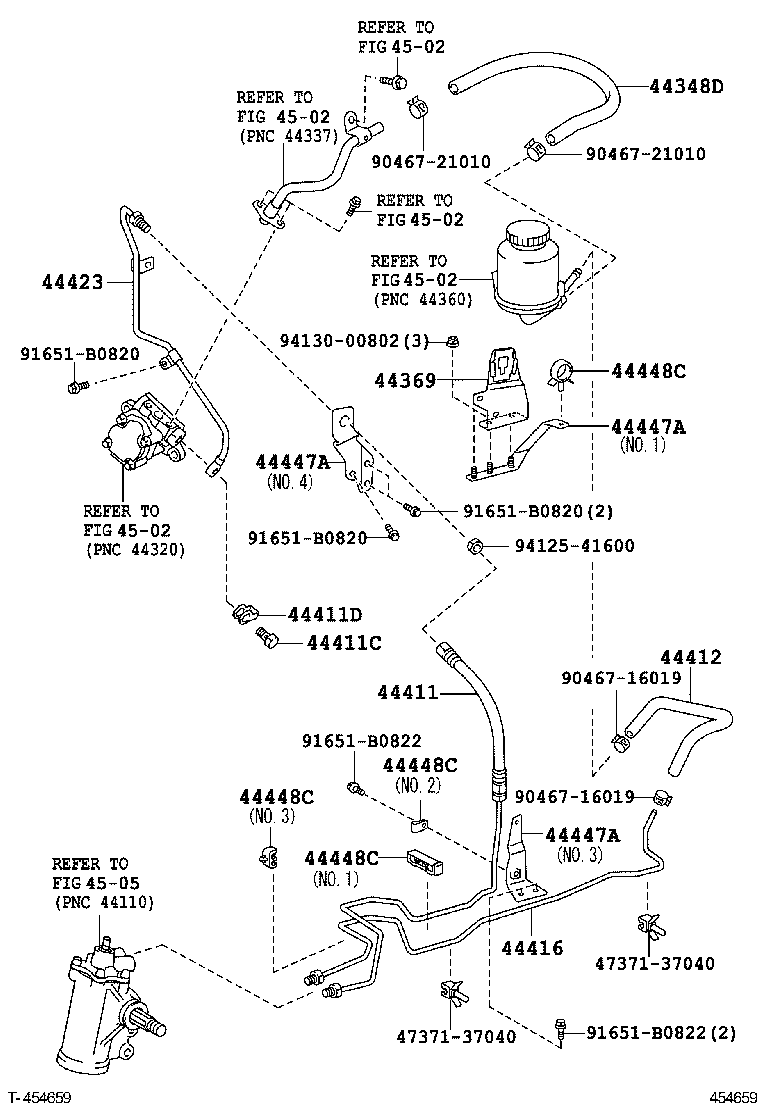

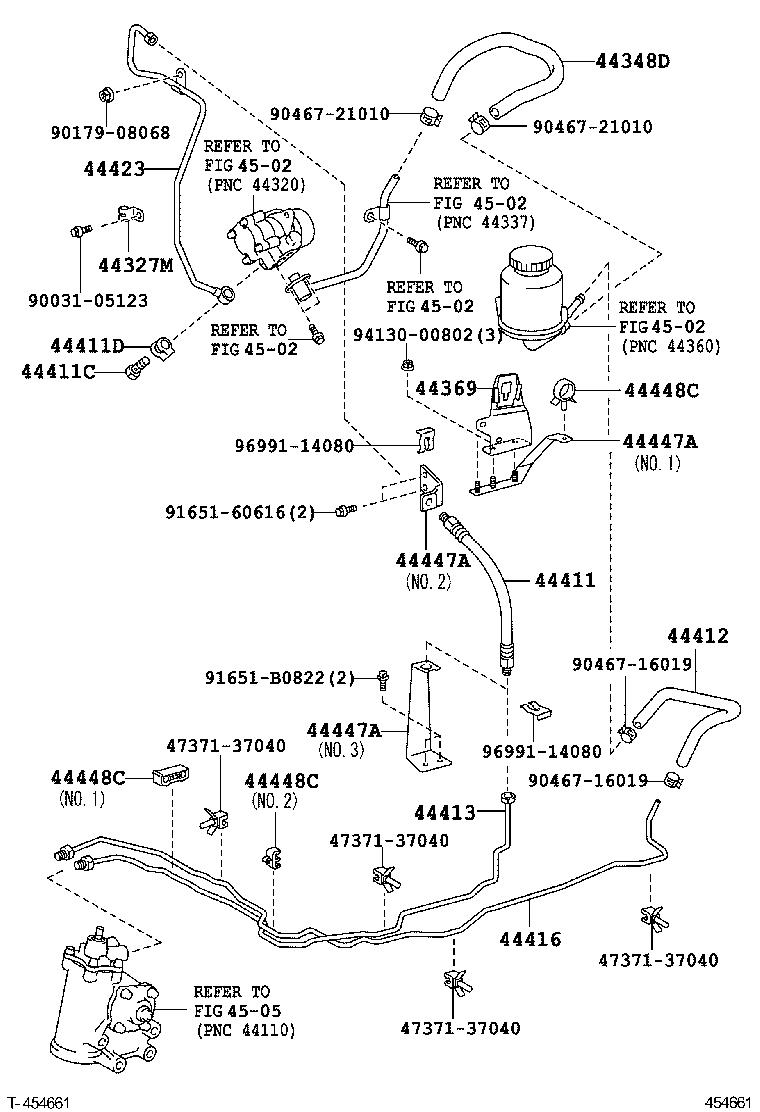

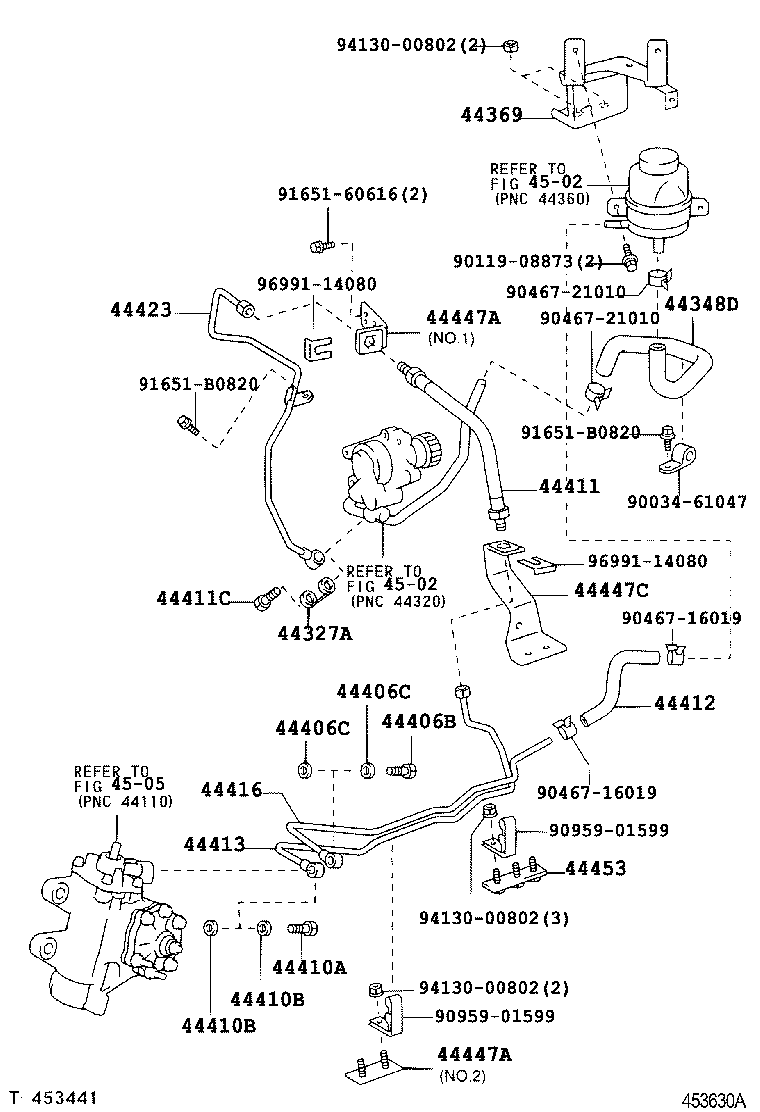

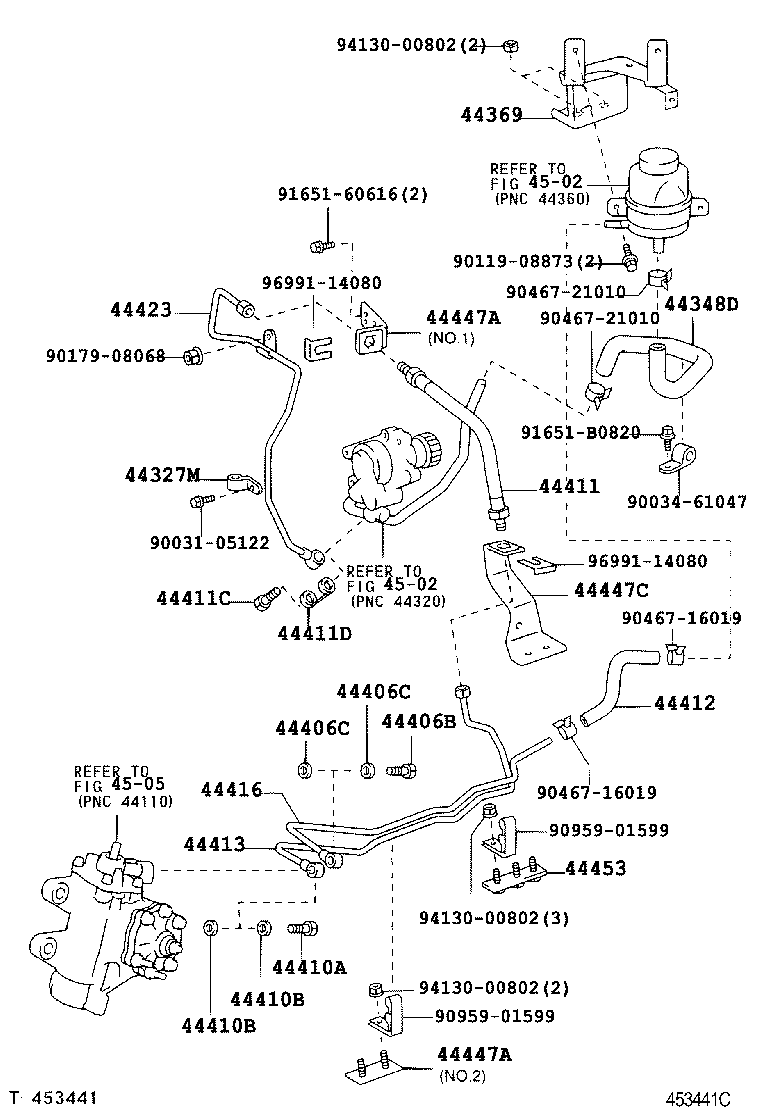

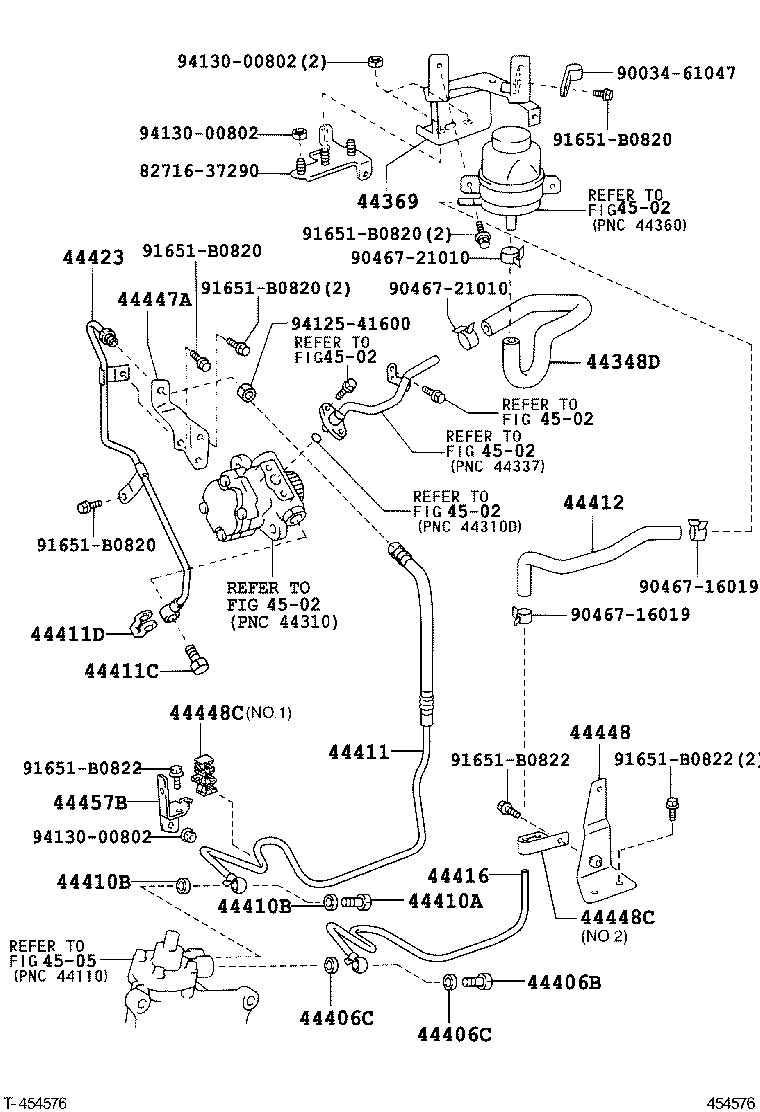

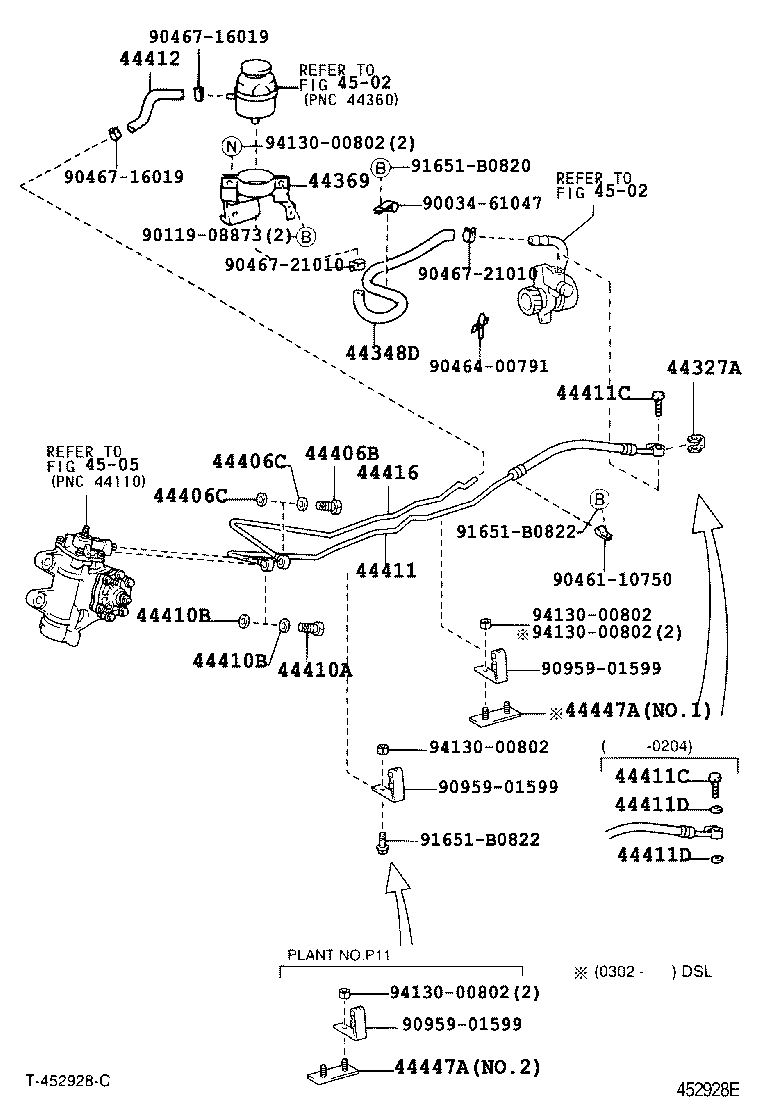

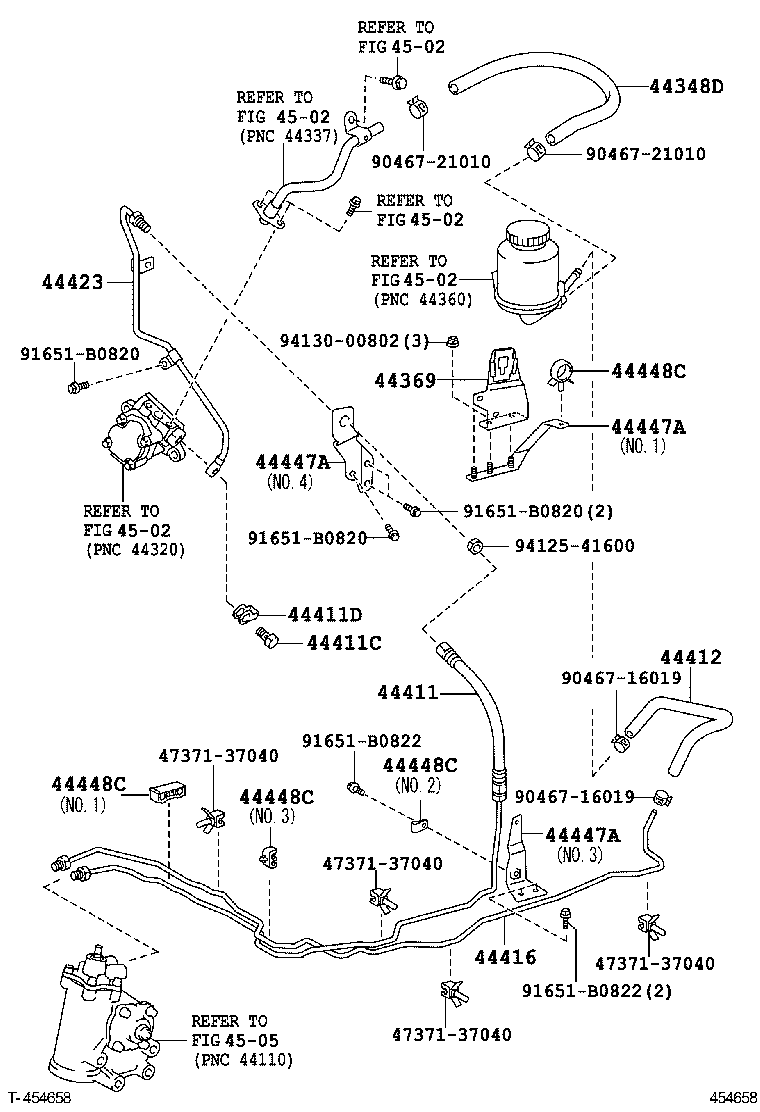

Figure 452927G 452927G 2001-10 → 2006-10 Figure 452927G 452927G 2006-10 → — Figure 452928E 452928E 2001-10 → 2006-10 Figure 452928E 452928E 2006-10 → — Figure 453440C 453440C 2002-12 → 2006-10 Figure 453440C 453440C 2006-10 → 2008-01 Figure 453440C 453440C 2008-01 → — Figure 453441C 453441C 2002-12 → 2006-10 Figure 453630A 453630A 2004-11 → — Figure 454576 454576 2006-08 → — Figure 454658 454658 2008-01 → — Figure 454659 454659 2006-10 → — Figure 454661 454661 2006-10 → — Figure 454661 454661 2008-01 → — Figure 454660 454660 2006-10 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44327M Gasket, Pressure Port, NO.2
44348D Hose, Oil Reservoir TO Pump, NO.2
44369 Bracket, Oil Reservoir, NO.1
44406B Bolt, Union(FOR RETURN TUBE)
44406C Gasket(FOR RETURN TUBE)
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410B Gasket(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44423 Tube, Oil Pump TO Gear Box
44447A Bracket, Hose Support, NO.1
44447C Bracket, Hose Support NO.2
44448 Bracket, Pressure Feed Hose Support, NO.1
44448C Clamp, Pressure Feed, NO.2
44453 Stay, Pump, Front
44457B Bracket, Power Steering Tube Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
