Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

40 part groups · 23 illustrations

Illustrations

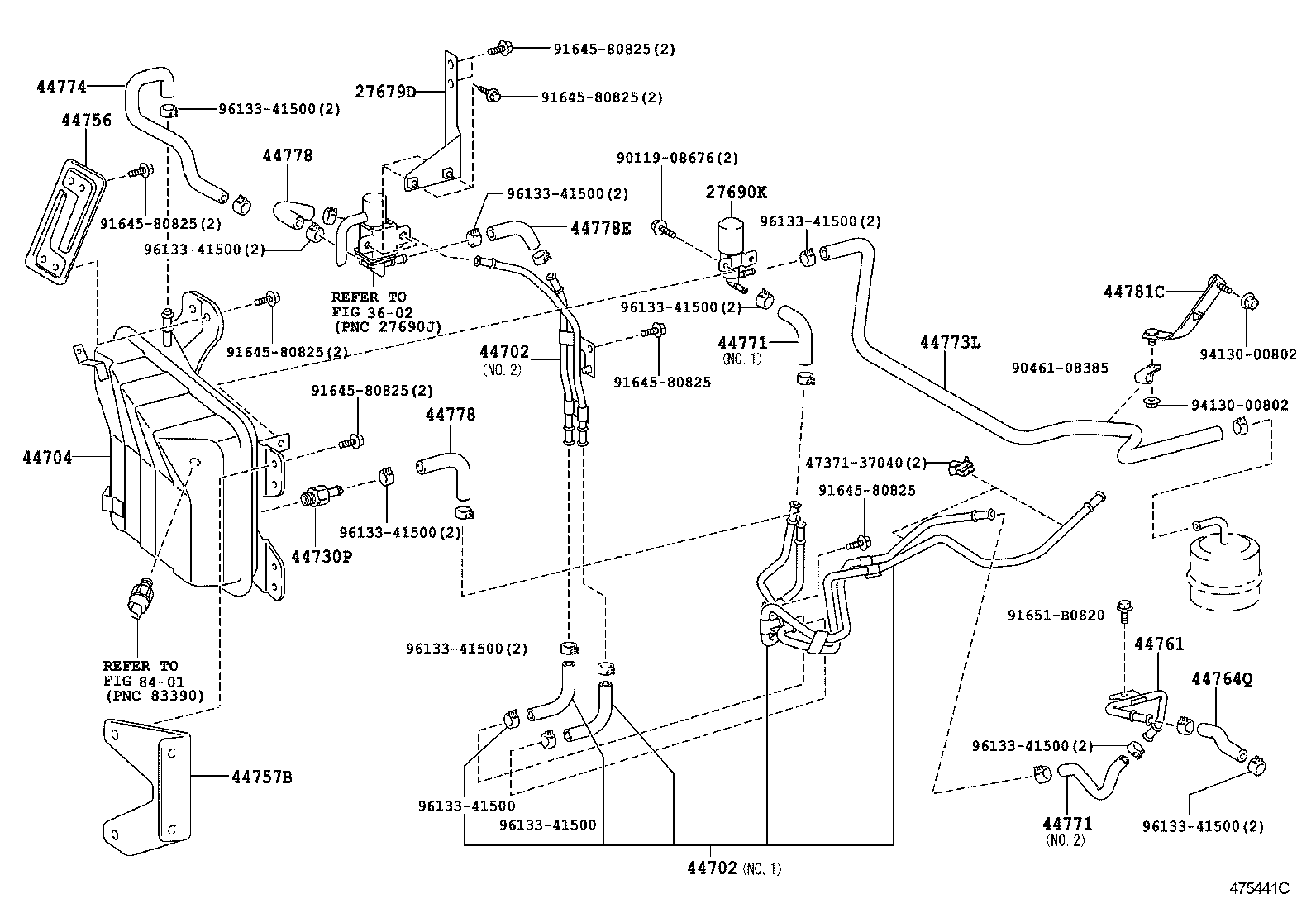

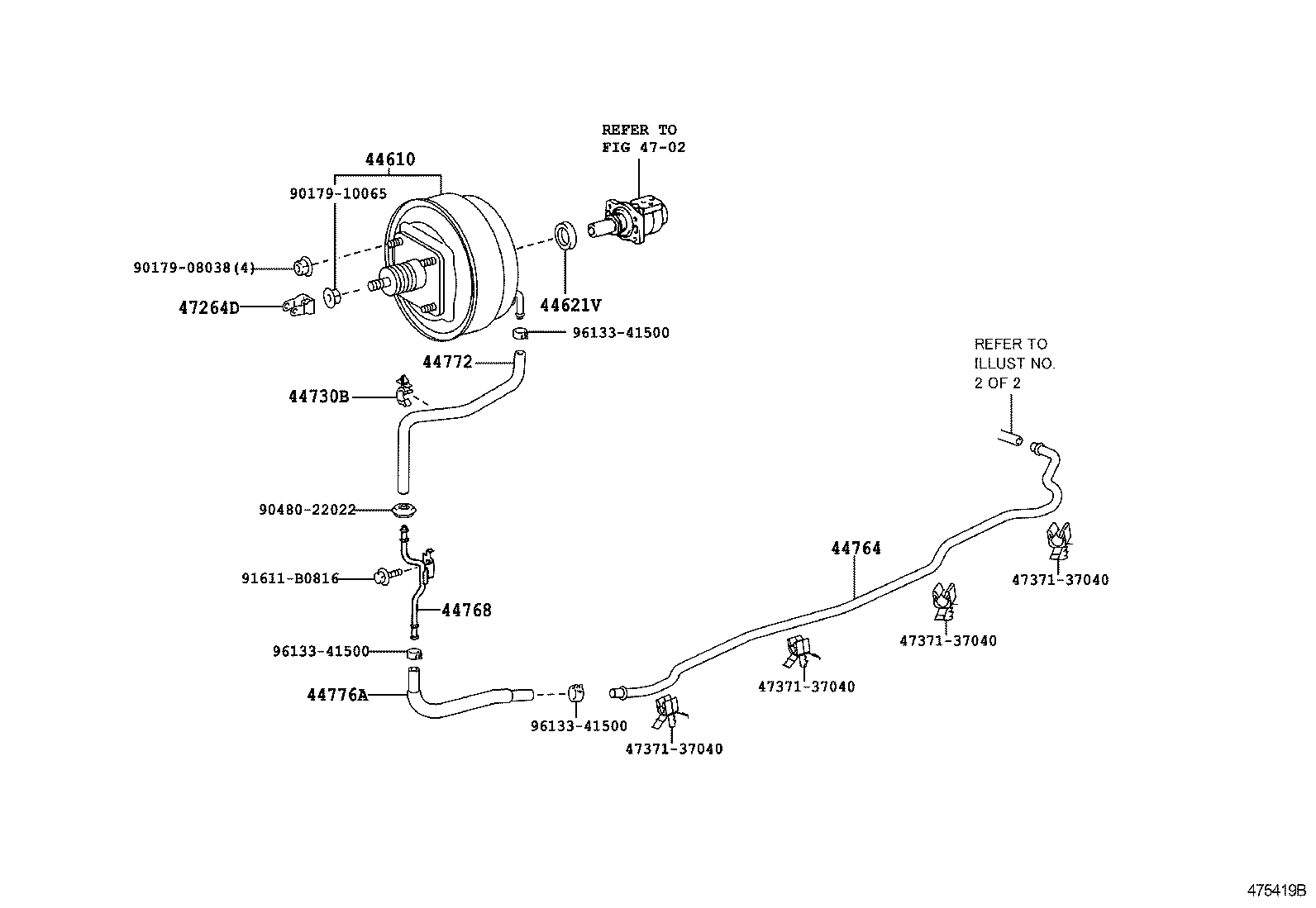

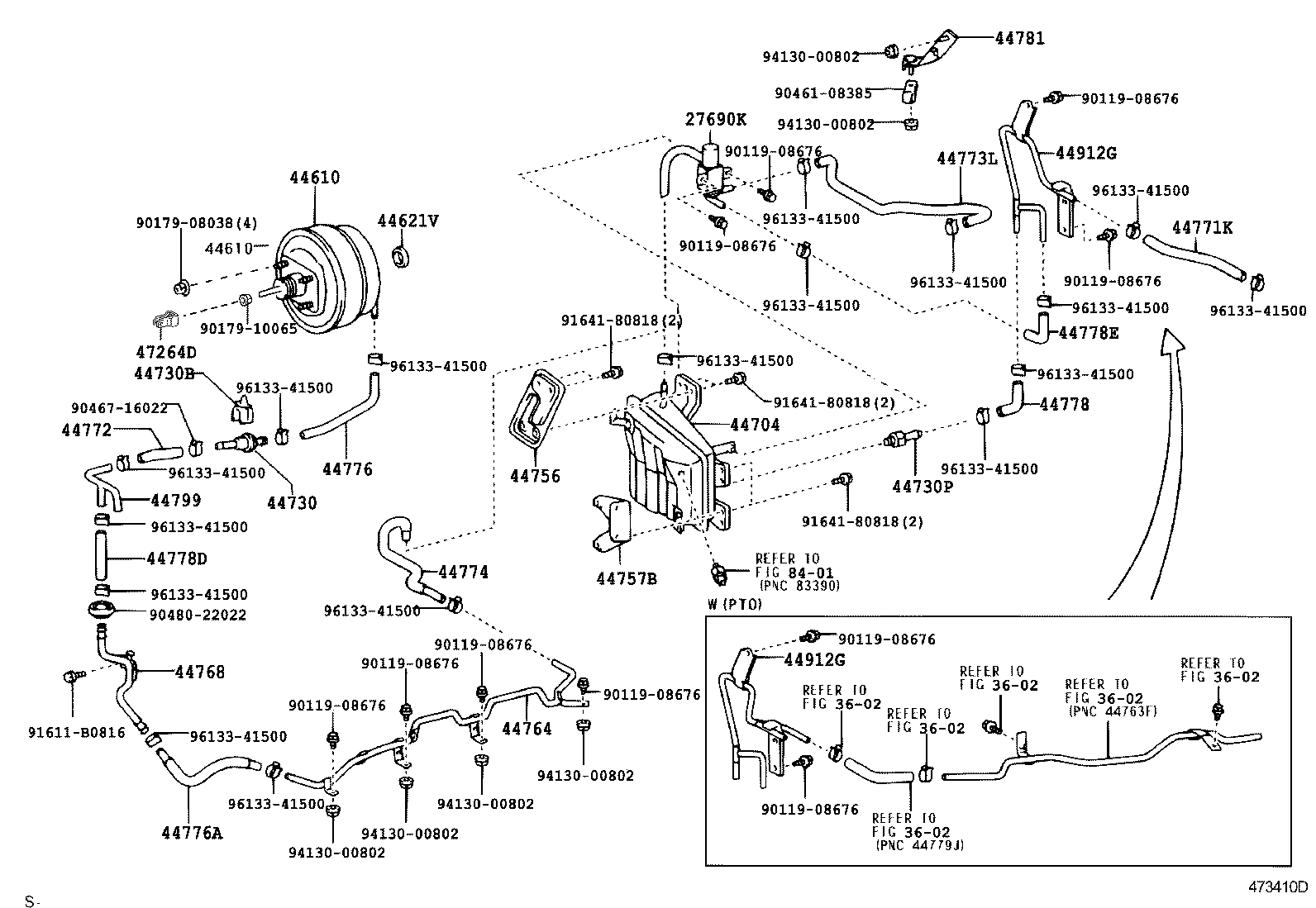

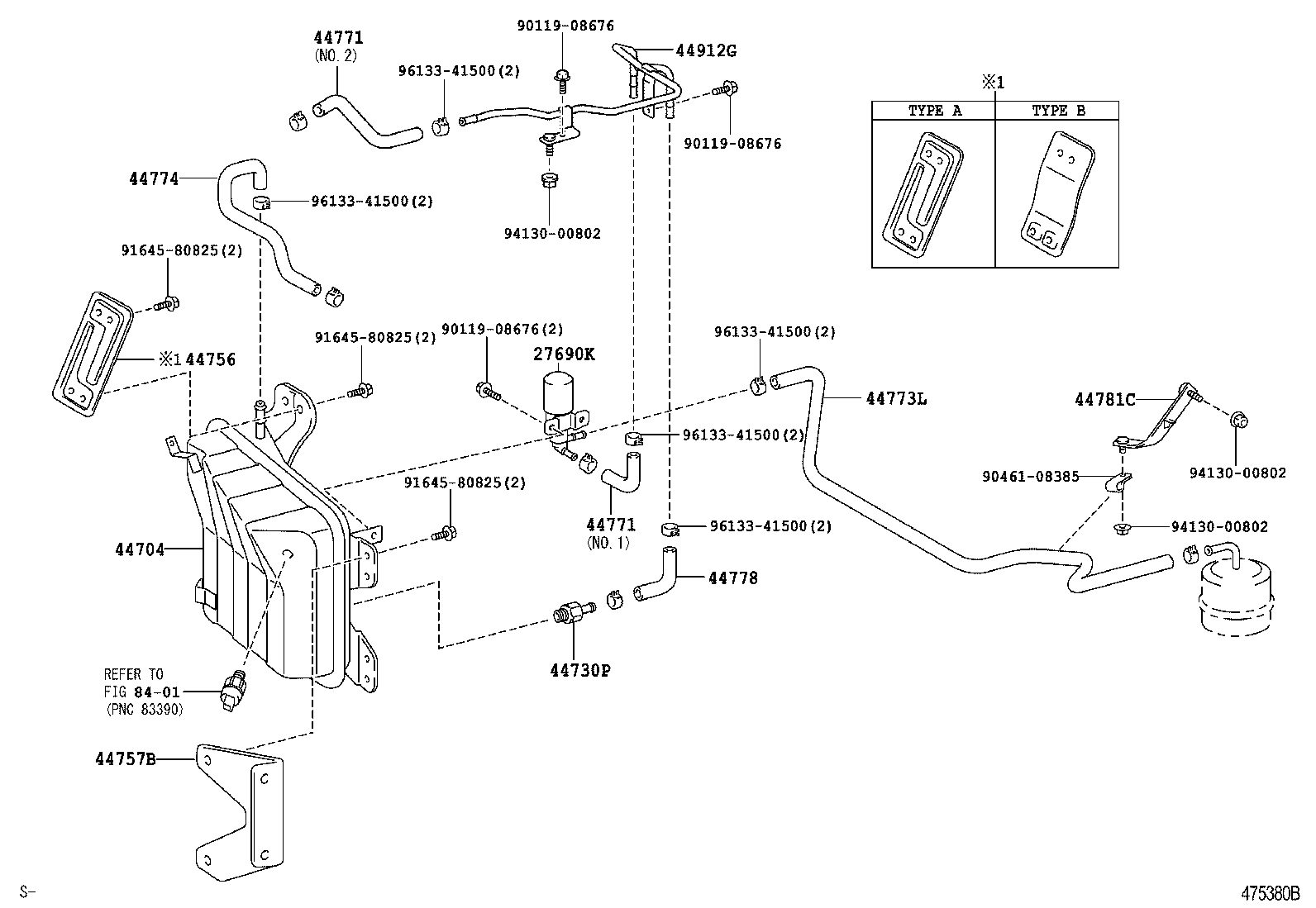

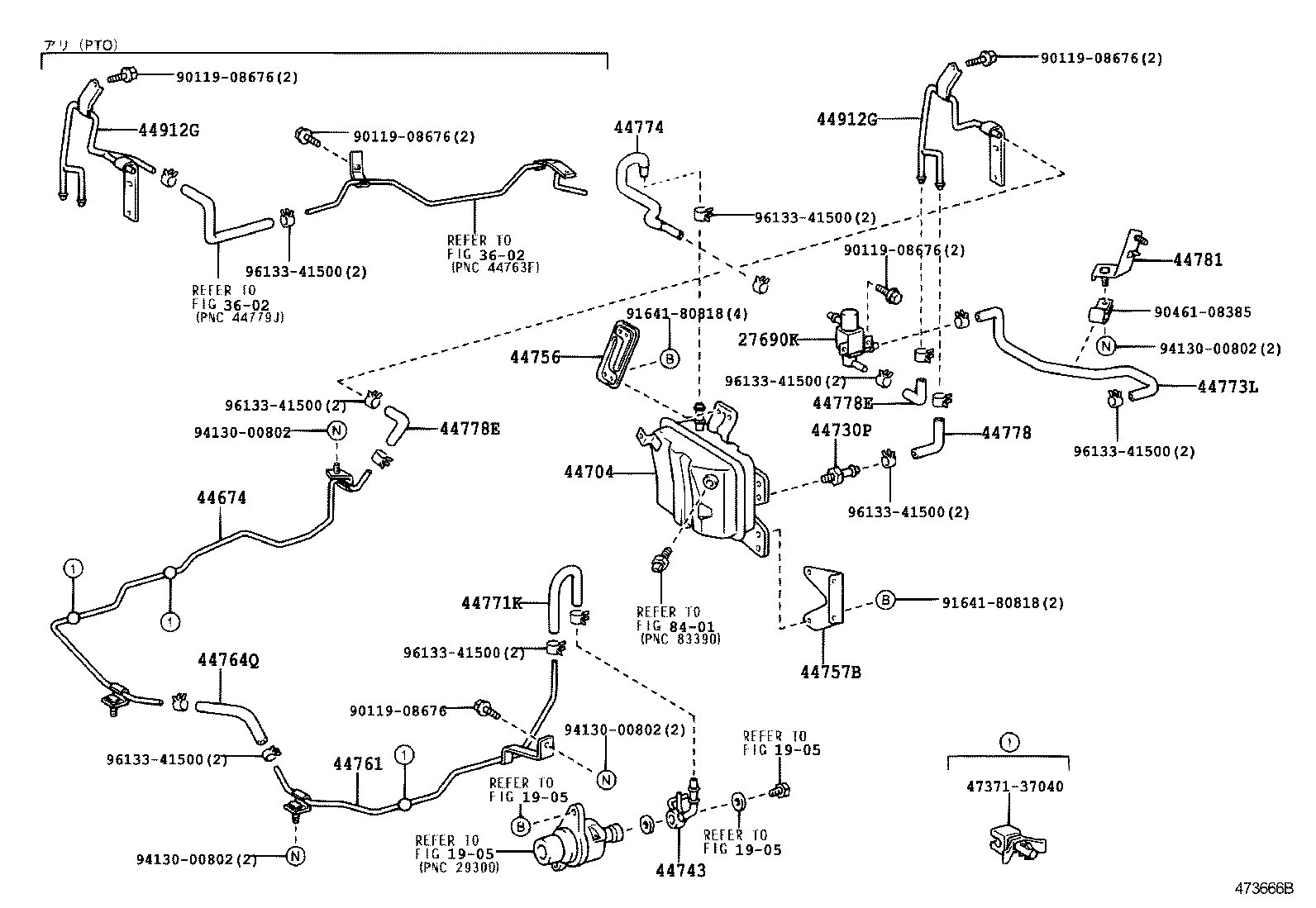

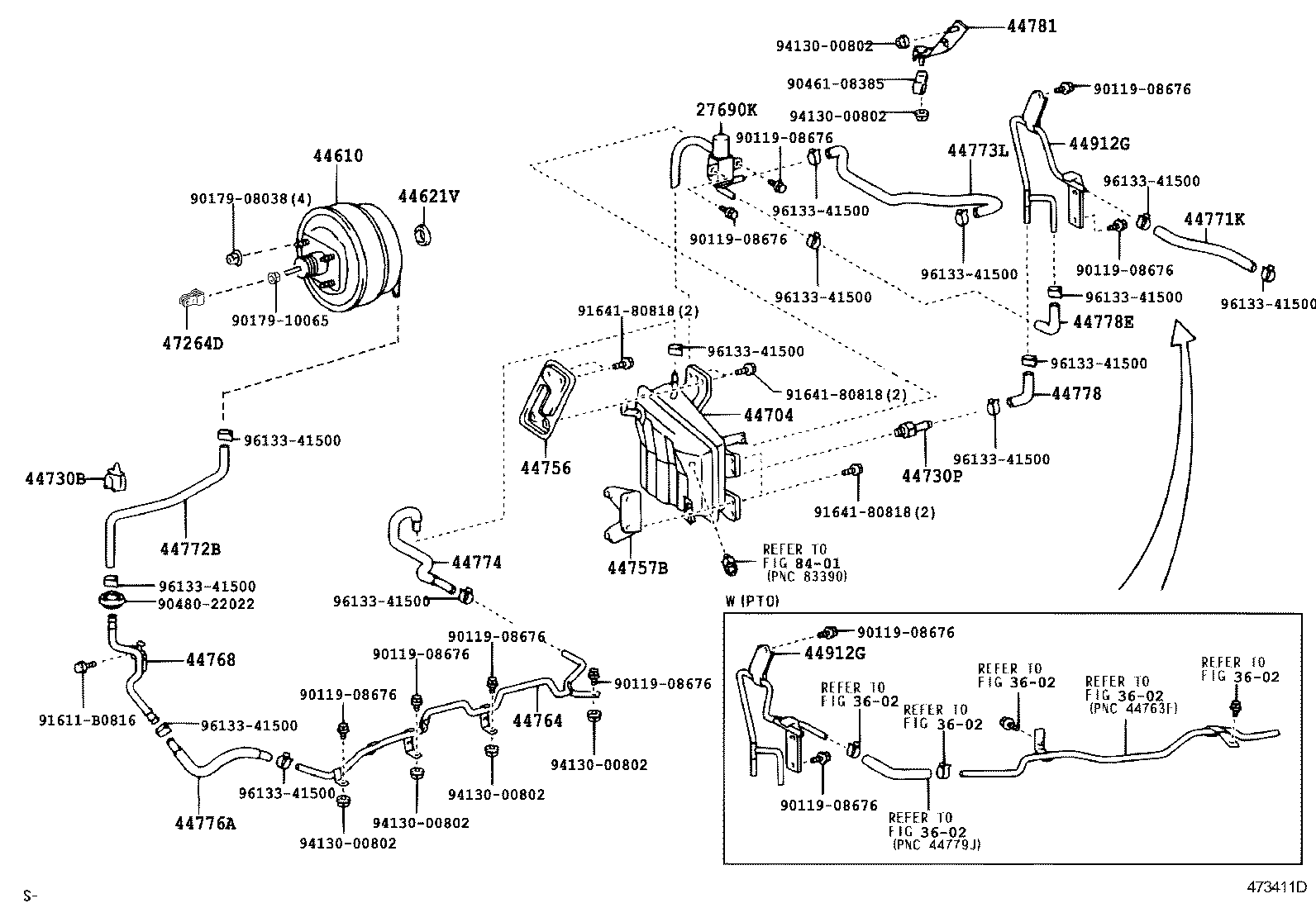

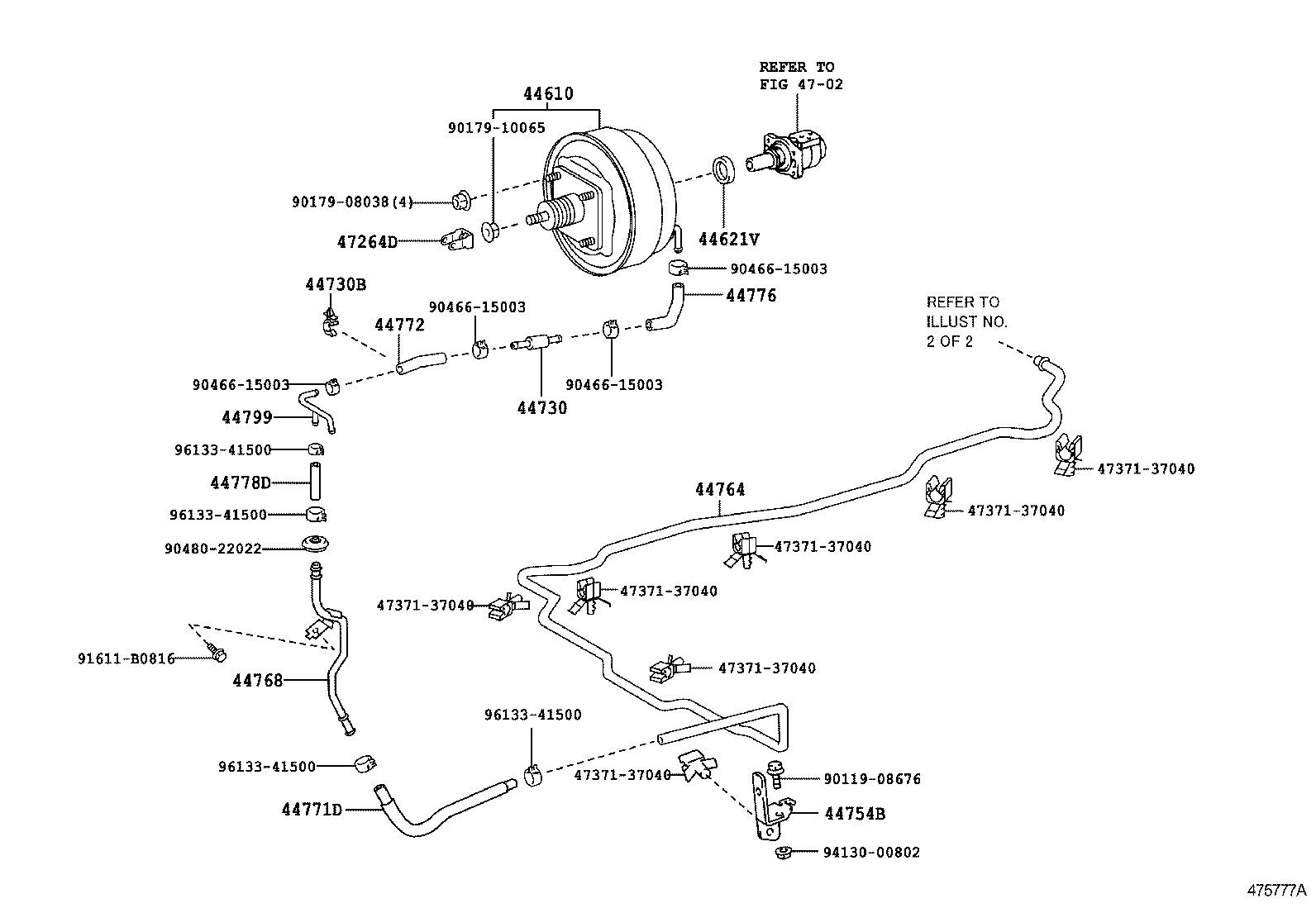

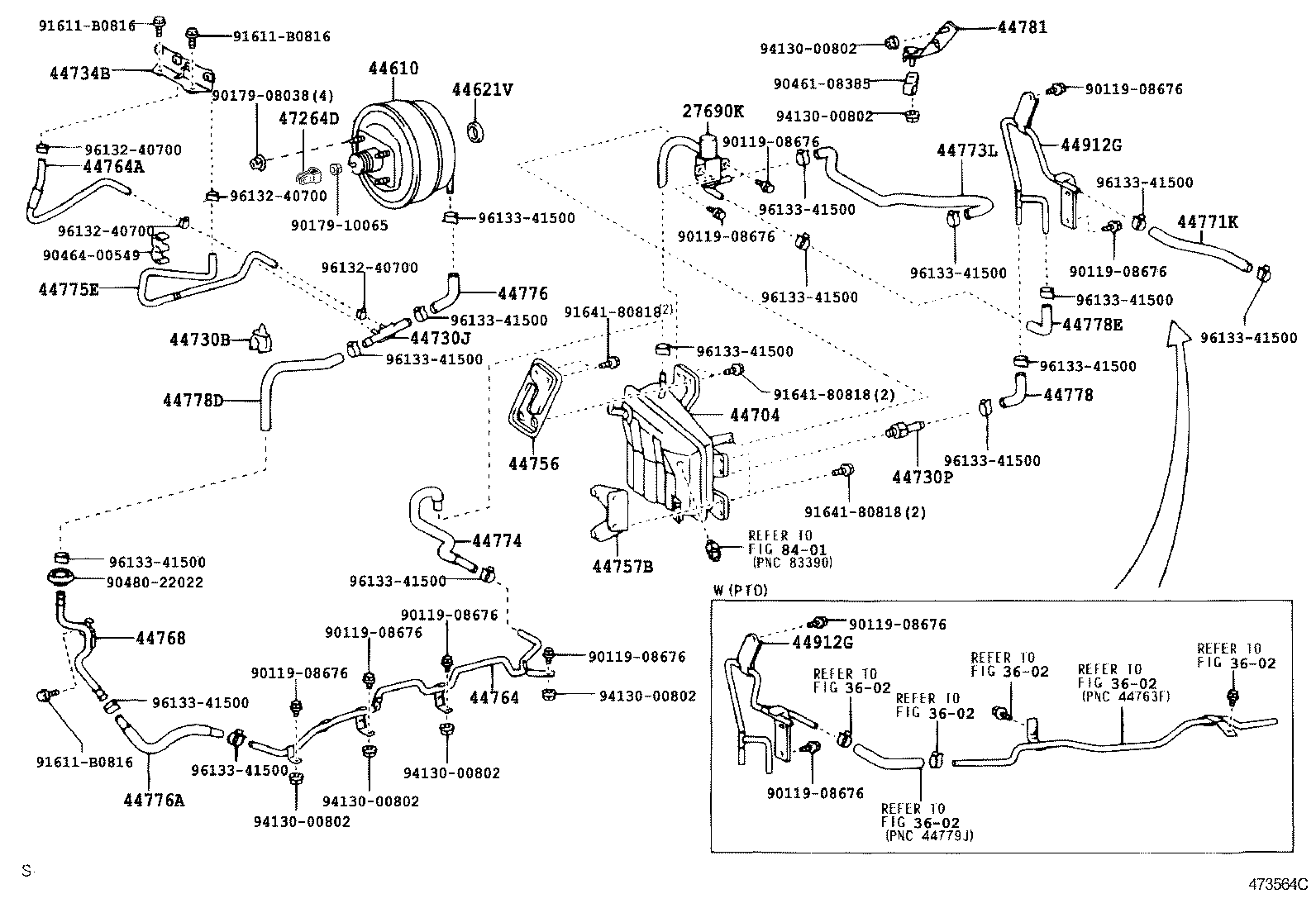

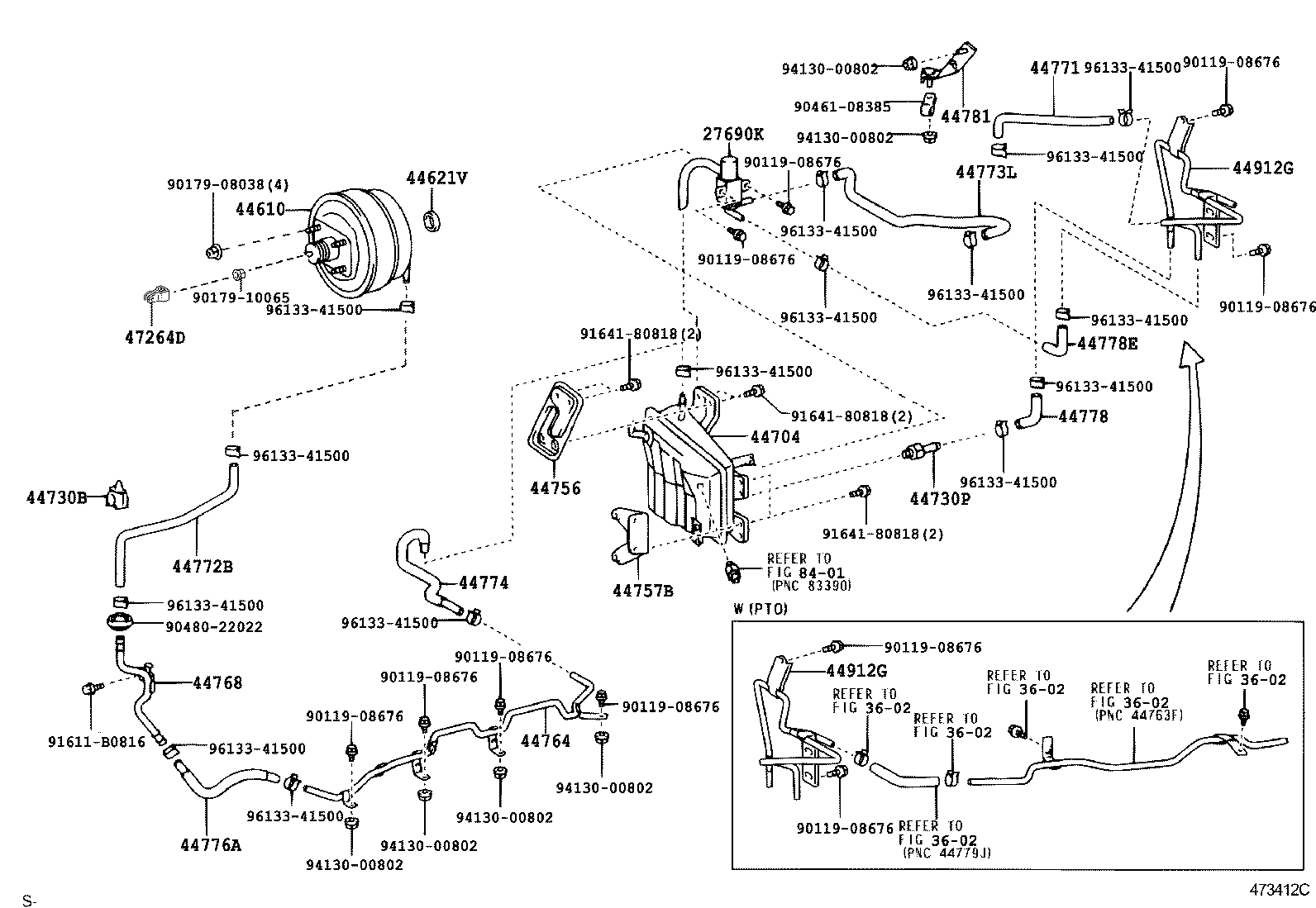

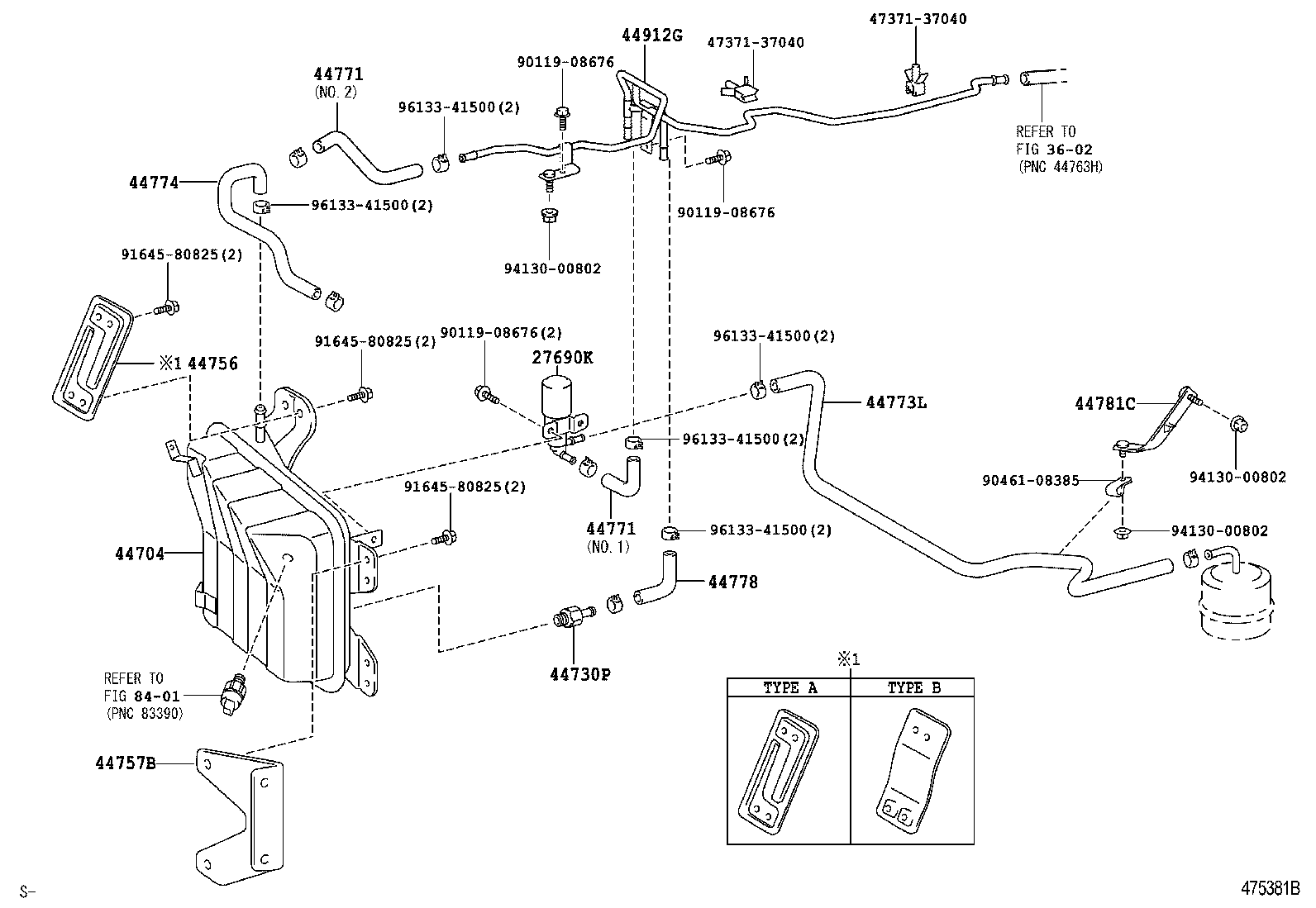

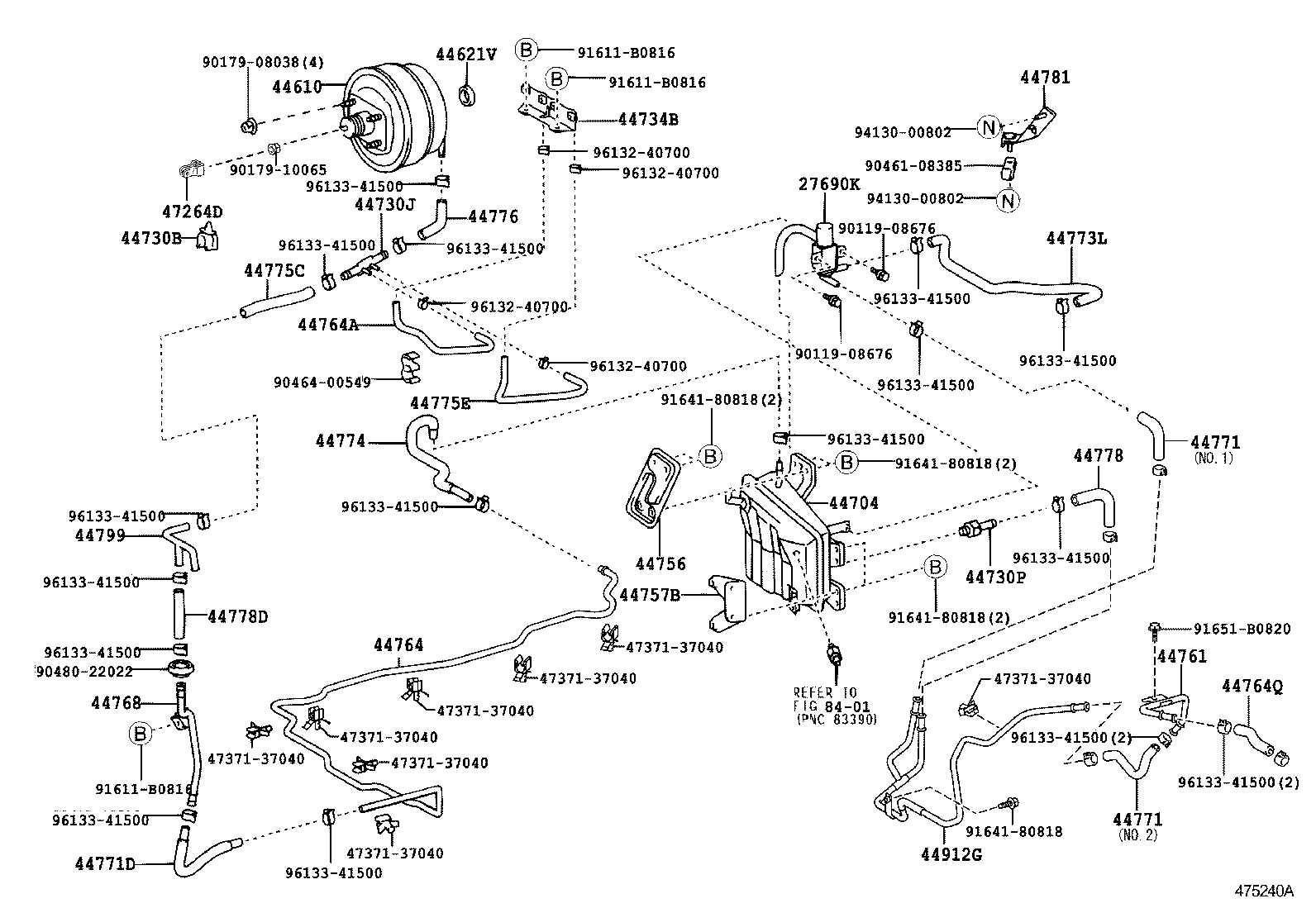

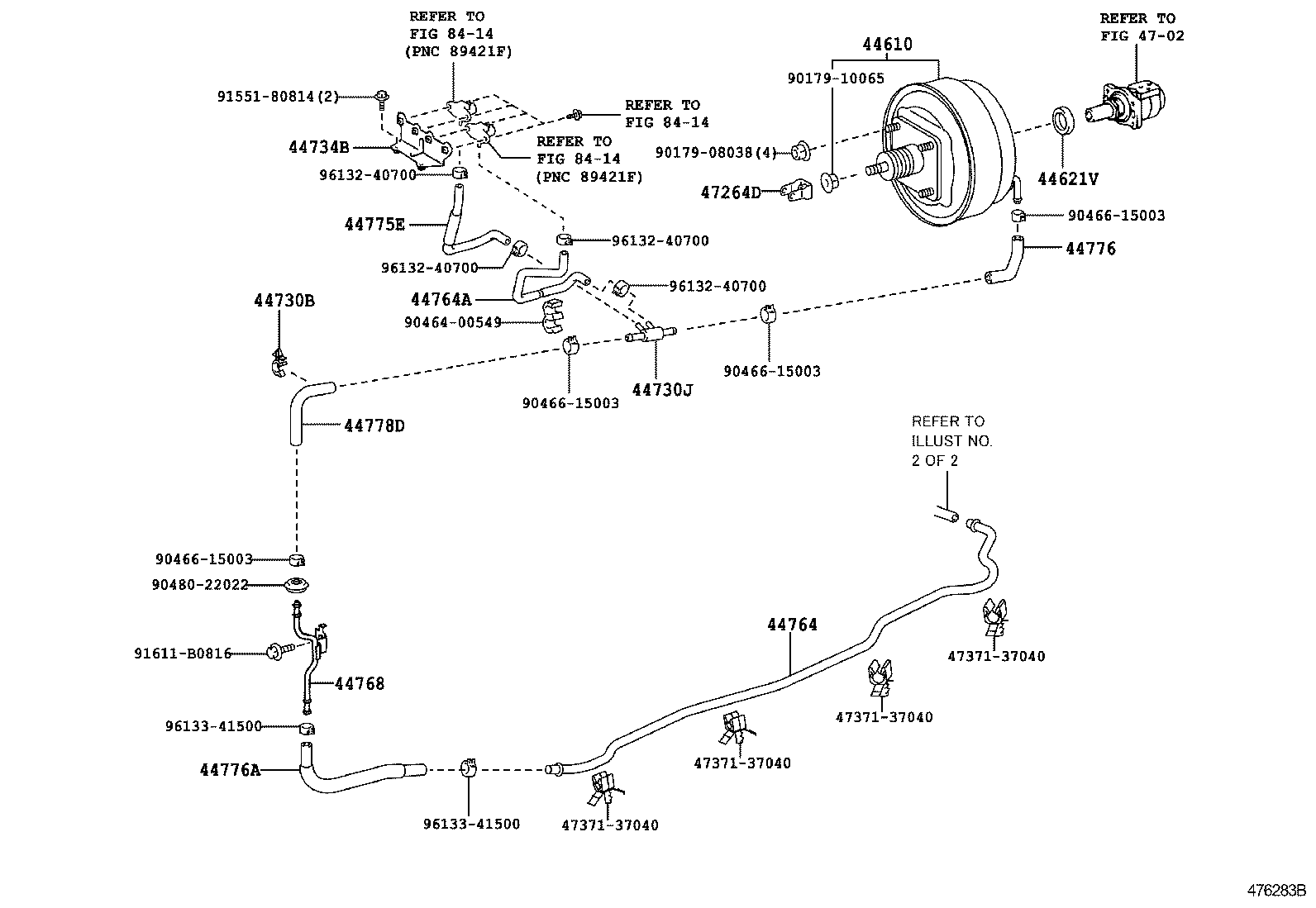

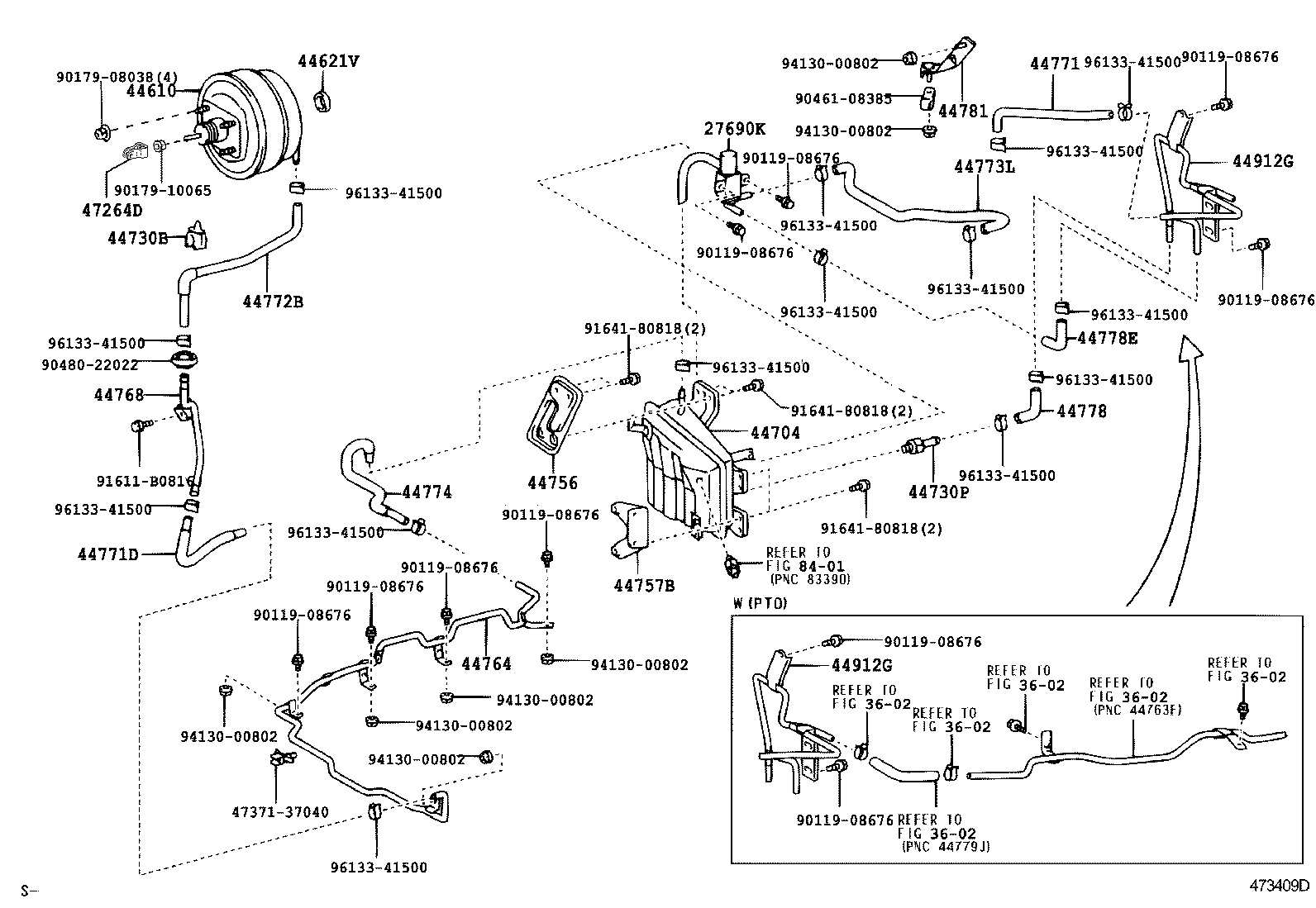

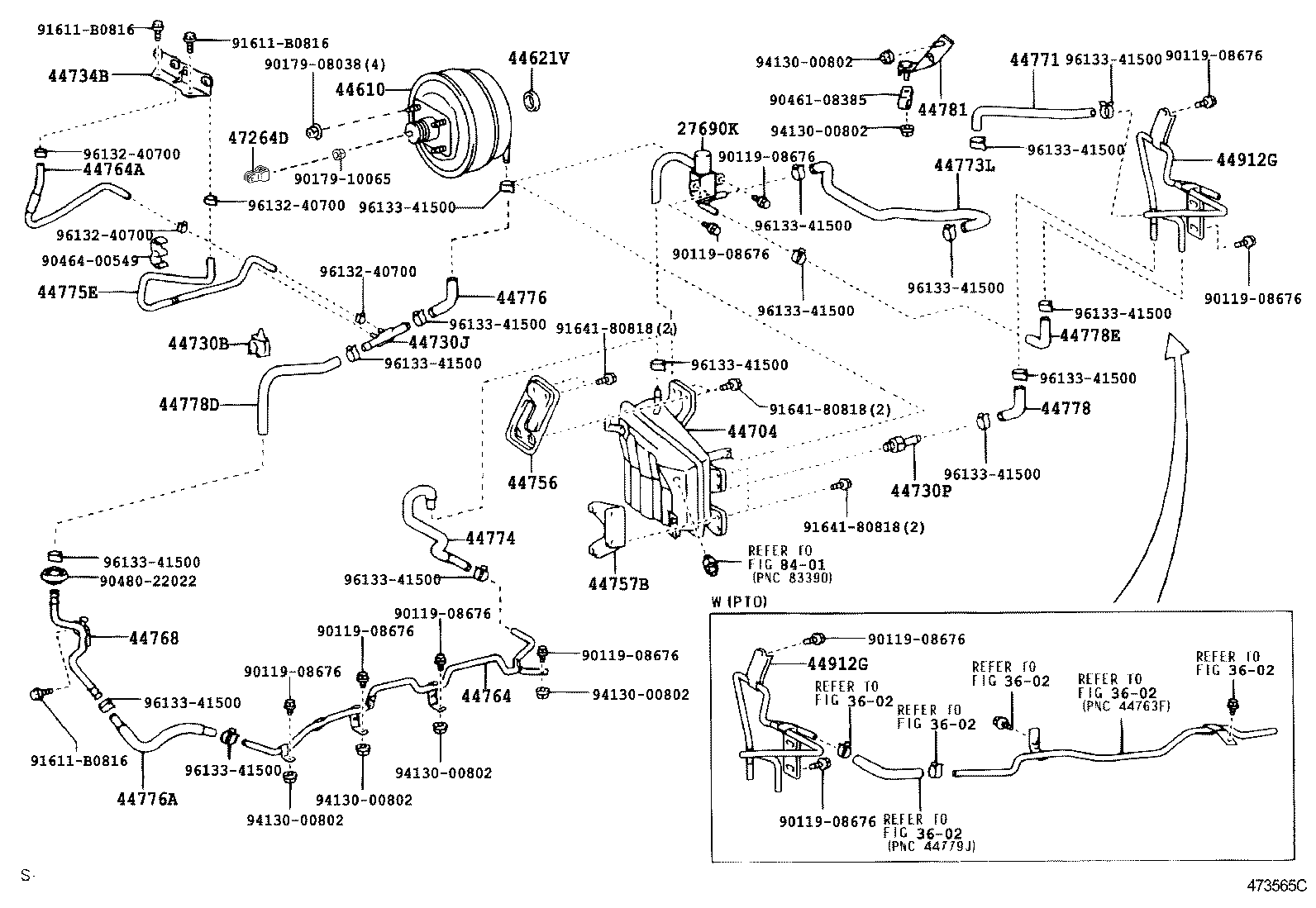

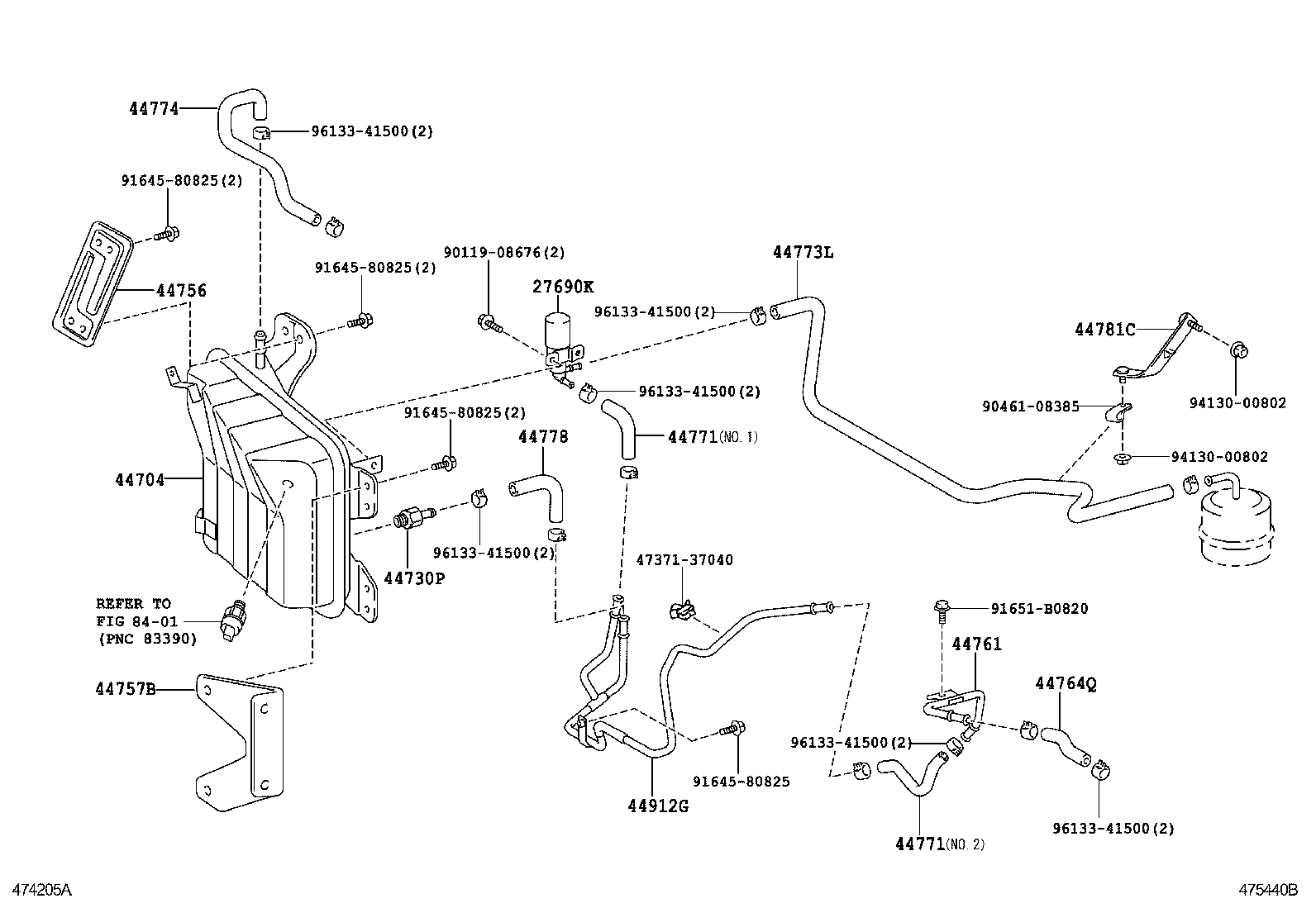

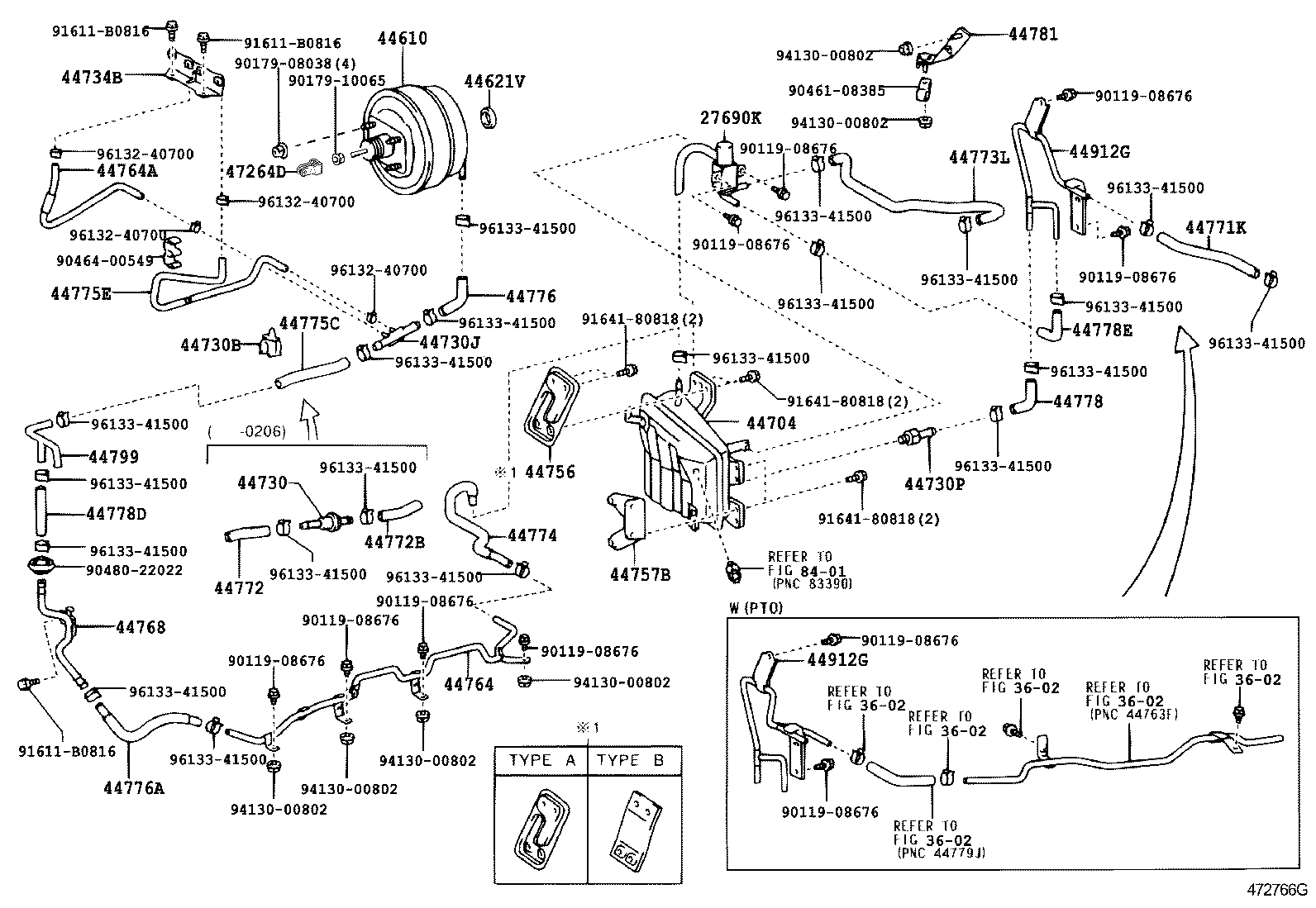

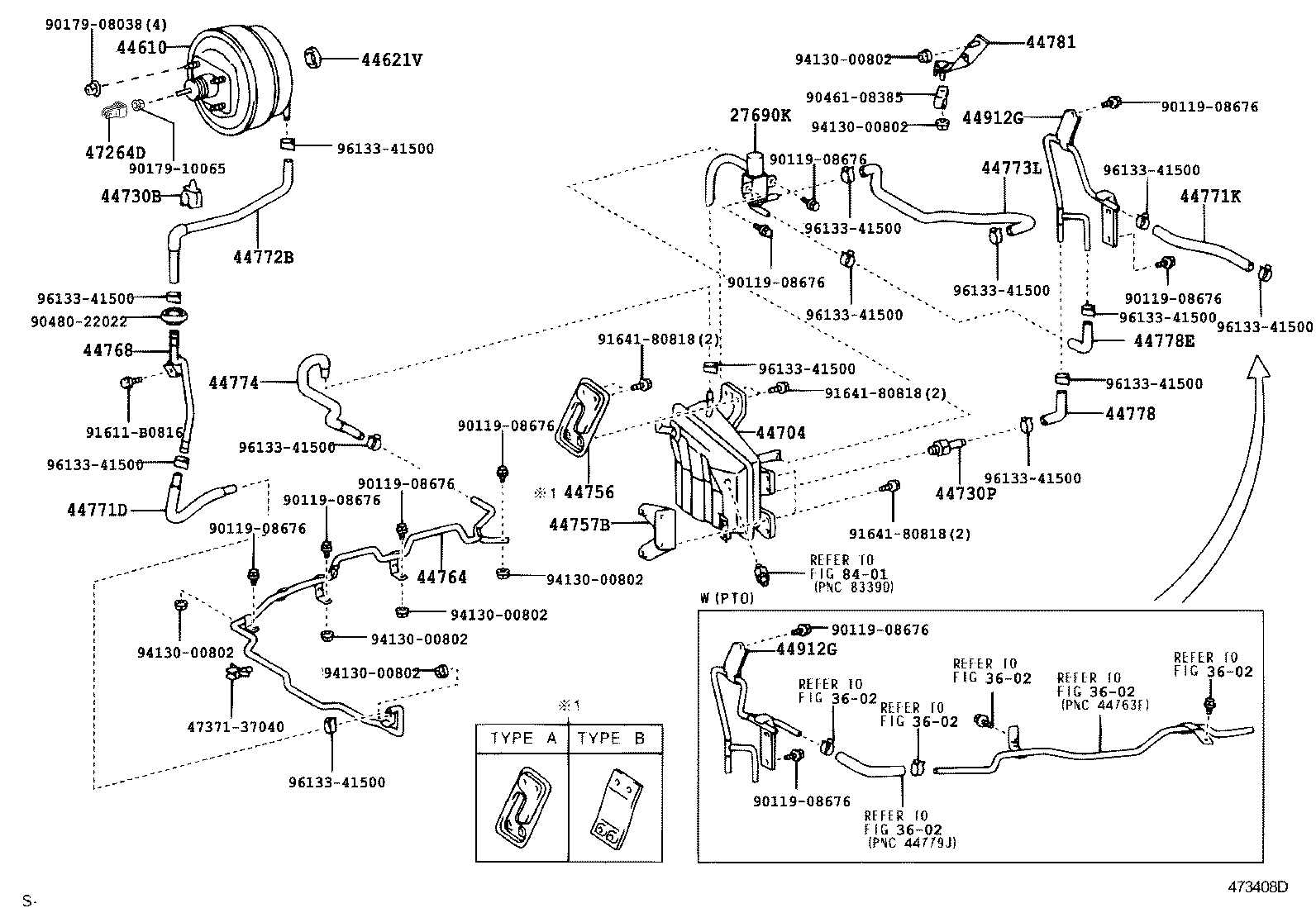

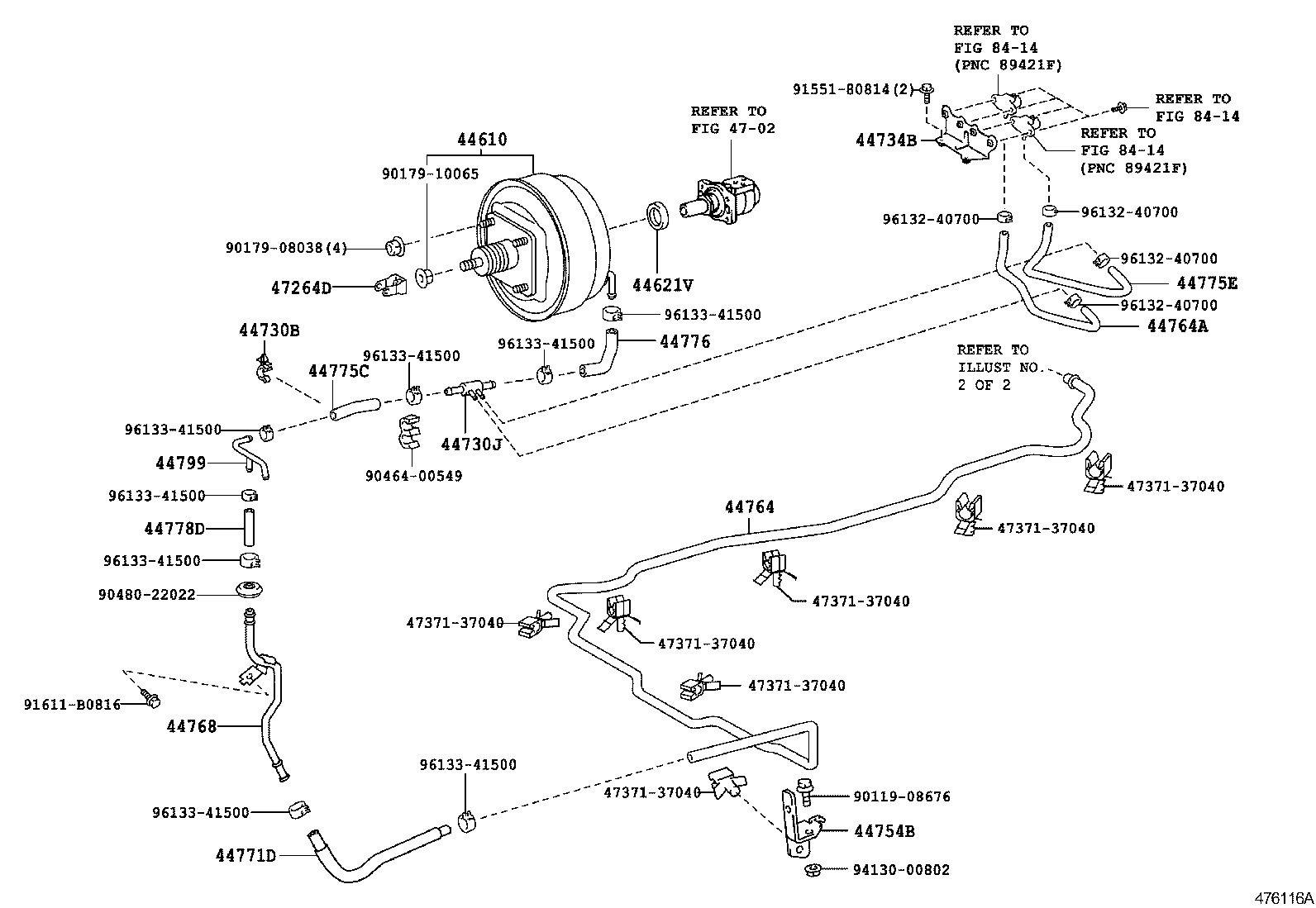

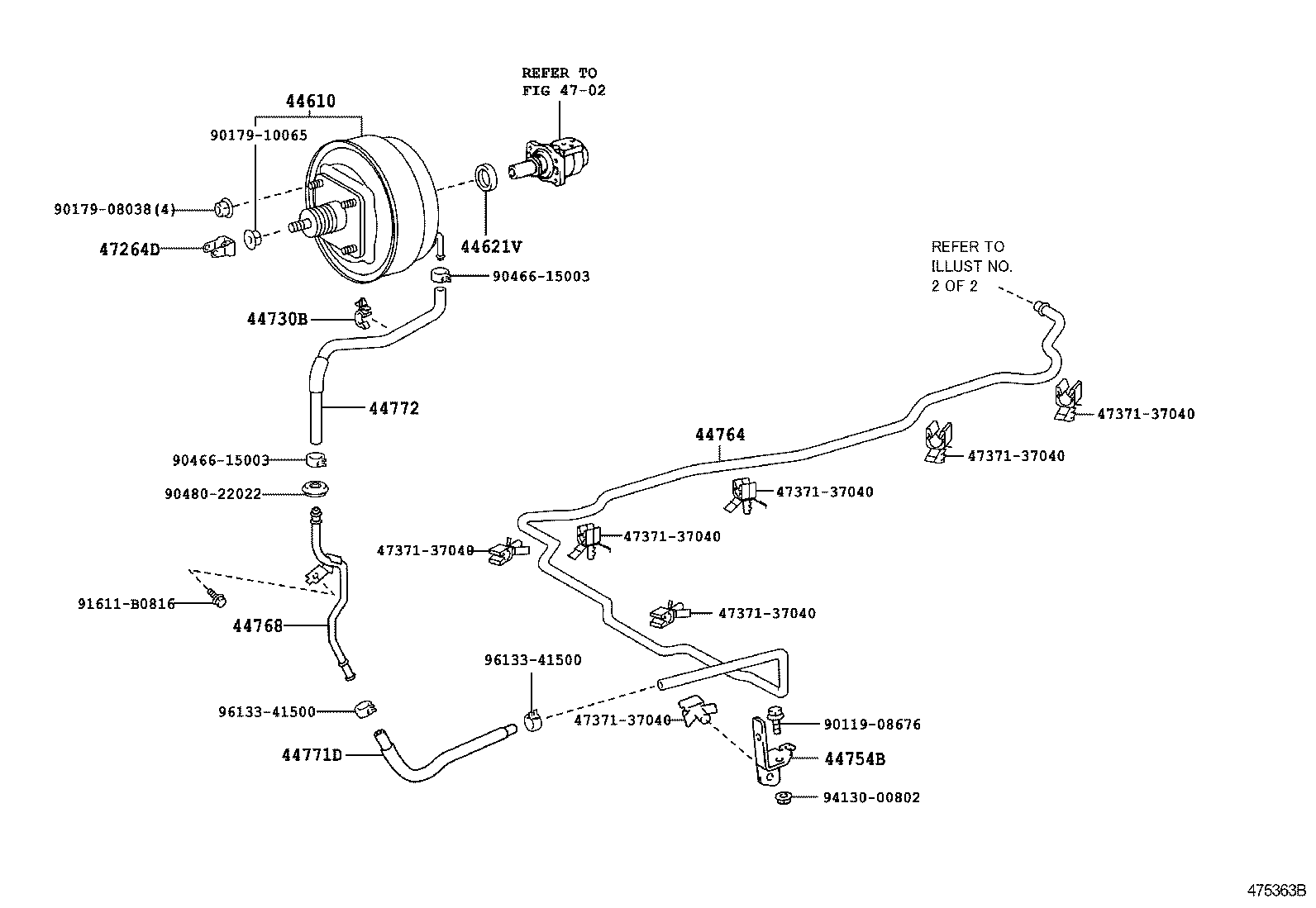

Figure 472767D 472767D 2001-10 → 2006-08 Figure 473409D 473409D 2002-12 → 2006-10 Figure 473408D 473408D 2002-12 → 2006-10 Figure 473411D 473411D 2002-12 → 2006-10 Figure 473412C 473412C 2002-12 → 2006-10 Figure 472766G 472766G 2001-10 → 2006-10 Figure 472766G 472766G 2002-12 → — Figure 473410D 473410D 2002-12 → — Figure 473565C 473565C 2003-04 → 2008-01 Figure 473565C 473565C 2003-04 → — Figure 473564C 473564C 2003-04 → — Figure 473665C 473665C 2004-11 → — Figure 473666B 473666B 2004-11 → — Figure 475240A 475240A 2006-08 → — Figure 475363B 475363B 2006-10 → — Figure 475419B 475419B 2006-10 → — Figure 475777A 475777A 2007-01 → — Figure 476116A 476116A 2007-08 → — Figure 476283B 476283B 2008-01 → — Figure 475380B 475380B 2006-10 → — Figure 475381B 475381B 2006-10 → — Figure 475440B 475440B 2006-10 → — Figure 475441C 475441C 2006-10 → —

Part groups

PNCDescription
27679D Bracket, Exhaust Brake Solenoid
27690K Solenoid Assy, W/Bracket(FOR EXHAUST BRAKE)
44610 Booster Assy, Brake
44621V Seal, Booster Body
44674 Boot, Booster Control Valve
44702 Tube Sub-assy, Air, NO.1
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730B Clamp, Vacuum Hose
44730J Way(FOR BOOSTER VACUUM)
44730P Valve Assy, Vacuum Check, NO.1
44734B Bracket, Booster Support
44743 Union(FOR VACUUM PUMP)
44754B Bracket, Vacuum Tube
44756 Bracket, Vacuum Reservoir
44757B Bracket, Vacuum Tank Clamp, NO.2
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44764 Tube, Booster Vacuum
44764A Hose, Booster Vacuum
44764Q Hose(FOR CONNECTOR TO VACUUM RESERVOIR TUBE)
44768 Tube, Booster Vacuum
44771 Hose, Vacuum Tube Connector
44771D Hose, Vacuum Tube Connector
44771K Hose, Vacuum Tube TO Vacuum Pump
44772 Hose, Check Valve TO Connector Tube
44772B Hose, Check Valve TO Brake Booster
44773L Hose, Solenoid TO Exhaust Retarder
44774 Hose, Union TO Connector Tube
44775C Hose, Connector TO Way
44775E Hose, Way TO Connector
44776 Hose, Brake Booster
44776A Hose, Vacuum Reservoir TO Brake Booster
44778 Hose, Connector TO Check Valve
44778D Hose, Vacuum Tube TO Connector Tube
44778E Hose, Connector Tube TO Solenoid
44781 Bracket, Hose
44781C Bracket, Hose Clamp, NO.2
44799 Way, Brake Vacuum Hose
44912G Tube, 3 Way TO Magnetic Valve
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
