Front Axle Arm & Steering Knuckle

12 part groups · 9 illustrations

Illustrations

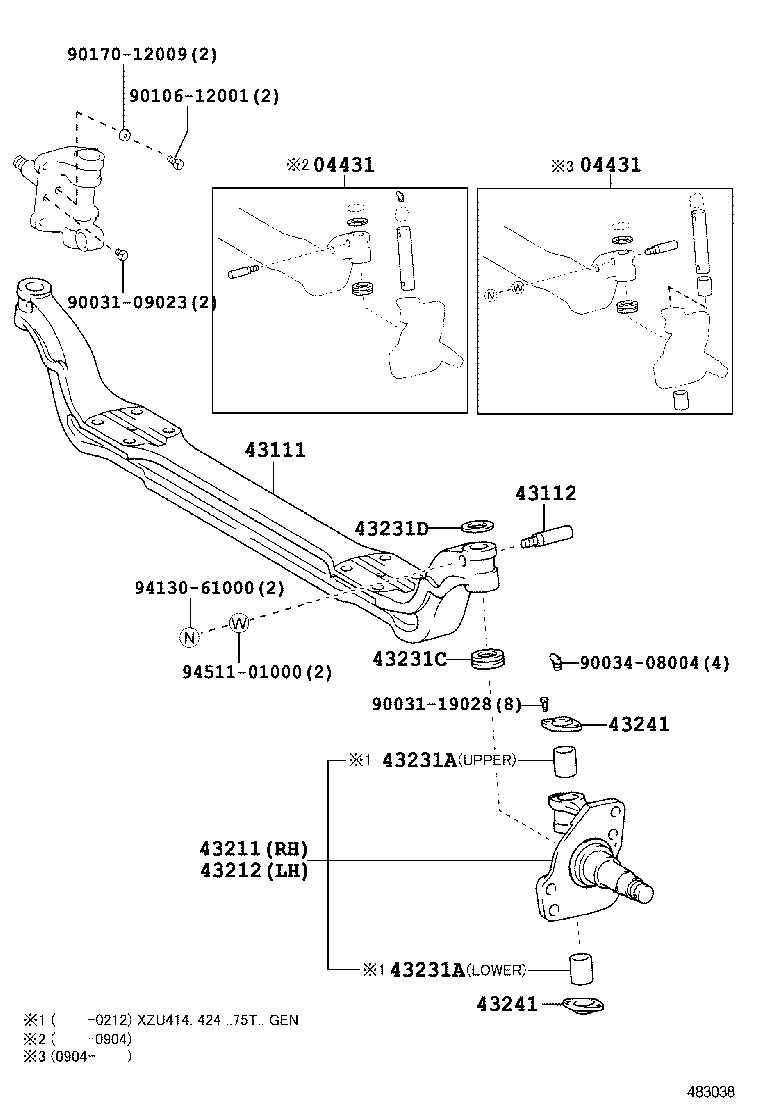

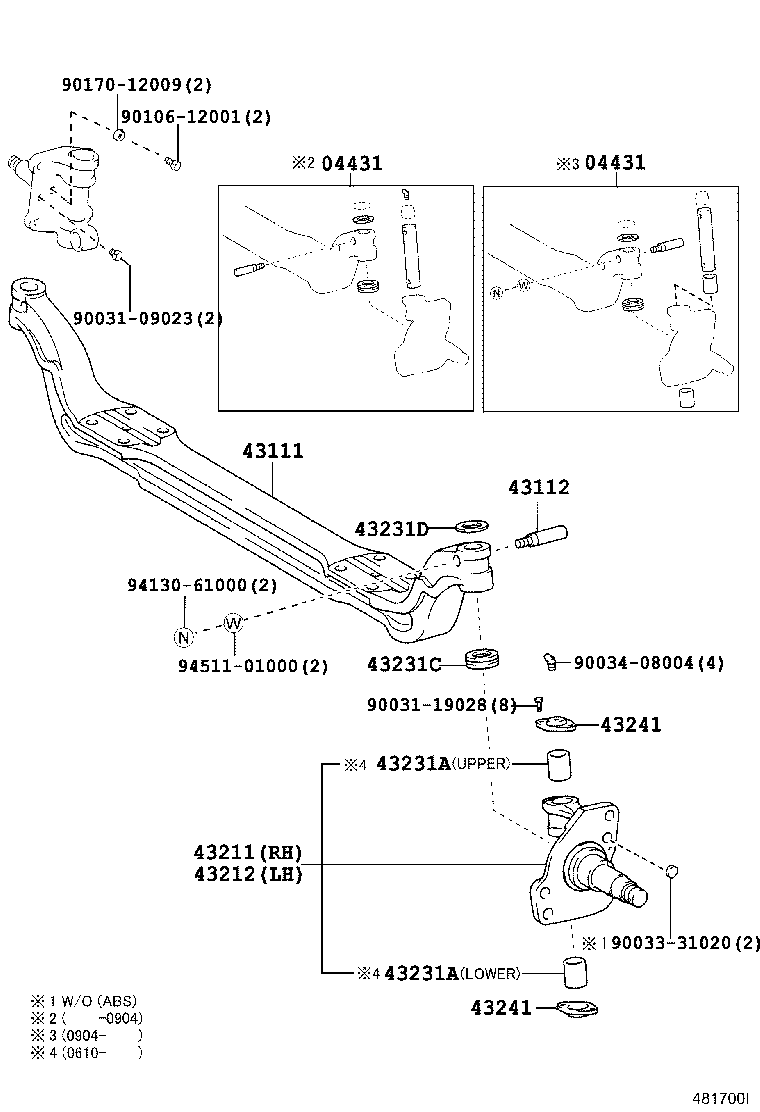

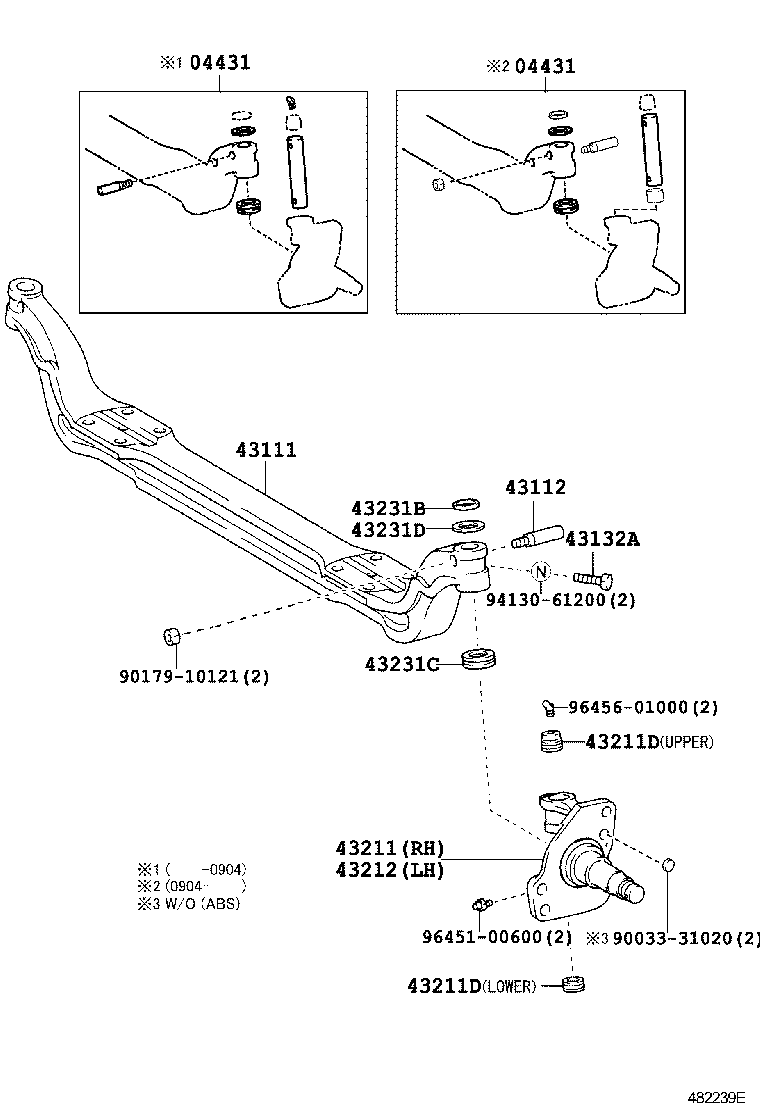

Figure 482750A 482750A 2001-10 → 2005-10 Figure 483038 483038 2001-10 → 2006-10 Figure 483038 483038 2003-04 → — Figure 483038 483038 2004-01 → — Figure 481700I 481700I 2004-11 → — Figure 481700I 481700I 2006-10 → — Figure 481700I 481700I 2006-10 → — Figure 482239E 482239E 2005-10 → — Figure 482239E 482239E 2006-10 → —

Part groups

PNCDescription
04431 Pin Kit, Steering Knuckle King
43111 I Beam, Front Axle
43112 Pin, King Pin Lock
43132A Bolt, Round Hexagon (FOR STEERING KNUCKLE STOPPER BOLT)
43211 Knuckle, Steering, RH
43211D Plug (FOR STEERING KNUCKLE)
43212 Knuckle, Steering, LH
43231A Bush, Bimetal Formed (FOR STEERING KNUCKLE KING PIN BUSH)
43231B Seal, Dust OR Ring, O (FOR STEERING KNUCKLE KING PIN)
43231C Bearing (FOR STEERING KNUCKLE KING PIN)
43231D Shim (FOR KING PIN)
43241 Cover, Steering Kunckle Oil Seal
