Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

56 part groups · 18 illustrations

Illustrations

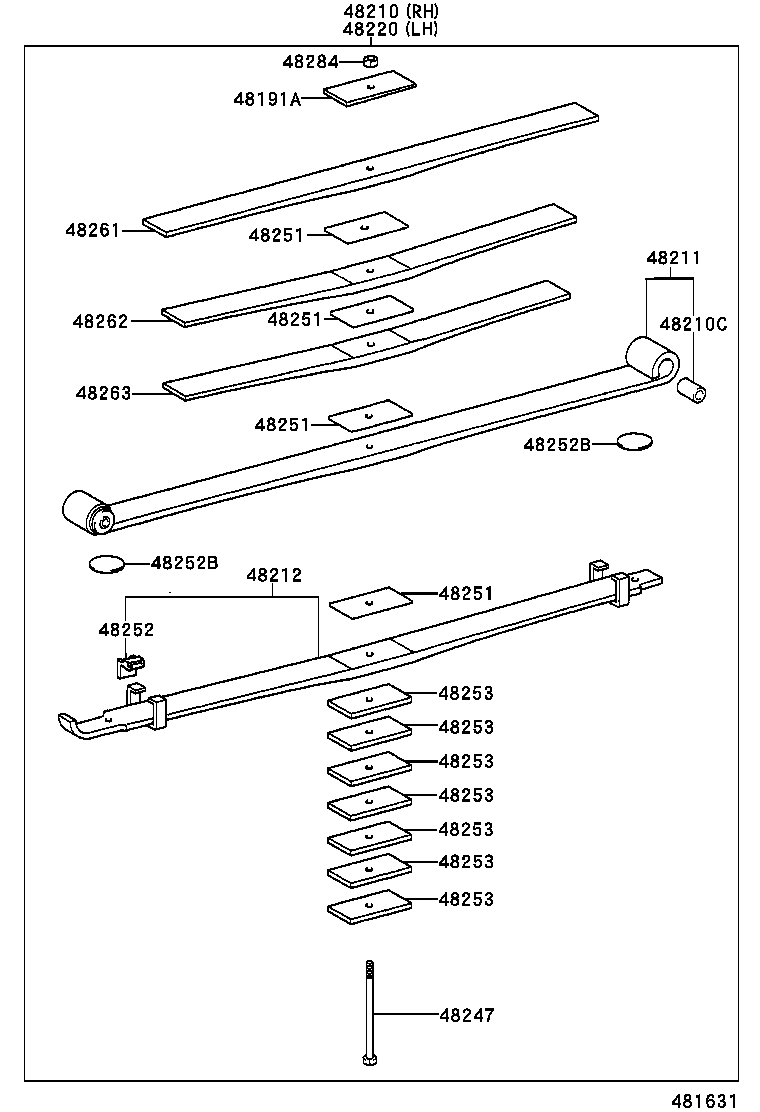

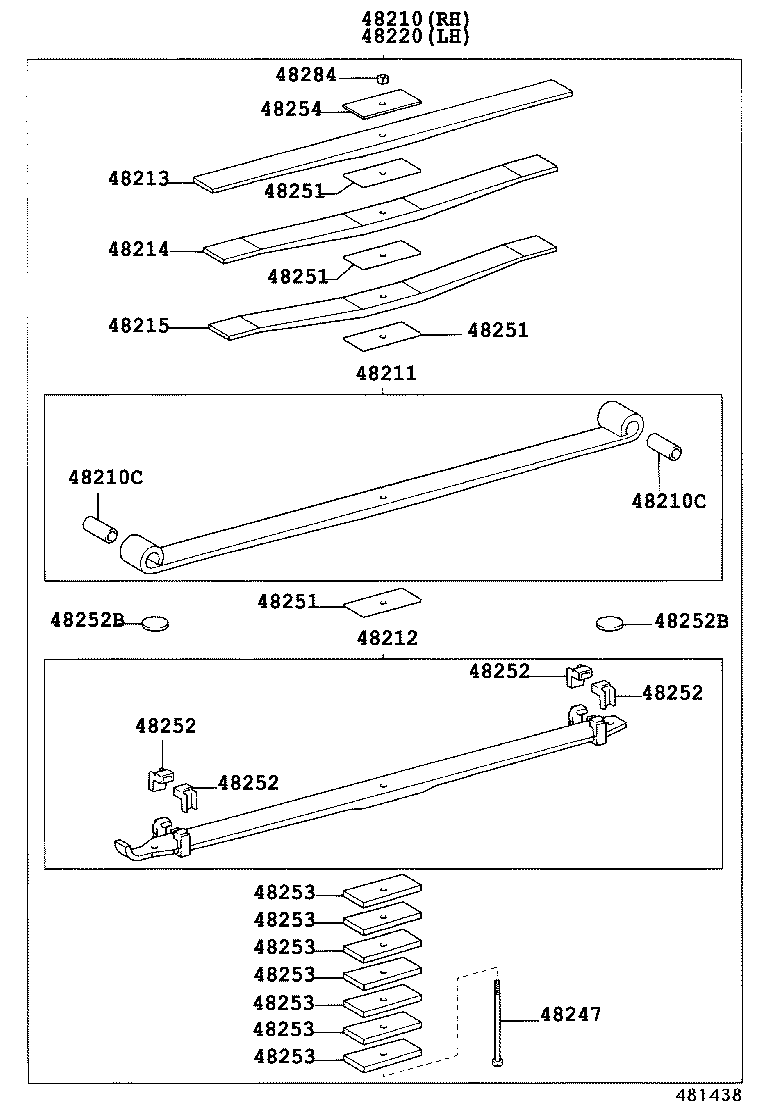

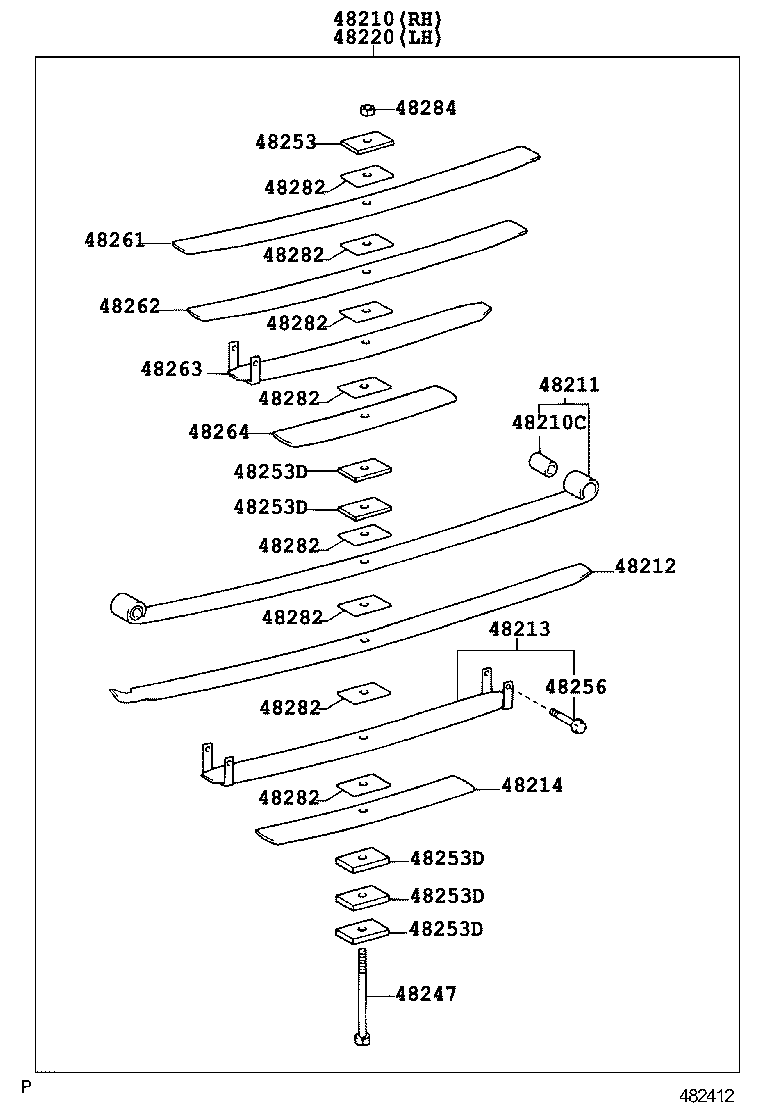

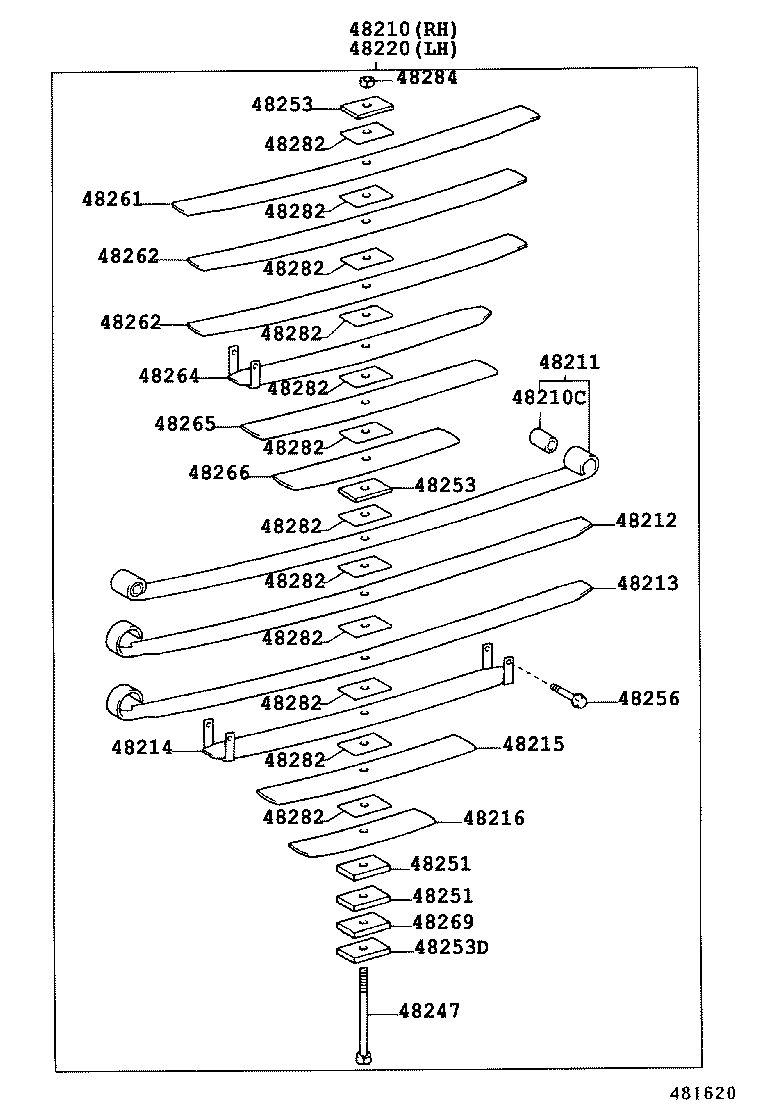

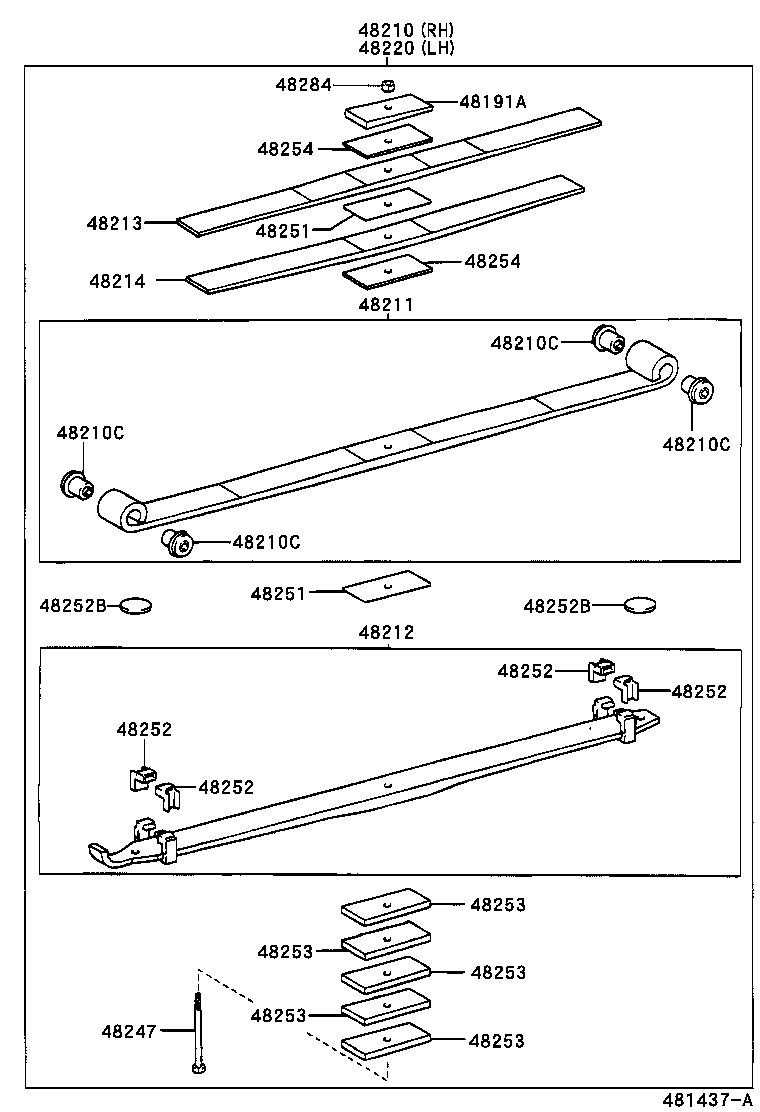

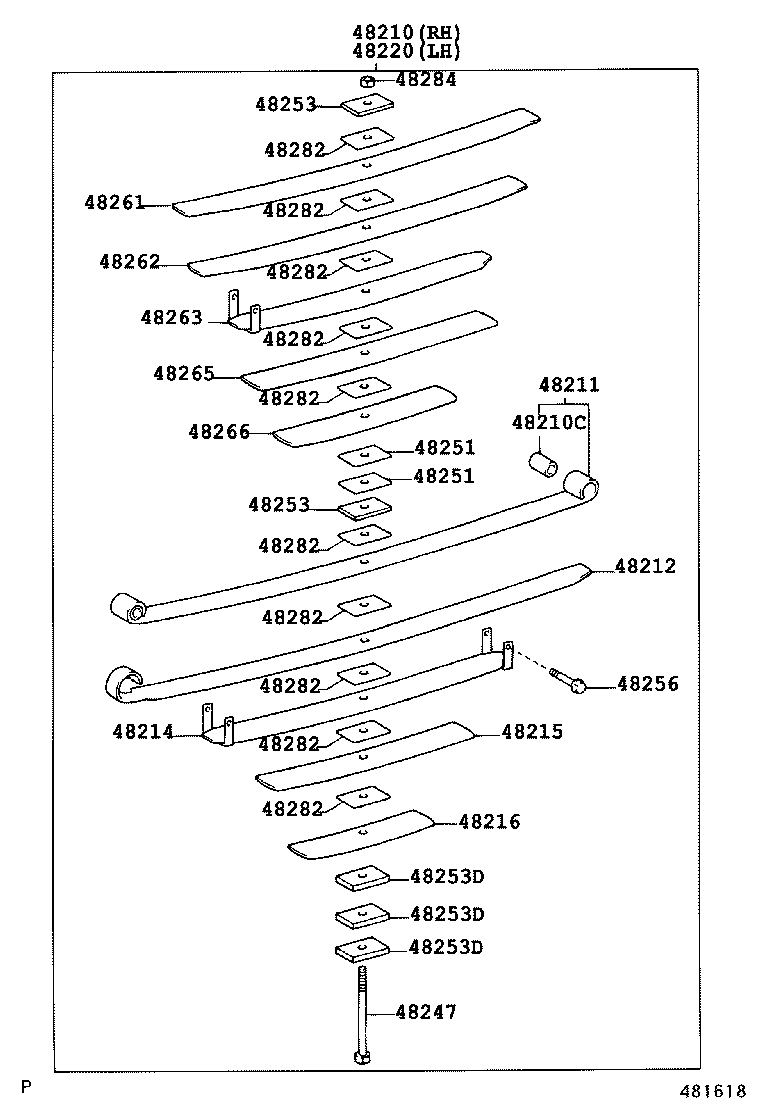

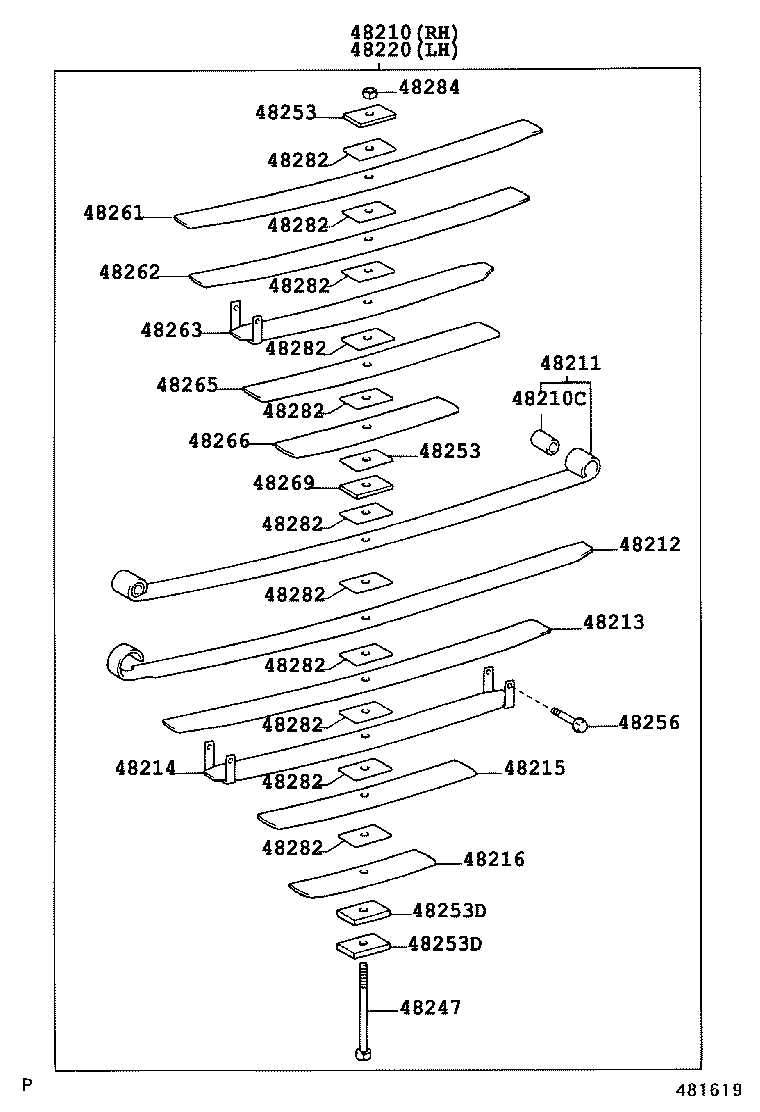

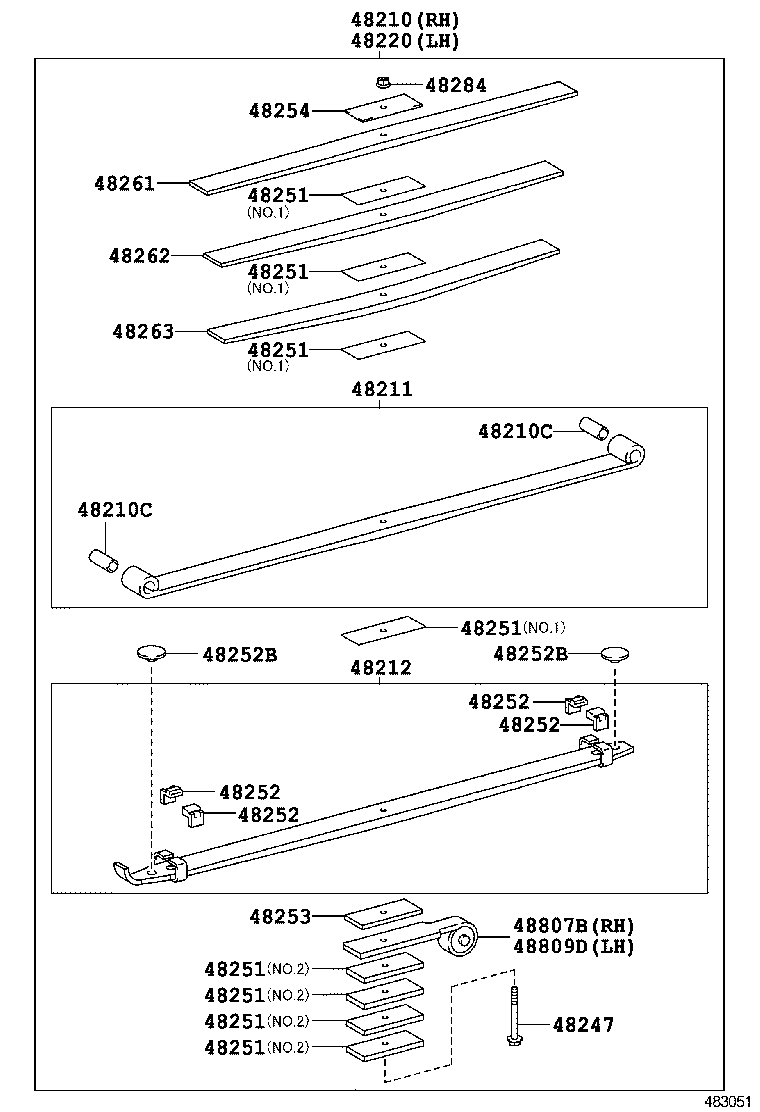

Figure 482393B 482393B 2001-10 → — Figure 481437A 481437A 2001-10 → 2006-10 Figure 481632 481632 2002-12 → 2006-10 Figure 481438 481438 2001-10 → 2006-10 Figure 481438 481438 2006-08 → 2007-08 Figure 481438 481438 2007-08 → — Figure 481631 481631 2002-12 → 2006-10 Figure 483051 483051 2009-08 → — Figure 481618 481618 2001-10 → 2008-01 Figure 481618 481618 2001-10 → 2008-01 Figure 481618 481618 2007-01 → — Figure 481619 481619 2001-10 → 2008-01 Figure 481619 481619 2003-04 → — Figure 481619 481619 2006-10 → — Figure 481620A 481620A 2001-10 → 2008-01 Figure 481620A 481620A 2003-04 → — Figure 481620A 481620A 2006-10 → — Figure 482412 482412 2006-10 → —

Part groups

PNCDescription
48042 Shackle Sub-assy, Rear Spring, NO.2
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48191A Wedge, Caster(FOR REAR LEAF SPRING)
48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48210Q Bush(FOR REAR SPRING SHACKLE)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48220 Spring Assy, Rear LH
48247 Bolt, Rear Spring, Center
48251 Spacer, Rear Spring Leaf
48252 Silencer, Rear Spring
48252B Silencer, Rear Spring, NO.1
48253 Spacer, Rear Spring, NO.1
48253D Spacer, Rear Spring, NO.3
48254 Spacer, Rear Spring Leaf
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48261 Leaf, Rear Helper Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48263 Leaf, Rear Helper Spring, NO.3
48264 Leaf, Rear Helper Spring, NO.4
48265 Leaf, Rear Helper Spring, NO.5
48266 Leaf, Rear Helper Spring, NO.6
48269 Leaf, Rear Helper Spring, NO.9
48282 Seat, Rear Helper Spring
48284 Nut, Rear Spring Center Bolt
48323D Pin, Rear Spring Bracket
48323E Nipple, Grease(FOR REAR SPRING BRACKET PIN)
48344 Stopper, Bumper, Rear
48422A Support, Rear Spring Pin
48435 Attachment, Helper Spring Bracket, NO.1
48481 Seat, Rear Spring, Upper
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530B Washer, Rear Shock Absorber Cushion, NO.1
48540 Absorber Assy, Shock, Rear LH
48807B Bracket Sub-assy, Stabilizer, RH
48809D Bracket Sub-assy, Stabilizer, LH
48812 Bar, Stabilizer, Rear
48815R Bush, Stabilizer(FOR REAR)
48824R Bracket, Stabilizer(FOR REAR)
48830D Link Assy, Rear Stabilizer, RH
48832R Bracket, Rear Stabilizer Bar, NO.1 RH
48833R Bracket, Rear Stabilizer Bar, NO.1 LH
48836B Bracket, Rear Stabilizer End, Inner RH
48836C Bracket, Rear Stabilizer End, Outer RH
48837B Bracket, Rear Stabilizer End, Inner LH
48837C Bracket, Rear Stabilizer End, Outer LH
48840A Link Assy, Rear Stabilizer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
