Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

28 part groups · 7 illustrations

Illustrations

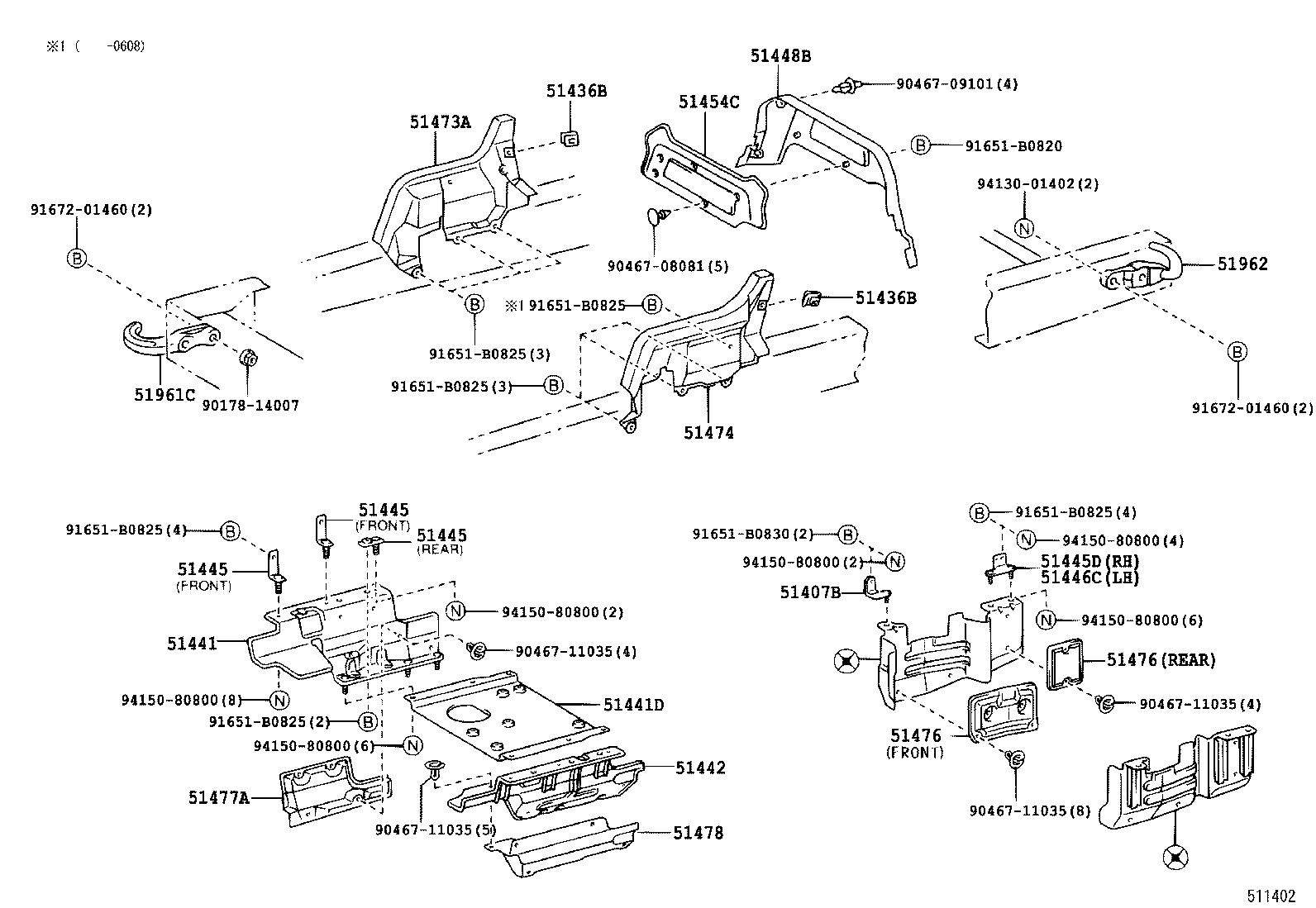

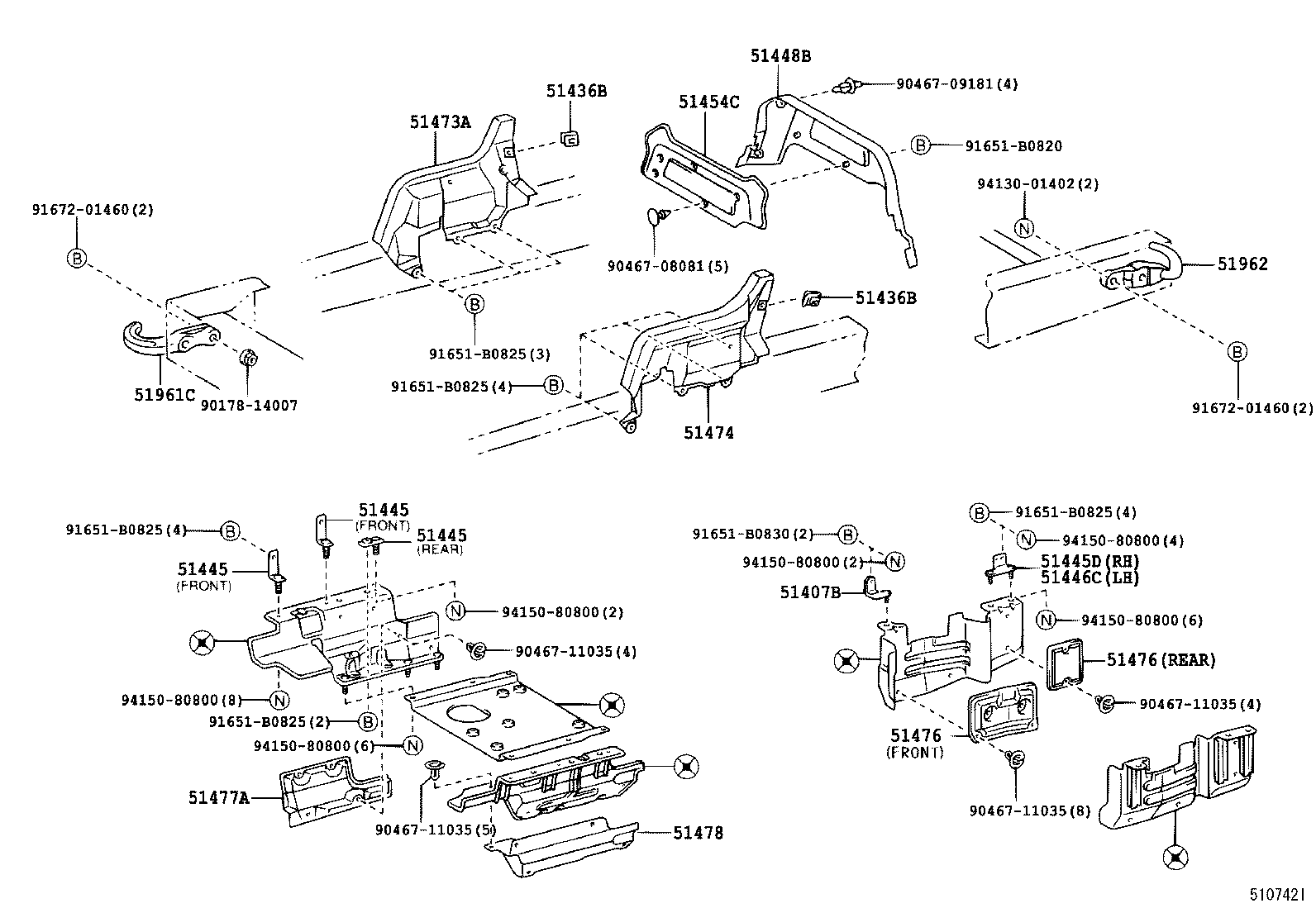

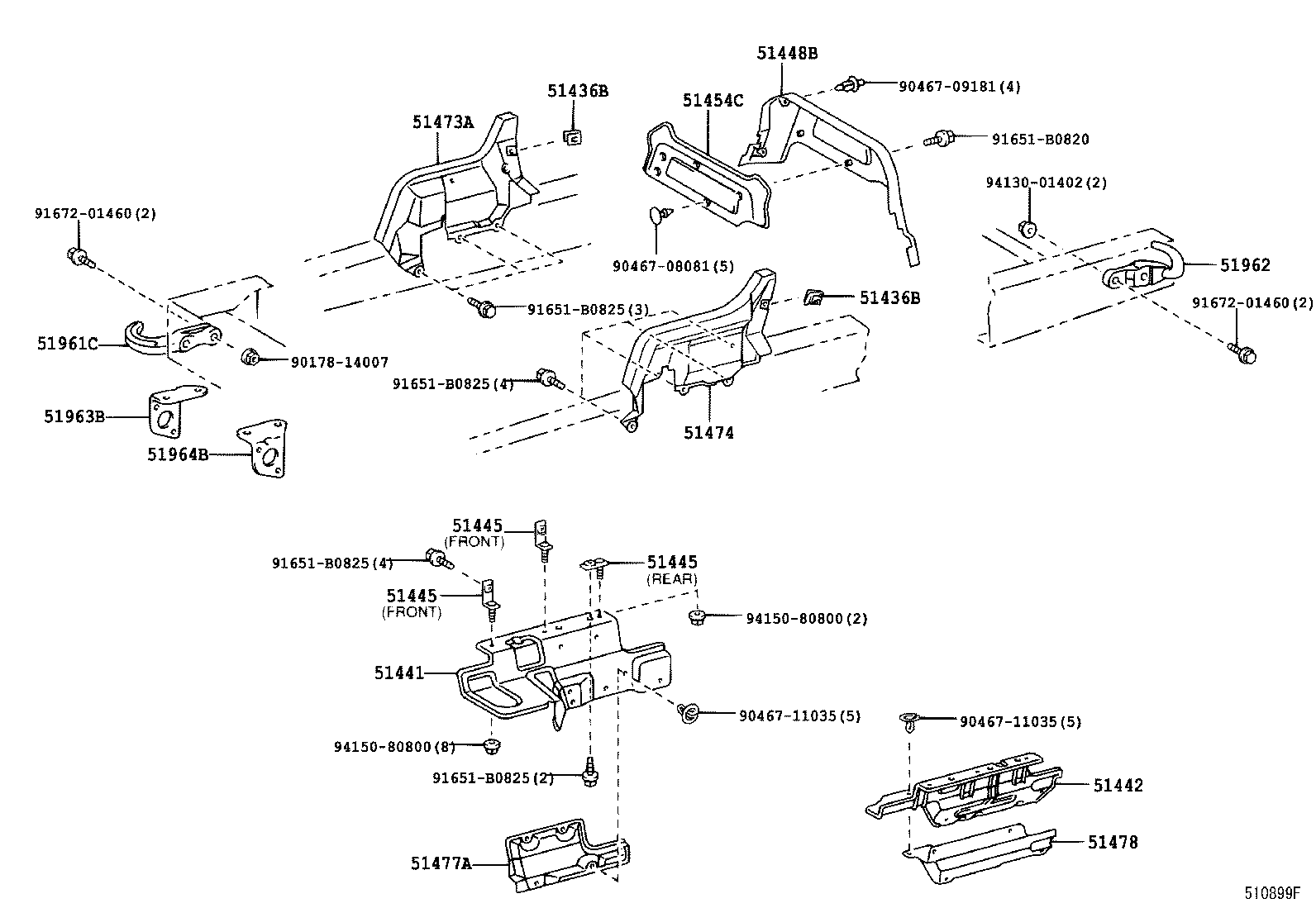

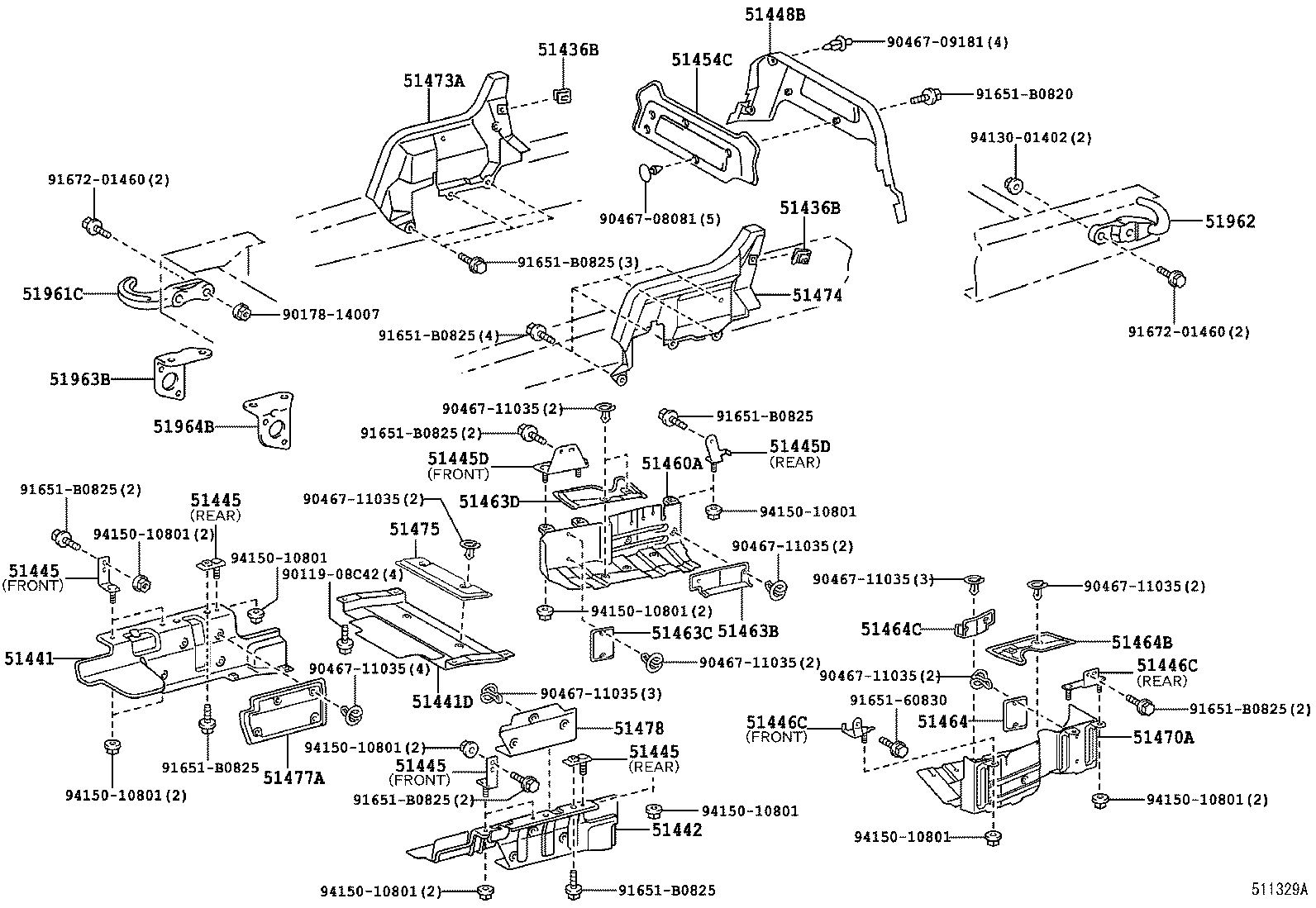

Figure 510741F 510741F 2001-10 → 2005-06 Figure 510741F 510741F 2005-06 → 2006-10 Figure 510741F 510741F 2006-10 → — Figure 510742I 510742I 2001-10 → 2005-06 Figure 510899F 510899F 2002-12 → 2006-10 Figure 511329A 511329A 2005-06 → — Figure 511402A 511402A 2005-06 → —

Part groups

PNCDescription
51407B Bracket Sub-assy, Engine Under Cover
51436B Bracket, Engine Side Cover, NO.1 RH
51441 Cover, Engine Under, NO.1
51441D Cover, Engine Under
51442 Cover, Engine Under, NO.2
51445 Bracket, Engine Under Cover
51445D Bracket, Engine Under Cover, RH
51446C Bracket, Engine Under Cover, LH
51448B Shutter, Engine Rear Side
51454C Silencer, Engine Under Cover, Rear
51460A Cover Assy, Transmission Under, RH
51463B Silencer, Transmission Under, RH NO.1
51463C Silencer, Engine Under Cover, RH
51463D Silencer, Transmission Under, RH NO.2
51464 Silencer, Transmission Under, LH
51464B Silencer, Transmission Under
51464C Silencer, Transmission Under
51470A Cover Assy, Transmission Under, LH
51473A Cover Sub-assy, Engine Side, RH
51474 Cover Sub-assy, Engine Side, LH
51475 Silencer, Engine Under Cover, NO.5
51476 Silencer, Transmission Cover, Center
51477A Silencer, Engine Under Cover, RH
51478 Plate, Engine Side Under Cover, Upper LH
51961C Hook, Front
51962 Hook, NO.2
51963B Hook, Transport, Front RH
51964B Hook, Transport, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
