Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

26 part groups · 2 illustrations

Illustrations

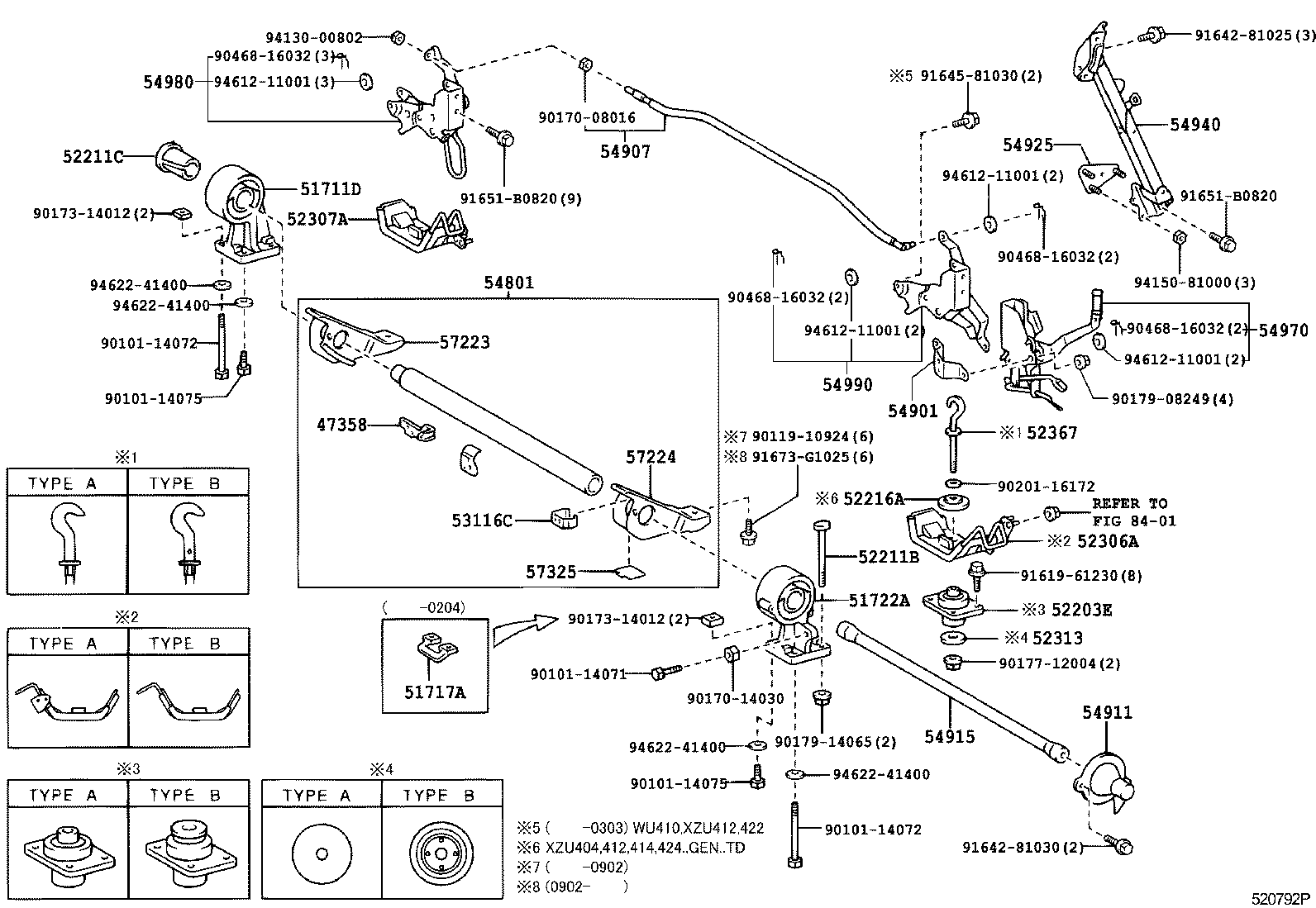

Figure 520965K 520965K 2001-10 → — Figure 520792P 520792P 2001-10 → —

Part groups

PNCDescription
47358 Tube, Booster TO Reservoir, NO.2
51711D Bracket, Cab Front Mounting
51717A Plate, Body Support Bracket
51722A Bracket Sub-assy, Cab Front Mounting, LH
52203E Cushion Sub-assy, Cab Mounting, NO.2
52211B Bolt(FOR BODY MOUNTING NO.1 CUSHION)
52211C Spacer(FOR BODY MOUNTING NO.1 CUSHION)
52216A Stopper, Cab Mounting Cushion
52306A Bracket Sub-assy, Cab Mounting Hook, NO.1
52307A Bracket Sub-assy, Cab Mounting Hook, NO.2
52313 Stopper, Cab Rear Mounting Rebound
52367 Hook, Cab Rear Mounting
53116C Bracket, Radiator Grille, NO.2
54801 Tube Sub-assy, Tilt Cab, NO.1
54901 Bracket Sub-assy, Tilt Cab Lock
54907 Pipe Sub-assy, Tilt Cab Lock Connecting
54911 Arm, Tilt Cab Spring Support, NO.1
54915 Spring, Tilt Cab, NO.1
54925 Retainer, Tilt Cab Spring
54940 Stay Assy, Tilt Cab
54970 Latch Assy, Tilt Cab Stopper
54980 Lock Assy, Tilt Cab Mounting, RH
54990 Lock Assy, Tilt Cab Mounting, LH
57223 Bracket, Front Mounting, RH
57224 Bracket, Front Mounting, LH
57325 Reinforcement, Front Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
