Factory parts data · Europe

Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

4 part groups · 2 illustrations

Illustrations

Figure 520837D

520837D 2001-10 → —

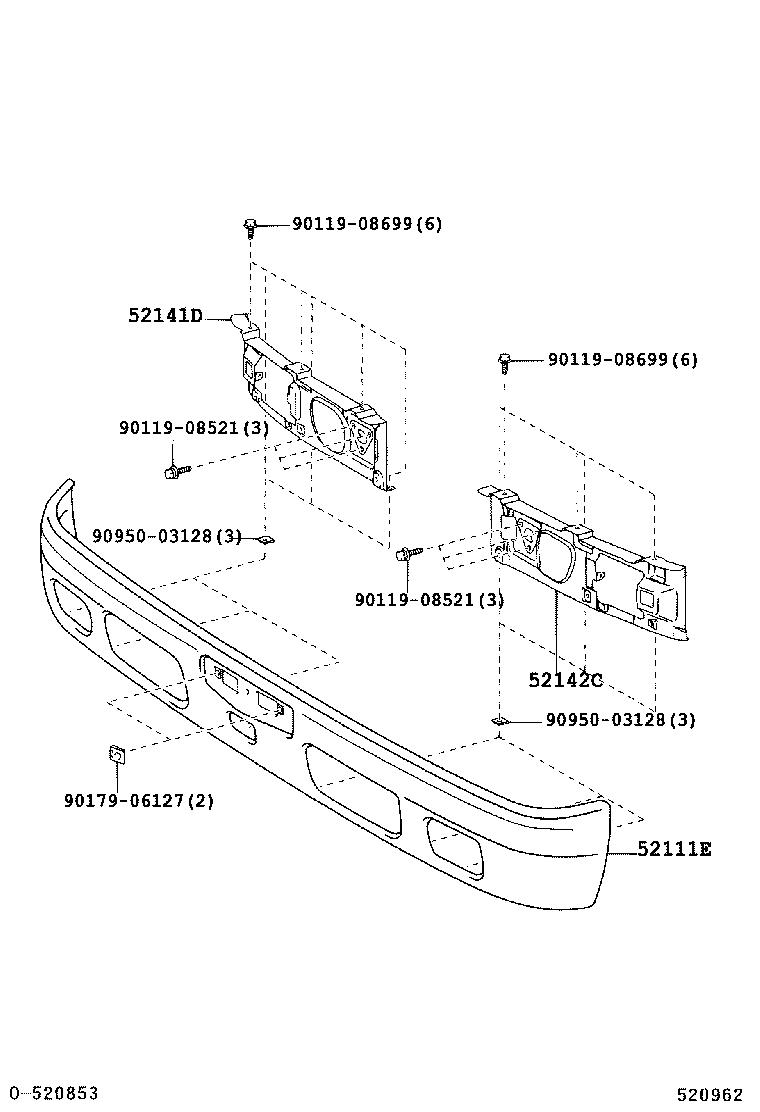

520962 2002-12 → —

Part groups

PNC	Description
52111E	Bar, Front Bumper
52141D	Stay, Front Bumper, RH
52142C	Stay, Front Bumper, LH
52543A	Seal, Front Bumper Side

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
