Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 7 illustrations

Illustrations

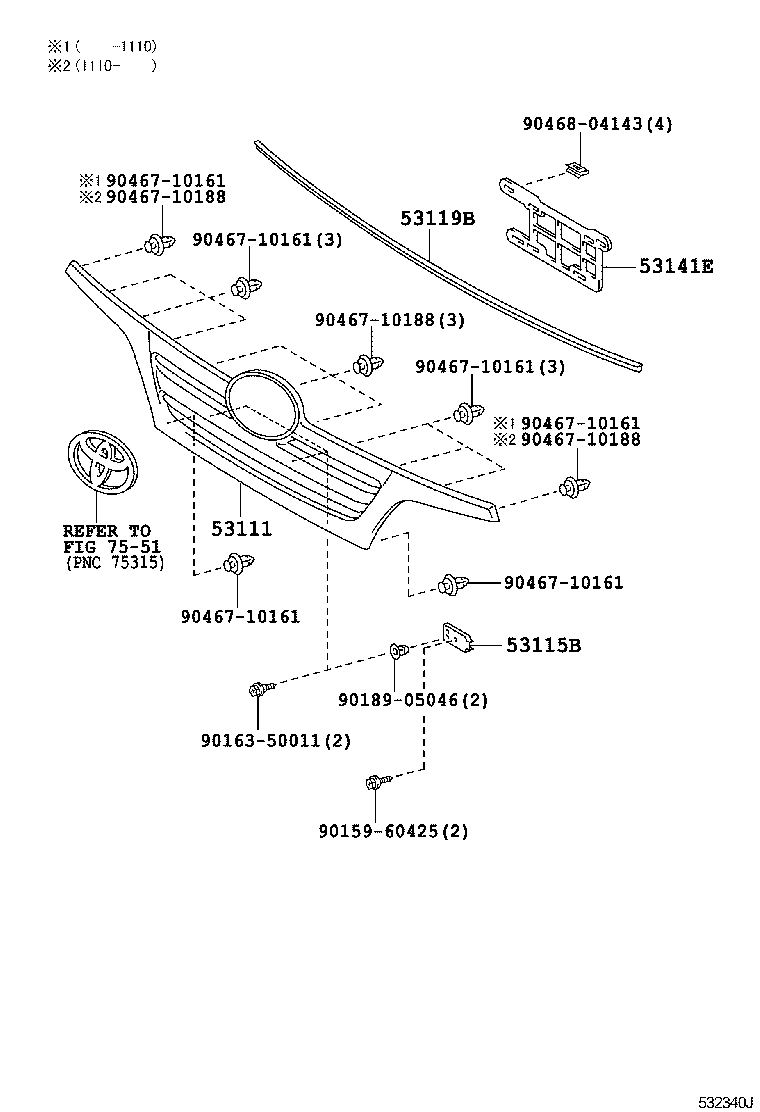

Figure 531193B 531193B 2001-10 → 2002-12 Figure 531193B 531193B 2002-12 → 2004-01 Figure 531440 531440 2002-12 → 2006-10 Figure 531440 531440 2003-04 → 2008-02 Figure 531440 531440 2004-01 → 2007-08 Figure 532340J 532340J 2006-10 → — Figure 532340J 532340J 2008-02 → —

Part groups

PNCDescription
53111 Grille, Radiator
53112B Grille, Radiator Side, RH
53113B Grille, Radiator Side, LH
53115B Bracket, Radiator Grille
53119B Protector, Radiator Grille
53141E Cover, Radiator, NO.1
53155D Seal, Radiator Grille, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
