Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

29 part groups · 3 illustrations

Illustrations

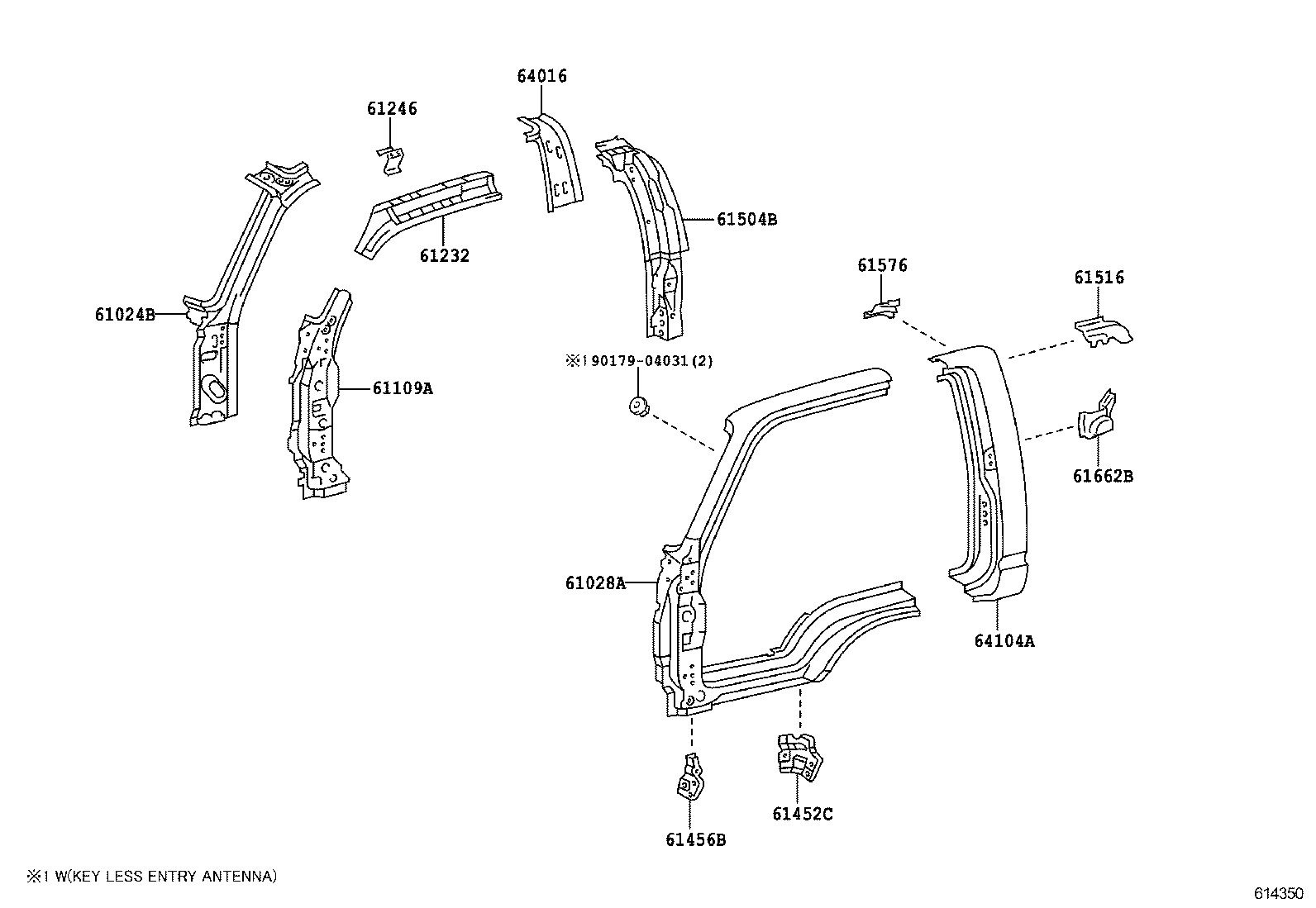

Figure 611492G 611492G 2001-10 → — Figure 614350 614350 2001-10 → — Figure 611493C 611493C 2001-10 → —

Part groups

PNCDescription
61023B Pillar Sub-assy, Front Body, Inner RH
61024B Pillar Sub-assy, Front Body, Inner LH
61027A Pillar Sub-assy, Front Body, Outer RH
61028A Pillar Sub-assy, Front Body, Outer LH
61108A Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A Reinforce Sub-assy, Front Body Pillar, Lower LH
61231 Rail, Roof Side, Inner RH
61232 Rail, Roof Side, Inner LH
61245 Reinforcement, Roof Side Rail, Outer RH
61246 Reinforcement, Roof Side Rail, Outer LH
61395 Seal, Center Body Pillar, RH
61396B Seal, Center Body Pillar, LH
61451B Plate, Step, Lower RH
61452C Plate, Step, Lower LH
61455A Retainer, Front Step, RH
61456B Retainer, Front Step, LH
61503B Reinforcement Sub-assy, Quarter Lock Pillar, RH
61504B Reinforcement Sub-assy, Quarter Lock Pillar, LH
61515B Extension, Quarter Lock Pillar, RH
61516 Extension, Quarter Lock Pillar, LH
61575B Plate, Cab Rear Pillar, Upper RH
61576 Plate, Cab Rear Pillar, Upper LH
61661D Extension, Quarter Panel TO Upper Back, RH
61662B Extension, Quarter Panel TO Upper Back, LH
61667D Seal, Quarter Panel
64015 Panel Sub-assy, Back Corner, Inner RH
64016 Panel Sub-assy, Back Corner, Inner LH
64103A Panel Sub-assy, Back Corner, Outer RH
64104A Panel Sub-assy, Back Corner, Outer LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
