Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

58 part groups · 5 illustrations

Illustrations

650442D 2002-12 → 2006-10

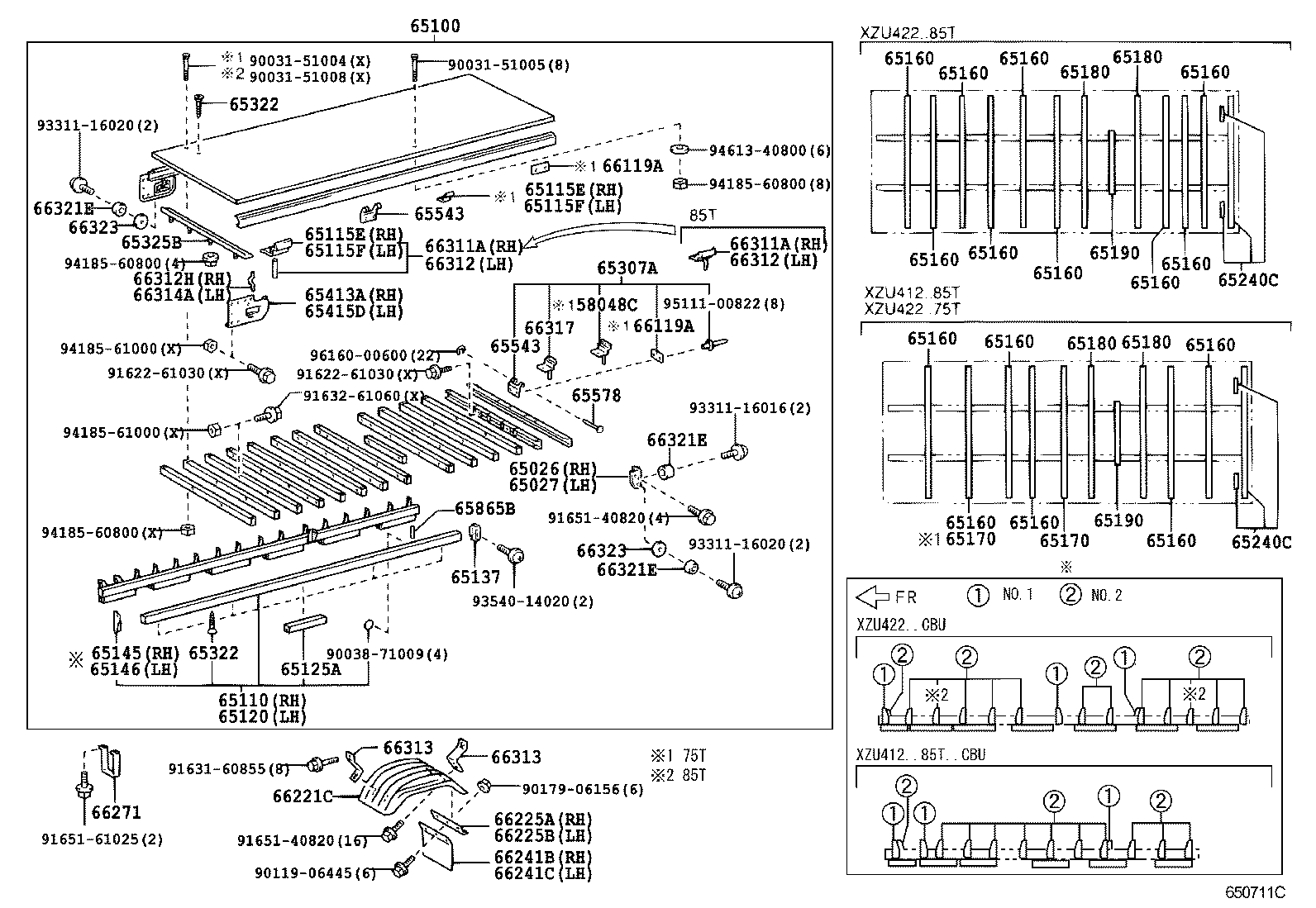

650711C 2002-12 → 2006-10

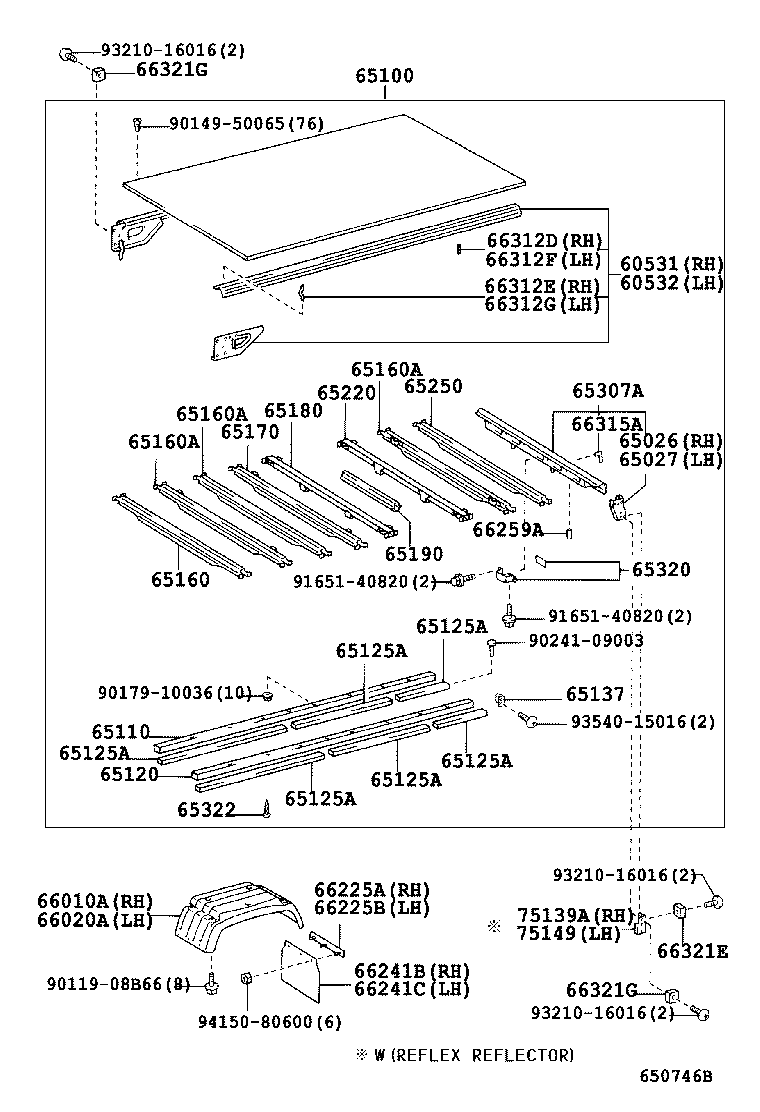

650746B 2006-10 → —

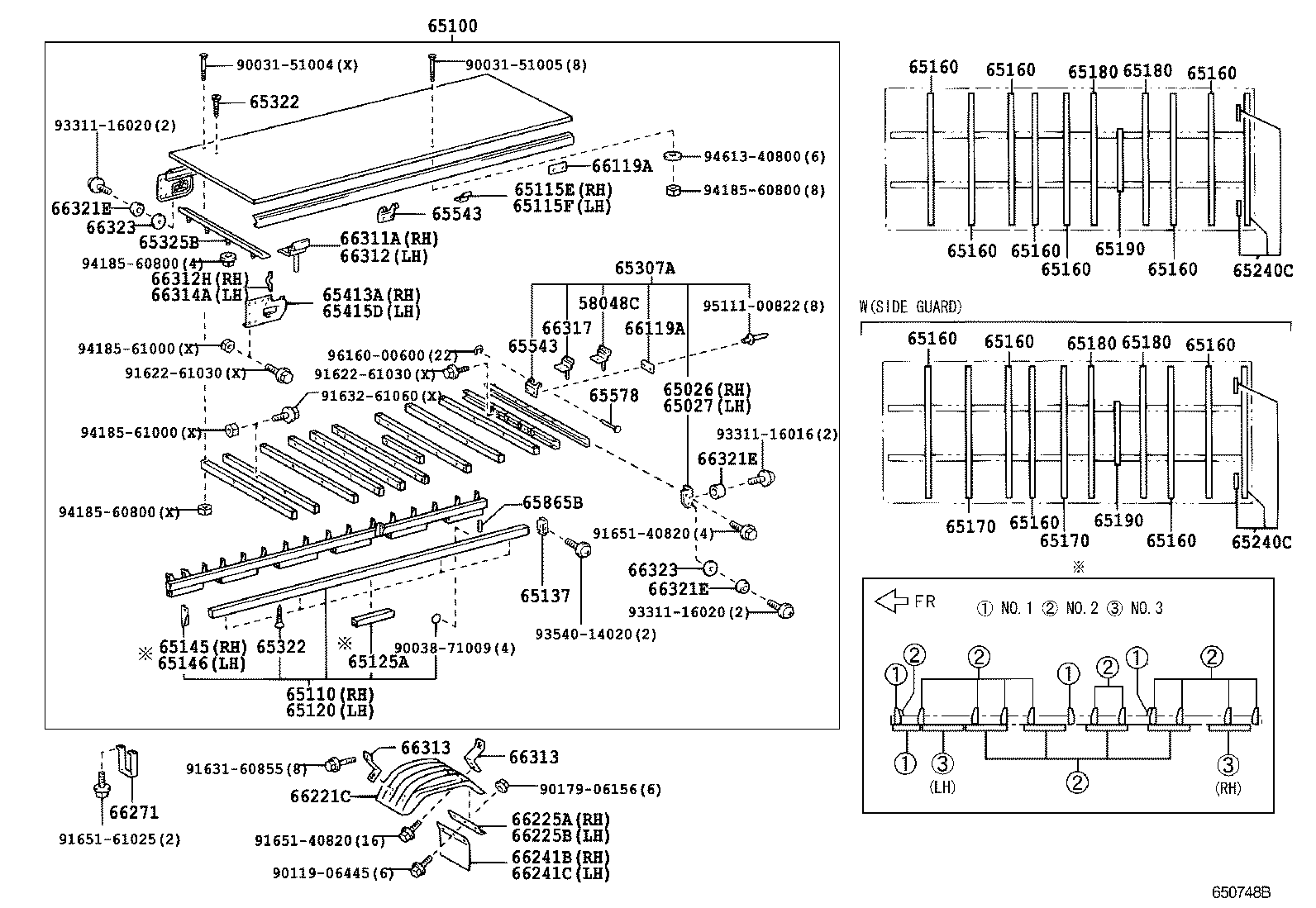

650748B 2006-10 → —

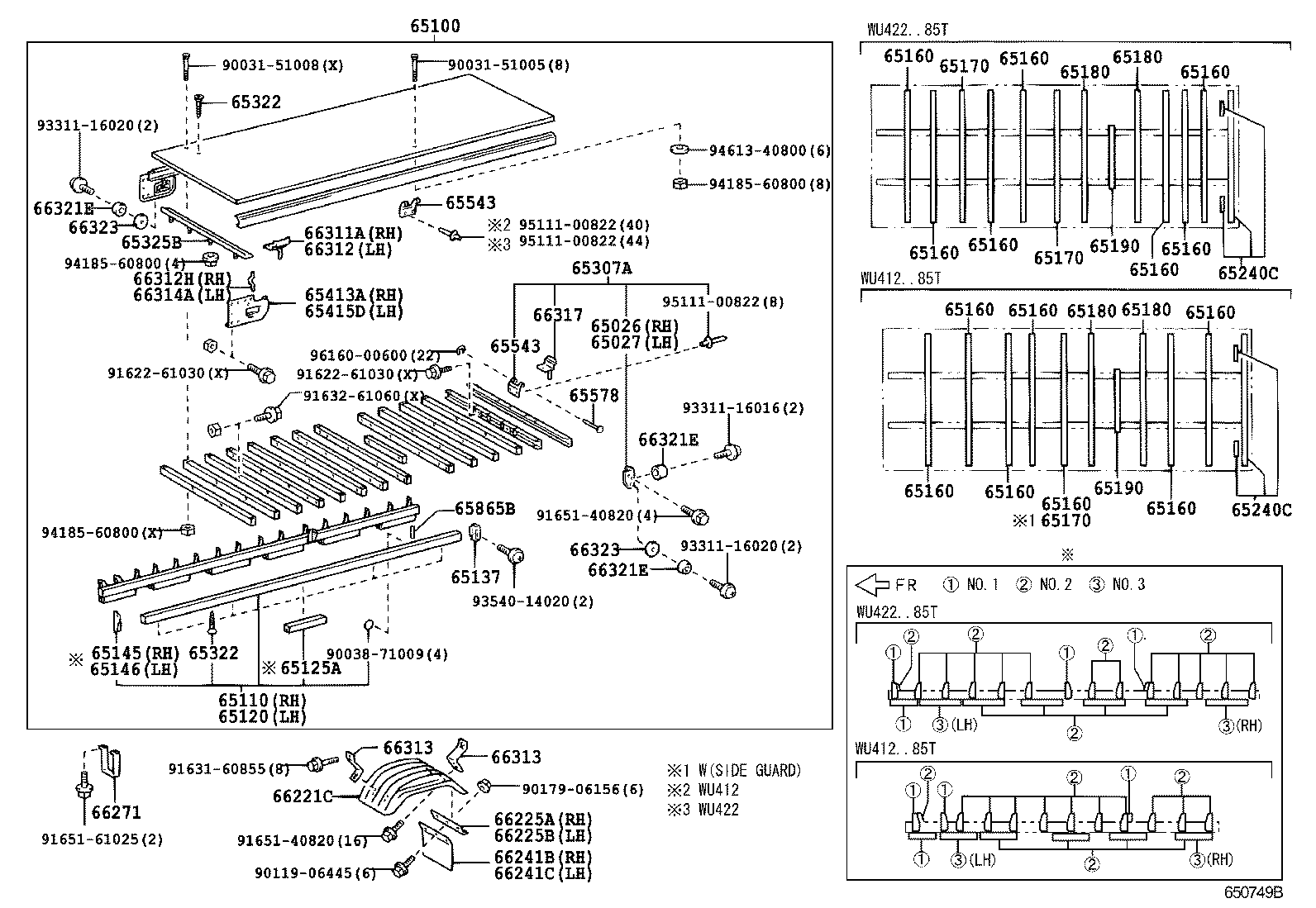

650749A 2006-10 → —

Part groups

PNC	Description
58048C	Hook Sub-assy, Rope, NO.1
60531	Frame Sub-assy, Floor Side, RH
60532	Frame Sub-assy, Floor Side, LH
65026	Bracket Sub-assy, Gate Rubber Bumper, RH
65027	Bracket Sub-assy, Gate Rubber Bumper, LH
65100	Floor Assy, Rear Body
65110	Sill Assy, Main, RH
65115E	Support, Cross Sill
65115F	Support, Cross Sill
65120	Sill Assy, Main, LH
65125A	Shim, Main Sill, Lower NO.1
65137	Cover, Main Sill End
65145	Gusset, Cross Sill
65146	Gusset, Cross Sill
65160	Sill Assy, Cross, NO.2
65160A	Sill Assy, Cross, NO.2
65160B	Sill Assy, Cross, NO.2
65170	Sill Assy, Cross, NO.2
65180	Sill Assy, Cross, NO.4
65190	Sill Assy, Cross, NO.5
65220	Sill Assy, Cross, NO.4
65240C	Sill Assy, Cross, NO.9
65250	Sill Assy, Cross, NO.2
65307A	Frame Sub-assy, Floor, Rear
65320	Plate, Rear Floor End
65322	Nail
65325B	Plate, Floor Board, Front
65413A	Bracket, Guard Frame, RH
65415D	Bracket, Guard Frame, LH
65543	Hinge, Side Gate Female
65578	Pin, Side Gate Hinge
65865B	Pin, Cover Top Guide
66010A	Fender Assy, Rear NO.2 RH
66020A	Fender Assy, Rear NO.2 LH
66119A	Patch, Hinge Gate Male
66221C	Plate, Rear Fender, Rear
66225A	Support, Baffle Rubber
66225B	Support, Buffle Rubber
66241B	Baffle, Rubber
66241C	Buffle, Rubber
66259A	Cover, Rear Body Floor, Rear
66271	Step, Rear Body
66311A	Hook, Rope, NO.1
66312	Hook, Rope, NO.2
66312D	Hook, Rope, NO.2
66312E	Hook, Rope, NO.2
66312F	Hook, Rope, NO.2
66312G	Hook, Rope, NO.2
66312H	Hook, Rope
66313	Support, Rear Fender
66314A	Hook, Rope, NO.4
66315A	Hook, Rope
66317	Hook, Rope, NO.7
66321E	Bumper, Gate Rubber
66321G	Bumper, Gate Rubber
66323	Spacer, Gage Rubber Bumper
75139A	Bracket, Reflex Reflector, RH
75149	Bracket, Reflex Reflector, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
