Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

5 part groups · 2 illustrations

Illustrations

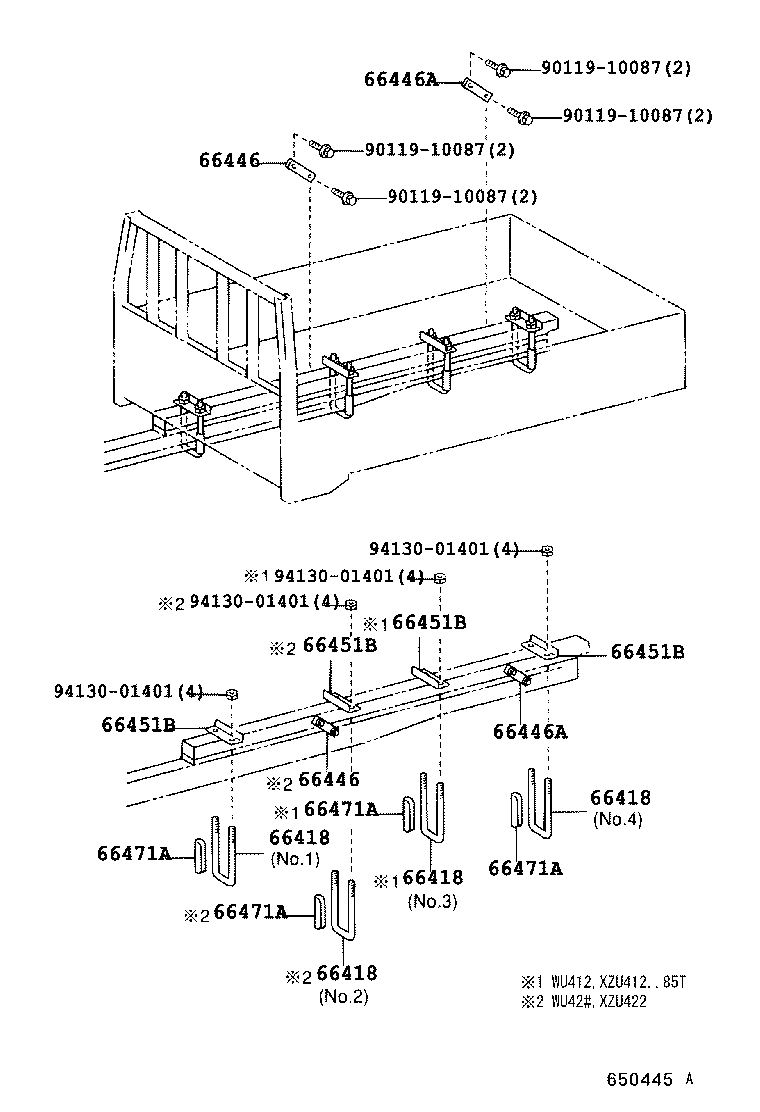

Figure 650444A 650444A 2002-12 → — Figure 650445A 650445A 2002-12 → —

Part groups

PNCDescription
66418 Bolt, Mounting
66446 Brace, Frame Floor
66446A Brace, Frame TO Rear Body Floor
66451B Plate, U Bolt
66471A Reinforcement, Frame U Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
