Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

43 part groups · 11 illustrations

Illustrations

712211A 2001-10 → 2006-10

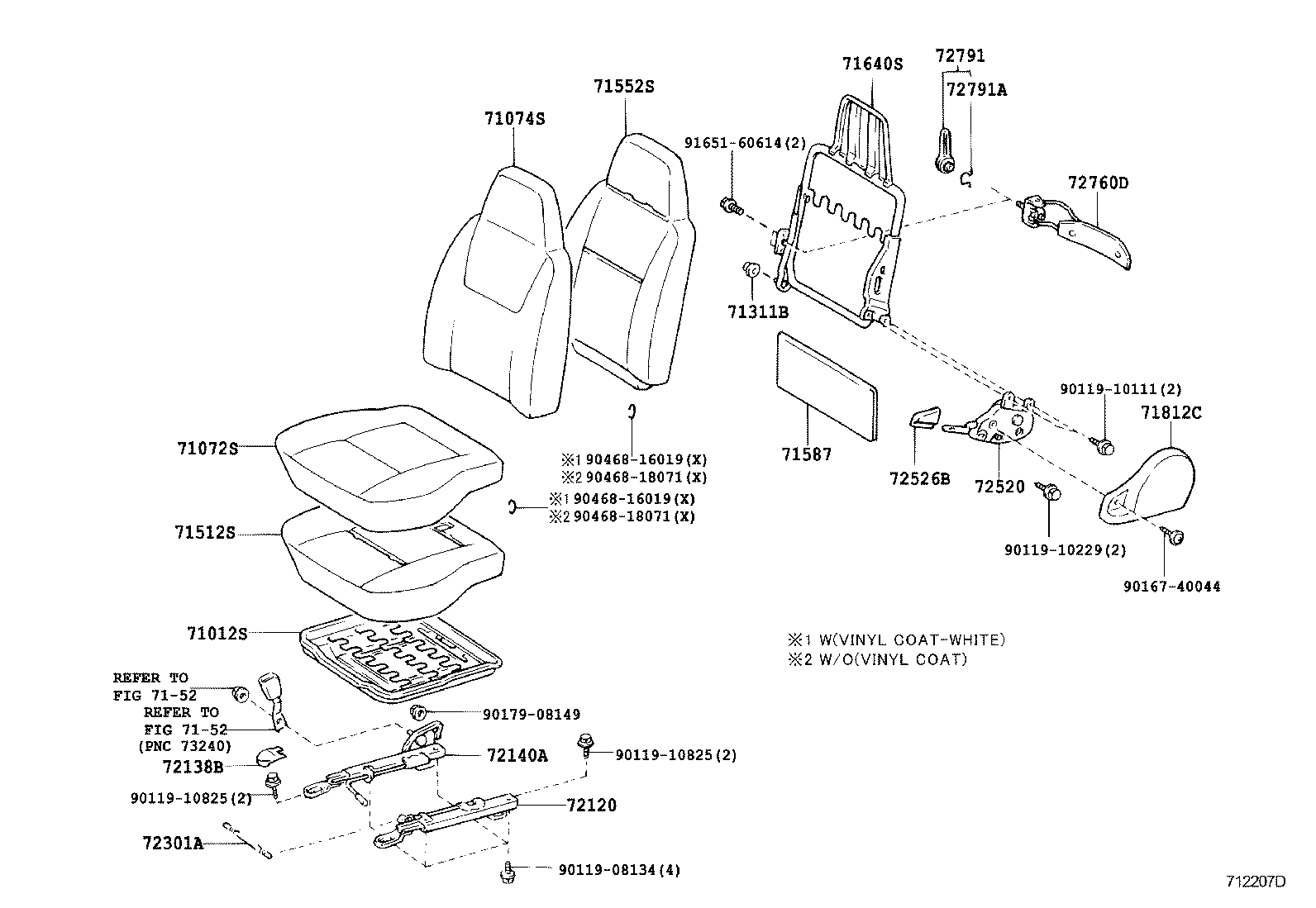

712207D 2001-10 → —

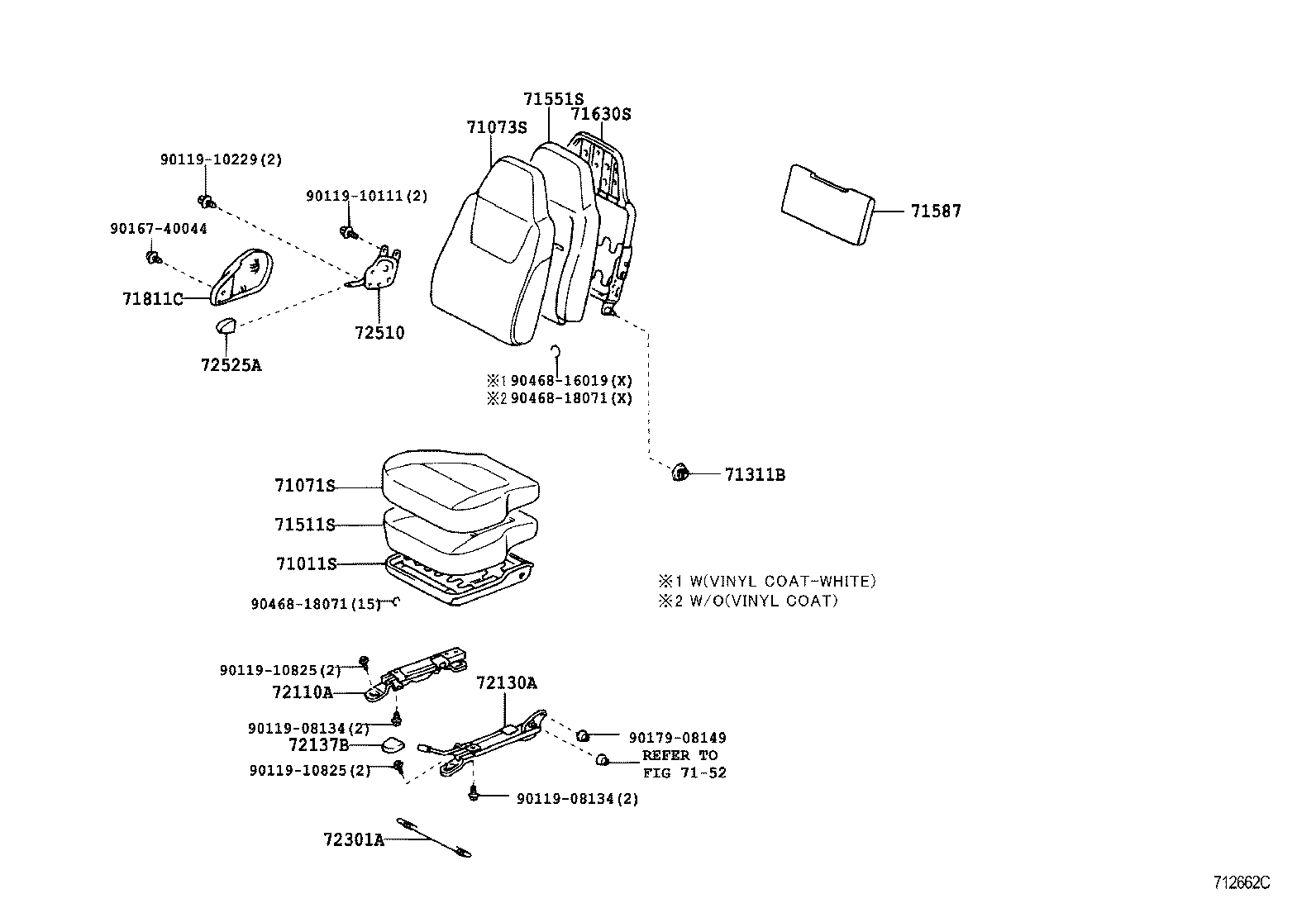

712662C 2002-12 → 2006-10

712662C 2002-12 → —

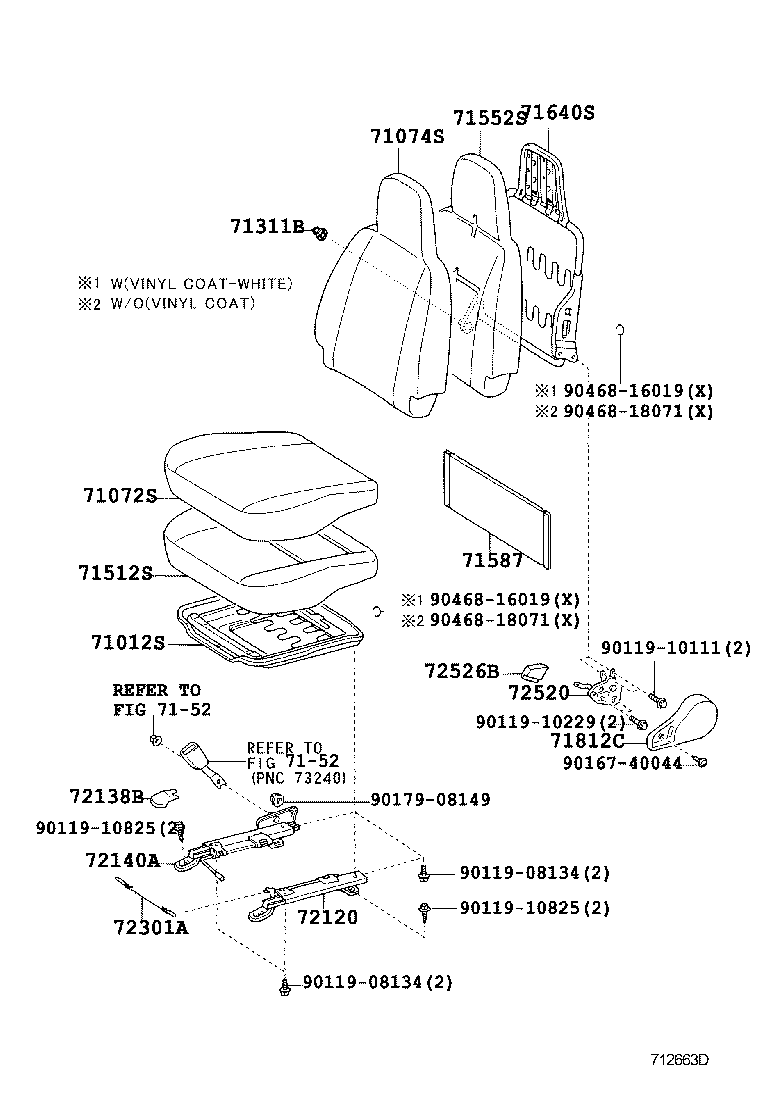

712663D 2002-12 → 2006-10

712663D 2004-11 → 2008-05

Part groups

PNC	Description
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71035S	Cover, Front Seatback, Center
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71302F	Hinge Sub-assy, Front LH Seatback, LH
71305S	Frame Sub-assy, Center Seatback
71311B	Bush (FOR FRONT SEAT HINGE PIN)
71332B	Spacer, Rear Seatback Hinge
71365S	Pad, Center Seatback
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587	Protector, Front Seatback Edge
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71811C	Cover, Reclining Adjuster, RH
71812C	Cover, Reclining Adjuster, LH
71831D	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71875A	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
72110A	Track Assy, Front Seat, Outer RH
72120	Track Assy, Front Seat, Outer LH
72130A	Track Assy, Front Seat, Inner RH
72137B	Cover, Seat Track, RH
72138B	Cover, Seat Track, LH
72140A	Track Assy, Front Seat,Inner LH
72301A	Wire Sub-assy, Seat Track Equalizing, RH
72510	Adjuster Assy, Reclining Seatback, RH
72520	Adjuster Assy, Reclining Seatback, LH
72520D	Adjuster Assy, Reclining Seat, Outer LH
72525A	Handle, Reclining Adjuster Release, RH
72526B	Handle, Reclining Adjuster Release, NO.1 LH
72550B	Adjuster Assy, Reclining Seat, Center RH
72750D	Adjuster Assy, Lumbar Support, RH
72760D	Adjuster Assy, Lumbar Support, LH
72791	Lever, Lumbar Support
72791A	Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
