Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

15 part groups · 7 illustrations

Illustrations

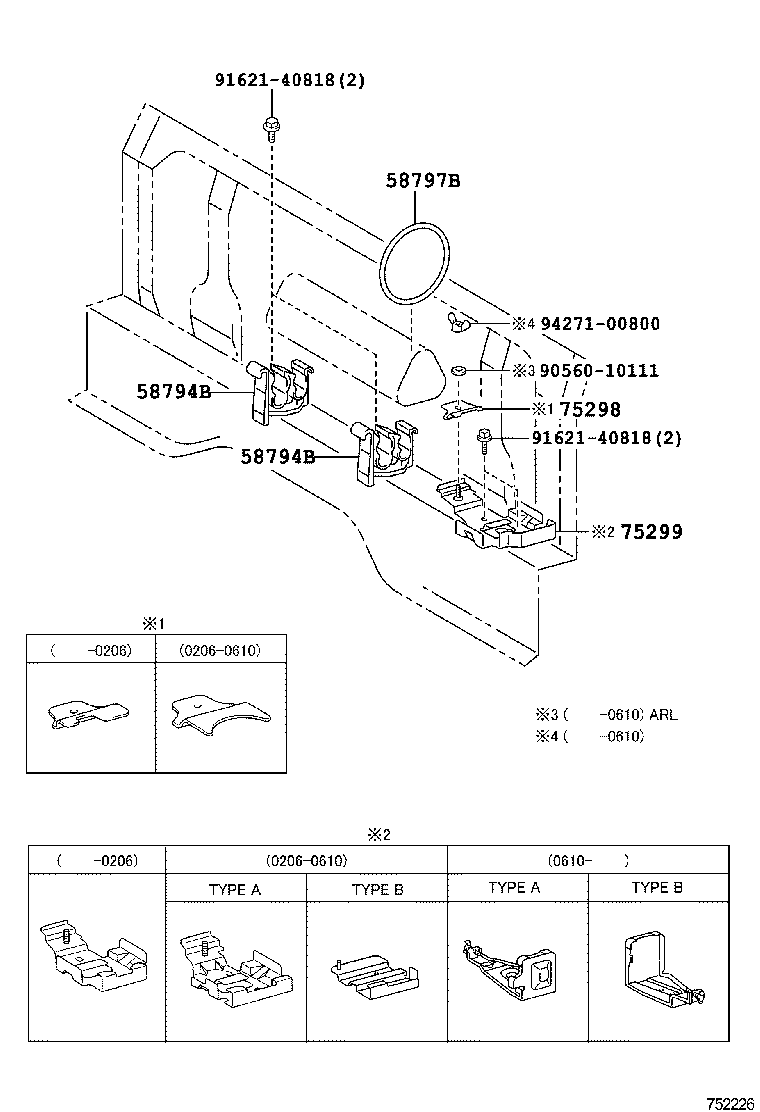

Figure 751004D 751004D 2001-10 → — Figure 752226 752226 2001-10 → — Figure 752227 752227 2002-12 → — Figure 752227 752227 2006-10 → — Figure 752228 752228 2002-12 → — Figure 752229 752229 2002-12 → 2006-10 Figure 752229 752229 2006-10 → —

Part groups

PNCDescription
47379 Spacer, Brake Tube, NO.1
47379A Spacer, Brake Tube, NO.2
58794B Support, Jack Handle
58797B Band, Jack Clamp
66407 Stay Sub-assy, License Plate Bracket
66490 Hanger Assy, License Plate Bracket
75102 Bracket Sub-assy, Rear License Plate
75135 Bracket, Combination Rear Lamp, RH
75136 Bracket, Combination Rear Lamp, LH
75139 Bracket, Reflex Reflector
75201 Box Sub-assy, Tool W/Stay
75221A Bracket, Tool Box, RH
75222 Bracket, Tool Box, LH
75298 Plate, Jack Holder
75299 Base, Jack Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
